Azure VM Creation: Understanding VHD Support Limitations for Virtual Machines

Updated: 10 Feb, 2025 • 0 • min read

Table of Contents

Applies to: ✔️ Linux VMs ✔️ Windows VMs

This article provides guidance to rectify VHD errors encountered when deploying Virtual Machines (VMs) in Microsoft Azure, specifically for both Windows and Linux environments. Understanding and resolving these errors is crucial for a smooth and successful VM creation process. This document will walk you through the common symptoms, underlying causes, and effective resolutions to address VHD related issues during Azure VM deployment.

Symptoms¶

When attempting to create a virtual machine in Microsoft Azure using an uploaded Virtual Hard Disk (VHD), the deployment process may fail. This failure is often indicated by a specific error message returned by Azure. The error message typically resembles the following:

New-AzureRmVM : Long running operation failed with status 'Failed'.
ErrorCode: InvalidVhd
ErrorMessage: The specified cookie value in VHD footer indicates that disk 'diskname' with blob https://xxxxxx.blob.core.windows.net/vhds/samplename.vhd is not a supported VHD. Disk is expected to have cookie value 'conectix'.

This error message clearly points towards an issue with the VHD file itself. The key indicators are “InvalidVhd” as the ErrorCode and the detailed message about the “cookie value” and the expectation of “conectix”. This suggests that Azure is detecting a problem with the VHD’s internal structure or format, preventing it from being used to create a VM. This error will halt the VM creation process, and the virtual machine will not be successfully deployed.

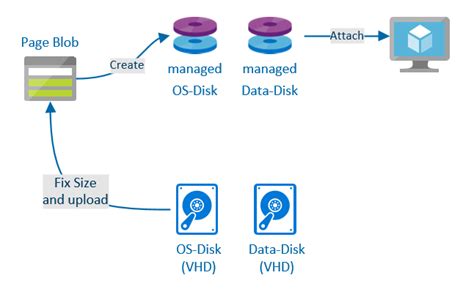

Azure VM VHD Support

Cause¶

The occurrence of this “InvalidVhd” error during Azure VM creation can be attributed to several underlying factors related to the VHD file. The most common causes are related to the VHD’s formatting, structure, or potential corruption. Specifically, two primary reasons are frequently identified:

Incorrect VHD Alignment: Azure infrastructure has specific requirements regarding the alignment of the VHD file. Specifically, the VHD needs to be aligned to a 1 MB boundary. This means the size of the virtual disk must be a multiple of 1 MB. If the VHD size does not adhere to this 1 MB alignment, Azure may reject the VHD as invalid. For example, a valid disk size would be 102,400 MB (100 GB), 204,800 MB (200 GB), or 102,401 MB, as long as it is a multiple of 1MB or very close to it due to rounding errors. Disks that are not properly aligned can lead to performance issues and compatibility problems within the Azure environment, hence the validation check during VM creation.
Corrupted or Unsupported VHD: Beyond alignment, the VHD itself might be corrupted or in an unsupported format. Corruption can occur during various stages, such as during the VHD creation process, file transfer, or storage. An unsupported VHD format could also trigger this error. While Azure primarily supports fixed VHD format, inconsistencies or deviations from the expected VHD structure can lead to rejection. Additionally, certain types of VHD corruption that are not readily apparent might still cause Azure’s validation checks to fail. This could be due to issues within the VHD’s metadata, file system inconsistencies within the VHD, or other internal structural problems.

It is important to differentiate between these two causes when troubleshooting the “InvalidVhd” error. While both result in the same error message during VM creation, the resolution steps differ slightly depending on the root cause.

Resolution¶

To resolve the “InvalidVhd” error and successfully create your Azure VM, you will need to address the underlying issues related to the VHD file. The resolution steps primarily focus on ensuring the VHD is correctly aligned and, if necessary, addressing potential corruption.

Important Note: The following resolution steps must be performed before uploading the VHD to Azure. Modifying the VHD after it’s uploaded to Azure blob storage might not be directly possible and is generally not recommended.

Resizing the Disk for 1 MB Alignment¶

The primary step to resolve the alignment issue is to resize the virtual disk to ensure it complies with the 1 MB alignment requirement. The method for resizing the VHD differs based on the operating system you are using: Windows or Linux.

Resolution in Windows¶

For Windows environments, the recommended tool for resizing VHDs is the Resize-VHD PowerShell cmdlet. It is important to note that Resize-VHD is a Hyper-V PowerShell cmdlet and not an Azure PowerShell cmdlet. Therefore, you will need to have the Hyper-V role installed on a Windows machine to utilize this cmdlet.

The process involves the following steps:

Install the Hyper-V Role on Windows Server or Windows Client: If you do not already have Hyper-V installed, you will need to enable the Hyper-V role on a Windows Server or a Windows client machine. This can be done through the Server Manager (on Windows Server) or through the “Turn Windows features on or off” dialog (on Windows client). Installing the Hyper-V role provides access to the necessary Hyper-V management tools, including the Resize-VHD cmdlet.
Convert the Virtual Disk to a Fixed Size VHD (If Necessary): While not always mandatory for resizing, it is generally recommended to convert the VHD to a fixed-size VHD before proceeding with resizing for Azure deployments. Azure VMs generally perform better with fixed-size VHDs. You can use the Convert-VHD PowerShell cmdlet (also a Hyper-V cmdlet) to perform this conversion if your VHD is currently dynamically expanding. This step ensures consistency and predictability in disk performance within Azure.
Use Resize-VHD to Adjust Disk Size: Once you have the Hyper-V role installed and optionally converted the VHD to fixed-size, you can use the Resize-VHD cmdlet to adjust the disk size. The key is to calculate a new size that is a multiple of 1 MB or very close to it. You can use the following general syntax:
```
Resize-VHD -Path "C:\Path\To\Your\VHD.vhd" -SizeBytes <NewSizeBytes>
```
Replace "C:\Path\To\Your\VHD.vhd" with the actual path to your VHD file. Replace <NewSizeBytes> with the desired new size in bytes. To ensure 1 MB alignment, calculate the new size in MB (e.g., 100 GB = 102400 MB) and then multiply by 1048576 (bytes in 1 MB) to get the size in bytes. For example, to resize to 100 GB (aligned), you would use:
```
Resize-VHD -Path "C:\Path\To\Your\VHD.vhd" -SizeBytes 107374182400
```
After running this command, the VHD will be resized to the specified size, ensuring 1 MB alignment.

Resolution in Linux¶

For Linux environments, the qemu-img command-line tool is commonly used for manipulating disk images, including resizing VHDs. qemu-img is a versatile tool that is part of the QEMU emulator suite, and it is widely available on most Linux distributions.

The steps to resize a VHD using qemu-img in Linux are as follows:

Install qemu-img: If qemu-img is not already installed on your Linux system, you will need to install it using your distribution’s package manager. For example, on Debian/Ubuntu-based systems, you can use:
```
sudo apt-get install qemu-utils
```
On Red Hat/CentOS-based systems, you can use:
```
sudo yum install qemu-img
```
Use qemu-img resize to Adjust Disk Size: Once qemu-img is installed, you can use the resize subcommand to adjust the VHD size. Similar to Windows, you need to calculate a new size that is a multiple of 1 MB. The syntax for qemu-img resize is:
```
qemu-img resize /path/to/your/VHD.vhd +<size_to_add>
```
Replace /path/to/your/VHD.vhd with the actual path to your VHD file. Replace <size_to_add> with the amount of space you want to add to the VHD. To achieve 1 MB alignment, you can add a small amount of space (e.g., 1MB or slightly more) to ensure the final size is aligned. For example, to add 1MB:
```
qemu-img resize /path/to/your/VHD.vhd +1M
```
This command will resize the VHD by adding 1 MB, which should typically resolve the alignment issue if the original size was slightly off. You can adjust the +<size_to_add> value as needed to achieve the desired aligned size.

Addressing Potential VHD Corruption¶

If resizing the VHD does not resolve the “InvalidVhd” error, or if you suspect the VHD might be corrupted, further investigation and potential rebuilding of the VHD may be necessary.

Troubleshooting Corruption:

Check VHD Integrity: Both Hyper-V (on Windows) and qemu-img (on Linux) offer tools to check the integrity of VHD files. For example, qemu-img check can be used to detect certain types of corruption within a VHD. Using these tools can provide insights into whether the VHD is indeed corrupted.
Examine VHD Creation Process: Review the process used to create the VHD initially. Were there any interruptions, errors, or unusual steps during creation? Sometimes, issues during the VHD creation itself can lead to corruption.
File Transfer Issues: If the VHD was transferred across a network or storage medium, ensure the transfer process was successful and without errors. File corruption can occur during transfer.

Rebuilding the VHD:

In cases where VHD corruption is suspected or confirmed, the most reliable solution is often to rebuild the VHD from scratch. This involves creating a new virtual machine, installing the operating system and applications, and then generalizing the VM to create a new VHD. While this is a more time-consuming process, it ensures a clean and healthy VHD for Azure deployment.

Steps for Rebuilding:

Create a New VM: Using your virtualization platform of choice (Hyper-V, VirtualBox, VMware, etc.), create a new virtual machine.
Install Operating System: Install the desired operating system (Windows or Linux) on the new VM.
Configure and Customize: Install any necessary applications, configure the operating system settings, and customize the VM as needed.
Generalize the VM: Before creating a VHD for Azure, it is crucial to generalize the operating system. Generalization removes machine-specific information, allowing the VHD to be deployed to multiple Azure VMs.
- For Windows: Use the Sysprep tool with the /generalize and /oobe options.
- For Linux: The generalization process varies slightly depending on the distribution but typically involves using tools like waagent (for Azure Linux Agent) and clearing out machine-specific configurations.
Create a New VHD: Once the VM is generalized, shut it down and export or create a new VHD from the virtual machine. This newly created VHD should be free of any previous corruption issues.

By following these resolution steps, focusing on VHD alignment and addressing potential corruption, you should be able to overcome the “InvalidVhd” error and successfully create your virtual machines in Azure. Remember to perform these steps before uploading the VHD to Azure for deployment.

If you continue to experience issues or have further questions, consider reaching out to Azure support or consulting the Azure documentation for more in-depth troubleshooting guidance.

Have you encountered similar VHD issues when creating Azure VMs? Share your experiences and tips in the comments below!
