Critical Data Loss: Resolving Partition Issues After Power Failure in Windows Server

Table of Contents

Symptoms¶

Consider a scenario where you are working within a Windows Server environment and utilize Disk Management or DiskPart to create a new disk partition. Immediately following the partition creation, an unexpected power outage or system crash occurs, forcing a system reboot. Upon restarting your system, you might encounter a problematic situation: the newly created disk partition lacks an assigned drive letter and becomes unusable. Attempts to format this partition may result in error messages, and while deletion of the partition might be successful, recreating a new partition in its place can lead to further complications and errors.

For instance, when attempting to format the partition through Disk Management, you might encounter an error message stating, “An unexpected error has occurred. Check the System Event Log for more information on the error. Close the Disk Management console, then restart Disk Management or restart the computer.” This error message indicates a problem preventing the formatting process from completing successfully.

Furthermore, within Disk Management, while the “Delete Volume” option might appear to function, attempting to recreate the partition by selecting “New Simple Volume” can cause Disk Management to become unresponsive for an extended period. After a considerable delay, an error message might appear: “The operation failed to complete because the Disk Management console view isn’t up to date. Refresh the view by using the refresh task. If the problem persists close the Disk Management console, then restart Disk Management or restart the computer.” Although the partition might appear to be recreated, it remains unformatted and without a drive letter, rendering it inaccessible.

When using DiskPart, a command-line disk partitioning utility, similar issues arise. You can successfully use commands like select partition to target the problematic partition and delete partition to remove it. However, when attempting to recreate the partition using commands such as create partition primary, DiskPart may hang for a prolonged time. Eventually, an error message is displayed:

Virtual Disk Service error:

The operation timed out.

DiskPart has referenced an object which is not up-to-date.

Refresh the object by using the RESCAN command.

If the problem persists exit DiskPart, then restart DiskPart or restart the computer.

This error message in DiskPart also points to an issue where the system is unable to complete the partition creation process due to a timeout, suggesting an underlying problem with the disk management services. These symptoms collectively indicate a critical issue stemming from the interrupted partition creation process, leaving the disk in an inconsistent and unusable state.

Cause¶

The root cause of this problem lies in the timing of the power failure or system crash during the partition creation process. When a new volume is created on a disk, the operating system needs to perform several steps, including writing crucial registry entries that describe the newly created volume device. These registry entries are essential for the system to properly recognize and manage the new partition.

If a power loss or system crash occurs immediately after initiating the partition creation but before all the necessary registry entries are completely and successfully written to the disk, the volume ends up in a partially installed state. This incomplete installation leaves the system in a state of confusion regarding the newly created partition.

Consequently, when you attempt to delete and recreate the volume, the presence of the old, improperly installed volume interferes with the creation of the new one. The system struggles to reconcile the partially configured volume with the request to create a new one in the same location, leading to the errors and hangs observed in Disk Management and DiskPart. The incomplete registry information prevents the operating system from cleanly removing the remnants of the failed partition creation, thus blocking subsequent attempts to establish a functional partition in its place. This interference is the fundamental reason why formatting, recreating, or even assigning a drive letter to the partition becomes problematic after such an abrupt interruption during the initial creation phase.

Resolution¶

To resolve this issue and recover the ability to create and use the disk partition, you need to remove the remnants of the improperly installed volume device. This involves using Device Manager to identify and uninstall any unrecognized storage volume devices, followed by deleting the problematic partition using Disk Management or DiskPart. Here are the detailed steps:

1. Open Device Manager: Access Device Manager by right-clicking on the Start Menu icon (or the Windows icon in the bottom-left corner) and selecting “Device Manager” from the context menu. Alternatively, you can search for “Device Manager” in the Start Menu search bar.

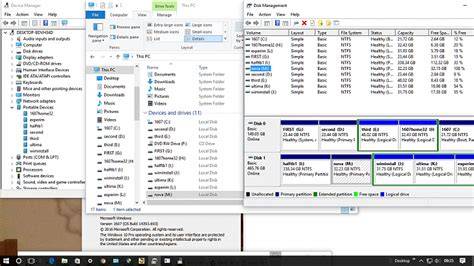

2. Expand Storage Volumes: In the Device Manager window, locate and expand the “Storage volumes” category. You can do this by clicking on the arrow or the “+” symbol next to “Storage volumes.” This will display a list of storage volume devices recognized by the system.

3. Uninstall Unknown Devices: Within the “Storage volumes” category, carefully examine the list for any devices labeled as “Unknown device.” These “Unknown device” entries often represent the partially installed volume devices that are causing the conflict. For each “Unknown device” listed under “Storage volumes,” right-click on the device name and select “Uninstall device” from the context menu. Confirm the uninstallation if prompted. It is crucial to only uninstall devices labeled as “Unknown device” under “Storage volumes” to avoid accidentally removing essential hardware drivers.



4. Close Device Manager: After uninstalling all “Unknown device” entries from the “Storage volumes” category, close the Device Manager window.

5. Delete the Problematic Partition: Now, proceed to delete the problematic partition. You can use either Disk Management or DiskPart for this step.

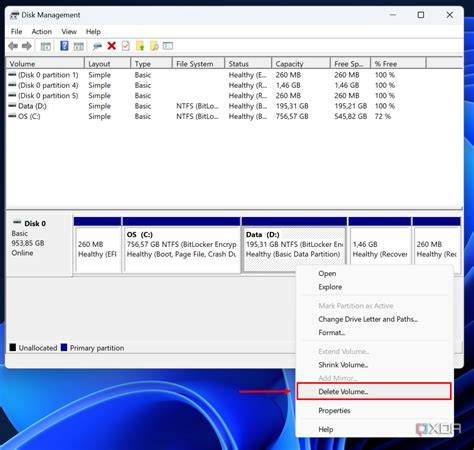

   • Using Disk Management: Open Disk Management by right-clicking on the Start Menu icon and selecting “Disk Management.” Locate the problematic partition in the Disk Management interface. It will likely be visible but without a drive letter and possibly marked as unformatted or RAW. Right-click on this partition and select “Delete Volume.” Follow the prompts to delete the partition.

   • Using DiskPart: Open Command Prompt as an administrator. Type diskpart and press Enter to launch the DiskPart command-line utility. Use the following commands:

     • list disk (to display available disks and identify the disk containing the problematic partition)
     • select disk <disk number> (replace <disk number> with the number of the disk containing the problematic partition)
     • list partition (to display partitions on the selected disk and identify the problematic partition number)
     • select partition <partition number> (replace <partition number> with the number of the problematic partition)
     • delete partition (to delete the selected partition)
     • exit (to exit DiskPart)



After completing these steps, you should now be able to successfully create and format the volume using either Disk Management or DiskPart. The removal of the residual “Unknown device” entries in Device Manager clears the conflict, allowing the system to properly recognize and manage the creation of a new partition on the disk. You can then proceed to create a new simple volume in Disk Management or use DiskPart commands like create partition primary followed by format fs=ntfs quick and assign letter=<drive letter> to establish a functional and accessible partition.
