Diagnosing & Resolving TCP/IP Port Exhaustion on Windows Clients: A Troubleshooting Guide

Table of Contents

TCP and UDP protocols rely on port numbers to establish connections. Every application or service initiating a TCP/UDP connection requires a port. These ports are essential for network communication, enabling applications to send and receive data. Understanding port usage is crucial for diagnosing network issues, especially port exhaustion.

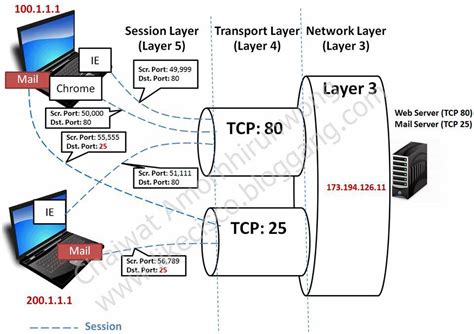

Understanding Port Types: Ephemeral and Well-Known¶

There are primarily two categories of ports that are important in network communication:

• Ephemeral ports, also known as dynamic ports, are a range of ports that operating systems use by default for making outbound connections. These ports are temporary and automatically assigned by the operating system when an application needs to connect to a remote service. They are crucial for client-side applications initiating connections to servers.

• Well-known ports are predefined ports assigned to specific applications or services. For instance, port 445 is designated for file server services (SMB), port 443 for HTTPS, port 80 for HTTP, and port 135 for RPC. Custom applications also utilize their own defined port numbers. These ports are standardized and ensure that clients can reliably connect to specific services.

When a connection is established with an application or service, client devices utilize an ephemeral port to connect to a well-known port on the server-side. For example, when you use a web browser to access https://www.microsoft.com, your browser uses an ephemeral port on your computer to connect to port 443 (HTTPS) on Microsoft’s web server. This dynamic assignment of ports allows for efficient management of network connections.

The Phenomenon of Port Exhaustion¶

Imagine a scenario where a web browser is actively making numerous connections to various websites. For each new connection attempt, the browser requires an ephemeral port. Over time, if the browser continues to open connections without properly closing the old ones, it can lead to a situation where all available ephemeral ports are in use.

Eventually, you might observe connection failures. A primary reason for these failures is port exhaustion. This occurs when an application has consumed all available ephemeral ports for making outbound connections. When all ports are utilized, any new attempts to establish connections will fail because no ports are available. This state is known as port exhaustion and can severely impact network communication.

Default Dynamic Port Range for TCP/IP¶

To adhere to recommendations from the Internet Assigned Numbers Authority (IANA), Microsoft has expanded the dynamic client port range for outgoing connections in modern Windows operating systems. The default starting port is now 49152, and the default ending port is 65535. This represents a significant change from earlier versions of Windows, which used a default port range of 1025 through 5000. This expanded range provides a larger pool of ports for applications to use, reducing the likelihood of port exhaustion under normal circumstances.

You can easily check the dynamic port range configuration on a Windows computer using the netsh command-line tool. Open Command Prompt as an administrator and execute the following commands:

netsh int ipv4 show dynamicport tcp
netsh int ipv4 show dynamicport udp
netsh int ipv6 show dynamicport tcp
netsh int ipv6 show dynamicport udp

These commands will display the current dynamic port ranges for TCP and UDP protocols, for both IPv4 and IPv6. Understanding these ranges is helpful in network configuration and troubleshooting.

The port range is configured independently for each transport protocol (TCP or UDP). It’s defined by a starting port and the number of ports in the range. For environments with Windows Servers and firewalls, especially in internal networks, be aware of potential issues with RPC communication. Firewalls might need reconfiguration to permit traffic within the dynamic port range of 49152 through 65535 for servers to communicate effectively. This range is in addition to the well-known ports used by specific services and applications. Alternatively, you can modify the dynamic port range used by servers.

The netsh command allows you to adjust the dynamic port range. The syntax is:

netsh int <ipv4|ipv6> set dynamicport <tcp|udp> start=number num=range

Here, start defines the starting port number, and num specifies the total number of ports in the range.

Here are some example commands to modify the dynamic port range:

netsh int ipv4 set dynamicport tcp start=10000 num=1000
netsh int ipv4 set dynamicport udp start=10000 num=1000
netsh int ipv6 set dynamicport tcp start=10000 num=1000
netsh int ipv6 set dynamicport udp start=10000 num=1000

These commands set the dynamic port range to begin at port 10000 and extend to port 10999 (a range of 1000 ports). The minimum configurable port range is 255, and the lowest possible starting port is 1025. The maximum ending port, based on the configured range, cannot exceed 65535. To replicate the default behavior of Windows Server 2003, you can set the starting port to 1025 and the range to 3976 for both TCP and UDP. This configuration will result in a port range from 1025 to 5000.

It is important to note that dynamic ports are primarily relevant for outbound connections. Incoming connections do not require ephemeral ports for acceptance as they listen on well-known or pre-configured ports.

Symptoms of Port Exhaustion¶

When a system experiences port exhaustion, outbound connections begin to fail. This can manifest in several noticeable symptoms:

• Domain Login Issues: Users may be unable to log in to their machines using domain credentials. However, logging in with a local account might still work. Domain login requires contacting a Domain Controller (DC) for authentication, which is an outbound connection. If cached credentials are available, domain login might still succeed temporarily.

• Group Policy Update Failures: Group Policy updates, which rely on network connections to domain controllers, may fail to apply.

• Inaccessible File Shares: Accessing network file shares may become impossible due to the inability to establish new connections to file servers.

• RDP Failures: Remote Desktop Protocol (RDP) connections to the affected server may fail, preventing remote administration.

• Application Errors: Any applications running on the machine that require outbound network connections will start generating errors or failing to function correctly. This is a general symptom impacting various network-dependent applications.

• Website Access Problems: Browsing websites or accessing web-based applications may become unreliable or completely fail as the browser cannot establish new connections.

A temporary resolution for these symptoms is often a server reboot. Rebooting releases all used ports and restores normal operation temporarily. However, without addressing the root cause, the symptoms will invariably reappear after a period of time as port usage increases again.

Identifying Port Exhaustion¶

If you suspect a machine is experiencing port exhaustion, follow these steps to confirm the diagnosis:

1. Test Outbound Connectivity: Attempt to make an outbound connection from the suspected server or machine. Try accessing a remote file share, initiate an RDP connection to another server, or use Telnet to connect to a server on a specific port. If all these outbound connection attempts fail, proceed to the next step.

2. Check Event Viewer for System Logs: Open Event Viewer and examine the System logs. Look for specific events that indicate port exhaustion:

   • Event ID 4227: This event often signifies that the TCP/IP driver failed to allocate an ephemeral port.
   • Event ID 4231: This event also points to the depletion of ephemeral ports.

3. Analyze netstat -anob Output: Collect the output of the command netstat -anob from the server. This command displays active network connections and listening ports. In a port exhaustion scenario, you will likely see a large number of entries in the TIME_WAIT state associated with a single Process ID (PID).

   After a graceful or abrupt closure of a network session, the port used by the process or application enters the TIME_WAIT state for a default period of 4 minutes. This is to ensure that any delayed packets are properly handled. During this TIME_WAIT period, the port is not immediately available for reuse. In port exhaustion, an application might not be releasing ports efficiently, leading to a buildup of connections in TIME_WAIT.

   You might also observe connections in the CLOSE_WAIT state. However, CLOSE_WAIT indicates that one side of the TCP connection has finished sending data (sent FIN) but is still waiting to receive data from the other end. While it can indicate connection issues, CLOSE_WAIT alone does not necessarily confirm port exhaustion.

   Note: A large number of connections in TIME_WAIT does not always definitively mean port exhaustion. It is crucial to verify the first two steps (outbound connection failures and Event Viewer logs) in conjunction with TIME_WAIT connections to confirm port exhaustion. However, many TIME_WAIT connections suggest that a process is creating numerous TCP connections, which could potentially lead to port exhaustion over time.

   In Windows 10 and later, the netstat command has been enhanced with the -Q switch. This switch shows ports that have transitioned out of the TIME_WAIT state and are now in the BOUND state, indicating they are ready for reuse. An update providing this functionality for Windows 8.1 and Windows Server 2012 R2 is also available. The PowerShell cmdlet Get-NetTCPConnection in Windows 10 also displays these BOUND ports.

   Prior to October 2016, netstat reporting could be inaccurate in certain scenarios. Updates backported to Windows Server 2012 R2 addressed these inaccuracies, allowing Netstat.exe and Get-NetTcpConnection to correctly report TCP or UDP port usage. Refer to Windows Server 2012 R2: Ephemeral ports hotfixes for more details.

4. Use Network Tracing: Open a Command Prompt as administrator and run the following command to start a network trace:

   Netsh trace start scenario=netconnection capture=yes tracefile=c:\Server.etl


5. Analyze the Trace File: Open the Server.etl file using Network Monitor (or Microsoft Message Analyzer, if Network Monitor is deprecated). Apply the following filter in the filter section:

   Wscore_MicrosoftWindowsWinsockAFD.AFD_EVENT_BIND.Status.LENTStatus.Code == 0x209


   This filter searches for events with the status code 0x209, which corresponds to STATUS_TOO_MANY_ADDRESSES. If you find entries with this status, it confirms that the server is experiencing port exhaustion. If no such entries are found, the server is likely not currently out of ports.

By following these steps, you can effectively diagnose whether a Windows client is indeed suffering from TCP/IP port exhaustion.

Troubleshooting Port Exhaustion¶

The primary goal in troubleshooting port exhaustion is to identify the specific process or application that is consuming an excessive number of ports. Here are several methods to help isolate the culprit:

Method 1: Using netstat and PowerShell¶

If you are using Windows 10 or Windows Server 2016 or later, you can use the enhanced netstat command or PowerShell to pinpoint the process.

• netstat -anobq: Run this command in an elevated Command Prompt. Examine the output for the Process ID (PID) that has the highest number of entries in the BOUND state. This PID is likely associated with the process leaking ports.

• PowerShell Get-NetTCPConnection: Alternatively, use the following PowerShell command to group connections by state and owning process, then sort by count in descending order:

  Get-NetTCPConnection | Group-Object -Property State, OwningProcess | Select-Object -Property Count, Name, @{Name="ProcessName";Expression={(Get-Process -PID ($_.Name.Split(',')[-1].Trim(' '))).Name}}, Group | Sort-Object Count -Descending


  This command provides a clear, sorted list of processes and their connection counts, making it easier to identify the process with the most connections.

Most port leaks originate from user-mode processes that do not properly close ports (sockets) when errors occur or when connections are no longer needed. At the user-mode level, ports are represented as handles (specifically, socket handles). Both Task Manager and Process Explorer can display handle counts, which can help you identify the process consuming an excessive number of ports.

For older systems like Windows 7 and Windows Server 2008 R2, you may need to update PowerShell to support the Get-NetTCPConnection cmdlet or rely on other methods.

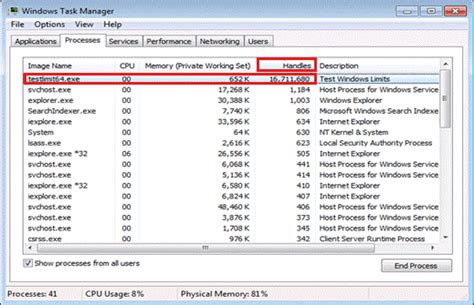

Method 2: Utilizing Task Manager¶

Task Manager can be a quick way to identify processes with high handle counts:

1. Add the “Handles” Column: In Task Manager, go to the “Details” or “Processes” tab (depending on your Windows version). Right-click on the column headers and select “Select columns”. In the column selection dialog, check the box next to “Handles” and click “OK”.

2. Sort by Handles: Click on the “Handles” column header to sort the processes by the number of handles they are using in descending order.

3. Identify Potential Culprits: Processes with handle counts significantly higher than others might be the source of the port exhaustion. Typically, a process with handle counts exceeding 3000 could be suspicious, although system processes like “System,” “lsass.exe,” “store.exe,” and “sqlsvr.exe” can legitimately have high handle counts.

4. Test by Stopping the Process: If you identify a process other than the typical system processes with a very high handle count, try stopping that process (if possible and safe to do so in a test environment or with caution). After stopping the process, attempt to sign in using domain credentials or test outbound connectivity again to see if the issue is resolved. If connectivity is restored, it strengthens the suspicion that this process is the cause.

Method 3: Employing Process Explorer¶

Process Explorer, a tool from Sysinternals, provides more detailed information about processes and their handles, making it a powerful tool for diagnosing port exhaustion.

1. Download and Run Process Explorer: Download Process Explorer from the Sysinternals website and run it with elevated (administrator) privileges.

2. Add Handle Count Column: In Process Explorer, press Alt + select the column header. Choose “Choose Columns,” and in the “Process Performance” tab, add “Handle Count.”

3. Show Lower Pane: Select “View” > “Show Lower Pane.”

4. Set Lower Pane to Handles View: Select “View” > “Lower Pane View” > “Handles.”

5. Sort by Handles: Click on the “Handles” column to sort processes by handle count.

6. Examine High Handle Count Processes: Identify processes with significantly higher handle counts compared to others. In a port exhaustion scenario, the handle count of the culprit process could be over 10,000.

7. Highlight a Suspect Process: Click to select and highlight one of the processes with a high handle count.

8. Inspect Sockets in Lower Pane: In the lower pane, look for handles listed as “Socket.” Sockets are technically file handles represented as:

   File   \Device\AFD


9. Analyze Socket Count: While some sockets are normal for many processes, a very large number of sockets (hundreds to thousands) associated with a single process is a strong indicator of a port leak.

10. Test by Closing the Process: If you identify a process with an excessive number of sockets, try closing that process (again, with caution and preferably in a test environment). If closing the process restores outbound network connectivity, it provides further evidence that this application is the cause of the port exhaustion. If you confirm a third-party application as the cause, contact the application vendor for support and a permanent solution.

Memory Dump Analysis¶

If the preceding methods do not successfully identify the problematic process, collecting a complete memory dump of the machine in the port exhaustion state can be a last resort. A memory dump captures the entire system’s memory contents at a specific moment, which can be analyzed offline using debugging tools. The dump analysis can reveal which process holds the maximum number of handles and provide detailed insights into resource usage. This is an advanced troubleshooting step typically performed by experienced administrators or support professionals.

Workaround: Reboot and Increasing Port Range (Temporary)¶

Rebooting the computer is a quick workaround that will temporarily resolve port exhaustion. A reboot releases all used ports and returns the system to a normal state. However, this is only a temporary fix. Without addressing the underlying issue, port exhaustion will likely recur.

When a reboot is impractical in the short term, you can temporarily increase the number of available dynamic ports. Use the following netsh command to adjust the dynamic port range:

netsh int ipv4 set dynamicport tcp start=10000 num=1000

This example command sets the dynamic port range to start at port 10000 and include 1000 ports, ending at 10999. Remember the minimum range is 255 ports, the minimum start port is 1025, and the maximum end port cannot exceed 65535.

Important Note: Increasing the dynamic port range is not a permanent solution. It merely delays the recurrence of port exhaustion. You must still identify and troubleshoot the root cause – the process or processes consuming an excessive number of ports. Focus on investigating the identified process to understand why it’s consuming so many ports and implement a proper fix within the application or system configuration.

Script for Monitoring Port Usage (Windows 7/Server 2008 R2)¶

For older operating systems like Windows 7 and Windows Server 2008 R2, you can use the following batch script to periodically collect netstat output. By analyzing these outputs over time, you can observe trends in port usage and potentially identify patterns or processes that are contributing to port exhaustion.

@ECHO ON
set v=%1
:loop
set /a v+=1
ECHO %date% %time% >> netstat.txt
netstat -ano >> netstat.txt

PING 1.1.1.1 -n 1 -w 60000 >NUL

goto loop

Save this script as a .bat file (e.g., netstat_monitor.bat) and run it from the command line. It will continuously append the date, time, and netstat -ano output to a file named netstat.txt every minute (due to the 60000ms wait in the PING command). You can then analyze this text file to track port usage over time.

More Information¶

Port exhaustion is a complex issue that requires careful diagnosis and troubleshooting. By systematically following the methods outlined above, you can effectively identify and resolve port exhaustion problems on Windows clients. Remember that addressing the root cause, typically within a misbehaving application, is crucial for a permanent solution. Temporary workarounds like increasing the port range or rebooting should only be used to provide immediate relief while you investigate and fix the underlying issue.

Do you have any experiences with port exhaustion or further questions? Share your thoughts and insights in the comments below!
