Fix Stop 0x0000007B Error After Device Installation Prevention via Group Policy

Table of Contents

This article provides a solution to resolve the “Stop 0x0000007B” error that may occur after implementing a Group Policy setting to restrict device installations on Windows systems. This issue typically arises in environments where device installation is controlled through Group Policy, and changes are made to storage controller drivers or hardware configurations. Understanding the causes and resolution steps is crucial for system administrators and IT professionals to maintain system stability and prevent unexpected downtime.

Symptoms¶

Consider the following scenario that may lead to the “Stop 0x0000007B” error:

• You are operating a computer running either Windows 7 or Windows Server 2008 R2. These operating systems are specifically mentioned as being susceptible to this issue when device installation restrictions are in place.
• You have implemented Group Policy settings to manage and restrict device installations on the computer. This is typically done to enhance security and standardize hardware configurations within an organization. The specific Group Policy path involved is: Computer Configuration\Administrative Templates\System\Device Installation\Device Installation Restrictions.
• Within this Group Policy path, you have enabled one or more of the following restriction settings. These settings are designed to prevent the installation of certain types of devices based on various criteria:
  • Prevent installation of devices that match any of these device IDs: This setting blocks devices identified by specific hardware IDs, offering granular control over hardware allowed on the system.
  • Prevent installation of devices using drivers that match these device setup classes: This option restricts devices based on their device setup class, allowing for broader control over categories of hardware.
  • Prevent installation of removable devices: This setting aims to enhance security by preventing the installation of removable storage devices, mitigating potential data leakage or malware introduction.
  • Prevent installation of devices not described by other policy settings: This is a more general restriction that can block devices not explicitly allowed by other policies, acting as a catch-all for unapproved hardware. For further details on this Group Policy setting, consult the Step-By-Step Guide to Controlling Device Installation Using Group Policy.
• You then proceed to uninstall a third-party Serial ATA (SATA) controller driver. This action could be part of driver updates, troubleshooting, or hardware changes. Subsequently, you restart the computer. Alternatively, you might use sysprep to prepare an operating system image and deploy it to a different computer. This new computer may have a different storage controller or be running a different firmware revision for its storage controller. This difference in hardware configuration post-deployment is a key factor in triggering the error.

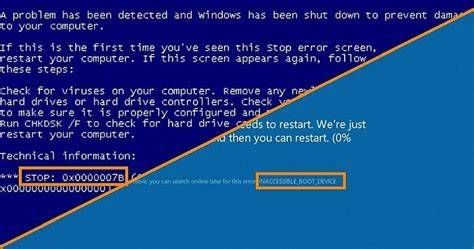

In this specific scenario, upon restarting the system, you are likely to encounter the dreaded “Stop 0x0000007B” error screen. This error, also known as INACCESSIBLE_BOOT_DEVICE, indicates that the Windows operating system is unable to access the system partition during the boot process. This can lead to significant disruption as the system fails to start correctly, preventing users from accessing their data and applications.

Cause¶

The root cause of the “Stop 0x0000007B” error in this context lies in how the Group Policy settings for device installation restrictions interact with the system’s ability to access critical device databases and start raw devices. When you enable the aforementioned Group Policy settings, it inadvertently modifies certain crucial registry entries. These modifications are intended to enhance security by restricting device installations, but they can have unintended consequences in specific scenarios.

Specifically, enabling these Group Policy settings results in the system setting the following registry entries:

• HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\PnP\\DisableCDDB
• HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\PnP\\DontStartRawDevices

These registry entries, when set by the Group Policy, are configured in a way that prohibits access to the critical device database (CDDB) and prevents the system from starting raw devices. The DisableCDDB entry, when enabled, effectively disables the Configuration Device Database (CDDB). The CDDB is a crucial component of the Plug and Play (PnP) subsystem in Windows, responsible for storing information about devices and their drivers. Disabling access to it can hinder the system’s ability to properly identify and load necessary drivers. The DontStartRawDevices entry, when activated, prevents the system from starting raw devices, which are devices accessed directly without going through a file system.

In the scenario described earlier, after uninstalling a SATA controller driver or deploying an image to dissimilar hardware, the system needs to load the appropriate storage controller driver during the boot process to access the boot volume. However, because the Group Policy has modified the registry to restrict access to the CDDB and prevent the starting of raw devices, the system is unable to locate and load the necessary storage controller driver. Consequently, Windows cannot access the boot device, leading to the “Stop 0x0000007B” error. The system essentially becomes stuck during the boot process because it cannot communicate with the storage device where the operating system files reside.

This issue highlights a potential conflict between security policies aimed at restricting device installations and the fundamental system requirement to load storage drivers during startup. While the Group Policy settings are designed to enhance security and control, they can inadvertently interfere with essential system operations if not carefully considered in relation to hardware and driver configurations.

Resolution¶

To resolve the “Stop 0x0000007B” error in this situation, the key is to revert the changes made by the Group Policy to the registry entries that are causing the issue. Specifically, you need to set the values of the following registry entries back to 0:

• HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\PnP\\DisableCDDB
• HKEY_LOCAL_MACHINE\\SYSTEM\\CurrentControlSet\\Control\\PnP\\DontStartRawDevices

Setting these values to 0 effectively re-enables access to the critical device database and allows the system to start raw devices, which are necessary for proper device driver loading during the boot process.

To accomplish this registry modification, you will need to boot the computer into an environment where you can access and edit the offline registry. Windows Preinstallation Environment (Windows PE) is an ideal tool for this purpose. Windows PE is a lightweight version of Windows used for deploying PCs, workstations, and servers, and it includes tools for system recovery and troubleshooting, including registry editing.

Here are the detailed steps to resolve the issue:

1. Start the computer from Windows PE. You will first need to create a bootable Windows PE media (USB drive or DVD). If you do not have a Windows PE image, you will need to create one. Microsoft provides tools and documentation for creating custom Windows PE images. You can refer to the Walkthrough: Create a Custom Windows PE Image documentation for detailed instructions on how to build a Windows PE environment. Boot your affected computer from this Windows PE media. This will load a minimal Windows environment from which you can access the system’s hard drive and registry.

2. Load the System registry hive for offline registry editing. The Windows Registry is organized into hives, which are files containing registry data. The System hive contains crucial system-level configuration information, including device driver settings. This hive is located within the offline Windows installation at the following path: %SystemRoot%\system32\config. To edit this hive, you need to load it into the Registry Editor (regedit) within Windows PE. Follow the steps outlined in the Load or unload registry hives documentation to properly load the System hive. This process typically involves using the Registry Editor to load the SYSTEM file as a hive under a temporary key name (e.g., “OfflineSystem”).

3. Expand the System registry hive that you have loaded, and then click Select. Once you have successfully loaded the System hive, it will appear in the Registry Editor’s left pane under the temporary key name you assigned. Expand this hive and navigate to the Select key. The full path would be something like HKEY_LOCAL_MACHINE\OfflineSystem\Select (if you named the loaded hive “OfflineSystem”). The Select key contains information about which ControlSet is currently in use by the system.

4. In the details pane, locate Current, and then note the value in the Data column. In the right-hand pane of the Registry Editor, with the Select key selected, you will see a list of values. Locate the value named Current. The Data column for this value will contain a number (e.g., “001”, “002”, etc.). This number indicates the ControlSet that the system is currently using to boot (e.g., ControlSet001, ControlSet002). Note down this number; it’s crucial for the next step.

5. Expand the following registry entry. Now, you need to navigate to the PnP key within the currently active ControlSet. Using the number you noted in the previous step (let’s assume it was ‘x’), expand the following registry path: HKEY_LOCAL_MACHINE\OfflineSystem\ControlSet00x\Control\PnP. Replace ‘x’ with the actual number you noted from the Current value in the Select key. For example, if the Current value was “001”, the path would be HKEY_LOCAL_MACHINE\OfflineSystem\ControlSet001\Control\PnP.

6. Change the value of DisableCDDB and DontStartRawDevices to 0. Within the PnP key, locate the two values: DisableCDDB and DontStartRawDevices. Double-click on each of these values, and in the “Value data” field, change their value from 1 to 0. Ensure that the “Base” is set to Hexadecimal. Click OK to save the changes for each value. This step effectively reverses the registry modifications made by the Group Policy that were causing the “Stop 0x0000007B” error.

7. Unload the registry hive. After modifying the registry values, it’s essential to unload the System hive that you loaded in step 2. In the Registry Editor, select the temporary key name you used for the loaded hive (e.g., “OfflineSystem”). Then, go to the File menu and select Unload Hive. This ensures that the changes you made are properly written back to the offline System registry file and releases the file.

8. Restart the computer in the standard way. Exit Windows PE and restart the computer normally, booting from the hard drive. With the registry modifications in place, the system should now be able to load the necessary storage controller drivers and boot successfully without the “Stop 0x0000007B” error.

Note: It is important to understand that these steps specifically address the “Stop 0x0000007B” error caused by the interaction of device installation Group Policy settings and storage controller driver issues. These steps do not delete or remove any of the Group Policy settings themselves. The Group Policy will remain in effect. If you want to permanently prevent this issue from recurring, you may need to re-evaluate your Group Policy settings related to device installation restrictions and consider exceptions for critical device classes or drivers, or adjust the policies to be less restrictive if they are causing unintended system instability. Carefully consider the security implications of modifying or disabling device installation restriction policies.

If the issue persists after following these steps, further troubleshooting may be necessary, as other factors could be contributing to the “Stop 0x0000007B” error. However, in the context of device installation Group Policy restrictions, these steps should effectively resolve the problem.

Data Collection¶

While the provided article does not explicitly detail data collection steps, in a real-world troubleshooting scenario, collecting relevant data can be invaluable for diagnosing and resolving complex issues like the “Stop 0x0000007B” error. Data collection could involve:

• Event Logs: Examining the Windows Event Logs, particularly the System and Application logs, both before and after the error occurs, can provide valuable clues. Look for error messages or warnings related to disk, storage, PnP, or driver loading issues around the time of the error.
• Memory Dump Analysis: In cases of Stop errors (BSODs), the system often creates a memory dump file. Analyzing this dump file using tools like the Windows Debugger (WinDbg) can provide detailed information about the state of the system at the time of the crash, including the module or driver that caused the error.
• System Configuration Information: Gathering detailed information about the system’s hardware configuration, including the storage controller, hard drives, and installed drivers, can help identify potential compatibility issues or driver problems. Tools like System Information (msinfo32.exe) and Device Manager (devmgmt.msc) can be used to collect this information.
• Group Policy Settings: Documenting the specific Group Policy settings that are in place, especially those related to device installation restrictions, is crucial to understand the environment in which the error is occurring. The Group Policy Management Console (gpmc.msc) can be used to export Group Policy settings.
• Registry Snapshots: Taking registry snapshots before and after making changes (like modifying the DisableCDDB and DontStartRawDevices values) can help track the exact modifications being made and revert changes if necessary. Tools can be used to compare registry snapshots to highlight differences.

By systematically collecting and analyzing relevant data, IT professionals can gain a deeper understanding of the issue, confirm the root cause, and verify the effectiveness of the resolution steps. This data-driven approach is essential for efficient and effective troubleshooting in complex Windows environments.

---

If you have encountered this “Stop 0x0000007B” error after implementing device installation restrictions via Group Policy, or if you have any further insights or alternative solutions, please feel free to share your experiences in the comments below. Your contributions can help others facing similar challenges.
