Fixing Dapr Extension Installation Issues on Azure: A Troubleshooting Guide

Table of Contents

This article addresses common error messages encountered during the installation or update process of the Distributed Application Runtime (Dapr) extension for Microsoft Azure Kubernetes Service (AKS) or Arc for Kubernetes. Successfully deploying and managing Dapr on Azure Kubernetes environments is crucial for modern, microservices-based applications. Understanding and resolving potential installation issues is essential for a smooth development and deployment experience. This guide provides practical solutions to help you overcome these challenges and ensure a successful Dapr extension setup.

Scenario 1: Installation Fails Silently¶

Identifying Silent Installation Failures¶

In some instances, the Dapr extension installation process may fail without explicitly displaying an error message. To diagnose these silent failures, you can leverage the Azure CLI command az k8s-extension list. This command allows you to inspect the status of Kubernetes extensions within your Azure environment and pinpoint where the creation process encountered issues.

az k8s-extension list --resource-group <my-resource-group-name> \
    --cluster-name <my-cluster-name> \
    --cluster-type managedClusters

Executing this command with your specific resource group and cluster name will provide detailed information about the extension status. Pay close attention to the JSON output, specifically the "statuses" section. This section often reveals the underlying cause of the installation failure, even when no error message was initially presented during the deployment attempt.

Common Configuration Errors¶

One frequent cause of silent installation failures is incorrect configuration settings. For example, using global.ha=false instead of the correct parameter global.ha.enabled=false in your configuration can lead to deployment issues. The JSON status returned by the az k8s-extension list command will typically highlight such configuration errors within the "message" property.

"statuses": [
  {
    "code": "InstallationFailed",
    "displayStatus": null,
    "level": null,
    "message": "Error: {failed to install chart from path [] for release [dapr-1]: err [template: dapr/charts/dapr_sidecar_injector/templates/dapr_sidecar_injector_poddisruptionbudget.yaml:1:17: executing \"dapr/charts/dapr_sidecar_injector/templates/dapr_sidecar_injector_poddisruptionbudget.yaml\" at <.Values.global.ha.enabled>: can't evaluate field enabled in type interface {}]} occurred while doing the operation : {Installing the extension} on the config",
    "time": null
  }
],

Another example of a JSON error message indicating a configuration problem might look like this:

"statuses": [
  {
    "code": "InstallationFailed",
    "displayStatus": null,
    "level": null,
    "message": "The extension operation failed with the following error: unable to add the configuration with configId {extension:microsoft-dapr} due to error: {error while adding the CRD configuration: error {failed to get the immutable configMap from the elevated namespace with err: configmaps 'extension-immutable-values' not found }}. (Code: ExtensionOperationFailed)",
    "time": null
  }
]

These JSON snippets provide valuable insights into the specific errors hindering the Dapr extension installation. Carefully examining the "message" field is crucial for diagnosing and resolving these issues.

Solution 1: Remediation Strategies for Silent Failures¶

To address silent installation failures and configuration-related errors, consider the following solutions:

• Restart your AKS or Arc for Kubernetes cluster: A cluster restart can resolve transient issues or inconsistencies that might be preventing the extension from installing correctly. This action ensures a clean state for the installation process.

• Register the KubernetesConfiguration service provider: Verify that the KubernetesConfiguration service provider is properly registered within your Azure subscription. This provider is essential for managing Kubernetes extensions and might be a prerequisite for Dapr extension installation. Registration issues can sometimes lead to installation failures.

• Force delete and reinstall the Dapr extension: In some cases, a previous failed installation might leave behind residual configurations that interfere with subsequent attempts. Forcefully deleting the existing extension and then reinstalling it can clear these remnants and facilitate a successful installation. This approach provides a fresh start and can resolve conflicts from previous failed deployments.

These solutions, when applied systematically, can effectively address the root causes of silent Dapr extension installation failures and pave the way for a successful deployment.

Scenario 2: Invalid Dapr Version Specified¶

Error Message: Version Resolution Failure¶

When attempting to install the Dapr extension for a specific version that does not exist or is not available, you will encounter an error message indicating a failure to resolve the extension version. This error typically manifests as follows:

(ExtensionOperationFailed) The extension operation failed with the following error: Failed to resolve the extension version from the given values.

Code: ExtensionOperationFailed

Message: The extension operation failed with the following error: Failed to resolve the extension version from the given values.

This error message clearly points to an issue with the specified Dapr version. It indicates that the system was unable to locate or validate the requested version, preventing the installation from proceeding.

Solution 2: Installing a Supported Dapr Version¶

To resolve this version-related error, ensure that you are targeting a supported version of Dapr. Refer to the official Dapr documentation or Azure documentation for a list of currently supported Dapr versions for the Azure Kubernetes Service extension.

Carefully review the version you are specifying during the installation process. Typographical errors or using outdated version numbers can lead to this error. Double-check the version against the supported versions list and retry the installation with a valid Dapr version.

By using a supported Dapr version, you eliminate the version resolution issue and enable the successful installation of the Dapr extension. Regularly consulting the official documentation for the latest supported versions is a best practice to avoid such problems.

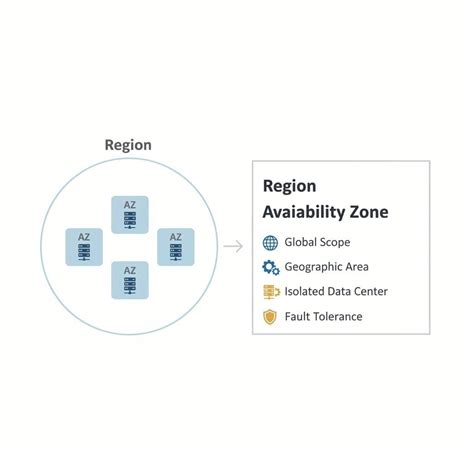

Scenario 3: Region Availability Constraints¶

Error Message: Extension Type Registration Failure¶

Due to regional variations in service availability, certain Dapr versions might not be accessible in all Azure regions. Attempting to install a Dapr version in an unsupported region will result in an error message indicating that the extension type is not registered in the specified region. The error message will resemble the following:

(ExtensionTypeRegistrationGetFailed) Extension type microsoft.dapr is not registered in region <regionname>.

Code: ExtensionTypeRegistrationGetFailed

Message: Extension type microsoft.dapr is not registered in region <regionname>

This error clearly states that the Dapr extension, or the specific version you are trying to install, is not available in the Azure region you have selected for your AKS or Arc cluster.

Solution 3: Installing in a Supported Region¶

To overcome regional availability limitations, you must install the Dapr extension in an Azure region where your desired Dapr version is supported. Consult the Azure documentation or Dapr extension documentation for a list of regions that support the specific Dapr version you intend to use.

Before initiating the installation, verify the regional availability of your chosen Dapr version. If the current region is not supported, you will need to either create a new AKS or Arc cluster in a supported region or migrate your existing cluster to a supported region.

Selecting a region that supports your Dapr version is crucial for a successful installation. Planning your deployment with regional availability in mind prevents these region-related errors and ensures a smooth setup process.

Scenario 4: Pre-existing Dapr Installation Conflict¶

Error Message: Namespace Conflict¶

If you attempt to install the Dapr extension on an AKS or Arc for Kubernetes cluster where Dapr OSS (Open Source Software) is already installed, you will encounter an error indicating a namespace conflict. This error arises because both Dapr OSS and the Dapr extension attempt to utilize the dapr-system namespace. The error message typically resembles this:

(ExtensionOperationFailed) The extension operation failed with the following error: Error: {failed to install chart from path [] for release [dapr-ext]: err [rendered manifests contain a resource that already exists. Unable to continue with install: ServiceAccount “dapr-operator” in namespace “dapr-system” exists and cannot be imported into the current release: invalid ownership metadata; annotation validation error: key “meta.helm.sh/release-name” must equal “dapr-ext”: current value is “dapr”]} occurred while doing the operation : {Installing the extension} on the config

This error clearly indicates a conflict due to the pre-existence of the dapr-system namespace, which is already in use by the Dapr OSS installation. The system cannot proceed with installing the Dapr extension because of this namespace collision.

Solution 4: Uninstalling Dapr OSS¶

To resolve this conflict, you must uninstall the Dapr OSS installation from your AKS or Arc cluster before attempting to install the Dapr extension. The Dapr extension is designed to be a managed and integrated solution, and it cannot coexist with a separate Dapr OSS installation within the same cluster due to resource and namespace conflicts.

Before proceeding with the Dapr extension installation, follow the appropriate uninstallation procedures for Dapr OSS. Once Dapr OSS is completely removed, you can then proceed with installing the Dapr extension without encountering the namespace conflict.

For guidance on migrating from Dapr OSS to the Dapr extension, consult the official Microsoft Azure documentation on migrating from Dapr OSS to the Dapr extension for AKS. This documentation provides detailed steps and best practices for a smooth transition.

Scenario 5: Placement Server Pod in a Bad State¶

Error Message: Node Availability Issues¶

In certain scenarios, you might encounter an error related to node availability when installing the Dapr extension. This often manifests as the placement server pod being in a “bad state,” with error messages similar to the following:

0/4 nodes are available: 1 node(s) were unschedulable, 3 node(s) had volume node affinity conflict. preemption: 0/4 nodes are available: 4 Preemption is not helpful for scheduling.

This error message indicates that the Kubernetes scheduler is unable to place the placement server pod onto a node within your cluster. This can be due to various reasons, but a common cause is persistent volume affinity conflicts. This occurs when the placement server pod attempts to use a persistent volume that is created in a different availability zone than the pod itself.

Solution 5: Availability Zone Considerations for Dapr Placement Service¶

To address placement server pod issues related to availability zones and persistent volumes, consider these solutions:

• Install Dapr in multiple availability zones (HA Mode): The recommended approach for high availability and resilience is to configure Dapr to span multiple availability zones. This ensures that the placement service and other Dapr components can be scheduled and operate even if one availability zone experiences an outage. Refer to the Azure documentation on installing Dapr in multiple availability zones while in HA mode for detailed instructions.

• Limit placement service to a specific availability zone: If multi-zone deployment is not feasible or desired, you can restrict the placement service to a particular availability zone. This can be achieved by creating a custom storage class that is zone-restricted and then configuring the Dapr extension to use this storage class for the placement service’s persistent volume claims.

  To implement this, you would first create a custom storage class similar to the example below:

  kind: StorageClass
  apiVersion: storage.k8s.io/v1
  metadata:
   name: zone-restricted
  provisioner: disk.csi.azure.com
  reclaimPolicy: Delete
  allowVolumeExpansion: true
  volumeBindingMode: WaitForFirstConsumer
  allowedTopologies:
  - matchLabelExpressions:
    - key: topology.kubernetes.io/zone
      values:
      - centralus-1
  parameters:
   storageaccounttype: StandardSSD_LRS


  In this example, the zone-restricted storage class is configured to only allow volume provisioning in the centralus-1 availability zone. You would need to adjust the values field to match your desired availability zone.

  Once the custom storage class is created, you can use the Azure CLI to install the Dapr extension, specifying the custom storage class for the placement service:

  az k8s-extension create --cluster-type managedClusters \
  --cluster-name <clustername> \
  --resource-group <resourcegroup> \
  --name <name> \
  --extension-type Microsoft.Dapr \
  --auto-upgrade-minor-version <minorversion> \
  --version <version> \
  --configuration-settings "dapr_placement.volumeclaims.storageClassName=zone-restricted"


  By setting the dapr_placement.volumeclaims.storageClassName configuration setting to zone-restricted (or the name of your custom storage class), you ensure that the persistent volume for the placement service is provisioned within the specified availability zone, resolving potential affinity conflicts.

By carefully considering availability zones and persistent volume placement, you can prevent placement server pod issues and ensure a stable and reliable Dapr extension installation.

Next Steps¶

If you continue to experience installation problems after trying these solutions, further troubleshooting resources are available. Explore the comprehensive AKS troubleshooting guide and the Dapr OSS troubleshooting guide for more in-depth assistance and diagnostics. These resources provide a broader range of troubleshooting steps and can help you address more complex or specific installation challenges.
