Microsoft Exchange & Windows Server: Compatibility Deep Dive on Single Label and Disjointed Namespaces

Table of Contents

This article provides an in-depth exploration of the compatibility between Microsoft Exchange Server and various Windows Server domain configurations, specifically focusing on Single Label Domains (SLDs), Disjoint Namespaces, and Discontiguous Namespaces. Understanding these configurations is crucial for administrators planning, deploying, and managing Exchange environments within diverse network infrastructures. This document outlines the nuances of each namespace type and their implications for Exchange Server deployment and operation.

Single Label Domains¶

Single Label Domains, often abbreviated as SLDs, are domains that consist of only a single label, such as company instead of the more conventional company.com or company.local. In essence, they lack a top-level domain suffix like .com, .org, or .net. While technically valid under the Domain Name System (DNS) specifications, SLDs deviate from best practices and can introduce complexities in various network services and applications. Historically, SLDs were sometimes used in private networks, but their use has become increasingly discouraged due to potential compatibility issues and conflicts with public domain names.

Microsoft’s DNS Namespace Planning Solution Center offers comprehensive information on DNS namespace design, including detailed discussions on Single Label Domains. It is important to consult these resources to gain a broader understanding of DNS namespace best practices and the potential pitfalls of using SLDs in modern network environments. Proper DNS planning is foundational to a stable and efficient network infrastructure, especially when integrating services like Exchange Server.

Exchange Server and Single Label Domains¶

Initially, Microsoft Exchange Server had limitations and complexities when deployed in Single Label Domain environments. However, acknowledging customer feedback and evolving network needs, the Exchange product team has broadened its support matrix. Starting with Exchange Server 2010, support was officially extended to include SLDs. This meant that organizations using or considering SLDs could, in principle, deploy Exchange 2010 within these environments.

Despite the technical support for Exchange 2010 and later versions in SLDs, Microsoft explicitly advises against this configuration as a best practice. The primary reason for this recommendation is the potential for unforeseen issues with other applications and services, both from Microsoft and third-party vendors. Many applications are designed and tested under the assumption of a hierarchical DNS namespace with at least two labels. Relying on an SLD can lead to compatibility problems that might not be immediately apparent but could surface later, causing operational disruptions.

Furthermore, Microsoft has indicated that future versions of Exchange Server might not continue to support Single Label Domains. This forward-looking perspective underscores the importance of migrating away from SLD configurations. While Exchange 2010 and some subsequent versions might function in SLDs, it is a configuration that carries inherent risks and is not aligned with the long-term direction of Microsoft’s product ecosystem. Organizations operating in SLDs are strongly encouraged to plan and execute a migration to a fully qualified domain name (FQDN) structure to ensure long-term compatibility and stability.

Considerations for Single Label Domains¶

Deploying Exchange in a Single Label Domain, even with supported versions like Exchange 2010, requires careful consideration and planning. The core underlying requirement for any successful Exchange deployment, especially in non-standard configurations, is a correctly installed and meticulously configured DNS infrastructure. Before proceeding with any deployment in an SLD, it is paramount to verify that both client machines and servers can reliably resolve DNS queries for all necessary resources within the intended namespace. DNS resolution is the bedrock of network communication, and its proper functioning is non-negotiable for Exchange Server to operate effectively.

Moreover, organizations should thoroughly evaluate the potential impact of using an SLD on other applications and services within their environment. A comprehensive compatibility assessment is essential to identify any potential conflicts or limitations. It is crucial to remember that while Exchange might be technically supported, the overall ecosystem might not be fully optimized or supported in an SLD environment. Therefore, migration away from SLDs is not just a recommendation but a proactive step towards a more robust and future-proof IT infrastructure.

Disjoint Namespaces¶

A Disjoint Namespace in Active Directory exists when a computer’s primary DNS suffix does not match the DNS domain name of which it is a member. This scenario arises when the DNS configuration of a machine diverges from the expected hierarchical structure of the Active Directory domain. Disjoint namespaces can introduce complexity in identity management and resource discovery within the domain. Understanding the different types of disjoint namespace scenarios is crucial for correctly managing and supporting systems within such configurations.

The Microsoft DNS Namespace Planning Solution Center also provides detailed information regarding Disjoint Namespaces, offering guidance on their implications and best practices for managing them. Consulting these resources is vital for administrators dealing with or planning environments that involve disjoint namespaces. Proper planning and configuration are key to mitigating potential issues associated with disjoint namespace configurations.

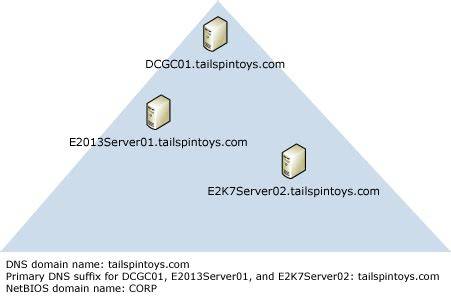

Exchange Server and Disjoint Namespaces¶

Microsoft Exchange Server 2010 and later versions support deployment within domains that utilize disjoint namespaces. This support acknowledges the reality that some organizations might have valid reasons for implementing such configurations. Within the context of Exchange 2010, Microsoft identifies three specific supported scenarios for deploying Exchange in a disjoint namespace environment.

Scenario 1: The primary DNS suffix of the domain controller is not the same as the DNS domain name. In this scenario, the domain controller itself is disjoint. Computers that are members of this domain can be either disjoint or not disjoint, adding another layer of configuration variability.

Scenario 2: A member computer within an Active Directory domain is disjoint, even if the domain controller itself is not disjoint. This situation occurs when individual machines are configured with a primary DNS suffix that differs from the domain’s DNS name, while the domain controllers maintain a consistent namespace.

Scenario 3: The NetBIOS domain name of the domain controller is not the same as the subdomain of the DNS domain name of that domain controller. This scenario involves discrepancies between the NetBIOS naming convention and the DNS domain structure, leading to a form of disjointedness.

Understanding these distinct scenarios is essential for administrators to correctly identify and manage disjoint namespace environments where Exchange Server is deployed. Each scenario might require specific configuration adjustments to ensure seamless operation and integration of Exchange within the Active Directory infrastructure.

Special Considerations for Disjoint Namespaces¶

When deploying Exchange 2010 and later in a disjoint namespace environment, certain special considerations must be addressed to ensure proper functionality. One key aspect is the configuration of the DNS suffix search list. In disjoint namespace scenarios, it might be necessary to configure the DNS suffix search list on client computers and Exchange servers to include multiple DNS suffixes. This ensures that systems can correctly resolve names across the different namespaces within the environment. Without a properly configured DNS suffix search list, name resolution failures can occur, leading to connectivity issues and application errors.

Another critical configuration element is the msds-allowedDNSSuffixes attribute within Active Directory. This attribute must be configured to include all namespaces that are in use within the Active Directory forest. By populating msds-allowedDNSSuffixes with the relevant namespace suffixes, administrators ensure that Active Directory trusts and correctly handles authentication and communication across the disjoint namespaces. Incorrect or incomplete configuration of msds-allowedDNSSuffixes can lead to authentication problems and hinder the seamless operation of Exchange and other Active Directory-integrated applications.

Discontiguous (Non-contiguous) Namespaces¶

Discontiguous Namespaces, also known as non-contiguous namespaces, represent a scenario where a single Active Directory forest encompasses multiple DNS namespaces that are not contiguous. This means that the DNS domain names within the forest do not share a common parent domain. For example, a forest might contain domains like domain1.com and domain2.net, which are distinct and separate DNS hierarchies. Discontiguous namespaces introduce complexities in forest-wide operations and resource discovery due to the lack of a unified DNS namespace.

As with SLDs and disjoint namespaces, the Microsoft DNS Namespace Planning Solution Center serves as a valuable resource for understanding Discontiguous Namespaces and their implications for Active Directory and related services. Consulting these resources is crucial for organizations managing or considering implementing discontiguous namespace environments. Careful planning and configuration are essential to mitigate the challenges associated with this type of namespace structure.

Exchange Server and Discontiguous Namespaces¶

Exchange Server’s compatibility with discontiguous namespaces hinges heavily on proper DNS configuration. For Exchange to function correctly in such environments, DNS must be meticulously configured to enable Exchange servers to resolve all domain names present within the entire environment. This requirement extends beyond just resolving names within a single domain; Exchange servers must be capable of cross-namespace name resolution across all domains in the discontiguous forest. Robust and comprehensive DNS configuration is the cornerstone of successful Exchange operation in discontiguous namespace scenarios.

Similar to disjoint namespaces, the msds-allowedDNSSuffixes attribute in Active Directory plays a crucial role in discontiguous namespace environments. It is mandatory that msds-allowedDNSSuffixes is correctly configured within the Active Directory environment to include all namespaces that are in use across the entire forest. This ensures that Active Directory is aware of and trusts all relevant namespaces, facilitating proper authentication and communication across the disparate DNS hierarchies. Accurate configuration of msds-allowedDNSSuffixes is paramount for the stability and seamless operation of Exchange and other Active Directory-dependent services in discontiguous namespace deployments.

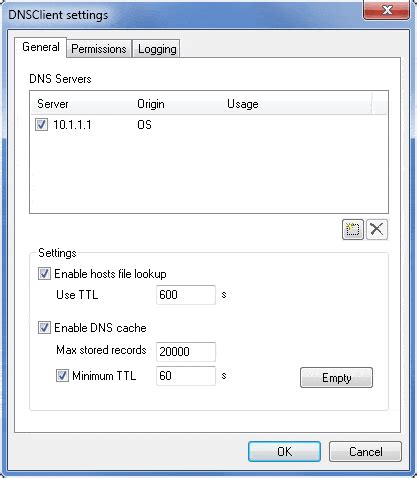

DNS Client Settings for Discontiguous Namespaces¶

In discontiguous namespace environments, proper DNS client settings are essential for ensuring that computers can effectively locate and communicate with resources across different namespaces. Understanding and correctly configuring DNS client settings is a critical aspect of managing these complex network configurations. These settings dictate how client machines resolve names and interact with DNS servers to locate resources within the network. In discontiguous setups, these settings become even more important due to the inherent complexity of having multiple, non-contiguous DNS domains.

Affected Exchange Products¶

The compatibility considerations for Single Label Domains, Disjoint Namespaces, and Discontiguous Namespaces have evolved across different versions of Microsoft Exchange Server. Understanding the specific support levels and requirements for each Exchange version is crucial for administrators managing diverse Exchange environments or planning upgrades. The following outlines the compatibility landscape across various Exchange Server releases.

Exchange Server 2013¶

Exchange Server 2013 continued to support disjoint namespace scenarios. Organizations operating in or migrating to Exchange 2013 could deploy the platform in environments with disjoint namespaces, provided that the necessary configurations and considerations were properly addressed. For detailed information regarding system requirements for Exchange 2013, administrators should consult the official Exchange 2013 System Requirements documentation. This documentation provides comprehensive guidance on supported configurations and prerequisites for a successful Exchange 2013 deployment.

Exchange Server 2010¶

Exchange Server 2010 marked a significant shift in Microsoft’s support stance towards non-standard namespace configurations. It introduced official support for Single Label Domains, Disjoint Namespaces, and Discontiguous Namespaces. This expansion of support provided greater flexibility for organizations with diverse network infrastructures. For detailed system requirements related to Exchange 2010, the Exchange 2010 System Requirements article remains a valuable resource. This document offers in-depth information on supported configurations and prerequisites for Exchange 2010 deployments.

Exchange Server 2007¶

In Exchange Server 2007 Service Pack 1 (SP1), Microsoft modified the Setup prerequisite rule concerning Single Label Domains. The severity of the rule was downgraded from an “Error” to a “Warning”. This change allowed the installation process to proceed in Single Label Domain environments, albeit with a cautionary note. This adjustment indicated a move towards greater flexibility while still highlighting the potential risks and non-recommended nature of SLD configurations.

Exchange Server 2003¶

Exchange Server 2003 also had considerations regarding namespace configurations, although the official documentation and support posture may differ compared to later versions. Understanding the historical context and evolution of namespace support across Exchange versions is important for organizations managing older Exchange environments. Resources related to Exchange Server 2003 can provide insights into the namespace considerations relevant to that era of Exchange.

References¶

For further in-depth information and detailed technical guidance on DNS namespace planning and related topics, consult the Microsoft DNS Namespace Planning Solution Center and the specific documentation for each Exchange Server version. These resources provide comprehensive insights and best practices for designing, deploying, and managing Exchange environments within diverse network configurations.

---
