This article provides a comprehensive guide to troubleshoot and resolve a common issue encountered when running .NET applications with UI automation: the dreaded Null Reference Exception. This exception often surfaces when utilizing UI automation tools like Inspect.exe, especially in applications incorporating .NET Calendar controls. Understanding the root cause and implementing the correct resolution is crucial for ensuring the stability and testability of your .NET applications.

Symptoms¶

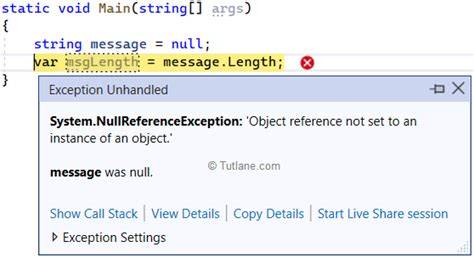

The primary symptom of this issue is the occurrence of a Null Reference Exception during the execution of a .NET application that includes a .NET Calendar control. This exception is particularly likely to manifest when employing UI automation tools such as Inspect.exe to examine or interact with the application’s user interface. A common scenario involves the application crashing or becoming unresponsive precisely when the focus shifts to the Calendar control within the application’s UI. This can significantly hinder UI testing and accessibility efforts.

This behavior typically indicates a problem within the application’s resource handling, specifically related to how UI automation interacts with the visual elements defined in your application’s templates. The exception itself points to an attempt to access an object reference that has not been initialized or is currently null, leading to a runtime error.

Cause¶

The underlying cause of this Null Reference Exception often stems from a subtle misconfiguration within your application’s defined templates, particularly concerning resources intended for external referencing. Specifically, the issue often arises from how resources within a theme-level dictionary are declared and accessed when they are meant to be utilized outside of their immediate scope.

In the context of UI automation, tools like Inspect.exe attempt to programmatically access and inspect the visual tree of your application. This process involves referencing various resources, including DataTemplate definitions that dictate how data is presented visually. When a DataTemplate intended to be referenced by UI automation tools is not correctly defined, it can lead to the AutomationPeer collection containing null values.

The critical point here is the use of ComponentResourceKey. When resources within a theme dictionary are designed to be referenced from outside their immediate scope – such as by UI automation tools – they must be named using a ComponentResourceKey. This mechanism ensures that the resource can be properly located and accessed across different contexts, including by external tools like Inspect.exe.

In the specific scenario of the Calendar control and UI automation, Inspect.exe attempts to access a DataTemplate associated with the Calendar’s day title. If this DataTemplate is not correctly keyed with a ComponentResourceKey, UI automation will fail to resolve the resource, resulting in a Null Reference Exception. Essentially, UIAutomation (Inspect.exe) is trying to find and utilize this DataTemplate, and the incorrect keying prevents it from being found, leading to the exception.

Resolution¶

To effectively resolve this Null Reference Exception and ensure proper UI automation functionality, you need to correctly define the Key for your DataTemplate using ComponentResourceKey. This involves explicitly specifying the TypeInTargetAssembly and ResourceId for the resource.

The correct approach is to set the DataTemplate Key as demonstrated in the following XML code snippet:

<DataTemplate x:Key="{ComponentResourceKey TypeInTargetAssembly=CalendarItem, ResourceId=DayTitleTemplate}">
    <!-- Your DataTemplate content here -->
</DataTemplate>

Let’s break down this code:

• <DataTemplate>: This element defines a data template, which is used to specify how data of a certain type should be visually presented.
• x:Key="{ComponentResourceKey ...}": This is the crucial part. It sets the key for the DataTemplate using a ComponentResourceKey. This key is not a simple string but a structured key that allows resources to be located across assemblies and contexts.
• TypeInTargetAssembly=CalendarItem: This part of the ComponentResourceKey specifies the type that is associated with this resource. In this case, it’s CalendarItem, indicating that this DataTemplate is related to the visual representation of individual items within a Calendar control. It’s important to note that CalendarItem here refers to the type name, not necessarily a class you directly define in your code, but rather a type recognized within the .NET framework’s Calendar control implementation.
• ResourceId=DayTitleTemplate: This part specifies the unique identifier for this particular resource within the CalendarItem type. DayTitleTemplate suggests that this DataTemplate is responsible for rendering the title or header for each day within the Calendar. The exact ResourceId value will depend on the specific resource you are trying to key within the Calendar control’s template structure.

Contrast with Incorrect Approach:

The incorrect approach, which leads to the Null Reference Exception, is to use a simple string key or an incorrectly formed ComponentResourceKey. For example, simply using a string like:

<DataTemplate x:Key="DayTitleTemplate">
    <!-- Your DataTemplate content here -->
</DataTemplate>

or an incomplete ComponentResourceKey definition will likely cause issues when UI automation tools attempt to access this resource. These simpler keys may work within the immediate scope of the dictionary where they are defined, but they lack the necessary information for external tools like Inspect.exe to correctly locate and resolve the resource.

Implementation Steps:

1. Identify the Incorrect DataTemplate: Locate the DataTemplate definition within your application’s XAML that is associated with the Calendar control and related to the UI elements causing the Null Reference Exception (in this case, likely related to the day titles or similar elements within the Calendar).
2. Modify the x:Key Attribute: Change the x:Key attribute of the identified DataTemplate to use the ComponentResourceKey syntax as shown in the correct example above. Ensure you use the correct TypeInTargetAssembly and ResourceId values relevant to the specific resource you are keying. You might need to consult .NET documentation or Calendar control templates to determine the precise values if CalendarItem and DayTitleTemplate are not exactly correct for your situation.
3. Rebuild and Test: Rebuild your .NET application after making the change.
4. Verify with UI Automation Tools: Run your application and use UI automation tools like Inspect.exe to interact with the Calendar control. Specifically, focus on the areas that were previously causing the Null Reference Exception.
5. Confirm Resolution: Verify that the Null Reference Exception is no longer occurring and that UI automation tools can now correctly inspect and interact with the Calendar control without issues.

Further Considerations:

• Resource Dictionaries and Scopes: Understanding resource dictionaries and their scoping rules in WPF/WPF is essential. Theme-level dictionaries are designed for application-wide styling, and resources within them, when intended for broader use (like UI automation), require careful keying with ComponentResourceKey.
• Inspect.exe and UI Automation: Familiarize yourself with tools like Inspect.exe and the principles of UI automation in .NET. These tools are invaluable for debugging UI-related issues and ensuring application accessibility.
• Debugging XAML and Resources: Learn techniques for debugging XAML and resource loading issues. Visual Studio’s XAML debugging tools and output window messages can provide insights into resource resolution problems.
• .NET Documentation: Refer to official .NET documentation on ComponentResourceKey, DataTemplate, and UI automation for in-depth information and best practices.

By implementing the correct ComponentResourceKey for your DataTemplate, you can effectively resolve the Null Reference Exception and ensure robust UI automation support for your .NET applications, especially those utilizing Calendar controls or similar templated UI elements. This leads to more testable, accessible, and stable applications.
