Streamline Folder Management: Introducing Print Directory Feature for Windows Server

Updated: • 0 • min read
Table of Contents

In the realm of efficient file management within Windows Server environments, the ability to quickly generate a printed list of folder contents can be invaluable. This functionality, known as the “Print Directory” feature, streamlines documentation, organization, and auditing processes. This article provides a comprehensive guide on how to enable this feature in older Windows operating systems, specifically Windows XP, Windows Vista, and Windows 7, which are still encountered in some legacy systems or virtualized environments. By implementing these steps, administrators and users alike can enhance their folder management capabilities and improve workflow efficiency.

Summary

The “Print Directory Listing” feature empowers users to generate a hard copy list of files and subfolders within a selected directory by simply right-clicking on the folder. This functionality, once enabled, adds a convenient context menu option, simplifying the process of creating directory reports. This is particularly useful for documentation purposes, creating inventories of files, or for situations where a physical list of directory contents is required for meetings or offline review. This guide will walk you through the necessary steps to activate this feature, enhancing the utility of your Windows Server environment.

More Information

This section delves into the detailed procedures for enabling the “Print Directory” feature across different legacy Windows operating systems. While modern versions of Windows may have integrated or alternative methods for directory listing, these instructions are specifically tailored for Windows XP, Windows Vista, and Windows 7. Each operating system requires a slightly different approach, primarily involving the creation of a batch file and modifications to the Windows Registry or Folder Options. Follow the steps carefully for your specific operating system to ensure successful implementation.

Windows XP

Windows XP, while an older operating system, still operates in certain specialized environments. Adding the “Print Directory” feature to Windows XP involves a three-step process: creating a batch file, creating a new action for file folders, and editing the registry. These steps, when executed correctly, will seamlessly integrate the print directory functionality into the Windows XP file management system.

Step 1: Create the Printdir.bat file

The first step is to create a batch file named “Printdir.bat”. This file contains the commands that will be executed when you select the “Print Directory Listing” option.

  1. Click Start, then click Run. In the Run dialog box, type notepad and click OK. This will open the Notepad application.

  2. Copy and paste the following code into the Notepad window. This script is the core of the Print Directory feature, using the dir command to list directory contents and then printing it using Notepad.

    @echo off
dir %1 /-p /o:gn > "%temp%\Listing"
start /w notepad /p "%temp%\Listing"
del "%temp%\Listing"
exit

    This script performs the following actions:
    * @echo off: Disables the command echoing to the console.
    * dir %1 /-p /o:gn > "%temp%\Listing": Executes the dir command to list the contents of the directory passed as an argument (%1). The /-p switch pauses after each screenful of information, although this is less relevant when outputting to a file. The /o:gn switch sorts the output by name (g) and then by extension (n). The output is redirected to a temporary file named “Listing” in the %temp% directory.
    * start /w notepad /p "%temp%\Listing": Starts Notepad and opens the temporary “Listing” file. The /w switch makes the script wait for Notepad to close before proceeding, and the /p switch instructs Notepad to print the file.
    * del "%temp%\Listing": Deletes the temporary “Listing” file after printing.
    * exit: Exits the batch script.

  3. Click File in the Notepad menu, then click Exit. When prompted to save changes, click Yes.

  4. In the Save As dialog box, type %windir%\Printdir.bat in the File name field and click Save. %windir% is an environment variable that represents the Windows directory (usually C:\Windows). Saving the batch file in this location makes it accessible system-wide.

Step 2: Create a new action for file folders

Next, you need to associate the “Print Directory Listing” action with file folders. This involves modifying the Folder Options to add a new context menu entry.

  1. Click Start, then click Control Panel. Double-click Folder Options. Alternatively, you can click Start, point to Settings, click Control Panel, and then double-click Folder Options. Both methods will open the Folder Options dialog box.

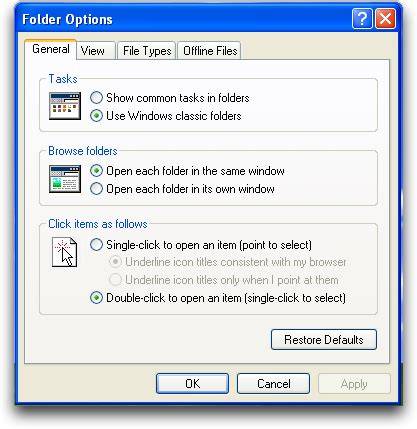

    Open Folder Options in Windows XP

  2. In the Folder Options dialog box, navigate to the File Types tab.

  3. In the “Registered file types” list, select File Folder and click Advanced. This opens the “Edit File Type” dialog box for File Folders.

    File Types Tab in Folder Options

  4. In the “Edit File Type” dialog box, click New. This will open the “New Action” dialog box.

  5. In the Action box, type Print Directory Listing. This is the text that will appear in the context menu when you right-click a folder.

  6. In the Application used to perform action box, type printdir.bat. This specifies the batch file you created in Step 1 to be executed when this action is selected.

    New Action Dialog Box

  7. Click OK in the “New Action” dialog box.

  8. Click OK two times to close the “Edit File Type” and “Folder Options” dialog boxes. Then click Close.

Step 3: Edit the registry

In some cases, after adding the new action, double-clicking a folder might launch the Search Companion or another associated action instead of opening the folder as expected. To resolve this, you need to edit the registry to ensure the default action for folders remains “open”.

  1. Click Start, then click Run. Type regedit and click OK. This will open the Registry Editor. Caution: Incorrectly modifying the registry can cause serious problems. Follow these steps carefully and only modify the specified key and value.

  2. In the Registry Editor, navigate to the following registry subkey: HKEY_CLASSES_ROOT\Directory\shell. You can navigate through the registry tree in the left pane.

    Registry Editor Navigation

  3. In the shell subkey, look for a value named Default in the right pane. Click on the Default value.

  4. In the Edit menu, click Modify. This will open the “Edit String” dialog box.

  5. In the Value data box, type none. This sets the default action for folders to “none”, preventing conflicts with other actions.

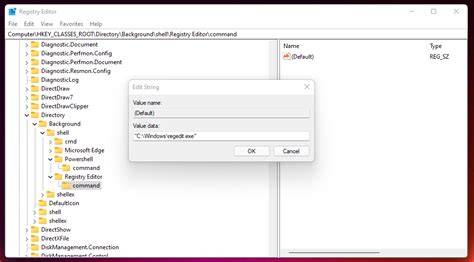

    Edit String Dialog Box in Registry Editor

  6. Click OK in the “Edit String” dialog box.

  7. Exit the Registry Editor by clicking File and then Exit.

After completing these three steps, you should be able to right-click any folder in Windows XP and see the “Print Directory Listing” option in the context menu. Selecting this option will generate and print a list of the folder’s contents.

Windows Vista or Windows 7

The process for adding the “Print Directory” feature to Windows Vista and Windows 7 is very similar to Windows XP, primarily involving creating the same batch file and then editing the registry to add the context menu option. The Folder Options interface is slightly different in Vista and 7, but the core steps remain consistent.

Step 1: Create the Printdir.bat file

The batch file required for Windows Vista and Windows 7 is identical to the one used for Windows XP.

  1. Click Start, type notepad in the search box, and press Enter. This will open Notepad.

  2. Paste the following code into Notepad:

    @echo off
dir %1 /-p /o:gn > "%temp%\Listing"
start /w notepad /p "%temp%\Listing"
del "%temp%\Listing"
exit

    3. Click File, then Exit, and click Yes to save.
    4. In the Save As dialog box, type %windir%\Printdir.bat in the File name box and click Save.

    Note: In Windows Vista and Windows 7, you might encounter a User Account Control (UAC) prompt or a dialog box stating you don’t have permission to save in the %windir% location. If this occurs, save the file to your Desktop first. Then, click Start, type %windir% in the search box, and press Enter. This will open Windows Explorer in the Windows directory. Copy the Printdir.bat file from your Desktop to this Windows directory location. This manual copy action might require administrator privileges, which you may need to confirm through a UAC prompt.

Step 2: Edit the registry

The registry editing process in Windows Vista and Windows 7 is also very similar to Windows XP, but the navigation to Folder Options is slightly different, if you choose to use that method at all. Direct registry editing is generally more efficient for Vista and 7 for this task.

  1. Click Start, type regedit in the search box, and press Enter. Click Yes if prompted by User Account Control. This opens the Registry Editor.
  2. Navigate to the following registry key: HKEY_CLASSES_ROOT\Directory\shell.
  3. Right-click on the shell key, point to New, and then click Key.

  4. Type Print Directory Listing as the new key name and press Enter. This creates a new subkey under shell for our new context menu action.

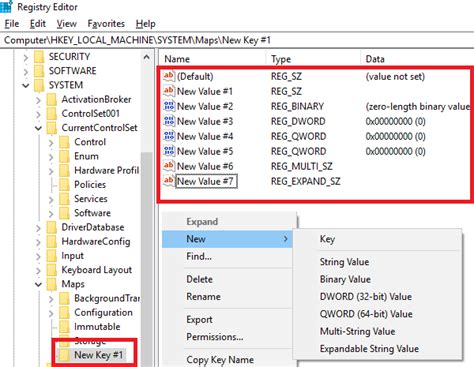

    Create New Key in Registry Editor

  5. Right-click on the newly created Print Directory Listing key, point to New, and then click String Value.

  6. Type Icon as the value name and press Enter.

  7. Double-click the Icon value. In the “Edit String” dialog box, type imageres.dll,-3 in the Value data box and click OK. This sets an icon for the context menu option, using an icon from the imageres.dll system file.

    Edit Icon Value in Registry Editor

  8. Right-click on the Print Directory Listing key again, point to New, and then click Key.

  9. Type command as the new key name and press Enter. This creates a command subkey under Print Directory Listing, which will hold the command to be executed.
  10. In the right pane, double-click the (Default) value under the command key.

  11. In the “Edit String” dialog box, type the following in the Value data box and click OK:

    "%windir%\Printdir.bat" "%1"

    This specifies the command to execute when “Print Directory Listing” is selected. "%windir%\Printdir.bat" is the path to the batch file, and "%1" passes the selected folder path as an argument to the batch file.

    Edit Default Command Value in Registry Editor

  12. Exit the Registry Editor.

After completing these steps for Windows Vista or Windows 7, you should be able to right-click any folder and see the “Print Directory Listing” option in the context menu. Selecting it will generate and print a directory listing.

By following these detailed instructions, you have successfully added the “Print Directory Listing” feature to your Windows XP, Windows Vista, or Windows 7 system. This enhancement can significantly improve your folder management workflow, especially when dealing with documentation, file inventories, or situations requiring physical directory lists. Remember to exercise caution when editing the registry and ensure you follow the steps precisely to avoid any unintended system issues.
