Unlock SQL Server Insights: Mastering Replay Markup Language (RML) Utilities

Updated: • 0 • min read
Table of Contents

Replay Markup Language (RML) Utilities for SQL Server

This article delves into the suite of tools known as Replay Markup Language (RML) Utilities, essential for support professionals in troubleshooting Microsoft SQL Server. These utilities play a crucial role in diagnosing and resolving performance bottlenecks within SQL Server environments.

What are RML Utilities?

What are RML Utilities

RML Utilities are a collection of diagnostic tools specifically designed to troubleshoot and enhance performance within SQL Server. Imagine them as the diagnostic instruments used in medicine, such as X-rays or MRI machines, but for SQL Server. These utilities are used to process and visualize performance diagnostic data gathered from SQL Server instances. SQL Server support engineers frequently employ RML Utilities to analyze diagnostic traces when investigating performance issues. Database developers and administrators also find them invaluable for scrutinizing and optimizing SQL Server query workloads in both test and production environments.

The RML Utilities suite comprises three primary tools: ReadTrace, Reporter, and Ostress. Each tool serves a distinct purpose in the diagnostic and performance tuning process.

  • ReadTrace: This utility functions as a data transformation tool. ReadTrace ingests Extended Event traces or SQL Trace files, which users create to pinpoint SQL Server problems or analyze workload performance. It then imports this trace data into SQL Server database tables, making the data more accessible for analysis using SQL queries. Think of ReadTrace as converting raw trace files, typically in .XEL or .TRC formats, into a structured, relational format within a database. Furthermore, ReadTrace can generate Replay Markup Language (.RML) files, which are specifically designed for use with Ostress for workload replay simulations.

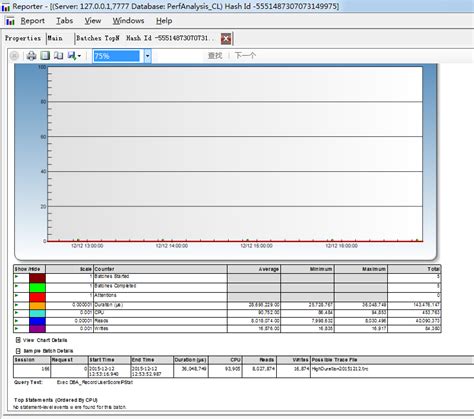

  • Reporter: As its name suggests, Reporter is focused on report generation and data visualization. It connects to the user database created by ReadTrace. Reporter executes SQL queries against this database and generates offline SQL Server Reporting Services (SSRS) report summaries derived from the original Extended Events or Profiler traces. These reports provide valuable insights, such as identifying the queries with the longest execution times, highest CPU consumption, or most significant read operations within a captured workload. Reporter helps to transform raw trace data into actionable performance metrics.

  • Ostress: Ostress is a powerful stress-testing simulation tool. Ostress.exe takes Extended Event or SQL Profiler diagnostic traces as input, or it can also utilize user-provided queries. It then replays these traces or queries against a designated SQL Server instance. The primary objective of Ostress is to simulate stress on the SQL Server, mimicking real-world load conditions. For instance, if you provide Ostress with a query like select * from table1, you can instruct it to execute this query 100 times simultaneously across 50 connections. Beyond individual queries, Ostress can leverage the special RML files generated by ReadTrace to perform comprehensive workload replays, simulating complex production workloads.

  • OStress Replay Control Agent (ORCA): This component is an auxiliary tool that supports Ostress in conducting stress tests by replaying workloads from RML files. Users do not directly interact with ORCA; instead, it operates behind the scenes when Ostress is used for RML replay. ORCA manages and orchestrates the replay process based on the RML files provided to Ostress.

For a detailed understanding of each tool and practical usage examples, the RML Utilities for SQL Server package includes a comprehensive Help file. This file serves as a valuable resource for mastering the intricacies of each utility and maximizing their effectiveness.

How are RML Utilities useful?

How are RML Utilities useful

RML Utilities for SQL Server offer a versatile toolkit for database administrators and developers, enabling them to perform a range of critical tasks related to performance analysis and optimization. These utilities provide deep insights into SQL Server behavior and workload characteristics.

You can leverage RML Utilities for SQL Server to accomplish the following essential tasks:

  • Resource Usage Analysis: Identify which application, database, SQL Server login, or specific query is consuming the most system resources. This is crucial for pinpointing performance bottlenecks and understanding resource contention within the SQL Server environment. By analyzing resource consumption patterns, you can prioritize optimization efforts and address the most resource-intensive components.

  • Execution Plan Analysis: Determine if the execution plan for a SQL batch changes between the time a trace is captured and when it is replayed. Furthermore, RML Utilities allow you to analyze precisely how SQL Server executes these plans. This is invaluable for understanding query performance variations and the impact of environmental changes on query execution strategies. Identifying plan changes is essential for ensuring consistent and predictable query performance.

  • Slow Query Identification: Pinpoint queries that are exhibiting slow performance. By analyzing trace data, RML Utilities can highlight queries that exceed performance thresholds, enabling you to focus on optimizing these problematic queries. Identifying and addressing slow-running queries is a fundamental step in improving overall SQL Server responsiveness.

Beyond these core tasks, RML Utilities provide a powerful capability for performance regression testing. After capturing a trace from a SQL Server instance, you can replay this trace file against a different SQL Server instance. If you simultaneously capture a new trace during the replay process, you can then utilize RML Utilities to compare the new trace file against the original trace file. This comparative analysis allows you to rigorously test the impact of changes on SQL Server behavior.

This technique is particularly useful for evaluating the effects of various modifications, such as:

  • SQL Server Service Pack Installation: Assess the performance impact of applying a SQL Server service pack.
  • SQL Server Cumulative Update Installation: Evaluate the performance changes after installing a SQL Server Cumulative Update.
  • Stored Procedure or Function Updates: Test the performance implications of modifying stored procedures or functions.
  • Index Updates or Creation: Analyze the performance effects of updating or creating indexes.

By replaying production-like workloads in a controlled test environment, you can proactively identify and mitigate potential performance regressions before deploying changes to production systems.

Benefits of RML Utilities for SQL Server

Benefits of RML Utilities for SQL Server

RML Utilities for SQL Server are exceptionally valuable when simulating application testing scenarios, particularly when real-world application testing is impractical or impossible. In many test environments, replicating the user load experienced in a production environment can be challenging. RML Utilities bridge this gap by enabling you to replay a production workload within a test environment. This capability is crucial for accurately assessing the performance impact of any proposed changes.

For example, you can effectively test an upgrade to a newer SQL Server version, such as SQL Server 2008 or later, or evaluate the application of a SQL Server service pack in a realistic load scenario. Furthermore, RML Utilities empower you to analyze and compare different replay workloads, facilitating in-depth regression analysis. Manually performing this type of comprehensive regression analysis would be exceedingly difficult and time-consuming.

To help users quickly get started, the RML Utilities package includes a Help file that features a “Quick Start” topic. This section provides a concise exercise that familiarizes users with each RML tool, enabling them to rapidly grasp the fundamentals and begin leveraging the utilities for their performance analysis needs. To access the Help file, navigate through the Start menu: Start > All Programs > RML Utilities for SQL Server > Help > RML Help. This resource provides step-by-step guidance and practical examples to accelerate the learning process.

Download location and version history

Download location and version history

The version history of RML Utilities is detailed in the table below, and you can download the tools from the provided links. Staying up-to-date with the latest version ensures you benefit from the most recent features, bug fixes, and performance enhancements.

| Version number | Description ================### Obtain the RML Utilities for SQL Server

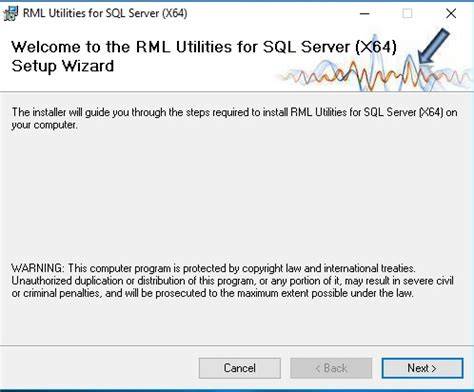

Obtain the RML Utilities for SQL Server

  • RML Utilities for SQL Server can be downloaded from the Microsoft Download Center. This is the primary source for obtaining the utilities and ensures you have the most current version.

  • Alternatively, if you install the Database Experimentation Assistant, the RML tools (specifically ReadTrace and OStress) are included. You can find these tools within the installation directory at C:\\Program Files (x86)\\Microsoft Corporation\\Database Experimentation Assistant\\Dependencies\\X64\\ folder. This provides an alternative access point to these tools if you are already using or planning to use the Database Experimentation Assistant.

It’s important to note that the current version of RML Utilities for SQL Server supersedes any previous versions. Before installing the latest version, it is recommended to uninstall any older versions of RML Utilities for SQL Server to avoid potential conflicts or compatibility issues. The current version incorporates significant software updates, enhanced features, improved reporting capabilities, and performance and scalability enhancements. Keeping your RML Utilities installation up-to-date ensures you benefit from the latest improvements and fixes.

Dependencies for RML Utilities for SQL Server

Dependencies for RML Utilities for SQL Server

Important Note:

The applications within the RML tool suite rely on several external components. These dependencies are essential for the proper functioning of the utilities. Ensure these dependencies are in place before using RML Utilities.

Dependencies for Reporter

Dependencies for Reporter

Reporter.exe requires the Report Viewer controls to be accessible, either in the same directory as Reporter.exe or within the Global Assembly Cache (GAC). The specific DLLs that Reporter.exe depends on are:

  • Microsoft.ReportViewer.Common.dll
  • Microsoft.ReportViewer.DataVisualization.dll
  • Microsoft.ReportViewer.ProcessingObjectModel.dll
  • Microsoft.ReportViewer.WinForms.dll

There are a few ways to ensure these dependencies are met:

  1. Included DLLs: The most recent versions of RML Utilities conveniently include these DLLs directly within the application folder. This simplifies deployment and ensures that Reporter has access to its required components right out of the box.

  2. PowerShell Script Installation: If the DLLs are not present in the application folder, you can utilize a PowerShell script to download and install them. The following script leverages NuGet package management to retrieve and install the necessary Report Viewer DLLs:

    Register-PackageSource -Name MyNuGet -Location https://www.nuget.org/api/v2 -ProviderName NuGet
Get-PackageSource

Find-Package Microsoft.ReportViewer.Common -AllVersions
Install-Package Microsoft.ReportViewer.Common -RequiredVersion 10.0.40219.1

Copy-Item -Path "C:\\Program Files\\PackageManagement\\NuGet\\Packages\\Microsoft.ReportViewer.Common.10.0.40219.1\\lib\\Microsoft.ReportViewer.Common.dll" -Destination "C:\\Program Files\\Microsoft Corporation\\RMLUtils"
Copy-Item -Path "C:\\Program Files\\PackageManagement\\NuGet\\Packages\\Microsoft.ReportViewer.Common.10.0.40219.1\\lib\\Microsoft.ReportViewer.DataVisualization.dll" -Destination "C:\\Program Files\\Microsoft Corporation\\RMLUtils"
Copy-Item -Path "C:\\Program Files\\PackageManagement\\NuGet\\Packages\\Microsoft.ReportViewer.Common.10.0.40219.1\\lib\\Microsoft.ReportViewer.ProcessingObjectModel.dll" -Destination "C:\\Program Files\\Microsoft Corporation\\RMLUtils"

Find-Package Microsoft.ReportViewer.WinForms -AllVersions
Install-Package Microsoft.ReportViewer.WinForms -RequiredVersion 10.0.40219.1

Copy-Item -Path "C:\\Program Files\\PackageManagement\\NuGet\\Packages\\Microsoft.ReportViewer.WinForms.10.0.40219.1\\lib\\Microsoft.ReportViewer.WinForms.dll" -Destination "C:\\Program Files\\Microsoft Corporation\\RMLUtils"

    This script automates the process of downloading and placing the required DLLs in the correct location, making dependency management easier.

  3. ReporterViewer Fix: To ensure that links within ReadTrace reports function correctly, you must download and install a specific ReporterViewer fix. This fix addresses known issues related to link resolution within the reports. Download the ReporterViewer fix from Microsoft Visual Studio 2010 Service Pack 1 Report Viewer (KB2549864). Applying this fix is crucial for optimal report navigation and usability.

Dependencies for Expander (optional)

Dependencies for Expander (optional)

In most scenarios, Expander, which ReadTrace uses to process compressed files such as CAB, ZIP, and RAR, is not essential. However, if you need to utilize this functionality for specific compressed file types, ensure that the necessary compression and decompression controls are available. These controls should be located either in the same folder as Expander.exe or within the GAC. The DLLs required by Expander.exe are:

  • BRICOLSOFTZipx64.dll
  • UnRar64.dll
  • XceedZipX64.dll

These DLLs can be obtained from the respective vendor software packages:

Installing these vendor packages will ensure that Expander has the necessary components to handle compressed files when required.

Dependencies for ReadTrace and Ostress

Dependencies for ReadTrace and Ostress

ReadTrace and Ostress rely on the ODBC and OLEDB drivers that are distributed as part of the SQL Server Native Client. However, starting with version 09.04.0103, the RML Utilities suite has broadened its driver compatibility. It is no longer solely dependent on SQL Server Native Client (SNAC). The suite can now utilize Microsoft ODBC or OLEDB drivers that are installed on the system where RML Utilities is running. This provides greater flexibility in driver selection.

Furthermore, if you intend to analyze Extended Event files (*.xel), ensure that Visual C++ 2010 Redistributable is installed on the system. This redistributable package is required for proper processing of Extended Event files.

Known issues and fixes

Known issues and fixes

The following table outlines some known issues encountered with RML Utilities and their corresponding resolutions. Being aware of these issues and fixes can help you troubleshoot potential problems effectively.

| Issue
