Visual Studio Breakpoint Problems? Debugging Fixes Inside!

Updated: • 0 • min read
Table of Contents

Debugging is an essential part of software development, allowing developers to identify and resolve issues in their code. Microsoft Visual Studio .NET provides powerful debugging tools, but sometimes, developers encounter frustrating situations where the debugger fails to halt at breakpoints in ASP.NET applications. This article addresses this common problem and offers a comprehensive guide to troubleshooting and resolving the issue when your Visual Studio .NET debugger refuses to stop at breakpoints while debugging ASP.NET pages. Understanding the underlying causes and applying the correct solutions can significantly improve your debugging experience and development workflow.

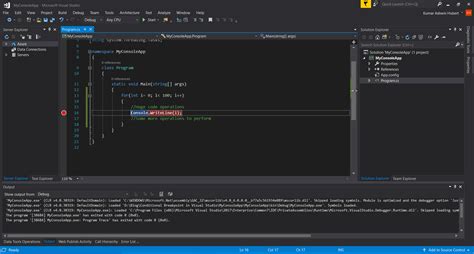

Visual Studio Breakpoint Problems

Symptoms

The primary symptom of this issue is that the Visual Studio .NET debugger does not stop at the breakpoints you have set in your ASP.NET application code. You might run your application in debug mode, expecting the execution to pause at a specific line of code marked by a breakpoint. However, the application runs through without interruption, and the debugger does not trigger. This behavior can occur intermittently or consistently, making it challenging to diagnose and fix problems in your ASP.NET web applications. The debugger might seem to be attached correctly, but it simply ignores the breakpoints, leaving you unable to inspect variables, step through code, or effectively debug your application’s logic.

Cause

The most frequent reason for the debugger to ignore breakpoints in ASP.NET applications within Visual Studio .NET is that ASP.NET debugging is not properly enabled for the application. This setting controls whether the web application is built and configured in a way that allows the Visual Studio debugger to attach and function correctly. Without ASP.NET debugging enabled, the necessary components and configurations for debugging are not activated, preventing breakpoints from being hit. This can be inadvertently disabled or overlooked during project setup or configuration changes, leading to debugging difficulties. Ensuring that ASP.NET debugging is correctly enabled is the first crucial step in resolving breakpoint issues.

Resolution

To resolve the problem of Visual Studio .NET debugger not stopping at breakpoints in your ASP.NET application, you need to verify and enable ASP.NET debugging settings within Visual Studio .NET and your project configuration. Follow these detailed steps to ensure your debugging environment is correctly set up:

1. Enable ASP.NET Debugging in Project Properties

The primary setting to check is within your project’s properties in Visual Studio .NET. This setting explicitly enables ASP.NET debugging for your specific web application.

  1. Open Project Properties: In Solution Explorer, right-click on your ASP.NET project (not the solution) and select Properties from the context menu. This will open the project’s property pages.

  2. Navigate to Web Tab: In the project properties window, locate and click on the Web tab. This tab contains settings specific to web application projects, including debugging configurations.

  3. Enable ASP.NET Debugging Checkbox: Within the Web tab, look for the Debuggers section. Ensure that the checkbox labeled ASP.NET is checked. This is the crucial setting that enables ASP.NET debugging for your project. If it’s unchecked, check it now.

  4. Save Changes: After checking the ASP.NET debugging checkbox, save the project properties. You can usually do this by pressing Ctrl + S or by closing the properties window, which will prompt you to save changes.

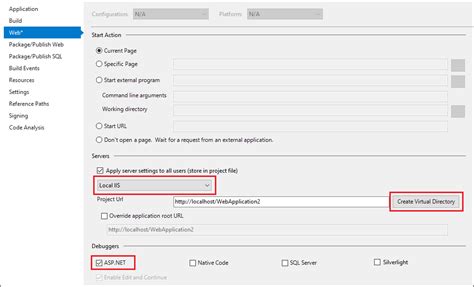

ASP.NET Debugging Enabled in Project Properties

2. Verify Compilation Mode is Debug

For debugging to function correctly, your ASP.NET application must be compiled in Debug mode. Release mode optimizations can interfere with debugging processes.

  1. Access Configuration Manager: In Visual Studio .NET, go to the Build menu in the top menu bar and select Configuration Manager. This will open the Configuration Manager dialog.

  2. Check Active Solution Configuration: In the Configuration Manager, look at the Active solution configuration dropdown. Ensure that Debug is selected. If it’s set to Release or another configuration, change it to Debug.

  3. Check Project Configuration: In the Project contexts section of the Configuration Manager, verify that the Configuration column for your ASP.NET project is also set to Debug. If it’s not, use the dropdown to change it to Debug.

  4. Close Configuration Manager: Click Close to close the Configuration Manager dialog.

Building your application in Debug mode ensures that debug symbols are generated and optimizations that hinder debugging are disabled.

3. Examine Web.config for Debug Compilation

The web.config file, located in the root directory of your ASP.NET application, contains configuration settings for your web application. One critical setting for debugging is the compilation debug="true" attribute.

  1. Locate web.config: In Solution Explorer, find the web.config file in your ASP.NET project.

  2. Open web.config: Double-click on web.config to open it in the editor.

  3. Find Compilation Section: Look for the <system.web> section in the web.config file. Within <system.web>, find the <compilation> element.

  4. Verify Debug Attribute: Inside the <compilation> element, ensure that the debug attribute is set to “true”. It should look like this: <compilation debug="true">. If it’s set to "false" or missing, change it to "true".

  5. Save web.config: Save the changes to web.config by pressing Ctrl + S or using the Save option from the File menu.

Setting debug="true" in web.config instructs ASP.NET to compile your application with debug symbols and disable certain optimizations, which are essential for effective debugging.

<system.web>
  <compilation debug="true" targetFramework="4.7.2" />
  </system.web>

4. Ensure Correct Debugger Attachment

Sometimes, the debugger might not be attached to the correct process or might not be attached at all. Verify that the debugger is properly attached to the ASP.NET process.

  1. Start Debugging: Run your ASP.NET application in debug mode by pressing F5 or clicking the Start Debugging button in Visual Studio .NET.

  2. Check Debugger Attachment: While your application is running, go to the Debug menu in Visual Studio .NET and select Attach to Process…. This will open the Attach to Process dialog.

  3. Locate ASP.NET Process: In the Attach to Process dialog, look for processes related to your ASP.NET application. For applications running under IIS, the process is typically w3wp.exe (for older IIS versions) or iisexpress.exe (for IIS Express, often used in development). If you’re unsure, sort the processes by name and look for those that seem related to web applications.

  4. Verify “Managed (v4.0*, v3.5, v3.0)” or similar is selected: In the “Attach to:” section, ensure that the correct debugger type is selected, usually “Managed (v4.0*, v3.5, v3.0)” or a similar managed code debugger option that is compatible with your .NET Framework version.

  5. Attach (if not already attached): If you don’t see a process that looks like it’s already being debugged (indicated by “Attached” in the “Status” column, though this might not always be reliable), select the appropriate w3wp.exe or iisexpress.exe process and click Attach.

If the debugger was not correctly attached, manually attaching it can resolve breakpoint issues.

5. Check for Symbol Loading (PDB Files)

Debuggers rely on Program Database (PDB) files, also known as symbol files, to map compiled code back to your source code. If PDB files are missing or not loaded correctly, breakpoints might not work.

  1. Clean and Rebuild Solution: Go to the Build menu and select Clean Solution. After cleaning, go to the Build menu again and select Rebuild Solution. This forces a fresh build, ensuring PDB files are regenerated.

  2. Check Output Window: After rebuilding, check the Output window in Visual Studio .NET (usually at the bottom, or you can open it from View > Output). Look for messages related to symbol loading. You should see messages indicating that PDB files are being loaded for your project’s DLLs.

  3. Modules Window: While debugging, open the Modules window (Debug > Windows > Modules). This window shows all the modules (DLLs, EXEs) loaded by the application and their symbol loading status. Find your project’s DLL in the list. The “Symbol Status” column should indicate “Symbols loaded.” If it says “Cannot find or open the PDB file” or similar, it means symbol files are not being loaded.

  4. Symbol File Paths (if symbols not loading): If symbols are not loading, you might need to configure symbol paths. Go to Tools > Options > Debugging > Symbols. Ensure that “Microsoft Symbol Servers” is checked. You can also add specific paths where PDB files might be located if they are not in the default locations (e.g., output directories of your projects).

Correct symbol loading is crucial for breakpoints to function. Cleaning and rebuilding, and verifying symbol loading status, can resolve issues related to missing or incorrect PDB files.

6. Restart Visual Studio and IIS/IIS Express

Sometimes, restarting Visual Studio .NET and the web server (IIS or IIS Express) can resolve transient issues that might be preventing breakpoints from working.

  1. Close Visual Studio: Close all instances of Visual Studio .NET.

  2. Restart IIS/IIS Express:

    • IIS Express: If you are using IIS Express, you can usually right-click on the IIS Express icon in the system tray (near the clock) and select Exit to close it, and it will restart automatically when you debug again. Or, you can manually restart it from the system tray if needed.
    • Full IIS: If you are using full IIS, open the IIS Manager (search for “IIS Manager” in the Start menu). In IIS Manager, find your application’s application pool and recycle it. You can also restart the entire IIS service if necessary.

  3. Reopen Visual Studio and Project: Restart Visual Studio .NET and reopen your ASP.NET project.

  4. Try Debugging Again: Try running your application in debug mode and see if breakpoints are now being hit.

Restarting these components can clear up temporary glitches or configuration issues that might be interfering with debugging.

7. Check for Browser Caching Issues

In some scenarios, especially after making code changes, browser caching can lead to the browser using an older version of your application’s JavaScript or CSS files. This can sometimes create confusion if you’re debugging client-side code. While less directly related to server-side ASP.NET breakpoints, it’s good practice to clear browser cache.

  1. Clear Browser Cache: Clear your browser’s cache and browsing data. The method varies depending on your browser (e.g., in Chrome, it’s usually under More tools > Clear browsing data).

  2. Hard Reload: Perform a hard reload of your web page in the browser. In most browsers, you can do this by pressing Ctrl + F5 or Shift + F5. This forces the browser to bypass the cache and load fresh resources from the server.

While browser caching is less likely to directly cause server-side breakpoint issues, it’s a good general troubleshooting step in web development.

8. Examine Firewall or Antivirus Interference (Less Common)

In rare cases, firewall or antivirus software might interfere with the debugger’s communication with the ASP.NET process. This is less common, but if you’ve tried all other steps, it’s worth considering.

  1. Temporarily Disable Firewall/Antivirus (Cautiously): As a temporary troubleshooting step, you could try temporarily disabling your firewall or antivirus software. Be extremely cautious when doing this and re-enable them immediately after testing.

  2. Test Debugging: After temporarily disabling security software, try debugging your ASP.NET application again to see if breakpoints are now hit.

  3. Configure Exceptions (if interference is found): If you find that disabling firewall or antivirus resolves the issue, you should not leave them disabled. Instead, configure exceptions in your firewall or antivirus software to allow communication for Visual Studio debugging processes (like vsdbg.exe or similar) and the ASP.NET development server processes (like iisexpress.exe or w3wp.exe). Refer to your firewall/antivirus documentation for how to add exceptions.

Firewall/antivirus interference is usually a less frequent cause, but it’s a possibility to consider if other solutions haven’t worked. Always prioritize security and re-enable your security software promptly after testing.

By systematically following these resolution steps, you should be able to identify and fix the reasons why your Visual Studio .NET debugger is not stopping at breakpoints in your ASP.NET applications. Debugging is a critical skill for software developers, and ensuring your debugging environment is properly configured is essential for efficient and effective development.

If you continue to experience issues or have further questions, feel free to leave a comment below! We are here to help you improve your debugging experience.
