Azure Function App Downtime After Deployment? Troubleshoot Runtime Issues Now

Table of Contents

It’s critical to understand the distinction between deployment and runtime issues when your Azure Function application encounters problems following deployment. A deployment issue typically arises from incorrect file deployment to your function app, or the absence of certain files altogether. Conversely, a runtime issue materializes after a successful deployment. In this scenario, the wwwroot directory is correctly populated with the intended files, yet the function app still malfunctions. When faced with a runtime problem, the deployment method becomes less relevant. Instead, the focus must shift to the runtime behavior of your code and the nature of its failure.

Common Causes for Application Runtime Issues After Content Deployment¶

Runtime failures in Azure Function Apps can stem from a variety of underlying issues. Pinpointing the exact cause is crucial for effective troubleshooting and resolution. Here are some of the most prevalent reasons for runtime problems after deployment:

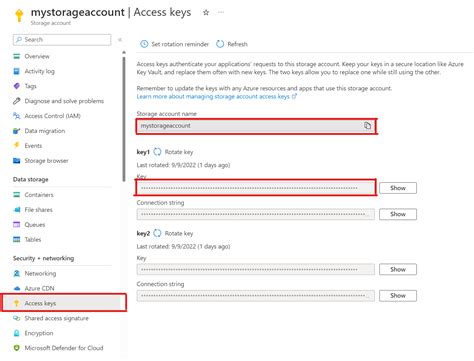

Function App Loses Access to Storage Account¶

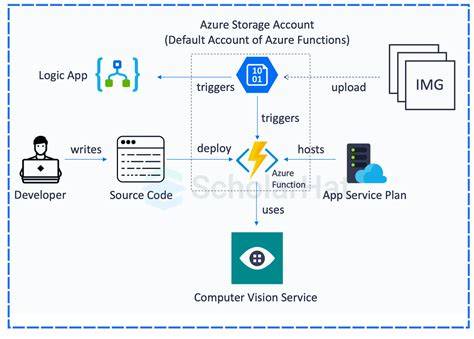

One of the most fundamental requirements for an Azure Function App is access to its configured storage account. The function runtime relies heavily on the storage account for various operations, including state management, logging, and trigger management. If the function app loses its connection to the storage account, the runtime environment will likely fail to start, leading to downtime.

This loss of access can occur due to several reasons:

• Incorrect Connection String: The connection string configured for the function app might be incorrect or outdated. This could happen if the storage account keys were regenerated or if the connection string was misconfigured during deployment.
• Network Connectivity Issues: Network problems, such as firewall rules or network security groups (NSGs) blocking traffic between the function app and the storage account, can disrupt connectivity.
• Storage Account Outage: Although rare, an outage or temporary unavailability of the Azure Storage Account service itself can prevent the function app from accessing storage.
• Access Key Expiration or Revocation: If the function app is using storage account access keys for authentication, and these keys have expired or been revoked, access will be denied.

Troubleshooting Steps:

1. Verify Connection String: Double-check the storage account connection string configured in the function app’s application settings. Ensure it’s accurate and points to the correct storage account.
2. Test Storage Connectivity: Use tools like az storage account test-dns in the Azure CLI or PowerShell cmdlets to test DNS resolution and basic connectivity to the storage account from the environment where the function app is running.
3. Check Network Configuration: Review firewall rules and NSGs associated with both the function app and the storage account to ensure that network traffic is allowed between them on the necessary ports (typically 443 for HTTPS).
4. Examine Storage Account Status: Check the Azure Service Health dashboard for any reported outages or issues affecting the Azure Storage service in the region where your storage account is located.
5. Key Rotation and Management: If using access keys, ensure a proper key rotation strategy is in place to prevent key expiration from causing disruptions. Consider using managed identities for a more secure and manageable approach to storage account access.

Runtime Sandbox Environment Restrictions¶

Azure Functions operate within a sandbox environment to ensure security and resource isolation. This sandbox imposes certain restrictions on the operations that function code can perform. Actions that work seamlessly on a local development machine might be blocked or restricted within the Azure Functions runtime environment.

Common sandbox limitations include:

• Limited File System Access: Write access to the file system is restricted to specific directories. Attempting to write to unauthorized locations will result in errors.
• Process and Thread Limitations: There are limits on the number of processes and threads that a function app can create. Exceeding these limits can lead to performance degradation or runtime failures.
• Registry Access Restrictions: Access to the Windows Registry is typically restricted within the sandbox for security reasons.
• Network Socket Restrictions: Outbound network connections might be subject to limitations or require specific configurations, especially when connecting to resources outside of Azure.
• Dependency Limitations: Certain native libraries or system-level dependencies might not be available or fully supported within the Azure Functions sandbox.

Troubleshooting Steps:

1. Review Error Logs: Examine the function app’s logs for any error messages related to file system access, process creation, or other sandbox-related restrictions.
2. Simplify Code: Temporarily simplify the function code to isolate the potential source of the sandbox violation. Remove or comment out sections of code that might be attempting restricted operations.
3. Test with Basic Operations: Introduce simple file I/O or process creation operations in your function code to test the sandbox limitations in a controlled manner. For example, try writing a small file to a permitted directory like /tmp (in Linux-based function apps) or the D:\home\LogFiles directory (in Windows-based function apps).
4. Consult Azure Functions Documentation: Refer to the official Azure Functions documentation for detailed information about the sandbox environment and its limitations. Microsoft provides guidance on supported operations and workarounds for common restrictions.
5. Consider App Service Plan: If the sandbox limitations are too restrictive for your application’s needs, consider deploying your function app to a dedicated App Service Plan instead of a Consumption plan. App Service Plans offer more flexibility and fewer sandbox restrictions.

Incorrect Azure Functions App Configuration¶

Misconfiguration of the Azure Functions app itself is a frequent cause of runtime issues. The function host relies on various settings to initialize and operate correctly. Incorrect values in these settings can prevent the host from starting up properly, leading to function app downtime.

Key configuration areas to examine include:

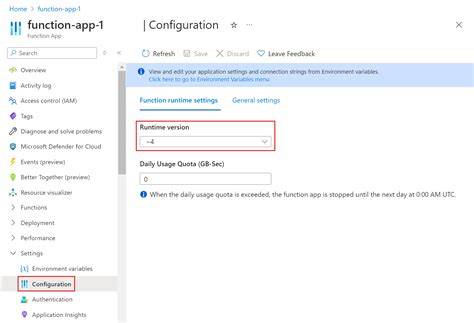

• Runtime or Language Version: Ensure that the configured runtime version (e.g., .NET, Node.js, Python, Java) and language version are compatible with your function code and dependencies. Mismatched versions can cause runtime initialization failures.
• Triggers Connection Strings: Function apps often rely on triggers (e.g., Blob Storage trigger, Queue Storage trigger, Event Hub trigger) that require connection strings to access external services. Incorrect or missing trigger connection strings will prevent triggers from functioning correctly, and in some cases, can prevent the function host from starting.
• Key Vault Settings: If your function app uses Azure Key Vault to manage secrets and configuration values, incorrect Key Vault settings (e.g., incorrect Key Vault URI, missing access policies) can lead to failures in retrieving necessary configuration, causing runtime issues.
• Application Settings: Other application settings, such as environment variables and configuration parameters, play a crucial role in the function app’s behavior. Incorrectly configured application settings can result in unexpected runtime errors.

Troubleshooting Steps:

1. Review Application Settings: Carefully examine all application settings configured for your function app in the Azure portal or using the Azure CLI/PowerShell. Pay close attention to runtime version settings, trigger connection strings, and Key Vault configurations.
2. Verify Runtime Version Compatibility: Confirm that the selected runtime version matches the framework and dependencies used by your function code. For example, if your function is written in .NET 6, ensure the function app is configured to use the .NET 6 runtime.
3. Validate Trigger Connection Strings: Test the validity of trigger connection strings by attempting to connect to the respective services (e.g., storage account, event hub) using the provided connection strings from a separate tool or script.
4. Check Key Vault Access Policies: If using Key Vault, verify that the function app’s managed identity or service principal has the necessary permissions (e.g., “Get” secret permission) to access secrets from the configured Key Vault.
5. Examine Function Host Logs: Analyze the function host logs for any error messages related to configuration issues or startup failures. These logs often provide valuable clues about misconfiguration problems.
6. Use Configuration Validation Tools: Some Azure tools and extensions offer configuration validation features that can help identify potential misconfigurations in your function app settings.

External Dependency Issues (Databases, Messaging Systems)¶

Azure Functions frequently interact with external dependencies, such as databases (SQL, NoSQL), messaging systems (Service Bus, Event Hubs, queues), and other APIs or services. Problems with these external dependencies can directly impact the function app’s runtime behavior, leading to timeouts, errors, and overall application failures.

Common external dependency issues include:

• Connection Problems: The function app might be unable to establish a connection to the external dependency due to network issues, incorrect connection strings, firewall rules, or dependency service outages.
• Authentication Failures: Incorrect credentials or authentication mechanisms when connecting to external dependencies will result in access denial and runtime errors.
• Performance Bottlenecks: Slow response times or performance issues in external dependencies can lead to timeouts and degraded performance in the function app.
• Dependency Service Outages: Outages or temporary unavailability of external dependency services will directly impact the function app’s ability to function correctly.
• Resource Limits: Exceeding resource limits (e.g., database connection limits, message queue limits) in external dependencies can cause errors and failures in the function app.

Troubleshooting Steps:

1. Monitor Dependency Health: Implement monitoring for your external dependencies to track their availability, performance, and error rates. Azure Monitor and service-specific monitoring tools can be used for this purpose.
2. Test Dependency Connectivity: Independently test the connectivity and authentication to your external dependencies from outside the function app environment. Use tools specific to each dependency type (e.g., SQL client for databases, Service Bus Explorer for Service Bus).
3. Review Firewall and Network Rules: Ensure that firewall rules and network security groups are correctly configured to allow network traffic between the function app and its external dependencies.
4. Check Dependency Service Status: Monitor the Azure Service Health dashboard for any reported outages or issues affecting the Azure services your function app depends on. Also, check the status pages of any third-party external services.
5. Implement Timeout and Retry Logic: In your function code, implement robust error handling, timeout mechanisms, and retry logic when interacting with external dependencies. This can help mitigate transient connectivity issues and improve resilience.
6. Optimize Dependency Interactions: Optimize your function code to efficiently interact with external dependencies. Use connection pooling, query optimization, and caching techniques to minimize latency and resource consumption.

Sync Triggers Failed¶

Azure Functions uses a process called “trigger synchronization” to discover and load functions based on trigger configurations. If the trigger synchronization process fails, it can lead to incorrect loading of functions or even prevent functions from being loaded at all. This can manifest as functions not being triggered as expected or the function app appearing to be in a broken state.

Common causes for sync trigger failures:

• Configuration Changes During Runtime: Making changes to function app configuration (e.g., adding or modifying triggers) while the function app is running can sometimes disrupt the trigger synchronization process.
• Deployment Issues: Incomplete or corrupted deployments can lead to inconsistencies in trigger configurations, causing synchronization failures.
• Underlying Infrastructure Problems: Transient issues with the Azure Functions infrastructure can occasionally interfere with trigger synchronization.
• Concurrency Issues: In rare cases, concurrent operations or resource contention within the function app’s runtime environment might lead to sync trigger failures.

Troubleshooting Steps:

1. Restart Function App: A simple restart of the function app often resolves transient sync trigger issues. Restarting forces a fresh trigger synchronization process.
2. Redeploy Function App: If restarting doesn’t help, redeploying the function app can ensure a clean and consistent deployment, resolving potential configuration inconsistencies that might be causing sync problems.
3. Examine Function Host Logs: Check the function host logs for any error messages specifically related to trigger synchronization failures. These logs can provide details about the nature of the problem.
4. Verify Trigger Configurations: Double-check the trigger configurations defined in your function.json files and in the function app’s application settings. Ensure that all trigger bindings are correctly defined and that connection strings are valid.
5. Avoid Runtime Configuration Changes: Minimize making configuration changes to the function app while it is actively running. If configuration updates are necessary, consider performing them during off-peak hours or scheduling a restart of the function app after the changes are applied.

Invalid Path Assumptions in Code¶

Code that makes hardcoded assumptions about file paths or directory structures can lead to runtime errors when deployed to Azure Functions. Development environments often have different path configurations compared to the Azure Functions runtime environment. Paths that are valid on a local development machine might not exist or be accessible in the cloud environment.

Common examples of invalid path assumptions:

• Hardcoded Absolute Paths: Using absolute paths like C:\MyProject\Data\myfile.txt (Windows) or /Users/myuser/project/data.json (macOS/Linux) will likely fail in Azure Functions, as these paths are specific to the development machine.
• Relative Paths Based on Development Environment: Relative paths that assume a specific project structure or working directory in the development environment might not resolve correctly when the function app is deployed to Azure.
• Operating System-Specific Paths: Code that relies on operating system-specific path separators (e.g., backslashes \ in Windows, forward slashes / in Linux) might encounter issues if the function app is deployed to a different operating system environment than the development environment.

Troubleshooting Steps:

1. Use Relative Paths: Favor relative paths over absolute paths in your function code. Relative paths are resolved based on the function app’s working directory, making the code more portable and environment-agnostic.
2. Utilize Environment Variables: Use environment variables or application settings to configure paths and file locations. This allows you to specify different paths for development, staging, and production environments without modifying the code itself.
3. Resolve Paths Dynamically: Use platform-independent path manipulation functions and libraries provided by your programming language to dynamically resolve paths at runtime. For example, in Python, use os.path.join() and os.path.abspath() to construct and resolve paths. In Node.js, use path.join() and path.resolve() from the path module.
4. Test in Azure Environment: Thoroughly test your function app in the Azure Functions environment after deployment to identify any path-related issues. Examine error logs and file access operations to pinpoint problems.
5. Avoid Hardcoding Paths: Minimize or eliminate hardcoding of file paths and directory structures directly in your function code. Rely on configuration and dynamic path resolution instead.

Solutions¶

When you encounter runtime issues after deploying your Azure Function App, systematically applying troubleshooting steps is essential. Here are several effective solutions to address these problems:

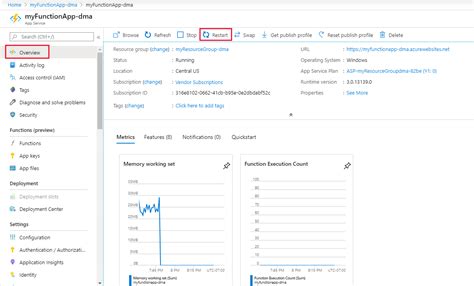

Manually Restart the Function App¶

Often, a simple manual restart of the function app can resolve transient runtime issues. Restarting can clear up temporary glitches, refresh configurations, and re-initialize the function runtime environment. This is usually the quickest and easiest first step in troubleshooting.

How to Restart:

1. Azure Portal: Navigate to your Function App in the Azure portal. In the Function App blade, locate the “Restart” button in the top command bar and click it.
2. Azure CLI: Use the Azure CLI command: az functionapp restart --name <FUNCTION_APP_NAME> --resource-group <RESOURCE_GROUP_NAME>. Replace <FUNCTION_APP_NAME> and <RESOURCE_GROUP_NAME> with your function app’s name and resource group.
3. PowerShell: Use the PowerShell cmdlet: Restart-AzFunctionApp -Name <FUNCTION_APP_NAME> -ResourceGroupName <RESOURCE_GROUP_NAME>. Replace placeholders accordingly.

When to Use:

• As the initial troubleshooting step for any unexplained runtime issue after deployment.
• When you suspect transient errors or configuration inconsistencies might be the cause.
• After making configuration changes or updates to the function app.

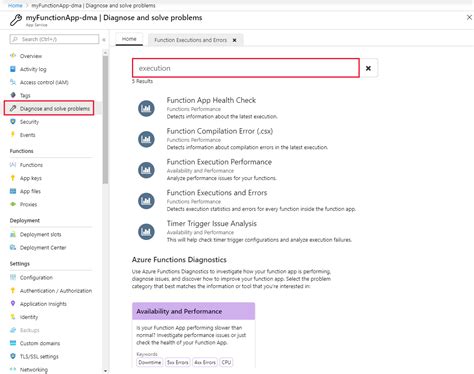

Run Azure Functions Diagnostics¶

Azure Functions Diagnostics is a built-in tool within the Azure portal that can automatically diagnose and solve common function app problems. It provides a guided troubleshooting experience, checking for various issues related to configuration, runtime, performance, and dependencies.

How to Use:

1. Azure Portal: In the Azure portal, navigate to your Function App. In the Function App blade, scroll down to the “Monitoring” section and click on “Diagnose and solve problems.”
2. Choose Diagnostic Category: Select a relevant diagnostic category from the available options, such as “Function App Down” or “Function Execution Issues,” based on the symptoms you are experiencing.
3. Review Diagnostic Results: Azure Functions Diagnostics will run a series of checks and present the findings. It will identify potential problems, provide detailed explanations, and often suggest recommended solutions or mitigation steps.

Benefits:

• Automated Troubleshooting: Quickly identifies common issues without manual investigation.
• Guided Solutions: Provides step-by-step guidance to resolve detected problems.
• Comprehensive Checks: Covers a wide range of potential runtime issues.
• Integrated Tool: Easily accessible within the Azure portal.

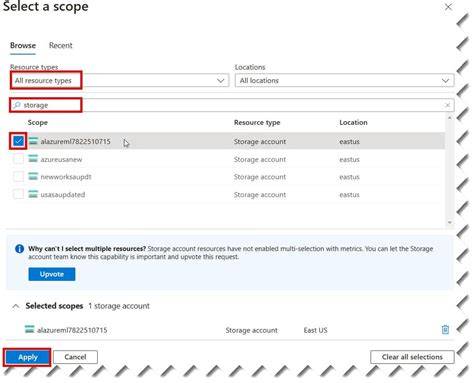

Verify Storage Connections¶

As highlighted earlier, correct storage account connections are crucial for Azure Functions. Verifying storage connection setup and accessibility is a vital troubleshooting step. Ensure that the function app is configured with valid storage connection strings and that it can successfully communicate with the storage account.

Verification Steps:

1. Check Connection String Settings: In the Azure portal, navigate to your Function App’s “Configuration” blade. Review the application settings and locate the settings related to storage connections (typically named AzureWebJobsStorage and APPINSIGHTS_INSTRUMENTATIONKEY if Application Insights is enabled). Ensure these connection strings are correctly configured and point to the intended storage account.
2. Test Storage Connectivity (Portal): In the Function App’s “Configuration” blade, under “Application settings,” find the storage connection setting. There may be a “Validate” or “Test Connection” option (depending on the setting type) that you can use to test the connection directly from the portal.
3. Test Storage Connectivity (CLI/PowerShell): Use Azure CLI or PowerShell cmdlets to test storage connectivity from your local machine or an Azure VM that has network access to your function app and storage account. For example, use az storage account test-dns or PowerShell cmdlets like Get-AzStorageAccount.
4. Examine Function Host Logs: Review the function host logs for any error messages related to storage connection failures. These logs often provide specific details about connection problems.
5. Network Connectivity Checks: Verify network connectivity between the function app and the storage account. Check firewall rules, NSGs, and network routing configurations to ensure traffic is allowed on the necessary ports (typically 443 for HTTPS).

Importance:

• Ensures the function runtime can access essential storage services.
• Identifies misconfigured connection strings or network connectivity issues.
• Resolves problems related to storage account access permissions or availability.

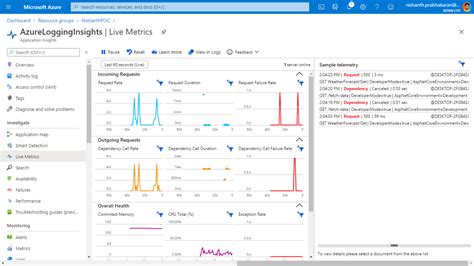

Review Application Insights Logs¶

If you have enabled Application Insights for your function app (which is highly recommended for monitoring and troubleshooting), its logs are an invaluable resource for diagnosing runtime issues. Application Insights captures detailed telemetry, including exception traces, error messages, and dependency call information.

How to Access and Analyze Logs:

1. Azure Portal: Navigate to your Function App in the Azure portal. In the “Monitoring” section, click on “Application Insights.”
2. Explore Logs: In the Application Insights blade, you can use various tools to explore logs:
   • “Live Metrics Stream”: Provides real-time metrics and logs as events occur. Useful for observing immediate issues.
   • “Logs” (Analytics): Allows you to write Kusto Query Language (KQL) queries to search, filter, and analyze telemetry data. This is the primary tool for in-depth log analysis.
   • “Failures”: Provides a summarized view of failed requests and exceptions.
   • “Performance”: Shows performance metrics and helps identify bottlenecks.
3. Search for Errors and Exceptions: Use KQL queries in the “Logs” section to search for error messages, exceptions, and relevant keywords related to your runtime issue. For example:


   traces
   | where severityLevel > 2 // Errors and above
   | where message contains "error" or message contains "exception"
   | project timestamp, message, customDimensions


4. Examine Exception Traces: When you find error logs or exceptions, carefully examine the full exception trace. It often provides detailed information about the source of the error, the call stack, and the specific line of code where the exception occurred.
5. Analyze Dependency Calls: Application Insights tracks calls to external dependencies. Analyze dependency call logs to identify slow or failing dependency calls that might be contributing to runtime issues.

Benefits of Application Insights Logs:

• Detailed Error Information: Provides full exception traces and error messages for in-depth analysis.
• Telemetry Data: Captures a wide range of telemetry data, including requests, dependencies, traces, and metrics.
• Powerful Querying: KQL allows for flexible and powerful log analysis.
• Proactive Monitoring: Can be used for setting up alerts and dashboards to proactively monitor function app health.

Review Function Runtime Migration Guides¶

If your deployment process involved updating the function app runtime or language version (e.g., migrating from .NET Framework to .NET, or from Node.js v14 to v18), it’s crucial to review the official migration guides provided by Microsoft. Runtime migrations can introduce breaking changes or require code adjustments.

Why Migration Guides are Important:

• Breaking Changes: Newer runtime versions might introduce breaking changes in APIs, libraries, or runtime behavior. Migration guides highlight these changes and provide guidance on how to adapt your code.
• Dependency Updates: Runtime migrations often necessitate updating dependencies and libraries to versions compatible with the new runtime. Migration guides may provide information about dependency compatibility.
• Configuration Changes: Configuration settings or runtime behaviors might change between runtime versions. Migration guides outline any necessary configuration adjustments.
• Best Practices: Migration guides often include best practices and recommendations for ensuring a smooth and successful runtime migration.

Where to Find Migration Guides:

• Azure Functions Documentation: The official Azure Functions documentation on Microsoft Learn is the primary source for migration guides. Search for articles related to “migrate,” “upgrade,” or “runtime version” in the Azure Functions documentation.
• .NET Migration Guides: For .NET runtime migrations, refer to the official .NET migration documentation provided by Microsoft.
• Node.js Migration Guides: For Node.js runtime migrations, consult the Node.js release notes and migration guides for the specific Node.js versions involved in your migration.

Steps to Take:

1. Identify Runtime Version Changes: Determine if your deployment process included a change in the function app’s runtime or language version.
2. Locate Relevant Migration Guides: Find the official migration guides for the specific runtime versions involved in your migration.
3. Review for Breaking Changes: Carefully review the migration guides for any breaking changes, dependency updates, or configuration adjustments that might be relevant to your function app.
4. Apply Necessary Code and Configuration Changes: Implement the necessary code modifications and configuration updates based on the guidance in the migration guides.
5. Thoroughly Test After Migration: After migrating the runtime version and applying changes, thoroughly test your function app in the Azure environment to ensure it functions correctly with the new runtime.

By methodically applying these solutions, you can effectively troubleshoot and resolve runtime issues in your Azure Function Apps, minimizing downtime and ensuring the reliable operation of your serverless applications. Remember to approach troubleshooting systematically, starting with the simplest solutions and progressively investigating more complex causes as needed.

---
