Azure Monitor Agent: Validate Data Collection with Step 4 Testing

Table of Contents

In this comprehensive guide, you will discover various effective methods for establishing connections between newly configured data collection rules (DCRs) and your existing virtual machines (VMs). By implementing these proven techniques, you can seamlessly initiate the process of gathering crucial data for in-depth analysis within both testing and production environments. This step is critical to ensure that your monitoring setup is correctly configured and functioning as expected before full deployment. Validating your data collection early in the process can save significant time and resources by identifying and resolving potential issues proactively.

Deploy Newly Generated DCRs to a Test Workspace¶

To ensure a smooth transition and minimize risks to your production environment, it is highly recommended to initially deploy your newly created Data Collection Rules (DCRs) to a dedicated test workspace. This approach provides a safe and isolated environment for validating the functionality and configuration of your DCRs without impacting live operations. By utilizing a test workspace, you can thoroughly examine the data collection process, identify any potential errors, and fine-tune your configurations before deploying them to your production environment. This practice significantly reduces the likelihood of unexpected issues and ensures a more reliable and efficient monitoring system.

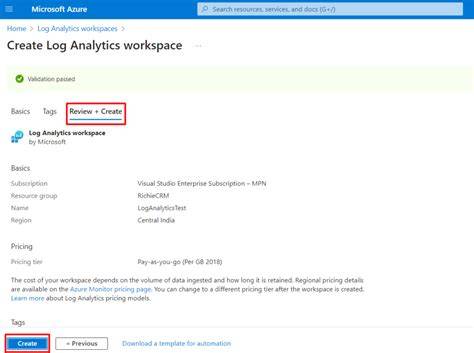

Deploy Log Analytics Testing Workspace¶

Setting up a temporary Log Analytics workspace specifically for testing purposes is a straightforward process within the Azure portal. This dedicated workspace will serve as the destination for your test data, keeping it separate from your production data and allowing for focused analysis and validation. Follow these detailed steps to quickly deploy a Log Analytics testing workspace:

1. Sign in to the Azure Portal: Begin by accessing the Azure portal using your Azure account credentials. This ensures you have the necessary permissions to create and manage resources within your subscription.
2. Navigate to Log Analytics Workspaces: In the portal’s search bar, located at the top, type “Log Analytics” and press Enter. This action will open the Log Analytics blade, which is the central hub for managing Log Analytics workspaces.
3. Initiate Workspace Creation: Within the Log Analytics workspaces blade, locate and select the + Add or Add button. This will initiate the process of creating a new Log Analytics workspace.
4. Provide Workspace Details: You will be prompted to fill in the required information for your new workspace. This includes specifying a descriptive name for the workspace, and selecting the Azure subscription where you wish to create it. Choose a name that clearly indicates its purpose as a testing workspace.
5. Select a Resource Group: Next, you need to choose a resource group for your new workspace. You have the option to either create a new resource group specifically for testing resources or utilize an existing resource group. Consider creating a new resource group to keep your testing resources organized and separate from production resources.
6. Choose Workspace Location: Select the geographical location for your Log Analytics workspace. It is crucial to choose a region that is the same as the region where your virtual machines are located. This proximity minimizes latency and ensures optimal performance for data ingestion and analysis.
7. Create the Workspace: Finally, select Create to initiate the deployment process. The creation of a Log Analytics workspace typically takes a few minutes to complete as Azure provisions the necessary resources.
8. Access the New Workspace: Once the deployment is successfully completed, navigate to the newly created Log Analytics workspace within the Azure portal. You can find it in the Log Analytics workspaces blade by searching for the name you provided earlier.

By following these steps, you will have a functional Log Analytics workspace ready to receive and analyze data from your test environment. This dedicated workspace allows you to experiment with different configurations and validate your data collection rules without impacting your production monitoring setup.

Swap the Production Workspace with the Test Workspace¶

After successfully setting up your test Log Analytics workspace, the next crucial step is to temporarily redirect your Data Collection Rule’s (DCR) destination from your production workspace to this newly created test workspace. This redirection allows you to channel the collected data into the test environment for validation purposes. To perform this swap, follow these steps:

1. Open Data Collection Rules Blade: In the Azure portal’s search bar, type “Data Collection Rules” and press Enter. This action will open the Data Collection Rules blade, providing access to your configured DCRs.
2. Select Your DCR: From the list of Data Collection Rules, select the specific DCR that you recently created using the DCR tool and intend to test.
3. Access Data Source Configuration: Within the selected DCR’s settings, navigate to Configuration and then select Data Sources. This section displays the data sources associated with your DCR. Next, select a specific data source from the list to modify its destination settings.
4. Navigate to Destination Settings: Within the data source configuration, select the Destination tab. This tab manages where the data collected by this data source is sent.
5. Modify Destination Details: Select Destination Details to access the configuration options for the data destination. Here, you will remove the currently configured production workspace and replace it with your newly created testing workspace. Carefully select the correct test workspace to ensure data is routed appropriately.
6. Initiate Testing Activities: With the destination workspace successfully swapped to the test workspace, you can now commence your testing activities. Ensure that you have all the necessary permissions and access levels within the test Log Analytics workspace to effectively analyze the incoming data. This is a critical step to verify that your data collection rules are functioning as intended and capturing the desired data.

By temporarily swapping the destination workspace, you create a controlled environment for testing and validation. This practice ensures that any potential issues or misconfigurations are identified and resolved in the test workspace, preventing them from impacting your production data and monitoring environment. Remember to revert these changes and point the DCR back to your production workspace after completing the validation process.

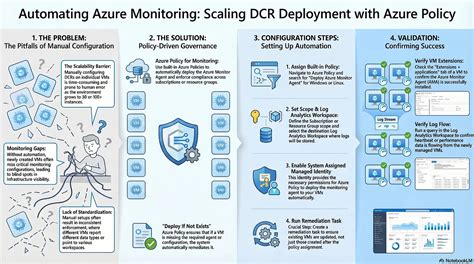

Associate VMs to the DCR¶

To enable data collection from your virtual machines using the newly configured Data Collection Rule (DCR), you need to explicitly associate the VMs with the DCR. This association establishes the link between the DCR and the VMs, instructing the Azure Monitor Agent on the VMs to apply the data collection rules defined in the DCR. Follow these steps to associate your VMs:

1. Select the DCR: In the list of Data Collection Rules within the Azure portal, choose the specific DCR that you want to associate with your virtual machines.
2. Navigate to Resources: Within the selected DCR’s menu pane, locate the Configuration section and then select Resources. This section manages the resources associated with the DCR.
3. Add Resources: Select the + Add button. This action opens the Select a scope pane, which allows you to search for and select the VMs you want to associate with the DCR.
4. Select VMs and Apply: In the Select a scope pane, locate and select the virtual machines that you intend to monitor using this DCR. Once you have selected all the desired VMs, click the Apply button. During this process, if the Azure Monitor Agent is not already deployed on the selected VMs, the system will automatically deploy it at this time. This ensures that the agent is present and ready to enforce the data collection rules defined in your DCR.

After completing these steps, your chosen virtual machines are now successfully associated with the DCR. The Azure Monitor Agent on these VMs will begin collecting data according to the rules defined in the DCR and sending it to the designated workspace (currently your test workspace). You are now prepared to proceed with validating your data collection configuration and ensuring that the system is functioning as expected.

Post Validation Steps¶

Once you have thoroughly validated your data collection configuration in the test workspace and confirmed that everything is working as expected, it is essential to perform the following post-validation steps to finalize the process and ensure your production environment is correctly set up:

1. Switch Destination Workspace Back to Production: The first crucial step is to revert the destination workspace in your DCR from the temporary test workspace back to your intended production workspace. This ensures that future data collection is directed to your main monitoring environment. Navigate back to the Destination settings of your DCR and modify the destination details to point to your production Log Analytics workspace.
2. Remove Legacy Agent Extension (If Applicable): If you were previously using the legacy Log Analytics agent and have migrated to the Azure Monitor Agent, it is recommended to remove the legacy agent extension from your virtual machines. This eliminates potential conflicts and ensures that only the Azure Monitor Agent is actively collecting data. You can typically remove the legacy agent extension through the Azure portal’s VM extension settings.

With these post-validation steps completed, your migration and testing process is now finalized. Your virtual machines are now configured to collect data using the Azure Monitor Agent and send it to your production Log Analytics workspace. To migrate additional workspaces or configure monitoring for more VMs, simply repeat these steps for each environment or resource as needed.

To monitor the overall progress and status of your migration efforts, you can leverage the AMA Migration Helper workbook. This workbook provides a centralized dashboard to track the migration status across your Azure environment, helping you ensure a smooth and complete transition to the Azure Monitor Agent.

Troubleshoot Azure Monitor Agent¶

Encountering issues with the Azure Monitor Agent is not uncommon, and Microsoft provides dedicated troubleshooting tools to assist in diagnosing and resolving these problems effectively. Depending on the operating system of your virtual machines, you can utilize the following troubleshooters:

• Windows OS Azure Monitor Agent Troubleshooter: For virtual machines running on Windows operating systems, the Windows OS Azure Monitor Agent Troubleshooter is the recommended tool. This troubleshooter is specifically designed to diagnose common issues related to the Azure Monitor Agent on Windows, such as connectivity problems, configuration errors, and agent health issues. It provides automated checks and guidance to help you quickly identify and resolve the root cause of the problem.
• Linux OS Azure Monitor Agent Troubleshooter: For virtual machines running on Linux operating systems, the Linux OS Azure Monitor Agent Troubleshooter is the appropriate tool. Similar to the Windows troubleshooter, this tool is tailored to diagnose common problems encountered with the Azure Monitor Agent on Linux systems. It assists in identifying issues related to agent installation, configuration, and data collection, offering automated checks and recommendations for resolution.

By utilizing these dedicated troubleshooters, you can significantly streamline the process of identifying and resolving issues with your Azure Monitor Agent deployments, ensuring the reliability and effectiveness of your monitoring infrastructure. These tools are invaluable resources for maintaining the health and performance of your monitoring agents across your Azure environment.

---

Feel free to leave any questions or comments below! Your feedback is valuable and helps us improve these guides.
