Azure Route Table Deletion Issues? Fix the InUseRouteTableCannotBeDeleted Error

Updated: • 0 • min read
Table of Contents

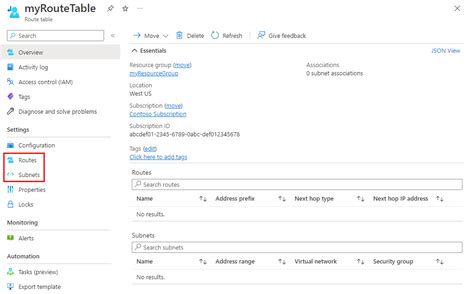

Azure Route Table Error

Encountering errors while managing your cloud infrastructure can be a frustrating experience, especially when attempting to decommission resources that are no longer needed. One such error in Microsoft Azure, particularly when working with Azure Kubernetes Service (AKS), is the InUseRouteTableCannotBeDeleted error. This error typically arises when you try to delete an AKS cluster, but the associated route table is still actively in use. Understanding the root cause and resolution of this error is crucial for maintaining a clean and efficient Azure environment.

Symptoms

When initiating the deletion process for an AKS cluster, you might encounter the following error message:

Error Code: "InUseRouteTableCannotBeDeleted"
{
"Route table aks-agentpool-routetable is in use and cannot be deleted. ...../providers/Microsoft.Network/routeTables/aks-agentpool-test-routetable"
}

This error message clearly indicates that the deletion of the AKS cluster is blocked due to an active dependency on a route table. The message explicitly names the route table that is causing the issue, typically following a naming convention like aks-agentpool-routetable. This route table is essential for directing network traffic within your AKS cluster’s virtual network, and Azure prevents its deletion while it is still considered to be in use to avoid disrupting network connectivity. The full error message often includes the resource ID of the route table, providing further detail for identification and troubleshooting. This error will halt the AKS cluster deletion process, leaving you with a persistent cluster that you cannot remove until the underlying route table issue is resolved.

Cause

The primary cause of the InUseRouteTableCannotBeDeleted error is attempting to delete an AKS cluster while its associated route table is still actively linked to a subnet. Route tables in Azure are used to define routing rules for network traffic within subnets. When you create an AKS cluster, Azure often automatically creates and associates a route table with the agent pool subnet to manage the outbound traffic from the nodes within the cluster.

This association means that the subnet is currently configured to use the routing rules defined in the route table. Azure’s infrastructure prevents the deletion of a route table that is actively associated with a subnet to prevent accidental network disruptions. The system is designed to ensure that network configurations remain consistent and functional. Therefore, before a route table can be deleted, it must be disassociated from all subnets that are currently using it. In the context of AKS cluster deletion, this usually means that the subnet associated with your AKS agent pool is still linked to the route table, preventing its deletion and consequently blocking the AKS cluster deletion.

Solution

To resolve the InUseRouteTableCannotBeDeleted error and successfully delete your AKS cluster, you need to dissociate the problematic route table from its associated subnet. This process involves modifying the subnet configuration to remove the link to the route table. Once the route table is no longer associated with any subnets, Azure will allow its deletion, and you can then proceed with deleting your AKS cluster.

Here are the steps to dissociate a route table from a subnet using the Azure portal and Azure CLI:

Using the Azure Portal

  1. Identify the Virtual Network and Subnet: Navigate to the resource group where your AKS cluster is deployed. Locate the virtual network associated with your AKS cluster. Usually, the virtual network name is easily identifiable as it is often named similarly to the AKS cluster or resource group. Once you find the virtual network, go to the “Subnets” section. Identify the subnet that is associated with your AKS agent pool. This subnet is typically where your AKS nodes are deployed.

  2. Access Subnet Settings: Click on the name of the subnet you identified in the previous step to open its settings page.

  3. Dissociate the Route Table: In the subnet settings, look for the “Route table” section. You will see the route table that is currently associated with the subnet (this should be the aks-agentpool-routetable mentioned in the error message). To dissociate it, click on the “…” (ellipsis) button next to the route table name or the “Dissociate” button if available directly. Confirm the dissociation when prompted.

  4. Verify Dissociation: After dissociating, ensure that the “Route table” section in the subnet settings now shows “None” or is empty, indicating that no route table is currently associated with the subnet.

  5. Retry AKS Cluster Deletion: Once the route table is dissociated, return to your AKS cluster in the Azure portal and attempt to delete it again. The deletion process should now proceed without the InUseRouteTableCannotBeDeleted error.

Using Azure CLI

  1. Identify Subnet and Route Table Names: You will need the name of the subnet and the route table that are associated. You can usually find the route table name in the error message itself. For the subnet name, you can check your AKS cluster configuration or the virtual network settings. Let’s assume your subnet name is aks-subnet and your route table name is aks-agentpool-routetable, and they are in the resource group myResourceGroup.

  2. Dissociate Route Table using Azure CLI: Use the az network subnet update command to dissociate the route table from the subnet.

    az network subnet update --resource-group myResourceGroup --vnet-name <your_vnet_name> --name aks-subnet --remove routeTable

    Replace <your_vnet_name> with the actual name of your virtual network. This command updates the subnet configuration and removes the association with the route table.

  3. Verify Dissociation (Optional): You can verify the dissociation using the following command to view the subnet details:

    az network subnet show --resource-group myResourceGroup --vnet-name <your_vnet_name> --name aks-subnet

    In the output, ensure that the routeTable property is either null or empty.

  4. Retry AKS Cluster Deletion: After dissociating the route table using the CLI, try deleting your AKS cluster again. The deletion should now be successful.

Diagram of Route Table Dissociation

mermaid graph LR A[AKS Cluster Deletion Attempt] --> B{InUseRouteTableCannotBeDeleted Error?}; B -- Yes --> C[Identify Subnet and Route Table]; B -- No --> D[AKS Cluster Deletion Successful]; C --> E{Dissociate Route Table from Subnet}; E -- Azure Portal --> F[Dissociate via Azure Portal Steps]; E -- Azure CLI --> G[Dissociate via Azure CLI Steps]; F --> H[Retry AKS Cluster Deletion]; G --> H; H --> I{Deletion Successful?}; I -- Yes --> D; I -- No --> J[Further Troubleshooting (Uncommon)]; style D fill:#ccffcc,stroke:#333,stroke-width:2px

Explanation of the Diagram:

  1. The process starts with an attempt to delete the AKS cluster.
  2. A check is performed to see if the InUseRouteTableCannotBeDeleted error occurs.
  3. If the error occurs, the next step is to identify the relevant subnet and route table causing the issue.
  4. Then, the route table needs to be dissociated from the subnet. This can be done via the Azure portal or Azure CLI, as described in the steps above.
  5. After dissociation, the AKS cluster deletion is retried.
  6. Another check is performed to see if the deletion is now successful.
  7. If successful, the AKS cluster is deleted.
  8. If the deletion still fails after dissociating the route table (which is uncommon for this specific error but possible due to other underlying issues), further troubleshooting might be required.

Important Considerations

  • Resource Group Location: Ensure you are working within the correct resource group where your AKS cluster and related network resources are located.
  • Virtual Network Identification: Accurately identify the virtual network and subnet associated with your AKS agent pool. Incorrectly modifying other subnets or virtual networks can lead to unintended network disruptions.
  • Permissions: You need to have the necessary Azure RBAC permissions to modify virtual network configurations and delete AKS clusters. Ensure you have roles like “Network Contributor” and “Kubernetes Cluster Admin” or equivalent permissions.
  • Deletion Order: While dissociating the route table resolves this specific error, ensure that you are following the correct AKS cluster deletion procedures. Sometimes, other dependencies might exist, although the route table issue is a common blocker.
  • Automation and Infrastructure as Code (IaC): If you are using IaC tools like Terraform or Bicep to manage your Azure infrastructure, ensure your scripts are properly configured to handle resource dependencies and deletion order. When deleting AKS clusters via IaC, ensure that the route table dissociation is handled correctly in your scripts.

Prevention

Preventing the InUseRouteTableCannotBeDeleted error in the first place often involves understanding the resource dependencies and ensuring a clean deletion process. Here are some preventive measures:

  • Proper AKS Cluster Deletion Procedure: Always follow the recommended AKS cluster deletion procedures provided by Microsoft Azure. This typically involves deleting the AKS cluster resource itself, which should trigger the cleanup of associated resources, including route tables, if they are no longer in use.
  • Avoid Manual Route Table Modifications: Unless absolutely necessary, avoid manually modifying or associating route tables with subnets managed by AKS. AKS infrastructure often manages these route tables automatically, and manual interference can lead to unexpected dependencies and deletion issues.
  • Resource Monitoring and Cleanup: Regularly monitor your Azure resources and clean up any orphaned or unused resources. Although AKS should handle the cleanup of its managed resources, proactively reviewing and cleaning up your environment can prevent potential issues.
  • Test Deletion in Non-Production Environments: Before deleting AKS clusters in production, always test the deletion process in non-production or staging environments. This allows you to identify and resolve any potential deletion issues, including the InUseRouteTableCannotBeDeleted error, without impacting production services.
  • Review Resource Locks: Check if there are any resource locks applied to the route table or the resource group containing the route table. Resource locks can prevent deletion, and if accidentally applied, they can cause deletion errors. Remove any intentional locks before attempting to delete the AKS cluster.

By understanding the cause and solution of the InUseRouteTableCannotBeDeleted error, and by following the preventative measures, you can effectively manage your Azure AKS clusters and ensure a smooth and error-free resource deletion process. This leads to a cleaner, more efficient, and less problematic Azure environment.

If you have encountered this error or have further questions regarding AKS route table management, feel free to leave a comment below! We are here to help you navigate your Azure cloud journey.
