Firmware Protection Flaw: Startup Failure on Windows Server

Table of Contents

This document addresses a critical issue that can lead to startup failures in Windows Server environments, specifically when running Windows Server 2019 or earlier versions on hardware designed to support Secured-core servers. The problem arises from a compatibility conflict involving the Firmware protection feature and older Windows Server operating systems. Understanding the nuances of this issue is crucial for system administrators and IT professionals to ensure system stability and prevent unexpected downtime.

Understanding Secured-core Servers and Firmware Protection¶

Secured-core servers represent a significant advancement in server security, leveraging hardware, firmware, and operating system integration to provide enhanced protection against sophisticated threats. These servers are designed to create a secure foundation, starting from the hardware level up through the operating system and applications. A key component of Secured-core server security is firmware protection, which aims to safeguard the system firmware from malicious modifications and attacks.

Firmware, the software embedded in hardware components, plays a vital role in the boot process and overall system operation. Compromising the firmware can grant attackers deep and persistent control over a system, making firmware protection a critical security imperative. Secured-core servers incorporate various technologies to achieve this, including:

• Secure Boot: Ensures that only trusted and digitally signed firmware and boot components are loaded during startup, preventing malware from hijacking the boot process.
• Dynamic Root of Trust for Measurement (DRTM): Provides a mechanism to measure and verify the integrity of the boot process and system firmware dynamically. DRTM allows the system to transition to a known good state even if the initial boot process is compromised.
• System Guard Secure Launch: A feature designed to ensure that the system boots into a known and trusted state by leveraging hardware-based security to protect the boot process from tampering. This includes isolating the boot process in a secure environment and verifying the integrity of critical system components before they are launched.

The Compatibility Issue: System Guard Secure Launch and Older Windows Server Versions¶

The core of the startup failure problem lies in the incompatibility between the System Guard Secure Launch functionality and older Windows Server operating systems, specifically Windows Server 2019 and earlier. While the hardware may support Secured-core features, including functionalities that enable Firmware protection, these features are not fully supported or properly integrated within these older Windows Server versions.

System Guard Secure Launch, a crucial aspect of firmware protection, is designed to operate in conjunction with the operating system to establish a secure boot environment. However, Windows Server 2019 and its predecessors lack the necessary operating system-level support and integration to effectively manage and utilize System Guard Secure Launch.

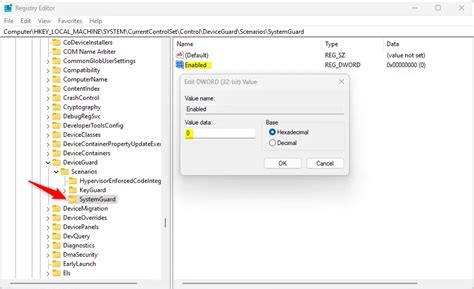

When Firmware protection is enabled on these older systems, either through the Firmware protection switch in the Windows Security app user interface or by manually modifying the corresponding registry key, it inadvertently activates components of System Guard Secure Launch. Because the operating system is not designed to handle these activations, it can lead to critical conflicts during the startup process, resulting in a system failure and preventing the server from booting successfully.

This situation highlights the importance of understanding the specific feature support for different operating system versions. Activating security features designed for newer operating systems on older, incompatible systems can lead to unforeseen and detrimental consequences, such as system instability and startup failures.

Symptoms of Startup Failure¶

The primary symptom of this issue is the server failing to start up properly after enabling Firmware protection. The boot process may halt at various stages, preventing the operating system from loading. Administrators might encounter:

• Blue Screen of Death (BSOD): A critical system error screen indicating a fatal system failure during startup.
• System Hangs: The server becomes unresponsive during the boot process, failing to proceed beyond a certain point.
• Boot Loop: The system attempts to boot repeatedly but fails to load the operating system, entering a continuous cycle of startup attempts and failures.

These symptoms can be disruptive and cause significant downtime for critical server infrastructure. It is essential to recognize these symptoms and understand their potential cause to implement the necessary recovery steps.

Recovery Procedure: Disabling DRTM in UEFI Settings¶

To recover from a startup failure caused by enabling Firmware protection on an incompatible Windows Server version, the primary solution involves disabling Dynamic Root of Trust for Measurement (DRTM) within the Unified Extensible Firmware Interface (UEFI) settings.

UEFI, the successor to the traditional BIOS, is the firmware interface responsible for initializing hardware components and booting the operating system. UEFI settings provide a configuration interface accessible before the operating system loads, allowing administrators to modify various hardware and firmware settings, including security features like DRTM.

Disabling DRTM in UEFI settings effectively deactivates the component of Firmware protection that is causing the conflict with the older Windows Server operating system. This allows the system to bypass the problematic feature during startup and boot successfully.

Steps to Disable DRTM:

1. Access UEFI Settings: Restart the server and enter the UEFI settings menu. The method to access UEFI settings varies depending on the server manufacturer and motherboard. Common methods include pressing keys like Delete, F2, F10, F12, or Esc during the initial startup phase, often indicated by a prompt on the screen. Consult your hardware manufacturer’s documentation for the specific key or procedure for your server.

2. Navigate to Security or Boot Settings: Once in the UEFI settings menu, navigate to the section related to security, boot options, or advanced settings. The exact menu names and layout will differ across UEFI implementations. Look for options related to security features, Trusted Computing, or similar terms.

3. Locate DRTM Setting: Within the security or boot settings, find the setting for Dynamic Root of Trust for Measurement (DRTM). The label for this setting may vary depending on the silicon platform and UEFI vendor. It might be labeled as “DRTM Control,” “Dynamic Root of Trust Measurement,” “AMD-V Secure Nested Paging,” or similar variations.

4. Disable DRTM: Once you have located the DRTM setting, change its value to Disabled. This will prevent DRTM from being active during the boot process.

5. Save Changes and Exit: After disabling DRTM, save the changes you have made in the UEFI settings. Typically, there is an option to “Save & Exit” or “Exit Saving Changes.” Select this option to save the modifications and reboot the server.

6. Verify Successful Startup: After the server reboots, it should now start up successfully into the Windows Server operating system. Verify that the system is functioning correctly and that the startup failure issue is resolved.

Variations in UEFI Settings Labels¶

It is important to note that the labels and locations of UEFI settings, including DRTM, can vary significantly across different hardware manufacturers and silicon platforms. This variation arises from the diverse implementations of UEFI firmware and the specific features supported by different processors and chipsets.

Examples of potential variations in DRTM setting labels:

• Intel Platforms: “DRTM Control,” “TXT DRTM Support,” “Measured Boot,” “Verified Boot.”
• AMD Platforms: “AMD-V Secure Nested Paging,” “SVM Secure Boot,” “Secure Boot Mode.”

Due to these variations, it is crucial to consult the hardware manufacturer’s documentation for your specific server model to identify the exact label and location of the DRTM setting within the UEFI menu. Manufacturer websites often provide detailed manuals or knowledge base articles that guide users through UEFI settings configuration.

Contacting your hardware manufacturer’s support directly is also recommended if you encounter difficulties locating or understanding the DRTM setting in your server’s UEFI. They can provide specific instructions and assistance tailored to your hardware.

Best Practices for Firmware Protection in Windows Server Environments¶

While disabling DRTM resolves the startup failure issue with older Windows Server versions, it’s crucial to implement appropriate security measures to protect your server environment. Here are some best practices for firmware protection in Windows Server environments:

• Upgrade to Supported Operating Systems: The most effective long-term solution is to upgrade your servers to a supported version of Windows Server that fully supports Secured-core server features, such as Windows Server 2022 or later. These newer versions are designed to work seamlessly with firmware protection technologies and provide enhanced security without compatibility issues.

• Keep Firmware Updated: Regularly update the firmware of your server hardware components, including the UEFI firmware, BIOS, and firmware for network adapters, storage controllers, and other peripherals. Firmware updates often include critical security patches and bug fixes that can address vulnerabilities and improve system stability. Check your hardware manufacturer’s website for the latest firmware updates and follow their recommended update procedures.

• Implement Secure Boot: Ensure that Secure Boot is enabled in your UEFI settings. Secure Boot helps prevent unauthorized firmware and operating system loaders from running during startup, protecting against boot-level malware.

• Utilize Windows Security Features: Leverage the security features built into Windows Server, such as Windows Defender System Guard and Credential Guard, to enhance system protection. Configure these features according to Microsoft’s best practices and your organization’s security policies.

• Regular Security Audits: Conduct regular security audits of your server infrastructure to identify potential vulnerabilities and security gaps. This includes reviewing firmware security settings, operating system configurations, and application security practices.

• Educate IT Staff: Ensure that your IT staff is adequately trained on server security best practices, including firmware protection, UEFI settings management, and operating system security configurations. Knowledgeable IT professionals are essential for maintaining a secure server environment.

Conclusion¶

The startup failure issue arising from enabling Firmware protection on Windows Server 2019 and earlier versions highlights the importance of understanding feature compatibility and properly configuring security settings. While Secured-core server features offer significant security benefits, they must be implemented in conjunction with compatible operating systems and firmware.

Disabling DRTM in UEFI settings provides a recovery solution for this specific issue, allowing affected servers to boot successfully. However, it is crucial to address the root cause by upgrading to supported Windows Server versions and implementing comprehensive firmware and system security best practices. By staying informed about security features, maintaining updated systems, and following recommended security guidelines, organizations can effectively protect their server infrastructure and minimize the risk of security incidents and system downtime.

If you have experienced similar startup issues or have further questions about firmware protection and Windows Server, please share your experiences and questions in the comments below. Your insights can be valuable to the wider IT community.
