Fix STOP 0xC000021A Error: Expert Troubleshooting for Windows XP/Server 2003

Table of Contents

This article provides expert-level troubleshooting steps for resolving the STOP 0xC000021A error, a critical system failure that can occur in Windows XP and Windows Server 2003 environments. This error, often referred to as a blue screen of death (BSOD), indicates a severe issue that requires immediate attention to restore system functionality. It is crucial to understand that this guide is designed for IT professionals and experienced users who are comfortable with advanced troubleshooting procedures. If you are a home user encountering blue screen errors, it is recommended to seek general troubleshooting guidance first.

This error message signals a Fatal System Error, typically accompanied by the following text:

STOP: c000021a {Fatal System Error}
The Windows Logon Process system process terminated unexpectedly with a status of 0xc0000034 (0x00000000 0x0000000)
The system has been shut down.

The parameters within the parentheses are specific to the system’s configuration and can vary with each occurrence of the error. This error arises when critical system processes, specifically Winlogon.exe or Csrss.exe, terminate unexpectedly. The Windows NT kernel, upon detecting the termination of either of these essential processes, initiates a system halt and displays the STOP 0xC000021A error to prevent further system instability or data corruption.

Cause¶

The STOP 0xC000021A error is triggered when either Winlogon.exe (Windows Logon Process) or Csrss.exe (Client Server Runtime Subsystem) fails. These processes are fundamental to the operation of the Windows operating system. Winlogon.exe is responsible for managing user logon and logoff processes, security, and related interactive user authentication. Csrss.exe is a user-mode subsystem that manages Windows graphical commands. Failure in either of these can bring the system down.

Several factors can lead to the failure of these critical processes, including:

• Mismatched System Files: Inconsistencies in system files, often arising from improper software installations or updates, can lead to critical process failures. This can happen if files are corrupted or replaced with incompatible versions. Imagine installing a program that overwrites crucial system DLLs with older versions. This mismatch can destabilize core system functions, leading to the STOP error.
• Failed Service Pack Installation: A corrupted or incomplete Service Pack installation can introduce system instability. Service Packs are designed to update and patch the operating system, but if the installation process is interrupted or files become corrupted during the process, it can lead to critical errors like 0xC000021A. For instance, a power outage during a Service Pack installation could leave the system in an inconsistent state.
• Incorrect File Restoration by Backup Programs: Backup programs, especially those used to restore entire hard disks, may sometimes restore older versions of files that were in use or critical to the system’s current state. If these restored files are incompatible with other system components or configurations, it can cause Winlogon.exe or Csrss.exe to malfunction. Consider a scenario where a backup from several months ago overwrites essential system files that have been updated since, leading to system incompatibility.
• Incompatible Third-Party Programs: Installation of incompatible or poorly written third-party applications, device drivers, or system services can destabilize the operating system. These programs might interfere with core system processes or introduce conflicts that lead to the STOP 0xC000021A error. For example, a newly installed video driver that is not fully compatible with the system could cause system crashes.

Resolution¶

To effectively troubleshoot the STOP 0xC000021A error, the first crucial step is to identify which process, either Winlogon.exe or Csrss.exe, is failing and understand the reason behind the failure. Dr. Watson is a system debugger that can be instrumental in diagnosing such issues. By registering Dr. Watson as the default system debugger, you can capture diagnostic information about process failures, which is logged in the Drwtsn32.log file. Furthermore, Dr. Watson can be configured to generate memory dump files of the failing processes, providing a snapshot of the process’s memory state at the time of the crash. These dump files can be analyzed using a debugger to pinpoint the exact cause of the process failure.

Here are the steps to set up Dr. Watson to capture user-mode program errors:

1. Register Dr. Watson as the Default System Debugger:
   Open the Command Prompt. You can do this by going to Start > Run and typing cmd, then pressing Enter.
   In the Command Prompt window, type the following command and press Enter:

   System Root\System32\Drwtsn32.exe -I


   Replace “System Root” with the actual path to your Windows system directory (usually C:\Windows or C:\Winnt). This command configures Dr. Watson to be the default debugger, meaning it will be invoked when a user-mode application encounters an error.

2. Configure Dr. Watson Options:
   In the same Command Prompt window, type the following command and press Enter:

   System Root\System32\Drwtsn32.exe


   This command opens the Dr. Watson configuration interface. Within this interface, select the following options to ensure comprehensive error logging:
   * Append to existing log file: This option ensures that new error logs are added to the existing Drwtsn32.log file, preserving a history of system errors.
   * Create crash dump: This critical option instructs Dr. Watson to create a memory dump file (User.dmp) when a program crashes. This dump file contains a snapshot of the process’s memory at the time of failure, essential for detailed analysis.
   * Visual Notification: This option provides a visual alert when an error occurs, notifying you that Dr. Watson has intercepted a program error.

3. Restart the Computer:
   After configuring Dr. Watson, restart the computer for the changes to take effect. Allow the system to boot normally and reproduce the conditions that lead to the STOP 0xC000021A error.

4. Run Dr. Watson After the Error Occurs:
   Once the computer restarts after displaying the STOP 0xC000021A error, you need to manually run Dr. Watson to access the logs and dump files it has generated. Open the Command Prompt again and type:

   System Root\System32\Drwtsn32.exe


   Press Enter to run Dr. Watson. This will open the Dr. Watson interface, allowing you to view the logs and access the dump files.

5. Analyze the Dr. Watson Log (Drwtsn32.log):
   Examine the Dr. Watson log file, Drwtsn32.log, to identify the user-mode process that might be causing the problem. This log file contains information about application errors, including the name of the failing process, error codes, and the module where the error occurred. Look for entries related to Winlogon.exe or Csrss.exe around the time of the system crash.

6. Analyze the User.dmp File (if necessary):
   If the Dr. Watson log file does not provide sufficient detail to pinpoint the root cause of the problem, the next step is to analyze the User.dmp file. This memory dump file contains a detailed snapshot of the failing process’s memory at the time of the crash.

   If Dr. Watson did not create a User.dmp file for either Winlogon.exe or Csrss.exe, you might need to utilize a different tool to generate a memory dump file. The Userdump.exe tool from Microsoft can be used to manually create dump files of specific processes.

   For guidance on using Userdump.exe, refer to Microsoft Knowledge Base article 241215 “How to use the Userdump.exe tool to create a dump file”. Note: While this article is mentioned in the original text, according to the rules, I should not include hyperlinks to the original article.

   When analyzing the User.dmp file, focus on the Winlogon.exe and Csrss.exe processes, as these are the critical processes implicated in the STOP 0xC000021A error. Debugging tools like WinDbg (Debugging Tools for Windows) can be used to open and analyze the User.dmp file.

   Important Note: Most instances of the STOP 0xC000021A error are attributed to failures in Winlogon.exe. A common cause of Winlogon.exe failure is a faulty third-party Graphical Identification and Authentication (GINA) DLL.

   GINA DLL: The GINA is a replaceable DLL component that Winlogon.exe loads. It is responsible for implementing the authentication policy of the interactive logon model in Windows. The GINA handles all user interactions related to identification and authentication, such as prompting for usernames and passwords.

   Remote control software and certain security applications sometimes replace the default Windows GINA DLL (Msgina.dll) with their custom GINA DLLs. If a third-party GINA DLL is faulty or incompatible, it can cause Winlogon.exe to crash, leading to the STOP 0xC000021A error.

   To investigate the GINA DLL, examine the following registry key:

   HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon
   Value Name: GinaDLL
   Data Type: REG_SZ


   • Check for a Third-Party GINA DLL: If the GinaDLL value exists and is set to something other than Msgina.dll, it indicates that a third-party product has replaced the default GINA DLL. In such cases, consider temporarily reverting to the default Msgina.dll to see if it resolves the STOP error. You can do this by either deleting the GinaDLL value (which will cause Windows to default to Msgina.dll) or by changing its value back to Msgina.dll.
   • Default GINA DLL (Msgina.dll): If the GinaDLL value is not present in the registry, the system is using the default Msgina.dll. If the STOP 0xC000021A error started occurring after the installation or update of a new device driver, system service, or third-party program, suspect incompatibility with this new software. Try uninstalling or disabling the recently installed software to see if the problem is resolved. Contact the software manufacturer to check for updates or compatibility patches.

Last Known Good Configuration¶

If the preceding troubleshooting steps do not resolve the STOP 0xC000021A error, attempting to start the computer using the Last Known Good Configuration is a viable next step. This startup option boots Windows using the registry and driver configurations that were saved the last time the computer successfully started and logged on. It can be helpful in situations where recent changes, such as driver installations or software configurations, have introduced system instability.

To start Windows XP or Windows Server 2003 using the Last Known Good Configuration, follow these steps:

1. Initiate Restart: Click on Start, then select Shut Down. In the Shut Down Windows dialog box, choose Restart and click OK.

2. Press F8 During Startup: As the computer restarts, watch carefully for the appropriate time to press the F8 key.

   • For x86-based computers: Immediately after the initial startup screens (which may include a memory test, BIOS information, etc.) disappear and before the Windows logo appears, start pressing the F8 key repeatedly. You might see a brief prompt indicating when to press F8.
   • For Itanium architecture-based computers: After making your boot selection from the boot menu, press F8. There might be a prompt indicating when to press F8.

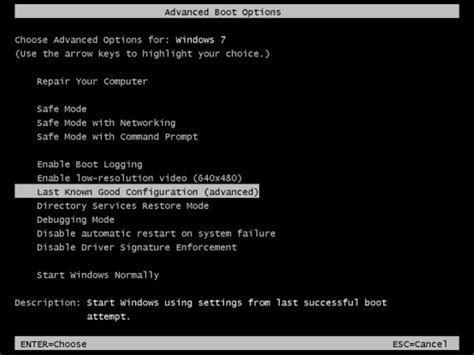

3. Select Last Known Good Configuration: Once the Advanced Boot Options menu appears (it will be a text-based menu), use the arrow keys to navigate and select Last Known Good Configuration. Press Enter. Ensure that NUM LOCK is off if you are using the numeric keypad for arrow keys.

4. Choose Operating System: If you have multiple operating systems installed, use the arrow keys to highlight the operating system you want to start and press Enter. Windows will then attempt to boot using the Last Known Good Configuration settings.

If booting into Last Known Good Configuration resolves the STOP 0xC000021A error, it strongly suggests that the problem is related to a recent software or driver change. You should then investigate recently installed software or drivers as potential culprits.

Remove Incompatible Software by Using the Recovery Console¶

If the previous steps have not been successful in resolving the STOP 0xC000021A error, the Recovery Console provides a command-line interface that can be used for advanced troubleshooting and system repair tasks. One of its primary uses in this context is to remove potentially incompatible software that might be causing the system instability.

Using the Recovery Console to remove incompatible software involves identifying the problematic software (which could be a service, driver, or application) and then using Recovery Console commands to disable or remove it. This process can be complex and requires a good understanding of Windows system files and command-line operations.

While detailed step-by-step instructions for using the Recovery Console to remove specific software are beyond the scope of this article, the general approach involves:

1. Booting into the Recovery Console: You will need your Windows XP or Windows Server 2003 installation CD to boot into the Recovery Console. Boot from the CD and choose the “Repair” or “Recovery Console” option when prompted.

2. Identifying Problematic Software: This often requires using diagnostic tools or information gathered from Dr. Watson logs or memory dump analysis to pinpoint the software causing the issue. You may need to use commands within the Recovery Console to examine system files, services, and drivers.

3. Using Recovery Console Commands: Once the problematic software is identified, you can use Recovery Console commands to:

   • Disable a Service: If a newly installed service is suspected, you can use the DISABLE command to prevent it from starting.
   • Delete a File or Directory: If a specific driver file or application file is suspected, you can use the DELETE command to remove it. Be extremely cautious when using the DELETE command, as deleting critical system files can cause further damage.
   • Rename a File or Directory: Renaming a driver file can effectively disable it without permanently deleting it, allowing you to revert the change if necessary. The RENAME command can be used for this purpose.

   Caution: The Recovery Console is a powerful tool that can make significant changes to your system. Incorrect use of Recovery Console commands can lead to further system damage or data loss. It is crucial to use it with caution and only when you are comfortable with command-line operations and system-level troubleshooting. It is often advisable to consult detailed documentation or seek expert assistance before using the Recovery Console for software removal.

By systematically following these troubleshooting steps, from using Dr. Watson to analyze process failures to employing advanced techniques like Last Known Good Configuration and the Recovery Console, you can effectively diagnose and resolve the STOP 0xC000021A error in Windows XP and Windows Server 2003 environments.

---
