Maximize Your Windows Server Storage: Extending Stand-Alone Tiered Storage Spaces

Table of Contents

In the ever-evolving landscape of modern IT infrastructure, efficient storage management stands as a cornerstone for optimal performance and data accessibility. Windows Server, a robust and widely adopted operating system, offers powerful features to address these demands, notably through Storage Spaces. Among its capabilities, tiered storage spaces provide a sophisticated approach to optimizing storage utilization by intelligently distributing data across different tiers of storage media based on access frequency and performance requirements. As data volumes continue to expand, the ability to seamlessly extend these tiered storage spaces becomes crucial for maintaining operational agility and accommodating growing business needs.

Understanding Tiered Storage Spaces¶

Tiered Storage Spaces in Windows Server is a feature that allows you to combine different types of physical disks into a single storage pool and create virtual disks with varying performance and cost characteristics. This approach leverages the strengths of different storage media, such as Solid State Drives (SSDs) for high-performance, frequently accessed data and Hard Disk Drives (HDDs) for cost-effective storage of less frequently accessed data. By automatically moving data between these tiers based on usage patterns, tiered storage spaces optimize both performance and storage costs.

Benefits of Tiered Storage¶

Implementing tiered storage offers several key advantages for organizations managing substantial data volumes:

• Performance Optimization: Frequently accessed data, often referred to as “hot data,” is automatically migrated to faster SSD tiers, ensuring rapid access and improved application performance. This is critical for applications demanding low latency and high throughput.
• Cost Efficiency: Less frequently accessed data, or “cold data,” resides on lower-cost HDD tiers. This prevents the unnecessary expense of storing all data on expensive high-performance storage, optimizing the overall storage budget.
• Simplified Management: Storage Spaces abstracts the complexity of managing multiple disk types by presenting a unified storage pool. Administrators can manage storage at a logical level, simplifying provisioning and allocation.
• Scalability and Flexibility: Tiered storage spaces can be easily expanded by adding more disks to the storage pool. This scalability allows organizations to adapt to growing data needs without significant disruptions.

Stand-Alone vs. Clustered Tiered Storage Spaces¶

Storage Spaces can be deployed in two primary configurations: stand-alone and clustered.

• Stand-Alone Storage Spaces: Ideal for single-server deployments or environments where high availability through clustering is not required. Stand-alone storage spaces are simpler to set up and manage, providing local storage expansion for individual servers.
• Clustered Storage Spaces: Designed for high-availability environments, clustered storage spaces are deployed across multiple servers in a failover cluster. This configuration provides redundancy and ensures continuous access to data even in the event of a server failure.

This article focuses on extending stand-alone tiered storage spaces. The principles and many of the procedures can be adapted to clustered environments, but the specific steps might differ.

The Need to Extend Tiered Storage Spaces¶

Despite the efficient nature of tiered storage, the relentless growth of data often necessitates expanding storage capacity over time. Scenarios that commonly drive the need to extend tiered storage spaces include:

• Data Growth: As businesses generate and store more data, existing storage spaces may become full, requiring expansion to accommodate new information. This is a constant challenge in data-intensive industries.
• Application Requirements: New applications or upgrades to existing applications may demand more storage space than currently available. Extending storage spaces ensures that these applications can be deployed and operate effectively.
• Consolidation: Organizations might consolidate storage from multiple sources into a centralized Storage Spaces deployment. This consolidation effort can necessitate expanding the storage pool to accommodate the migrated data.
• Performance Adjustments: While less common, you might need to adjust the tier ratios in your storage space, potentially requiring more space in a specific tier. This might indirectly lead to extending the overall storage space.

Prerequisites for Extending Stand-Alone Tiered Storage Spaces¶

Before proceeding with extending your stand-alone tiered storage space, ensure the following prerequisites are met:

• Physical Disks Availability: You must have new physical disks available to add to your storage pool. These disks should be compatible with your server and meet the requirements for Storage Spaces. Consider the type of disks needed (SSD or HDD) based on the tier you intend to expand.
• Storage Pool Capacity: Verify that your storage pool has sufficient capacity to accommodate the new disks. While you are extending the storage space, understanding the current pool capacity and utilization is important for planning.
• Administrative Privileges: You need administrative privileges on the Windows Server to perform storage management tasks, including extending storage spaces.
• Understanding of PowerShell: While GUI tools can be used, PowerShell is often the preferred and more efficient method for managing Storage Spaces. Familiarity with basic PowerShell cmdlets is beneficial.
• Backup Strategy: Although extending storage spaces is generally a non-disruptive operation, it is always prudent to have a recent backup of critical data before making significant storage changes. This mitigates the risk of data loss in unforeseen circumstances.

Step-by-Step Guide to Extending Stand-Alone Tiered Storage Spaces¶

Extending a stand-alone tiered storage space involves a series of steps, primarily using PowerShell cmdlets. Here’s a comprehensive guide:

1. Identify New Physical Disks¶

First, you need to identify the newly added physical disks that you want to use to extend your storage pool. You can use the Get-PhysicalDisk cmdlet in PowerShell to list the disks available to the system.

Get-PhysicalDisk

This command will display a list of physical disks along with their properties, such as FriendlyName, SerialNumber, and CanPool. Identify the disks you have added and note down their UniqueId or FriendlyName for subsequent steps. Pay attention to the CanPool property, which should be True for the disks you intend to add to the storage pool.

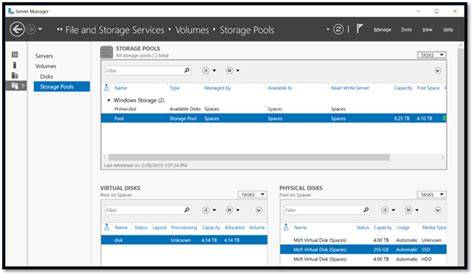

2. Add Physical Disks to the Storage Pool¶

Once you have identified the new physical disks, you need to add them to the existing storage pool that hosts your tiered storage space. Use the Add-PhysicalDisk cmdlet for this purpose.

Get-StoragePool | Get-PhysicalDisk -CanPool $True | Add-PhysicalDisk -StoragePoolFriendlyName "YourStoragePoolName"

Replace "YourStoragePoolName" with the actual friendly name of your storage pool. This command retrieves all storage pools, filters for physical disks that can be pooled (-CanPool $True), and then adds these disks to the specified storage pool.

Alternatively, if you know the FriendlyNames or UniqueIds of the specific disks you want to add, you can target them directly:

Add-PhysicalDisk -StoragePoolFriendlyName "YourStoragePoolName" -PhysicalDisks (Get-PhysicalDisk -FriendlyName "PhysicalDisk1", "PhysicalDisk2")

3. Verify Storage Pool Capacity¶

After adding the physical disks, it’s good practice to verify that the storage pool capacity has increased as expected. Use the Get-StoragePool cmdlet to check the updated capacity.

Get-StoragePool -FriendlyName "YourStoragePoolName" | Select-Object FriendlyName, Size, ProvisioningState, IsPrimordial

This command will display information about the storage pool, including its Size. You should see an increase in the size reflecting the capacity of the newly added disks. Also, check the ProvisioningState to ensure it is Online and healthy.

4. Extend the Virtual Disk (Storage Space)¶

With the storage pool capacity expanded, you can now extend the virtual disk (storage space) that is configured for tiered storage. Use the Resize-VirtualDisk cmdlet to increase the size of the virtual disk.

Get-VirtualDisk -FriendlyName "YourVirtualDiskName" | Resize-VirtualDisk -Size (Get-VirtualDisk -FriendlyName "YourVirtualDiskName" | Get-Disk | Get-Partition | Get-Volume | Get-PSDrive | Select-Object -ExpandProperty Size) + 1TB

Replace "YourVirtualDiskName" with the friendly name of your virtual disk. This command dynamically calculates the current size of the virtual disk and adds 1TB to it. Adjust the 1TB value to the desired amount of extension. You can also specify the new total size directly.

Resize-VirtualDisk -FriendlyName "YourVirtualDiskName" -Size 10TB

This command sets the virtual disk size to 10TB. Choose the method that best suits your needs.

5. Extend the Volume (Partition)¶

Extending the virtual disk only increases the available space at the virtual disk level. To make this space usable at the file system level, you must extend the volume (partition) that resides on the virtual disk. Use the Resize-Partition cmdlet for this.

Get-VirtualDisk -FriendlyName "YourVirtualDiskName" | Get-Disk | Get-Partition | Resize-Partition -DriveLetter E -Size Max

Replace E with the actual drive letter assigned to your volume. The -Size Max parameter tells the command to extend the partition to utilize all available unallocated space on the virtual disk.

6. (Crucial) Set Media Type for New Physical Disks (if needed)¶

This step is directly related to the provided code snippet in the input.

When you add new physical disks to a tiered storage space, especially if these disks are of a different media type than existing disks in a tier (e.g., adding HDDs to an SSD tier or vice versa), you might need to explicitly set the MediaType property of the new physical disks to ensure they are correctly assigned to the intended tier.

The provided code snippet demonstrates how to set the MediaType using the Set-PhysicalDisk cmdlet:

Set-PhysicalDisk -UniqueId 6002  -MediaType HDD

• -UniqueId 6002: This specifies the unique identifier of the physical disk you want to modify. You need to replace 6002 with the actual UniqueId of your new physical disk. You can obtain this UniqueId from the output of Get-PhysicalDisk.
• -MediaType HDD: This parameter sets the media type of the specified physical disk to HDD (Hard Disk Drive). Other possible values include SSD (Solid State Drive) and Unspecified.

When is this step necessary?

• Adding HDDs to HDD Tier: If you are adding HDDs to the capacity tier of your tiered storage space (which is typically composed of HDDs), you should ensure their MediaType is correctly set to HDD. While Storage Spaces often automatically detects the media type, explicitly setting it is a good practice for clarity and to avoid potential misclassification.
• Adding SSDs to SSD Tier: Similarly, if you are adding SSDs to the performance tier (typically SSDs), confirm their MediaType is set to SSD.
• Mixed Media Types in the Same Tier (Less Common): In some advanced scenarios, you might intentionally mix media types within the same tier. In such cases, carefully managing the MediaType property becomes even more important to ensure Storage Spaces correctly understands the characteristics of each disk.

How to determine the UniqueId and current MediaType?

Use Get-PhysicalDisk to view the properties of your newly added disks:

Get-PhysicalDisk -FriendlyName "PhysicalDisk3" | Select-Object FriendlyName, UniqueId, MediaType

This command will show the FriendlyName, UniqueId, and current MediaType of “PhysicalDisk3”. If the MediaType is incorrect or Unspecified, use Set-PhysicalDisk to correct it.

Example Scenario:

Let’s say you added a new HDD to your server to extend the capacity tier of your tiered storage space. After adding the disk to the storage pool (steps 1-3), you run Get-PhysicalDisk and find the UniqueId of the new HDD is 5001. You then execute:

Set-PhysicalDisk -UniqueId 5001 -MediaType HDD

This ensures that Storage Spaces correctly recognizes the new disk as an HDD and uses it appropriately within the tiered storage configuration.

7. Verify Tier Optimization (Optional)¶

After extending the storage space, Storage Spaces automatically optimizes data placement across tiers over time. You can manually initiate tier optimization using the Optimize-StorageTier cmdlet if you want to accelerate this process, especially after a significant storage expansion.

Get-StorageTier -FriendlyName "YourPerformanceTierName", "YourCapacityTierName" | Optimize-StorageTier

Replace "YourPerformanceTierName" and "YourCapacityTierName" with the friendly names of your storage tiers. This command triggers optimization for both the performance and capacity tiers.

Diagram of Tiered Storage Space Extension¶

```mermaid
graph LR
A[Start] → B{Identify New Physical Disks};
B → C{Add Disks to Storage Pool};
C → D{Verify Pool Capacity};
D → E{Extend Virtual Disk};
E → F{Extend Volume};
F → G{Set Media Type (if needed)};
G → H{Verify Tier Optimization (Optional)};
H → I[End];

style G fill:#ccf,stroke:#333,stroke-width:2px

```

Troubleshooting Common Issues¶

While extending tiered storage spaces is generally straightforward, you might encounter some issues:

• Disks Not Appearing in Get-PhysicalDisk: Ensure the new disks are properly connected and recognized by the server’s hardware. Check cabling, power, and controller configurations.
• Disks Not Poolable (CanPool is False): Disks might not be poolable if they are already in use, have partitions, or are managed by other storage features. Use Disk Management or DiskPart to clean and initialize the disks if necessary.
• Insufficient Storage Pool Capacity: While extending, ensure the storage pool itself has the capacity to grow. If the underlying physical storage is limited, you might need to add more physical disks to the storage pool first.
• Volume Extension Errors: Volume extension can fail if there is file system corruption or if the volume is in use. Ensure the file system is healthy and consider performing the extension during off-peak hours to minimize disruption.
• Media Type Misdetection: In rare cases, Storage Spaces might misdetect the media type of a disk. Using Set-PhysicalDisk -MediaType as described in step 6 resolves this.

Best Practices for Managing Tiered Storage Spaces¶

• Plan for Growth: Anticipate future storage needs and plan for expansion in advance. Regularly monitor storage utilization and capacity trends.
• Choose Appropriate Disk Types: Select SSDs and HDDs that are appropriate for your performance and capacity tier requirements. Consider factors like IOPS, throughput, and cost per GB.
• Monitor Performance: Regularly monitor the performance of your tiered storage space to ensure it is meeting application needs. Use Performance Monitor and Resource Monitor to track key metrics.
• Regular Maintenance: Perform periodic maintenance tasks such as disk health checks, consistency checks, and tier optimization to maintain the health and performance of your storage space.
• Document Configuration: Keep detailed documentation of your storage space configuration, including disk types, tier sizes, and PowerShell commands used for management. This simplifies troubleshooting and future administration.

Conclusion¶

Extending stand-alone tiered storage spaces in Windows Server is a crucial skill for administrators managing growing data volumes. By understanding the concepts of tiered storage, following the step-by-step guide outlined in this article, and utilizing PowerShell cmdlets effectively, you can seamlessly expand your storage infrastructure to meet evolving business demands. Remember to pay attention to details like setting the correct MediaType for newly added disks, as highlighted in the original input, to ensure optimal performance and efficient data tiering. Proper planning, monitoring, and adherence to best practices will ensure that your tiered storage spaces continue to provide a robust and cost-effective storage solution for your Windows Server environment.

If you have any questions or experiences with extending tiered storage spaces, feel free to share them in the comments below!
