Secure Windows Server: Implement Smart Card Logon for Enhanced Security

Updated: • 0 • min read
Table of Contents

Smart card logon provides a robust method to enhance the security of your Windows Server environment. By requiring users to authenticate with a smart card, you significantly reduce the risk of unauthorized access associated with traditional password-based logins. This approach is particularly valuable for organizations handling sensitive data or operating in regulated industries where strong authentication is paramount. This article outlines the essential guidelines for enabling smart card logon using third-party Certification Authorities (CAs), offering a pathway to bolster your security posture.

Understanding Smart Card Logon

Smart card logon leverages Public Key Infrastructure (PKI) to authenticate users. Instead of relying solely on usernames and passwords, which can be compromised through phishing or brute-force attacks, smart card authentication requires users to possess a physical smart card containing cryptographic credentials. This adds a layer of physical security, as the smart card and its associated PIN are needed to gain access.

Understanding Smart Card Logon

Benefits of Smart Card Logon

Implementing smart card logon offers several key advantages:

  • Enhanced Security: Smart cards are significantly more secure than passwords, mitigating risks associated with password theft or compromise.
  • Stronger Authentication: Two-factor authentication (something you have - the smart card, and something you know - the PIN) provides a more robust verification process.
  • Reduced Phishing Susceptibility: Smart card authentication is less vulnerable to phishing attacks as attackers cannot easily replicate physical smart cards.
  • Compliance Requirements: Many regulatory frameworks mandate strong authentication methods, making smart card logon a valuable tool for compliance.
  • Centralized Management: Smart card infrastructure can be centrally managed, simplifying user administration and certificate lifecycle management.

Prerequisites for Smart Card Authentication

Before implementing smart card logon, ensure your environment meets the following prerequisites:

  • Smart Card Infrastructure: You need a functional PKI, including a Certification Authority (CA) to issue certificates. In this guide, we focus on using third-party CAs.
  • Active Directory Domain: Smart card authentication in Windows Server environments typically relies on Active Directory for user and computer management.
  • Smart Card Readers: Workstations must be equipped with smart card readers compatible with the smart cards you intend to use.
  • Smart Cards: Users must be provisioned with smart cards containing the necessary certificates and private keys.
  • Domain Controller Certificates: Domain controllers must have certificates enabling them to authenticate smart card users.
  • Proper Configuration: Active Directory, domain controllers, and workstations need to be correctly configured to support smart card authentication.

Active Directory and Domain Controller Configuration Essentials

To successfully enable smart card logon, specific configurations within Active Directory and on domain controllers are crucial.

  • NTAuth Store Configuration (Required): Active Directory must trust the third-party issuing CA. This trust is established by adding the issuing CA’s certificate to the NTAuth store. This store is a repository within Active Directory that lists CAs trusted for issuing authentication certificates.
  • Domain Controller Certificate (Required): Each domain controller responsible for authenticating smart card users must possess a domain controller certificate. This certificate is used for secure communication and authentication processes.
  • Root CA Distribution (Optional, Recommended): Distributing the third-party root CA certificate to the Trusted Root Certification Authorities store of all domain members via Group Policy is highly recommended. This ensures that workstations automatically trust the root CA, simplifying certificate validation.

Smart Card and Workstation Requirements

The smart card itself and the workstations users log in from have specific requirements for successful smart card authentication.

  • Smart Card Certificate Compliance (Required): Smart card certificates must adhere to specific formatting and extension requirements. These specifications, detailed in the “Configuration Instructions” section, are critical for successful authentication.
  • Smart Card and Private Key Installation (Required): The smart card must be properly initialized with the user’s smart card certificate and the corresponding private key.
  • Smart Card Reader and Driver Software (Required): Workstations need compatible smart card readers and the correct driver software installed for the readers to function properly.

Step-by-Step Configuration Guide

Enabling smart card logon involves a series of configuration steps across your Windows Server environment. Follow these instructions carefully to ensure a successful implementation.

  1. Export or Obtain the Third-Party Root Certificate:

    The first step is to acquire the root certificate from your third-party CA. The method for obtaining this certificate varies depending on your CA vendor. Ensure the certificate is in Base64 Encoded X.509 format.

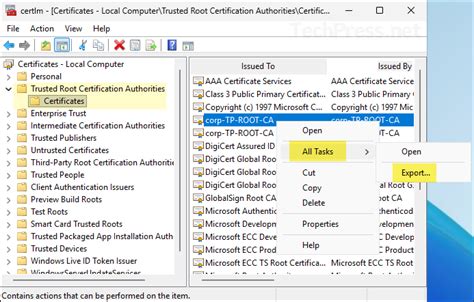

    Export Root Certificate

  2. Import the Root CA into Active Directory Group Policy:

    To distribute the third-party root CA to all domain computers’ trusted root stores, use Group Policy:

    a. Open Active Directory Users and Computers.
    b. Locate your domain in the left pane.
    c. Right-click the domain and select Properties.
    d. Go to the Group Policy tab.
    e. Select the Default Domain Policy and click Edit.
    f. In the Group Policy Management Editor, navigate to: Computer Configuration > Windows Settings > Security Settings > Public Key Policies > Trusted Root Certification Authorities.
    g. Right-click Trusted Root Certification Authorities, select All Tasks, and then Import.
    h. Follow the wizard to import the root certificate you obtained in step 1.
    i. Click OK and close the Group Policy window.

    This action ensures all domain-joined computers trust the root CA that issued your smart card certificates.

  3. Add the Issuing CA to the NTAuth Store:

    The NTAuth store is critical for smart card logon. You need to add the certificate of the issuing CA to this store.

    a. Open ADSI Edit (adsiedit.msc). If you don’t have it installed, you can install it as part of the Remote Server Administration Tools (RSAT).
    b. Right-click ADSI Edit and select Connect to.
    c. In the Connection Settings dialog, select Configuration under “Select a well-known Naming Context”. Click OK.
    d. Navigate to: CN=Configuration,DC=… > CN=Services > CN=Public Key Services > CN=NTAuthCertificates.
    e. Right-click CN=NTAuthCertificates, select All Tasks, and then Import.
    f. Follow the wizard to import the issuing CA certificate.
    g. Click OK and close ADSI Edit.

    This step is essential. If the issuing CA is not in the NTAuth store, smart card logon will fail with an “Unable to verify credentials” error.

  4. Request and Install a Domain Controller Certificate:

    Every domain controller that will authenticate smart card users needs a domain controller certificate. If you are using a third-party CA, you need to manually request and install these certificates.

    a. On each domain controller, open the Certificate Manager (certlm.msc).
    b. Expand Personal, right-click Certificates, select All Tasks, and then Request New Certificate.
    c. Follow the Certificate Enrollment wizard. Choose the appropriate certificate template for a domain controller certificate. This template might need to be configured on your CA to be compatible with third-party CAs. Consult your CA documentation for specific template requirements.
    d. Complete the enrollment process and ensure the certificate is installed in the domain controller’s Personal store.

    Important Note: Using a non-Microsoft CA for domain controller certificates can introduce complexities and potential compatibility issues. Carefully review Microsoft’s recommendations and your CA’s best practices for domain controller certificates.

  5. Request a Smart Card Certificate:

    Request a smart card certificate from your third-party CA. The enrollment process will depend on your CA vendor’s procedures. Ensure the requested certificate meets the following critical format requirements:

    • CRL Distribution Point (CDP): The certificate must contain a valid and accessible CDP location. This allows for certificate revocation checks. Example: URL=http://server1.name.com/CertEnroll/caname.crl
    • Key Usage: Must include Digital Signature.
    • Basic Constraints: Should be set to [Subject Type=End Entity, Path Length Constraint=None] (Optional but recommended).
    • Enhanced Key Usage (EKU): Must include:
      • Smart Card Logon (1.3.6.1.4.1.311.20.2.2)
      • Client Authentication (1.3.6.1.5.5.7.3.2) (Required if using the certificate for SSL authentication as well).
    • Subject Alternative Name (SAN): Must include Other Name: Principal Name= (UPN). Example: UPN = user1@name.com. The UPN OtherName OID is “1.3.6.1.4.1.311.20.2.3”. The UPN OtherName value must be ASN1-encoded UTF8 string.
    • Subject: Distinguished name of the user (Optional).
    • Private Key Type: Must be Key Exchange (AT_KEYEXCHANGE). Smart card logon will not function correctly with a Signature Only (AT_SIGNATURE) private key.

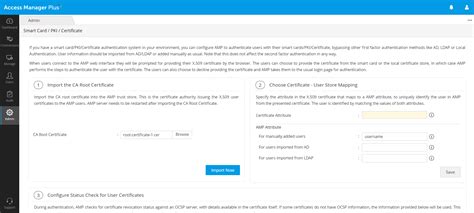

    Smart Card Certificate Details

  6. Install Smart Card Drivers and Software:

    On each workstation that will use smart card logon, install the necessary smart card reader drivers and any vendor-specific middleware or software. This software is crucial for the workstation to communicate with the smart card reader and the smart card itself.

  7. Install the Smart Card Certificate to the Workstation (User’s Personal Store):

    If the smart card certificate was not automatically placed in the user’s personal certificate store during enrollment, you need to import it manually.

    a. Open the Microsoft Management Console (MMC) and add the Certificates snap-in (for the user account).
    b. In the console tree, under Personal, click Certificates.
    c. Right-click in the right pane, select All Tasks, and then Import.
    d. Follow the Certificate Import Wizard to import the smart card certificate file. If it’s a PKCS #12 file, you will be prompted for the password.

    Note: The private key does not need to be imported into the user’s profile on the workstation. The private key remains securely stored on the smart card.

  8. Install the Smart Card Certificate onto the Smart Card:

    The process of installing the certificate onto the smart card is vendor-specific. Consult your smart card and CSP vendor’s documentation for detailed instructions. Typically, this involves using vendor-provided tools to write the certificate and private key to the smart card.

  9. Log on with the Smart Card:

    After completing all configurations, users should be able to log on to their workstations using their smart cards. Insert the smart card into the reader and enter the PIN when prompted.

Troubleshooting Common Smart Card Logon Issues

The error message “The system could not log you on. Your credentials could not be verified.” is a common but generic error encountered during smart card logon. This error can stem from various underlying problems.

Certificate and Configuration Problems Checklist

  • Missing Domain Controller Certificate: Ensure each domain controller has a valid domain controller certificate.
  • Malformed SubjAltName in Smart Card Certificate: Verify the SubjAltName field of the smart card certificate is correctly formatted as ASN1/UTF-8 and not displaying as hexadecimal or raw ASCII data.
  • Incomplete or Malformed Domain Controller Certificate: Check for any issues with the domain controller certificate’s validity or completeness.
  • Expired Domain Controller Certificate: Verify the domain controller certificate has not expired. If expired, request a new certificate.
  • Untrusted Domain Controller Certificate: Ensure the NTAuth store contains the CA certificate of the domain controller certificate’s issuing CA. If not, add it. Also, verify that domain controllers and smart card workstations trust the Root CA in the domain controller certificate chain.
  • Untrusted Smart Card Certificate: Confirm the NTAuth store includes the CA certificate of the smart card certificate’s issuing CA. If not, add it. Similarly, ensure domain controllers and smart card workstations trust the Root CA in the smart card certificate chain.
  • Missing Smart Card Certificate in User’s Store: The smart card certificate must be present in the user’s personal certificate store on the workstation.
  • Incorrect Certificate or Private Key on Smart Card: Verify the correct smart card certificate and its corresponding private key are installed on the smart card, and that the certificate matches the one in the user’s profile on the workstation.
  • Smart Card Reader Issues: Troubleshoot the smart card reader hardware and driver software. Use vendor-provided tools to confirm the smart card and private key can be accessed.
  • Expired Smart Card Certificate: Check if the smart card certificate has expired. If so, request a new certificate.
  • Missing UPN in Smart Card Certificate: The SubjAltName extension of the smart card certificate must contain a User Principal Name (UPN).
  • Malformed UPN in Smart Card Certificate: Ensure the UPN in the SubjAltName field is correctly formatted as ASN1/UTF-8 and not displaying as hexadecimal or raw ASCII data.
  • Incomplete or Malformed Smart Card Certificate: Check for any issues with the smart card certificate’s validity or completeness.
  • Missing UPN in Active Directory User Account: The user’s Active Directory account must have a valid UPN defined in the userPrincipalName property.
  • UPN Mismatch: Ensure the UPN in the smart card certificate matches the UPN in the user’s Active Directory account. If using implicit UPN (samAccountName@domain_FQDN) in the certificate, explicit matching is not strictly required, but consistency is recommended, especially with third-party CAs.

Revocation Checking Problems

Revocation checking failures can also prevent smart card logon. The domain controller verifies the revocation status of the smart card logon certificate. If revocation checking fails, logon is denied, and error messages like “The system could not log you on. The smartcard certificate used for authentication was not trusted.” may appear.

Ensure the following for successful revocation checking:

  • Revocation Checking Enabled: Revocation checking should not be disabled. Built-in revocation providers cannot be turned off. If using custom providers, ensure they are enabled.
  • Valid CDP Extension: Every CA certificate in the certificate chain (except the root CA) must contain a valid CRL Distribution Point (CDP) extension.
  • Up-to-Date CRL: The Certificate Revocation List (CRL) must be online, accessible at the CDP, and up to date. The CRL must have a valid “Next Update” field that has not passed. You can test CRL accessibility by attempting to download it from the HTTP or FTP CDP URL using Internet Explorer from both the smart card workstation and the domain controller.

To verify a CRL is online and accessible from an HTTP or FTP CDP:

  1. Open the certificate in question (e.g., by double-clicking a .cer file).
  2. Go to the Details tab and select the CRL Distribution Points field.
  3. Copy the full HTTP or FTP URL from the bottom pane.
  4. Paste the URL into Internet Explorer’s address bar.
  5. Attempt to open the CRL.
  6. Verify the CRL has a Next Update field, and the time indicated has not passed.

For LDAP CDPs, you may need to use a script or application to download and verify the CRL.

Support Considerations

Microsoft Product Support Services may have limited support for third-party CA smart card logon implementations if issues arise due to:

  • Improper certificate format.
  • Certificate status or revocation status unavailability from the third-party CA.
  • Certificate enrollment issues from the third-party CA.
  • Third-party CA inability to publish to Active Directory.
  • Usage of a third-party CSP.

Additional Insights

  • Domain Controller Certificate Validation: Client computers validate the domain controller’s certificate, downloading CRLs for domain controller certificates into their CRL cache.
  • Offline Logon: Offline logon relies on cached credentials and does not involve certificates.
  • Forcing NTAuth Store Update: To immediately propagate changes to the NTAuth store on a local computer without waiting for Group Policy updates, use the command: dsstore.exe -pulse.
  • Smart Card Information Tool: The Certutil.exe -scinfo command in Windows Server 2003 and Windows XP can be used to dump smart card information for diagnostics.

Implementing smart card logon with third-party CAs enhances Windows Server security. By following these guidelines and diligently troubleshooting potential issues, organizations can leverage smart cards for stronger authentication and improved security posture.
