Securing your web server with an SSL/TLS certificate is paramount for protecting sensitive data transmitted between your server and users’ browsers. This encryption ensures confidentiality and integrity, building trust and safeguarding user information. For Windows-based web servers utilizing Internet Information Services (IIS), installing an imported certificate is a crucial step in establishing this secure connection. This article provides a comprehensive guide on how to import a website certificate into the certificate store of your local Windows server and subsequently assign it to your website, enabling secure HTTPS communication.

Install the Certificates¶

Windows Internet Information Server (IIS) natively supports Secure Sockets Layer (SSL) and its successor, Transport Layer Security (TLS), protocols that are essential for establishing secure communication channels. Whether you aim to secure an entire website, a specific folder within it, or even a particular file, implementing SSL/TLS is critical. This ensures that all data exchanged between the web server and users is encrypted, protecting against eavesdropping and tampering. Before your web server can facilitate these secure SSL/TLS sessions, a valid website certificate must be properly installed and configured.

There are several methods available for installing a certificate within IIS, offering flexibility based on your environment and preferences:

• Online Request via IIS Web Server Certificate Wizard: This method streamlines the process by directly requesting and installing a certificate through the IIS interface. It’s ideal for scenarios where your Certificate Authority (CA) is readily accessible online. The wizard guides you through generating a Certificate Signing Request (CSR), submitting it to the CA, and automatically installing the issued certificate upon receipt.

• Offline Request via IIS Web Server Certificate Wizard: When direct online communication with the CA is not feasible or desired, the offline request method provides a secure alternative. The IIS wizard is still used to create a CSR, which is then saved to a file. This file can be manually transferred to the CA (perhaps via email or a secure file transfer) for signing. Once the signed certificate is obtained, it is imported back into IIS to complete the installation. This approach is beneficial in environments with restricted internet access or when dealing with CAs that require manual CSR submission.

• Manual Certificate Request (Without IIS Wizard): For advanced users or specific scenarios, certificates can be requested and obtained without relying on the IIS Web Server Certificate Wizard. This might involve using command-line tools like Certreq.exe or interacting directly with the CA’s web interface or API. This method offers greater control over the certificate request process but requires a deeper understanding of certificate management.

Note: If you opt for the offline request method or choose to request a certificate manually without the IIS wizard, the subsequent installation of the certificate onto your web server will require a manual import process. This process ensures that the certificate is correctly placed within the Windows Certificate Store and associated with your website in IIS. The steps outlined below detail this manual import and assignment procedure.

To successfully install your website certificate and enable secure communication, you need to perform the following two key tasks:

1. Import the Certificate into the Computer’s Certificate Store: This step involves transferring the certificate file (typically in .pfx, .cer, or .crt format) into the central repository for certificates on your Windows server, known as the Certificate Store. This makes the certificate available for use by various applications and services running on the server, including IIS.

2. Assign the Installed Certificate to the Website: Once the certificate is imported into the Certificate Store, the next step is to link it to the specific website within IIS that you wish to secure. This association tells IIS to use this certificate when establishing secure connections for that particular website, enabling HTTPS access.

Import the Certificate into the Local Computer Store¶

The Microsoft Management Console (MMC) is a powerful administrative tool in Windows that allows you to manage various system components, including certificates. Using the Certificates snap-in within MMC is the standard method for importing certificates into the local computer store. Follow these detailed steps to import your certificate:

1. Open the Run Dialog: Begin by accessing the Run dialog box. Click on the Start button, typically located in the bottom-left corner of your screen, and then select Run. Alternatively, you can use the keyboard shortcut Windows key + R.

2. Launch MMC: In the Open box of the Run dialog, type mmc (which stands for Microsoft Management Console) and then click OK or press Enter. This will launch the MMC application, providing a blank console window.

3. Add/Remove Snap-in: Within the MMC console, navigate to the File menu located at the top left corner of the window. Click on File, and from the dropdown menu, select Add/Remove Snap-in…. This action opens the Add/Remove Snap-ins dialog box, allowing you to customize the MMC console with various management tools.

4. Add Certificates Snap-in: In the Add/Remove Snap-in dialog box, you will see a list of available snap-ins on the left side. Scroll through the list and select Certificates. Once selected, click the Add > button located in the center of the dialog box. This will move the Certificates snap-in to the “Selected snap-ins” list on the right side.

5. Select Computer Account: After adding the Certificates snap-in, the Certificates snap-in dialog box will appear, prompting you to choose which account you want to manage certificates for. Select the Computer account option. This is crucial because website certificates for IIS need to be installed in the computer’s certificate store to be accessible by the web server. Then, click Next.

6. Choose Local Computer: In the Select Computer dialog box, you’ll be asked to specify which computer’s certificates you want to manage. Ensure that Local computer: (the computer this console is running on) is selected. This is the default and correct choice for importing a certificate onto the server you are currently working on. Click Finish to confirm your selection.

7. Close Add Standalone Snap-in Dialog: The Add Standalone Snap-in dialog box should now show “Certificates (Local Computer)” in the “Selected snap-ins” list. Click Close to close this dialog box.

8. Confirm Snap-in Addition: You are now back in the Add/Remove Snap-in dialog box. Verify that “Certificates (Local Computer)” is listed in the “Selected snap-ins” column. Click OK to apply the changes and close the dialog box. The MMC console will now display the Certificates snap-in in the left pane.

9. Expand Certificates (Local Computer): In the left pane of the MMC console, locate and double-click on Certificates (Local Computer) to expand the certificate stores available for the local computer.

10. Navigate to Personal Store: Under Certificates (Local Computer), you will see several folders representing different certificate stores. Right-click on the Personal folder. This is the store where you will typically import website certificates.

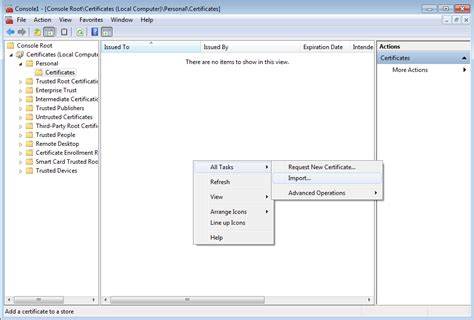

11. Initiate Import Wizard: After right-clicking Personal, point to All Tasks in the context menu. A submenu will appear; select Import… from this submenu. This action launches the Certificate Import Wizard, which will guide you through the certificate import process.

12. Welcome Page: The Welcome to the Certificate Import Wizard page will be displayed. Click Next to proceed to the next step.

13. Specify Certificate File: On the File to Import page, you need to specify the location of your certificate file. Click the Browse… button to open a file explorer window. Locate the directory where your certificate file is saved, select the file (e.g., .pfx, .cer, or .crt), and click Open. The path to the selected certificate file will now appear in the “File name” box. Click Next to continue.

14. Enter Password (if applicable): If your certificate file is in .pfx format and is password-protected (which is common for certificates containing private keys), the Password page will appear. Type the password associated with your certificate in the Password box. Ensure you enter the password correctly. If the certificate file is not password-protected, this page will be skipped. Click Next.

15. Certificate Store Selection: On the Certificate Store page, ensure that Place all certificates in the following store is selected. The “Certificate store” field below should automatically display “Personal” as the target store, as you initiated the import from the Personal store. Verify this and click Next.

16. Complete the Import: The Completing the Certificate Import Wizard page will summarize your import settings. Review the information to ensure it is correct. Click Finish to begin the import process.

17. Import Success Confirmation: After the import is complete, a dialog box will appear, typically displaying the message “The import was successful.” Click OK to acknowledge this confirmation and close the dialog box. Your certificate is now successfully imported into the local computer’s Personal certificate store and is ready to be assigned to your website in IIS.

Assign the Imported Certificate to the Web Site¶

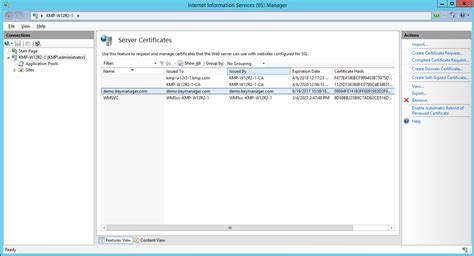

Once the certificate is imported into the local computer store, the next crucial step is to associate it with your website within Internet Information Services (IIS) Manager. This binding process enables IIS to use the certificate for securing your website’s traffic over HTTPS. Follow these steps to assign the imported certificate to your website:

1. Open IIS Manager: Access Internet Information Services (IIS) Manager. Click Start, then navigate to Administrative Tools, and finally select Internet Information Services (IIS) Manager. Alternatively, you can search for “IIS Manager” in the Windows search bar.

2. Select Server: In the left-hand Connections pane of IIS Manager, locate and select your server’s name. This will typically be the hostname of your Windows server. Expanding the server node will show various options related to server management.

3. Navigate to Web Sites: Under your server name in the Connections pane, expand the server node if necessary. Then, locate and double-click on Sites. This will display a list of websites configured on your server in the center pane, usually labeled Sites.

4. Select Website Properties: In the Sites pane, find and right-click on the specific website you want to secure with the imported certificate. From the context menu that appears, select Edit Bindings…. This action opens the Site Bindings dialog box, where you manage the bindings for your website.

5. Add HTTPS Binding: In the Site Bindings dialog box, click the Add… button. This opens the Add Site Binding dialog box, where you will configure the HTTPS binding.

6. Configure Binding Settings: In the Add Site Binding dialog box, configure the following settings:

   • Type: From the “Type:” dropdown menu, select https. This specifies that you are creating an HTTPS binding for secure communication.
   • Port: The default SSL port for HTTPS is 443. In most cases, you should leave this port number as it is. However, if you have specific port requirements, you can modify it accordingly.
   • IP address: You can choose to bind the HTTPS connection to “All Unassigned” IP addresses, a specific IP address assigned to your server, or a specific hostname. Select the appropriate option based on your server configuration.
   • SSL certificate: From the “SSL certificate:” dropdown menu, select the imported certificate that you want to assign to this website. The dropdown list will display certificates that are installed in the computer’s certificate store. Choose the correct certificate by its friendly name (if set) or thumbprint.

7. Confirm Binding Addition: After configuring the binding settings, click OK in the Add Site Binding dialog box. The new HTTPS binding will now be listed in the Site Bindings dialog box.

8. Close Site Bindings Dialog: Click Close in the Site Bindings dialog box to save the changes and close the dialog.

With these steps completed, the imported certificate is now successfully assigned to your website in IIS. Your website should now be accessible over HTTPS, providing a secure connection for users. You can verify this by browsing to your website using https:// in the address bar of your web browser. Look for the padlock icon in the browser’s address bar, which indicates a secure SSL/TLS connection is established.

You have now successfully configured your Windows Server to use an imported certificate, securing your website and protecting user data. Remember to renew your certificate before it expires to maintain continuous secure access to your website.
