Troubleshooting Incorrect IP and Default Gateway Settings on Windows Server

Table of Contents

This article addresses a common issue encountered on Windows Server where IP address and default gateway settings are not correctly assigned. This problem can manifest in various ways, disrupting network connectivity and server functionality. Understanding the symptoms, causes, and solutions is crucial for system administrators to maintain a stable and reliable network environment. This guide provides a comprehensive workaround to resolve conflicts and restore proper network configuration.

Symptoms¶

When IP address and default gateway settings are incorrectly assigned on a Windows Server, you might encounter several noticeable symptoms. These issues can range from minor inconveniences to significant disruptions in network communication. Recognizing these symptoms is the first step in diagnosing and resolving the underlying problem.

• Incorrect IP Address and Default Gateway: The most direct symptom is observing that the server is configured with an IP address or default gateway that is not intended or correct for the network. This can lead to the server being unreachable on the network or unable to communicate with other devices.

• Incorrect Display After Adding IP Addresses: After manually configuring additional IP addresses for the server, running the ipconfig command in the command prompt might display these addresses incorrectly. This can cause confusion and make it difficult to verify the network configuration. The displayed information might not reflect the actual settings applied to the network interfaces.

• Reversion of Settings After Restart: A particularly frustrating symptom is when IP address settings correctly configured by the administrator revert back to previous, incorrect settings after the server is restarted. This indicates a persistent underlying issue that automatically overrides the manual configurations upon system reboot. This behavior can lead to recurring network problems and require repeated manual intervention.

These symptoms often point towards a deeper configuration conflict within the Windows Server operating system, specifically related to how network settings are managed.

Cause¶

The root cause of these incorrect IP address and default gateway settings typically lies in conflicts between the TCP/IP registry settings and the data managed by Network Input Output (NetIO) components within Windows. Since Windows Vista and later versions of Windows Server operating systems, the management of IP address and default gateway configurations has become more complex. It involves both traditional TCP/IP registry settings and the newer NetIO framework.

The TCP/IP registry settings are stored under a specific registry subkey:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\Tcpip

This registry location has historically been the central repository for network configuration information. However, with the introduction of NetIO, a new layer of network management was implemented. NetIO is designed to enhance network performance and flexibility, but it can sometimes lead to conflicts with the older registry-based settings if not managed correctly.

The conflict arises when there is a discrepancy or inconsistency between the settings defined in the TCP/IP registry and the network data being managed by NetIO. This mismatch can occur due to various reasons, including software installations, driver updates, or even system errors. When these conflicts occur, the system might prioritize or misinterpret one set of settings over the other, leading to the incorrect assignment of IP addresses and default gateways. This is particularly prevalent in environments where network configurations are frequently changed or where legacy applications interact with the network settings.

Understanding that this conflict is the underlying cause is essential for applying the correct troubleshooting steps and ensuring a long-term resolution to the problem.

Workaround¶

To effectively resolve the issue of incorrect IP address and default gateway settings caused by TCP/IP and NetIO conflicts, a specific command-line tool is recommended. This workaround involves using the netsh command, a powerful utility for configuring network settings in Windows. The command specifically designed to address this type of conflict is:

netsh interface ip reset

Executing this command initiates a reset of the IP interface configurations, effectively resolving the inconsistencies between the TCP/IP registry and NetIO data. Let’s break down what this command does and why it is effective:

1. netsh (Network Shell): This is a command-line scripting utility that allows you to display or modify the network configuration of a computer. It provides a wide range of commands for managing network interfaces, protocols, routing, and more.

2. interface ip: This part of the command specifies that you are targeting the IP interface configuration within netsh. It directs the command to focus on settings related to IP addressing, gateways, and DNS.

3. reset: This is the crucial parameter that instructs netsh to reset the IP interface configuration. The reset command performs a series of actions to restore the network interface to a clean state. Specifically, it:

   • Resets the TCP/IP stack to its default configuration.
   • Clears any dynamically learned network settings that might be conflicting with static configurations.
   • Re-synchronizes the network settings between the TCP/IP registry and NetIO components.
   • Essentially, it forces the system to re-evaluate and re-apply the network configurations from a clean slate.

Procedure for Applying the Workaround:

1. Open Command Prompt as Administrator: It is essential to run the netsh command from an elevated command prompt. To do this, search for “Command Prompt” in the Windows search bar, right-click on “Command Prompt,” and select “Run as administrator.” Administrative privileges are required because the command modifies system-level network configurations.

2. Execute the Command: In the administrator command prompt window, type the following command exactly as shown and press Enter:

   netsh interface ip reset


3. Restart the Computer: After the command is executed successfully, it is crucial to restart the Windows Server. The restart ensures that all the changes made by the netsh command are fully applied and that the network services are reinitialized with the corrected configurations.

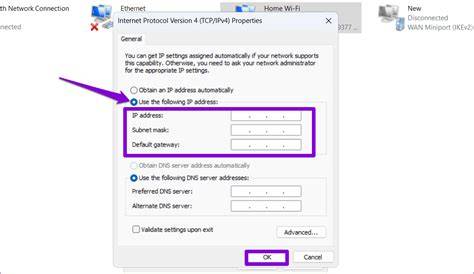

4. Reconfigure Network Settings: Once the server has restarted, you will need to manually reconfigure the correct IP address, subnet mask, default gateway, and DNS settings for the network interface. You can do this through the Network and Sharing Center in the Control Panel or through Server Manager. Ensure you carefully enter the correct network settings for your environment.

Important Considerations:

• Backup Network Configurations: Before running the netsh interface ip reset command, it is always a good practice to document or backup your current network configurations. This will allow you to easily revert back to the previous settings if needed or to verify the changes after the reset.

• Impact on Network Connectivity: Running this command will temporarily disrupt network connectivity. Therefore, it is recommended to perform this procedure during a maintenance window or at a time when network downtime is acceptable.

• Understanding the Root Cause (Long-Term Solution): While the netsh interface ip reset command is an effective workaround, it is essential to understand that it addresses the symptoms rather than the underlying cause of the conflict. If the issue recurs frequently, further investigation might be needed to identify the root cause, such as conflicting software or driver issues, and implement a more permanent solution.

By following these steps, you can effectively use the netsh interface ip reset command to resolve conflicts and restore correct IP address and default gateway settings on your Windows Server, ensuring stable and reliable network operations.

Status¶

Microsoft has officially acknowledged this issue as a problem within the listed Microsoft products in the “Applies to” section of their original knowledge base article (KB2473489). This confirmation indicates that the behavior of incorrect IP and default gateway settings due to TCP/IP and NetIO conflicts is a recognized bug or limitation in certain versions of Windows operating systems.

While the netsh interface ip reset command serves as a documented and effective workaround, it is important to note that the “Status” section in such knowledge base articles often reflects the current understanding and available solutions at the time of publication. Microsoft’s confirmation typically implies:

• Awareness of the Problem: Microsoft is aware of the issue reported by users and has investigated and validated the problem internally.

• Workaround Provided: The documented workaround, in this case, the netsh interface ip reset command, is the recommended solution to mitigate the immediate impact of the problem.

• Potential for Future Fixes: While not explicitly stated in the “Status,” Microsoft’s acknowledgement often suggests that they might consider addressing the root cause of the issue in future updates, service packs, or newer versions of Windows Server. However, there is no guarantee or timeline provided for a permanent fix.

Implications for System Administrators:

• Workaround as the Primary Solution: For system administrators encountering this issue, the netsh interface ip reset command remains the primary and officially supported method to resolve the incorrect IP and default gateway settings.

• Stay Updated: It is advisable for administrators to stay informed about Windows Server updates and service packs. Microsoft might release updates that implicitly or explicitly address the underlying conflicts between TCP/IP and NetIO. Reviewing release notes and knowledge base articles related to updates can provide insights into potential fixes.

• Proactive Monitoring: In environments where this issue has been observed, proactive monitoring of network configurations and server behavior is recommended. Regular checks for correct IP address and gateway settings can help identify and address recurrences of the problem promptly.

In conclusion, while the issue is acknowledged by Microsoft, the provided workaround using netsh interface ip reset is the current and recommended approach for resolving incorrect IP and default gateway settings caused by TCP/IP and NetIO conflicts on Windows Server. System administrators should utilize this workaround and stay informed about potential future updates from Microsoft that might offer a more permanent resolution.

---
