Troubleshooting Intune-Jamf Pro Integration: Resolving Graph API Token Retrieval Issues

Updated: • 0 • min read
Table of Contents

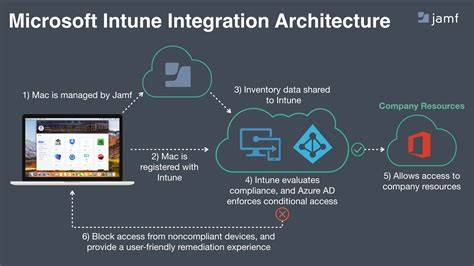

Troubleshooting Intune-Jamf Pro Integration

Integrating Microsoft Intune with Jamf Pro offers a powerful synergy for organizations managing Apple devices within a Microsoft-centric environment. This integration allows for enhanced security, compliance, and management capabilities by leveraging the strengths of both platforms. A crucial component of this integration is the seamless communication between Jamf Pro and Microsoft Intune, which relies heavily on the Microsoft Graph API. The Graph API acts as the bridge, enabling Jamf Pro to interact with Intune services and data, facilitating features like conditional access and device compliance synchronization. However, like any complex integration, challenges can arise. One common and critical issue is the failure to retrieve the access token for the Microsoft Graph API during the configuration of Intune integration within Jamf Pro. This connectivity problem can halt the integration process and prevent organizations from fully realizing the benefits of unified device management.

Symptoms

When attempting to configure the Microsoft Intune integration within Jamf Pro, administrators might encounter a connection failure. This failure is typically indicated by a specific error message displayed within the Jamf Pro interface. This error message is not just a generic notification; it directly points to a problem in establishing the necessary connection to the Microsoft Graph API. The configuration process might seem to proceed normally initially, but when Jamf Pro attempts to authenticate and retrieve the required access token from Microsoft Azure Active Directory (Azure AD) to interact with the Graph API, the process fails. This failure manifests as a clear and concise error message, preventing the successful completion of the integration setup. This error often arises during the initial setup phase, but it can also occur if there are changes to network configurations or security policies after the integration is initially established. Recognizing this symptom is the first step towards diagnosing and resolving the underlying issue.

Error Message: “Could not retrieve the access token for Microsoft Graph API”

The error message you will likely encounter is prominently displayed and reads:

Could not retrieve the access token for Microsoft Graph API. Check the configuration for Microsoft Intune Integration.

This message clearly indicates that Jamf Pro is unable to obtain the necessary credentials to communicate with the Microsoft Graph API. It’s crucial to understand that this is not a problem within Jamf Pro itself, nor is it necessarily an issue with Intune services being unavailable. Instead, it signals a breakdown in the network communication path between Jamf Pro and the Microsoft Graph API endpoints. The message prompts you to review the Intune Integration configuration within Jamf Pro, which is a good starting point, but often the root cause lies outside of the configuration settings within the Jamf Pro interface. It points towards potential network restrictions or firewall rules that are impeding the required communication. Therefore, a systematic approach to troubleshooting is necessary to identify and rectify the actual cause of the access token retrieval failure.

Cause

The primary cause of the “Could not retrieve the access token for Microsoft Graph API” error during Intune-Jamf Pro integration is typically related to network connectivity restrictions. Specifically, this issue commonly arises when essential network ports required for communication between Jamf Pro and Microsoft Intune are blocked. These blockages are often imposed by firewalls or proxy servers that are part of an organization’s network security infrastructure. Firewalls are designed to control network traffic, allowing only authorized communication and blocking potentially harmful or unauthorized connections. Proxy servers act as intermediaries between devices and the internet, often enforcing security policies and filtering web traffic.

When configuring Intune integration, Jamf Pro needs to communicate with various Microsoft services, including Azure Active Directory for authentication and the Microsoft Graph API for data exchange. This communication relies on specific TCP ports to be open in both directions: outbound from the Jamf Pro server to the internet and inbound responses back to the Jamf Pro server. If these ports are blocked by a firewall or proxy server, Jamf Pro will be unable to establish the necessary connections to Microsoft services, leading to the access token retrieval failure. It’s also important to consider that network configurations can be complex, and restrictions might be implemented at various points within the network infrastructure. Therefore, a thorough investigation of network settings, firewall rules, and proxy server configurations is essential to pinpoint the exact source of the blockage.

Solution

To resolve the “Could not retrieve the access token for Microsoft Graph API” error and successfully establish Intune-Jamf Pro integration, you need to ensure that the necessary TCP ports are open and accessible. This typically involves configuring your firewall and proxy server settings to allow communication on these ports. The required ports are essential for different aspects of the integration, including communication with Intune services, Apple Push Notification service (APNs) for macOS device management, and general Jamf Pro operations. Verifying and unblocking these ports is a critical step in troubleshooting this integration issue.

Here’s a breakdown of the TCP ports that must be open and allowed to pass traffic for successful Intune-Jamf Pro integration:

  • Intune: Port 443 (HTTPS): This is the standard port for HTTPS traffic and is crucial for secure communication with Microsoft Intune services, including the Microsoft Graph API. All communication with Intune, including authentication and data exchange, relies on HTTPS over port 443. Ensuring this port is open outbound from your Jamf Pro server and inbound responses are allowed is paramount.

  • macOS Devices:

    • Port 2195 (APNs - Production): This port is used by macOS devices to connect to the Apple Push Notification service (APNs) in a production environment. APNs is essential for delivering push notifications to managed macOS devices, enabling real-time commands and updates from Jamf Pro.
    • Port 2196 (APNs - Development): While primarily used for development, it’s sometimes necessary to ensure this port is also open, especially in testing or specific deployment scenarios.
    • Port 5223 (APNs - Feedback and Push Notifications): This port is also used for APNs communication, specifically for feedback and push notifications related to device management. It’s vital for reliable communication between Jamf Pro and managed macOS devices.

  • Jamf Pro:

    • Port 80 (HTTP): While HTTPS (port 443) is generally preferred for secure web traffic, port 80 (HTTP) is sometimes used for initial communication or redirects in certain Jamf Pro configurations. It’s advisable to ensure this port is open for basic web communication.
    • Port 5223 (APNs - Same as macOS Devices): As mentioned for macOS devices, port 5223 is also used by Jamf Pro itself for APNs communication. This is a shared port for both Jamf Pro and managed devices.

Action Steps to Unblock Ports:

  1. Identify Your Firewall and Proxy Server: Determine the firewall and proxy server solutions in use within your organization’s network. This might involve checking network documentation or consulting with your network administration team.
  2. Access Firewall and Proxy Server Configuration: Obtain the necessary administrative access to your firewall and proxy server management interfaces.
  3. Create Allow Rules: Within your firewall and proxy server configurations, create rules to explicitly allow outbound traffic from your Jamf Pro server to the internet on the specified TCP ports (443, 2195, 2196, 5223, and 80).
  4. Specify Destination Addresses (Optional but Recommended): For enhanced security, instead of allowing traffic to any destination on these ports, you can restrict the destination addresses to the specific IP address ranges or domain names used by Microsoft Intune, Apple APNs, and Jamf Pro services. Refer to official Microsoft, Apple, and Jamf documentation for the most up-to-date lists of required destination addresses.
  5. Test Connectivity: After configuring the firewall and proxy server rules, test the network connectivity from your Jamf Pro server to the internet on the allowed ports. You can use network utilities like telnet or nc (netcat) to test port connectivity. For example, to test port 443 to a Microsoft endpoint, you could use the command telnet graph.microsoft.com 443. A successful connection will indicate that the port is open.
  6. Re-attempt Intune Integration Configuration: Once you have verified that the required ports are open, re-attempt the Intune integration configuration process within Jamf Pro. Monitor for the “Could not retrieve the access token for Microsoft Graph API” error. If the port blockage was the root cause, the integration should now proceed successfully.
  7. Consult Network Team: If you are unsure about firewall or proxy server configurations, or if you continue to experience issues after attempting to unblock ports, consult with your organization’s network administration or security team. They can provide expert assistance in diagnosing network connectivity problems and implementing the necessary firewall and proxy server rule changes.

By systematically addressing potential port blockages within your network infrastructure, you can effectively resolve the “Could not retrieve the access token for Microsoft Graph API” error and successfully establish the crucial Intune-Jamf Pro integration for enhanced Apple device management within your organization.

Advanced Troubleshooting Steps

If simply unblocking the standard ports doesn’t resolve the issue, further investigation might be needed. Network configurations can be complex, and there might be other factors at play hindering the communication between Jamf Pro and the Microsoft Graph API. Here are some advanced troubleshooting steps to consider:

  1. Verify DNS Resolution: Ensure that your Jamf Pro server can correctly resolve the DNS names of Microsoft services, such as graph.microsoft.com and other related Azure Active Directory endpoints. Incorrect DNS settings can lead to connection failures. Use tools like nslookup or dig from the Jamf Pro server’s command line to verify DNS resolution for these domains.

    nslookup graph.microsoft.com

    If DNS resolution fails, review your Jamf Pro server’s network settings and DNS server configurations.

  2. Check Proxy Server Authentication: If your organization uses a proxy server that requires authentication, ensure that the Jamf Pro server is properly configured to authenticate with the proxy. Incorrect proxy authentication settings will prevent Jamf Pro from accessing external internet resources, including the Microsoft Graph API. Review the proxy settings within Jamf Pro’s network configuration and verify the authentication credentials.

  3. Examine Firewall Logs: Access your firewall logs and examine them for any denied connections originating from your Jamf Pro server and destined for Microsoft Graph API or Azure Active Directory endpoints on the required ports (443, etc.). Firewall logs can provide valuable insights into whether traffic is being blocked and the specific reasons for the blockage. Analyze the logs for denied connections, paying attention to source IP, destination IP, destination port, and the firewall rule that caused the denial.

  4. Network Packet Capture (Wireshark/tcpdump): For in-depth network analysis, consider using network packet capture tools like Wireshark or tcpdump on your Jamf Pro server or a network device along the communication path. Capture network traffic during the Intune integration configuration attempt. Analyze the captured packets to see if the communication is reaching Microsoft endpoints, if responses are being received, and if there are any network errors or retransmissions. This level of analysis requires network expertise but can pinpoint very specific network issues.

  5. Temporarily Disable Firewall/Proxy (For Testing Only - With Caution): As a temporary troubleshooting step (and with extreme caution in a production environment), you could temporarily disable the firewall or bypass the proxy server for the Jamf Pro server to see if this resolves the access token retrieval issue. If disabling the firewall or proxy resolves the problem, it strongly indicates that the issue lies within your firewall or proxy configurations. Important: Re-enable the firewall and proxy immediately after testing and identify the specific rules causing the blockage. Never leave firewalls or proxies disabled in a production environment for extended periods.

  6. Microsoft Azure Service Health Dashboard: Check the Microsoft Azure Service Health dashboard to ensure there are no known outages or service disruptions affecting Azure Active Directory or the Microsoft Graph API. While less common, service outages on the Microsoft side can also temporarily prevent access token retrieval.

  7. Jamf Pro Logs: Review the Jamf Pro server logs for any error messages or detailed information related to the Intune integration and Graph API communication. Jamf Pro logs might contain more specific error codes or details that can help narrow down the problem.

By systematically working through these advanced troubleshooting steps, in addition to the basic port verification, you can thoroughly investigate and resolve even complex network-related issues that might be preventing successful Intune-Jamf Pro integration. Remember to document your troubleshooting steps and findings for future reference and to share with your network or support teams if needed.

Best Practices for Network Configuration

To prevent future occurrences of Graph API token retrieval issues and ensure a stable and reliable Intune-Jamf Pro integration, consider implementing these best practices for network configuration:

  • Maintain Up-to-Date Port Documentation: Keep accurate and up-to-date documentation of all required ports for Intune-Jamf Pro integration, as outlined in official Microsoft, Apple, and Jamf documentation. Regularly review and update this documentation as software versions and service requirements evolve.
  • Proactive Port Monitoring: Implement network monitoring tools to proactively monitor the availability and accessibility of the required ports from your Jamf Pro server to the necessary internet endpoints. Set up alerts to be notified immediately if any of these ports become blocked or unreachable.
  • Regular Firewall Rule Review: Establish a schedule for regularly reviewing firewall and proxy server rules related to Intune-Jamf Pro integration. Ensure that the rules are still correctly configured, relevant, and not overly restrictive. Remove any outdated or unnecessary rules that might inadvertently block required traffic.
  • Network Segmentation (If Applicable): If your organization uses network segmentation, ensure that the network segment where your Jamf Pro server is located has the necessary network connectivity to the internet and Microsoft services. Verify that there are no inter-segment firewall rules blocking the required ports.
  • Proxy Server Bypass (For Microsoft/Apple Traffic - If Possible): If your organization’s security policies allow, consider configuring your proxy server to bypass proxying traffic destined for known and trusted Microsoft and Apple domains related to Intune and APNs. This can sometimes reduce latency and potential issues introduced by proxy server processing.
  • Utilize Allow Lists (Instead of Block Lists): When configuring firewalls and proxy servers, prefer using “allow lists” (explicitly allowing necessary traffic) over “block lists” (blocking specific traffic). Allow lists are generally more secure and easier to manage in the long run, as they prevent inadvertently blocking legitimate traffic.
  • Test Network Changes in a Non-Production Environment: Before implementing any network configuration changes related to Intune-Jamf Pro integration in a production environment, thoroughly test the changes in a non-production or staging environment. This allows you to identify and resolve any potential issues before they impact live operations.
  • Collaborate with Network and Security Teams: Foster strong collaboration and communication between your Jamf Pro administration team and your organization’s network and security teams. Regular communication and joint planning are essential for ensuring network configurations effectively support the needs of Intune-Jamf Pro integration while maintaining security best practices.

By adhering to these best practices, you can significantly minimize the risk of network-related issues impacting your Intune-Jamf Pro integration and maintain a robust and reliable device management environment.

Do you have any further questions or have you encountered similar issues with Intune-Jamf Pro integration? Share your experiences and tips in the comments below!
