Troubleshooting: NetBIOS/WINS Binding Issues on Windows Server Clusters

Table of Contents

This article addresses a specific issue encountered in Windows Server environments where NetBIOS and Windows Internet Name Service (WINS) fail to bind to cluster IP address resources. This behavior, observed in Windows Server 2016 and later versions, can impact applications relying on NetBIOS for network communication within a clustered environment. Understanding the symptoms, cause, and available workarounds is crucial for maintaining the functionality of critical cluster services. This document provides a comprehensive overview of this issue and offers practical steps to mitigate its effects.

Symptoms of NetBIOS and WINS Binding Problems¶

When NetBIOS and WINS do not bind correctly to cluster IP address resources, several distinct symptoms can manifest. These symptoms directly affect the availability and accessibility of cluster resources and the applications that depend on them. Identifying these symptoms is the first step towards diagnosing and resolving the underlying issue.

Issue 1: NetBIOS Connectivity Failure for Cluster Applications¶

Applications designed to communicate with cluster resources using NetBIOS over TCP port 139 may experience connectivity problems. These applications might be unable to establish a connection to the Cluster service, leading to operational disruptions. NetBIOS, historically a fundamental networking protocol, is still utilized by some legacy applications for name resolution and session establishment. The inability to connect via NetBIOS can manifest as application errors, timeouts, or a complete failure to access shared cluster resources. This is a critical issue as it directly impacts the functionality of applications intended to leverage the high availability and fault tolerance provided by the Windows Server cluster.

Issue 2: WINS Name Resolution Service Unresponsive on Cluster Networks¶

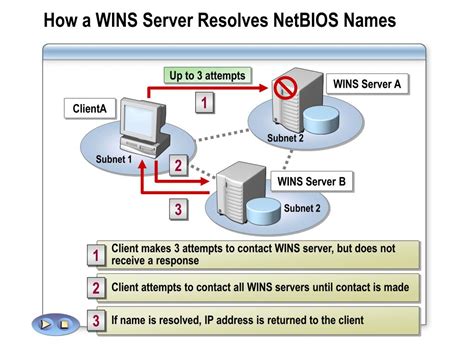

The WINS name resolution service, responsible for translating NetBIOS names to IP addresses, may become unresponsive on cluster networks. This means that WINS servers within the cluster will fail to answer incoming name resolution queries or process registration requests. Consequently, devices relying on WINS for name resolution within the cluster environment will be unable to locate and communicate with NetBIOS-based resources. This issue can disrupt network discovery, file sharing, and other services that depend on NetBIOS name resolution provided by WINS. The lack of WINS responsiveness directly undermines the name resolution infrastructure within the cluster, leading to broader network communication problems.

Root Cause: Design Change in Windows Server 2016 and Later¶

The observed behavior is not a defect but rather an intentional design change implemented in Windows Server 2016 and subsequent versions. Microsoft made a deliberate decision to discontinue the binding of NetBIOS to IP address resources within the Cluster service starting with Windows Server 2016. This change reflects a shift towards modern networking protocols and a reduced reliance on NetBIOS, which is considered a legacy protocol. While NetBIOS and WINS were historically important for name resolution and network communication, modern networks increasingly rely on DNS and other protocols. This design change is a fundamental shift in how Windows Server clusters handle NetBIOS and WINS, and understanding this is key to addressing the reported issues. The rationale behind this change is likely related to security considerations and the desire to promote more modern and efficient networking practices within clustered environments.

Workaround: Re-enabling NetBIOS Binding for Cluster IP Resources¶

Although the default behavior in Windows Server 2016 and later versions is to disable NetBIOS binding to cluster IP resources, a workaround is available to re-enable this functionality when necessary. This workaround involves using the Cluster Management console and PowerShell commands to modify the configuration of the specific IP address resource associated with the cluster. It is important to note that this workaround should be implemented cautiously and only when there is a clear need to support NetBIOS-dependent applications within the cluster. Re-enabling NetBIOS binding might have security implications and should be carefully considered in the context of the overall network security posture.

Step-by-Step Guide to Implement the Workaround¶

To implement the workaround, follow these steps carefully. Incorrectly applying these steps could lead to unintended consequences, so it’s crucial to proceed with caution and attention to detail. Ensure you have administrative privileges on the cluster nodes to execute these commands.

1. Identify the Target IP Address Resource: Begin by using the Cluster Management console to determine the exact name of the IP address resource that requires modification. This resource is typically associated with the cluster’s network name and is responsible for providing network access to cluster services. Navigate through the Cluster Manager interface to locate the IP address resource under the “Roles” or “Resources” section of your cluster. Note down the name of this IP address resource as it will be needed in subsequent PowerShell commands. Accurate identification of the correct IP address resource is paramount to avoid making changes to the wrong network configuration.

2. Open an Elevated PowerShell Window: Launch PowerShell with administrative privileges on one of the cluster nodes. Right-click on the PowerShell icon and select “Run as administrator.” This ensures that you have the necessary permissions to execute the commands required to modify the cluster configuration. An elevated PowerShell window is essential for making changes to cluster resources.

3. Execute PowerShell Commands: Once you have an elevated PowerShell window, execute the following commands. Replace <IP Address Resource Name> with the actual name of the IP address resource you identified in Step 1.

   Get-ClusterResource -Name "<IP Address Resource Name>" | Set-ClusterParameter -Name EnableNetBIOS -Value 1


   This command sequence first retrieves the specified cluster resource using Get-ClusterResource and then pipes the output to Set-ClusterParameter. The Set-ClusterParameter cmdlet modifies the properties of the cluster resource, in this case setting the EnableNetBIOS parameter to a value of 1. A value of 1 effectively re-enables NetBIOS binding for the specified IP address resource. Double-check that you have correctly substituted the placeholder with the actual resource name before executing the command.

4. Verify the Change: After executing the commands, it is crucial to verify that the change has been successfully applied. You can do this by running the following command in the same elevated PowerShell window, again replacing <IP Address Resource Name> with the correct resource name:

   Get-ClusterResource -Name "<IP Address Resource Name>" | Get-ClusterParameter -Name EnableNetBIOS


   This command retrieves the specified cluster resource and then uses Get-ClusterParameter to display the value of the EnableNetBIOS parameter. The output should show that the value of EnableNetBIOS is now set to 1, confirming that NetBIOS binding has been re-enabled for the IP address resource. Verify this output to ensure the workaround has been correctly implemented.

5. Test NetBIOS and WINS Functionality: Finally, thoroughly test the NetBIOS and WINS functionality within the cluster environment. Attempt to connect to cluster resources using NetBIOS-dependent applications and verify that WINS name resolution is working correctly. Monitor application behavior and network traffic to confirm that the workaround has resolved the initial symptoms and that NetBIOS connectivity and WINS name resolution are functioning as expected. Comprehensive testing is essential to validate the effectiveness of the workaround and ensure the stability of the cluster environment.

Important Considerations¶

While this workaround can address the immediate issue of NetBIOS and WINS binding, it’s important to consider the long-term implications and best practices. Re-enabling NetBIOS should be seen as a temporary measure, particularly in modern network environments.

• Security Implications: NetBIOS is an older protocol and can introduce security vulnerabilities if not properly secured. Consider the security implications of re-enabling NetBIOS in your environment and implement appropriate security measures to mitigate potential risks. Evaluate whether alternative, more secure protocols can be used instead of relying on NetBIOS.

• Modern Alternatives: Explore migrating applications and services to use modern networking protocols that do not depend on NetBIOS and WINS. Protocols like DNS and SMB Direct offer more efficient and secure alternatives for name resolution and file sharing in modern Windows Server environments. Transitioning away from NetBIOS is generally recommended for improved security and performance.

• Long-Term Solution: The workaround provided addresses the immediate symptom but does not represent a long-term solution. The ideal approach is to modernize applications and infrastructure to eliminate the dependency on NetBIOS and WINS. Plan for a migration strategy that moves away from these legacy protocols to ensure a more secure and efficient network environment in the long run.

Conclusion¶

The decision to remove NetBIOS binding from cluster IP address resources in Windows Server 2016 and later versions reflects a move towards modern networking practices. While this change can impact legacy applications that rely on NetBIOS, the provided workaround offers a way to re-enable this functionality when necessary. However, organizations should view this workaround as a temporary measure and prioritize migrating to modern, more secure, and efficient networking protocols. Understanding the cause and implications of this design change is crucial for effectively managing Windows Server clusters and ensuring the continued operation of critical applications and services.
