Windows 7 Recovery: A Step-by-Step Guide to Restoring Your System

Table of Contents

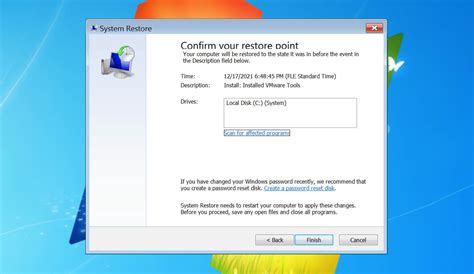

This article provides a comprehensive guide on how to restore a Windows 7 installation. It details the process of creating a system state backup and restoring it to the original computer or a different physical computer of the same make and model. Understanding these steps is crucial for safeguarding your system against various unforeseen issues.

Summary¶

Several problems can compromise your computer’s functionality and data integrity. These issues can range from hardware and software failures to more serious events such as computer theft, natural disasters, and even simple user errors. Each of these scenarios can lead to data loss or system inoperability, making recovery essential.

To effectively recover from such problems, restoring the Microsoft Windows operating system from a system state backup is a viable solution. This process allows you to revert your system to a previously saved state, minimizing downtime and data loss. You can restore a system state backup to the same physical computer where the backup was created, ensuring a straightforward recovery process. Alternatively, restoration to a different physical computer is possible, provided it shares the same make, model, and hardware configuration as the original system. This requirement for identical hardware is critical for a successful restoration.

However, it is important to note that restoring a system state backup from one computer to a different computer with a dissimilar make, model, or hardware configuration is not officially supported. While efforts may be made to assist with such scenarios, success is not guaranteed. Even when computers appear to be identical in make and model, subtle differences in drivers, hardware revisions, or firmware can lead to compatibility issues during the restoration process. It’s always best to aim for hardware consistency for reliable system recovery.

The Preferred Method to Restore Windows 7¶

The most effective and recommended method for restoring Windows 7-based computers is through a full system restore. This approach ensures a comprehensive recovery, minimizing potential issues and maximizing system stability post-restoration. Specifically, performing a Bare Metal Restore (BMR) to freshly formatted boot volumes and system volumes on the original server is the preferred method, especially without using Automated System Recovery (ASR).

In this scenario, the volume layouts and identifiers remain consistent with those used during the original backup. This consistency is crucial because it ensures that the restored system accurately reflects the original configuration. Furthermore, a BMR utilizing ASR can be employed to restore to a computer with different hardware than the original system. This provides flexibility in recovery options, especially when hardware replacement is necessary.

Possible Recovery Scenarios for Windows 7¶

Windows 7 recovery strategies should be tailored to different potential scenarios. Two primary scenarios are commonly encountered: server unbootability/server migration and server malfunction/rollback of server roles.

Server Unbootable/Server-migration Scenario (Planned and Unplanned)¶

In situations where a server becomes unbootable or requires migration, proactive measures are essential for a smooth recovery. To protect against such events, performing a BMR backup of all critical volumes on the server is highly recommended. This comprehensive backup serves as the foundation for recovery. The server can then be recovered by performing a BMR recovery through Windows Recovery. Importantly, BMR in this scenario is supported even when restoring to different hardware, providing greater flexibility during server migration or hardware replacement scenarios. This capability is crucial for maintaining business continuity during critical server events.

Server Malfunction Scenario (Bootable) or Rollback of Server Roles¶

When a server is still bootable but malfunctioning, or when a rollback of server roles is required, different recovery options become available. In these cases, system protection can be achieved through either a System State Backup or a BMR backup. The choice between these backup types depends on the specific recovery needs and the extent of the issues. To recover the server, a System State Recovery can be performed directly from the started operating system. This approach is less disruptive than a full BMR and is suitable for scenarios where the underlying hardware is not being changed and the operating system is still accessible.

The following table summarizes the supported and unsupported system recovery scenarios, providing a clear overview of recovery options based on different situations.

Scenario	Supported
System State Recovery after BMR / Full Server restore to the same hardware	Yes
System State Recovery after BMR / Full Server restore to different hardware	No
System State Recovery after Full Server restore (without BMR) to the same or different hardware	No

Guidelines for Restoring the Windows 7 Operating System¶

To ensure a successful Windows 7 operating system restoration, it’s crucial to adhere to specific guidelines. These guidelines cover various aspects, from hardware compatibility to software configurations, all aimed at minimizing potential issues and maximizing the chances of a smooth and successful recovery.

Hardware Abstraction Layer¶

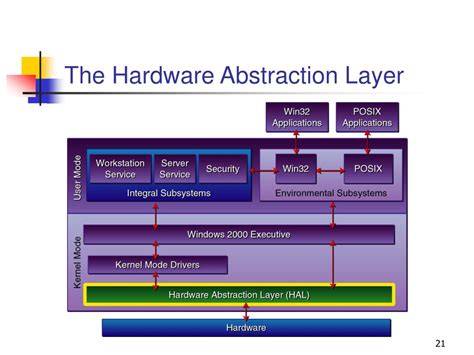

The Hardware Abstraction Layer (HAL) plays a critical role in system compatibility, especially during restoration to different hardware. For a successful restore operation, the source and destination computers must use the same type of HAL. This requirement ensures that the operating system can correctly interface with the underlying hardware.

There is a notable exception to this rule. If one of the computers utilizes the Advanced Configuration and Power Interface (ACPI) multiprocessor HAL, the other computer can have the ACPI uniprocessor HAL. Similarly, this rule applies to MPS multiprocessor and MPS uniprocessor HALs. This flexibility allows for some hardware variations while still maintaining HAL compatibility.

For instance, if the source computer is using the MPS multiprocessor HAL, you can successfully restore data to a destination computer that uses the MPS uniprocessor HAL. However, it’s important to note that you cannot restore data to a destination computer that uses a different HAL type, such as the ACPI multiprocessor HAL in this example. Understanding and verifying HAL compatibility is a fundamental step in preparing for system restoration.

To determine the computer HAL type being used on each system, follow these steps:

1. Click the Start button, navigate to Settings, and then select Control Panel. Finally, open System.
2. In the System Properties window, go to the Hardware tab and click Device Manager.
3. Expand the Computer branch in Device Manager. The listed item will indicate the HAL type.

Here is a list of common HAL types and their corresponding filenames:

• ACPI multiprocessor computer = Halmacpi.dll
• ACPI uniprocessor computer = Halaacpi.dll
• Advanced Configuration and Power Interface (ACPI) computer = Halacpi.dll
• MPS multiprocessor computer = Halmps.dll
• MPS uniprocessor computer = Halapic.dll
• Standard computer = Hal.dll
• Compaq SystemPro multiprocessor or 100% compatible = Halsp.dll

Operating System Version¶

Ensuring compatibility extends beyond hardware to the operating system itself. For a successful system restore, the source and destination computers must use identical operating system versions and identical Windows stock-keeping units (SKUs). This strict requirement is crucial for avoiding conflicts and ensuring system stability after restoration.

For example, you cannot back up a system running Windows 2000 Server and then attempt to restore it on a computer running Windows 2000 Advanced Server. These, despite being closely related, are different SKUs and are not compatible for restoration purposes.

Furthermore, both the source and destination computers should ideally use the same type of Windows license: either both should be retail versions or both should be the same OEM version. Inconsistencies in licensing can lead to activation issues and potentially system instability after restoration.

The best practice is to install Windows on the destination computer using the same installation media that was originally used to install Windows on the source computer. This ensures not only version and SKU consistency but also helps maintain compatibility in terms of drivers and system files. Using identical installation media is a key step in preparing for a reliable system restore.

Filter Drivers¶

Filter drivers from third-party applications can sometimes interfere with the system restoration process, especially when restoring to different hardware. To minimize potential conflicts, it is highly recommended to uninstall third-party filter drivers on the source computer before performing the backup.

These types of drivers, while often essential for specific software functionalities, can introduce complexities during the restoration process. By removing them prior to backup, you create a cleaner system state, reducing the likelihood of driver-related issues on the destination computer after restoration. This step contributes to a smoother and more successful recovery operation.

Windows Folder and Disk Layout¶

Maintaining consistency in drive letters and folder paths is essential for system restore success. The destination computer must use the same logical drive letter (%systemdrive%) and path (%systemroot%) as the source computer. This requirement ensures that the restored operating system can correctly locate system files and directories.

For domain controllers, the requirements are even stricter. The locations of critical components such as the Active Directory directory service database, Active Directory log files, FRS database, and FRS log files must be identical for both the source and destination computers. These components are tightly integrated with the operating system, and path mismatches can lead to severe functionality issues after restoration.

For instance, if the Active Directory database log files on the source computer were installed in C:\WINNT\NTDS, the destination computer must also use the same path, C:\WINNT\NTDS. Deviation from these path requirements can result in a non-functional domain controller after the restore. Careful planning and verification of drive letters and paths are crucial, especially in domain controller restoration scenarios.

Hardware¶

To increase the probability of a successful restore operation, especially when restoring to different hardware, consider simplifying the hardware configuration of the destination computer. If possible, remove any hardware on the destination computer that is not absolutely required to complete the restore process. This minimizes potential driver conflicts and hardware compatibility issues during the initial restoration phase.

For example, physically remove or disable all but one network adapter. Extra network adapters or other peripherals can sometimes complicate the initial boot process after restoration. After the operating system has been successfully restored and restarted, you can then install or enable the additional adapters and other hardware components. This phased approach to hardware configuration can significantly improve the chances of a smooth and successful system restore.

Hotfix and Service Pack Level¶

Consistency in software patching is as important as hardware and OS version compatibility. For certain operating systems, maintaining the same hotfix and service pack level between the source and destination computers is critical for successful restoration.

For example, for Windows 2000 computers, hotfix 810161 or Windows 2000 Service Pack 4 must be installed on the source computer before backing up data. Furthermore, these same updates must also be installed on the destination computer before restoring the backup. These specific updates often contain critical compatibility fixes necessary for successful cross-hardware restoration.

Windows Server 2003 and Windows XP, however, have no specific hotfix or service pack level requirements for this type of restore operation. This means that for these operating systems, it’s not strictly necessary to bring the destination computer up to the same patch level before restoration.

However, there is an important exception. Restoring a Windows Server 2003 SP1-based computer requires you to restore the destination computer to Windows Server 2003 SP1. In other words, if the source system has a service pack installed, the destination system must have at least the same service pack level for a successful restore. Paying attention to service pack levels is crucial for maintaining compatibility and ensuring a smooth restoration process.

Possible Issues and the Steps to Troubleshoot¶

After restarting the destination computer following a system restore, you might encounter certain issues. These problems can range from minor display glitches to critical system errors that prevent the operating system from booting correctly. Being prepared for these potential issues and knowing how to troubleshoot them is essential for a successful recovery process.

Common symptoms that may appear after a restore include:

• Stop Error Messages: You might receive one of the following Stop error messages, often referred to as Blue Screens of Death (BSOD):
  > Stop 0x0000007B Inaccessible_Boot_Device
  >
  > STOP: 0x00000079 Hal_Mismatch
• System Hangs at Startup: The computer may stop responding or freeze during the startup process.
• Spontaneous Restarts: The computer might spontaneously restart shortly after displaying the “Starting Windows 2000” message on a black screen, early in the boot sequence.
• Display Configuration Problems: You may be unable to configure or adjust your display settings correctly after the restore.
• Network Adapter Malfunction: The network adapter might not function correctly, leading to network connectivity issues.

To resolve issues related to display settings or a malfunctioning network adapter, a simple troubleshooting step is to remove the graphics adapter or the network adapter from Device Manager. After removing the device in Device Manager, restart the computer. Upon restart, Windows will attempt to redetect the hardware and may prompt you to install drivers. This often resolves driver conflicts that might have arisen during the restoration process.

For more serious issues such as Stop errors or situations where the computer consistently stops responding during startup, a more involved troubleshooting step is required: performing an in-place upgrade of Windows. An in-place upgrade essentially reinstalls Windows while preserving your existing settings and data. This process can often repair system files and configurations that might have become corrupted or inconsistent during the restore process, resolving boot issues and Stop errors.

After completing the in-place upgrade, it is crucial to verify the integrity of the network configuration, specifically the ClientProtocols registry subkey. This subkey contains important network protocol information, and ensuring it is correctly populated is essential for network functionality. To verify this, follow these steps: (Note: Specific steps to access and verify the ClientProtocols registry subkey would be operating system specific and would typically involve using the Registry Editor - regedit.exe). Consult Microsoft documentation for specific steps for Windows 7 to verify the ClientProtocols registry subkey.

By understanding these common post-restore issues and their corresponding troubleshooting steps, you can effectively address problems and ensure a successful Windows 7 system recovery.
