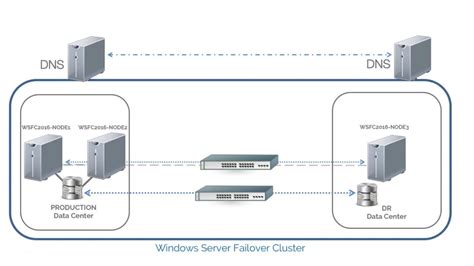

Windows Server Failover: Maximizing Cluster Resilience on Three or More Nodes
This document details the failover behavior in Windows Server clusters consisting of three or more nodes. It explains the logic behind group failovers, which is crucial for maintaining high availability in critical systems. Understanding these mechanisms ensures that services remain uninterrupted even when individual nodes or resources experience failures. This article provides a comprehensive overview of how failover operates in various scenarios within a multi-node cluster environment.
Failover Behavior on Clusters of Three or More Nodes¶
This article specifically outlines the logic governing group failover between nodes in cluster configurations of three or more members. The information provided here is essential for administrators managing Windows Server clusters, enabling them to predict and manage failover events effectively. Proper understanding of these behaviors is key to designing and maintaining robust and highly available cluster solutions. This guide is intended to clarify the intricacies of failover processes in larger cluster deployments.
Summary¶
Group movement within a Windows Server cluster can be triggered by administrative actions, such as manual group relocation, or by system events like node or resource failures. The destination node for a group depends on the method of initiation and the configuration of the Preferred Owner List. Understanding these factors is critical for predicting failover outcomes. This section provides a concise overview of the key determinants influencing group movement within the cluster.
More Information¶
Detailed information regarding the Preferred Owner List and its role in server clusters is available in the “Server Clusters” section of the Help file. This documentation covers various aspects of cluster planning and optimization, which are crucial for effective cluster management. This article will delve into four specific scenarios to illustrate failover behavior in different configurations and situations. These scenarios are designed to cover the most common failover situations encountered in Windows Server clusters.
The four scenarios discussed in this article are:
- Node or resource failure with a configured Preferred Owner List. This scenario explores how the cluster behaves when a failure occurs and a Preferred Owner List is in place to guide failover decisions.
- Node or resource failure without a configured Preferred Owner List. This scenario examines the failover process when no Preferred Owner List is defined, leading to different failover selection mechanisms.
- Administrator-initiated manual group move to “Best Possible” with a configured Preferred Owner List. This scenario investigates the outcome of manually moving a group using the “Best Possible” option when a Preferred Owner List is available.
- Administrator-initiated manual group move to “Best Possible” without a configured Preferred Owner List. This scenario analyzes the behavior when manually moving a group to “Best Possible” in the absence of a Preferred Owner List.
These scenarios provide a structured approach to understanding the complexities of failover in Windows Server clusters.
Scenario 1¶
Node or Resource Failure with Preferred Owner List Set¶
When a node or resource failure occurs and a Preferred Owner List is defined for a group, the Cluster Service initiates a failover to the next available node as determined by the Node List. The Node List is constructed by prioritizing the Preferred Owners List, followed by the remaining cluster nodes ordered by their Node ID. Node IDs are assigned when a node joins the cluster or when a node is evicted and subsequently re-added. This ordered list ensures a predictable failover path based on administrator preferences and node installation sequence.
The Node ID order can be examined within the Windows Registry under the path \\HKEY_LOCAL_MACHINE\\Cluster\\Nodes. This registry key provides a numerical identifier for each node within the cluster, reflecting the order in which they were incorporated into the cluster. This information can be helpful for troubleshooting and understanding node prioritization within the cluster’s internal workings.
Consider a six-node cluster example consisting of NodeA, NodeB, NodeC, NodeD, NodeE, and NodeF, installed and joined in that sequence. Assume a specific group has NodeA, NodeC, and NodeE designated as Preferred Owners.
Based on this configuration, the Node List for this particular group would be structured as follows:
- NodeA - Preferred Owner number one
- NodeC - Preferred Owner number two
- NodeE - Preferred Owner number three
- NodeB - Second installed Node
- NodeD - Fourth installed Node
- NodeF - Sixth installed Node
In this scenario, in the event of a node or resource failure exceeding its restart threshold, the entire group will fail over to the next node in the Node List sequence. For instance, if NodeC hosts the failing resource, the group will fail over to NodeE, not NodeA, despite NodeA being the highest-priority Preferred Owner. Similarly, if NodeE subsequently fails, the group will fail over to NodeB, skipping back to NodeA. This demonstrates the sequential nature of failover within the Node List structure.
Scenario 2A¶
Resource Failure without Preferred Owner List Set¶
If a resource failure occurs and the Preferred Owner List is not configured, the group still utilizes a Node List, although its composition differs from Scenario 1. In this case, the Node List is solely based on the Node IDs, which reflect the installation order of the cluster nodes. This simplified Node List governs the failover path when no explicit owner preferences are specified.
Upon a node or resource failure, resources will fail over in a descending order within the Node List. Once the failover reaches the last node in the list, it loops back to the first node. This cyclical behavior ensures that failover continues to occur even after traversing the entire node list.
Consider the following Node List based on installation order:
- NodeA - First installed Node
- NodeC - Second installed Node
- NodeE - Third installed Node
- NodeB - Fourth installed Node
- NodeD - Fifth installed Node
- NodeF - Sixth installed Node
In this example, if NodeE were to fail, any groups it owned would fail over to NodeB, and not NodeF. This illustrates the linear progression of failover based on the Node ID order when a Preferred Owner List is absent.
Scenario 2B¶
Node Failure without Preferred Owner List Set¶
When a node fails and the Preferred Owner List is not configured for a group on that node, an available node is selected randomly for the group to be moved to. This random selection mechanism is designed to distribute groups more evenly across the available nodes in the cluster. This helps in load balancing and preventing any single node from becoming overloaded after a failover event.
This random distribution contrasts with the ordered failover of Scenarios 1 and 2A, aiming for a more dynamic and balanced resource allocation in the absence of preferred ownership.
Scenario 3¶
Manual “Best Possible” Move with Preferred Owner List Set¶
When a Cluster administrator manually initiates a Move group operation and selects the Best Possible option, and a Preferred Owner List is configured, the group will always attempt to start on the node at the top of the Node List. Similar to Scenario 1, the Node List prioritizes the Preferred Owner List followed by nodes in their installation order. This ensures that manual “Best Possible” moves respect the defined owner preferences.
The Node List structure remains consistent with Scenario 1:
- NodeA - Preferred Owner number one
- NodeC - Preferred Owner number two
- NodeE - Preferred Owner number three
- NodeB - Second installed Node
- NodeD - Fourth installed Node
- NodeF - Sixth installed Node
In this scenario, when Best Possible is selected, the group will always initially attempt to move to NodeA. If the group is already running on NodeA or NodeA is unavailable, the failover will then attempt to move to NodeC. If a group is currently on NodeD and the administrator chooses to move it to Best Possible, the group will relocate to NodeA, if available. If NodeA, NodeC, and NodeE are all inactive, either NodeB or NodeF will be chosen randomly from the remaining active nodes. This demonstrates the prioritized approach of “Best Possible” moves when a Preferred Owner List is defined.
Scenario 4¶
Manual “Best Possible” Move without Preferred Owner List Set¶
If a Cluster administrator manually selects Move group and chooses Best Possible when the Preferred Owner List is not configured, an active node is chosen randomly to host the group. Without a Preferred Owner List, the “Best Possible” selection defaults to a random distribution among available nodes.
In the absence of preferred owners, it’s possible for a group to be moved to a node that is already hosting several other groups. This highlights the importance of the Preferred Owner List in controlling group placement and load distribution, especially in larger clusters.
It is generally recommended to configure the Preferred Owner list, particularly in larger node clusters, especially when there are significant differences in node load capacity or when the nodes are not homogeneous in terms of hardware or software configuration. Defining preferred owners allows for more granular control over resource allocation and can improve overall cluster performance and stability.
Note¶
An exception to the failover behavior described in these scenarios is the default Cluster Group. This group, which holds the Quorum resource, does not adhere to the typical Preferred Owner List behavior. Instead, if the owner of the Quorum resource fails, the new owner will be the node that previously successfully owned the Quorum resource. This ensures continuity of core cluster functions by prioritizing the previous stable owner for the Quorum resource.
Furthermore, the AntiAffinityClassNames public property can also influence the failover destination of a group. This property allows for defining anti-affinity rules, preventing certain groups from running on the same node, thereby affecting failover decisions and resource placement within the cluster. Understanding and configuring AntiAffinityClassNames can be crucial for optimizing resource distribution and preventing performance bottlenecks.
This article provides a detailed explanation of failover behaviors in Windows Server clusters with three or more nodes. By understanding these scenarios and configurations, administrators can better manage and optimize their cluster environments for high availability and resilience.
