Windows Server Network Load Balancing: Concepts, Configuration, and Key Considerations

Table of Contents

Network Load Balancing (NLB) in Windows Server is a crucial technology for enhancing the availability and scalability of network services and applications. By distributing network traffic across multiple servers, NLB ensures that no single server is overwhelmed, improving responsiveness and providing fault tolerance. This document delves into the fundamental concepts, configuration procedures, and essential considerations for effectively implementing Windows Server NLB.

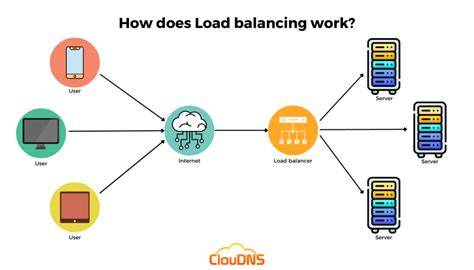

Understanding Network Load Balancing¶

Network Load Balancing operates by distributing incoming client requests across a cluster of servers. These servers, known as NLB cluster nodes, work together to handle the network traffic. When a client sends a request to the cluster’s virtual IP address (VIP), NLB intelligently directs that request to one of the available servers based on predefined rules and algorithms. This distribution mechanism ensures that workload is evenly spread, preventing any single server from becoming a bottleneck and improving the overall performance and resilience of the service. NLB is particularly beneficial for applications that require high availability and can tolerate stateless connections, such as web servers, application servers, and terminal services.

Testing an NLB Cluster Effectively¶

Ensuring that your NLB cluster is functioning correctly is paramount for maintaining service availability. A straightforward method to test an NLB cluster involves verifying the load distribution across the nodes. For instance, if you have configured an NLB cluster with four nodes, a practical test is to create unique file shares on each of these nodes. By attempting to access these shares from a client machine using the Uniform Naming Convention (UNC) path and the cluster’s VIP, you should consistently be directed to different shares upon repeated access attempts. This behavior confirms that the load balancing mechanism is actively distributing requests across the cluster nodes as intended.

Configuring NLB Convergence Parameters¶

The convergence process is a critical aspect of NLB, responsible for rebuilding the cluster state whenever changes occur, such as a node joining or leaving the cluster. Fine-tuning the convergence parameters can optimize the responsiveness and stability of your NLB cluster. These parameters, AliveMsgPeriod and AliveMsgTolerance, can be adjusted within the Windows Registry to control how frequently heartbeat messages are sent between nodes and how many missed messages are tolerated before convergence is initiated.

• AliveMsgPeriod: This registry value determines the interval at which each NLB node sends heartbeat messages to other cluster members. Reducing this period can lead to faster detection of node failures but also increases network traffic.
• AliveMsgTolerance: This value specifies the number of consecutive heartbeat messages that can be missed from a node before NLB considers it offline and initiates the convergence process. Increasing this tolerance can reduce unnecessary convergence events due to transient network issues but may also delay the detection of actual node failures.

Careful adjustment of these parameters based on your network environment and application requirements is crucial for balancing responsiveness and stability.

Virtual IP (VIP) Configuration¶

The Virtual IP address is the single IP address that clients use to access the services provided by the NLB cluster. Configuring multiple VIPs, a feature available in Windows Server 2003 and later versions, allows for greater flexibility and organization within your NLB environment. This capability enables you to load balance different applications or services using distinct VIPs, even within the same cluster. For example, you could have one VIP dedicated to handling web traffic and another VIP for email services, all managed within a single NLB cluster. This approach enhances administrative clarity and allows for more granular control over traffic distribution.

STOP and DRAINSTOP Commands: Understanding the Nuances¶

When managing an NLB cluster, understanding the difference between the STOP and DRAINSTOP commands is vital for maintaining service continuity.

• STOP Command: Executing the STOP command on an NLB node abruptly halts the NLB service on that host. This action immediately terminates all existing client connections being handled by that node. While it quickly takes the node offline, it can lead to service interruptions and data loss for active users.
• DRAINSTOP Command: In contrast, the DRAINSTOP command offers a more graceful approach to taking an NLB node offline. When DRAINSTOP is issued, the NLB service on the node stops accepting new connections but continues to serve existing connections until they are completed or timed out. This allows for a controlled shutdown, minimizing disruption to users who are actively using the service.

Choosing between STOP and DRAINSTOP depends on the specific situation. For planned maintenance or upgrades, DRAINSTOP is generally preferred to ensure minimal user impact. However, in emergency situations requiring immediate node removal, STOP might be necessary despite the potential for connection loss.

IGMP Configuration and Multicast Support¶

The Internet Group Management Protocol (IGMP) plays a role in NLB when the cluster is configured to operate in multicast mode. IGMP is essential for efficient multicast communication, allowing network devices to learn which network segments need to receive multicast traffic. Therefore, IGMP configuration is only relevant when you have specifically set up your NLB cluster to utilize multicast support. In a multicast NLB configuration, the cluster uses a multicast MAC address, and IGMP ensures that only the network segments containing cluster nodes receive the multicast traffic, optimizing network bandwidth usage.

Prerequisites for NLB Configuration¶

For a successful NLB configuration, several prerequisites must be met to avoid potential conflicts and ensure smooth operation. One crucial step is to ensure that no network property windows are open on any server while configuring NLB using the NLB Manager. Leaving network property windows open can sometimes lead to configuration conflicts or instability during the NLB setup process. It is also essential that all servers within the NLB cluster have accurate and synchronized local time. Time synchronization is critical for various network protocols and services, including NLB, to function correctly. Time discrepancies can lead to issues with cluster communication, convergence, and overall reliability.

Application Failure Detection Limitations¶

It is important to recognize that NLB itself does not inherently detect application failures. While NLB effectively distributes network traffic and handles server failures at the network level, it does not monitor the health or responsiveness of the applications running on the cluster nodes. For example, if a web server service on a node stops functioning, NLB will continue to direct TCP/IP requests to that server as long as the server itself is reachable on the network. To address this limitation, external monitoring solutions or custom scripts are necessary to actively check the health of applications and trigger node removal from the NLB cluster if an application failure is detected. This ensures that traffic is only directed to nodes that are not only reachable but also running the application correctly.

NLB Application Scenarios: TCP/IP and Data Change Frequency¶

NLB is particularly well-suited for TCP/IP-based applications where data changes occur infrequently. The design of NLB, which relies on distributing requests at the network layer, works most efficiently when the underlying application data is relatively static or replicated across all nodes. Applications like web servers serving static content, or read-heavy databases, are ideal candidates for NLB. For applications with frequent data changes or those requiring strong session affinity and data consistency across nodes, other clustering technologies like server clusters or database replication solutions might be more appropriate.

Protocol Restrictions for Cluster Adapters¶

When configuring NLB, it is crucial to only bind the TCP/IP protocol to the cluster adapter. Avoid binding any other network protocols to the network interface card (NIC) designated for NLB cluster traffic. Introducing other protocols on the cluster adapter can interfere with NLB’s operation and potentially lead to unpredictable behavior or network conflicts. Maintaining a clean and dedicated TCP/IP environment on the cluster adapter is essential for NLB’s stability and performance.

Unicast vs. Multicast Operation Modes¶

NLB offers two primary operation modes: unicast and multicast. However, it’s important to note that an NLB cluster can operate in only one mode at a time; it cannot simultaneously function in both unicast and multicast modes.

• Unicast Mode: In unicast mode, the NLB cluster uses the cluster’s MAC address on each node’s network adapter. Each node responds to ARP requests for the cluster IP address with its own MAC address. While simpler to configure, unicast mode in a single NIC environment can lead to increased network overhead as all nodes receive all traffic destined for the cluster IP.
• Multicast Mode: Multicast mode utilizes a multicast MAC address for the cluster. Network switches configured for multicast forwarding are needed to efficiently distribute traffic only to the ports connected to cluster nodes. Multicast mode can reduce network overhead compared to unicast in single NIC scenarios, but requires more complex network infrastructure configuration.

Unicast is the default and often simpler mode for initial NLB deployments, while multicast can offer performance advantages in larger or more complex network environments where network efficiency is critical.

Microsoft Support and Mixed Cluster Environments¶

Microsoft’s official stance is that they do not support mixing server operating systems and NLB clusters. This implies that you should not attempt to combine a traditional server cluster (like a failover cluster for applications like SQL Server) with an NLB cluster on the same set of servers in a supported configuration. However, mixing different versions of NLB itself is allowed to a certain extent. For instance, Windows NT WLBS (Windows Load Balancing Service) can coexist and function within a Windows 2000 NLB environment. This backward compatibility can be useful during migration or in environments with mixed operating system versions.

Network Media Limitations¶

NLB’s compatibility with different network media has some historical limitations. Specifically, NLB does not support Token Ring and ATM (Asynchronous Transfer Mode) networks. Its testing and validation have primarily been conducted on 10 MB and 100-MB Ethernet networks. While Gigabit Ethernet and faster networks are now commonplace and generally compatible with NLB, the lack of formal testing and support for older technologies like Token Ring and ATM should be considered in legacy environments. For modern deployments, Ethernet-based networks are the standard and recommended infrastructure for NLB.

Single Network Card Limitations in Unicast Mode¶

When operating NLB in unicast mode with a single network interface card (NIC) on each server, certain limitations arise due to the nature of unicast communication and the shared MAC address configuration.

1. Impaired Inter-Host Communication: Ordinary network communication directly between cluster hosts becomes problematic. Since all nodes in unicast mode respond to the cluster IP with the same MAC address, traffic intended for a specific node may be intercepted by all nodes in the cluster, leading to communication issues.
2. Increased Network Overhead: Network traffic directed to any individual computer within the cluster generates additional networking overhead for all computers in the cluster. Every node processes all traffic destined for the cluster IP, even if it’s intended for a different node, leading to inefficient bandwidth utilization and potentially increased CPU load on each server.
3. NLB Manager Restriction: Furthermore, you cannot use the Network Load Balancing Manager on a computer that is part of a single-NIC unicast NLB cluster to configure and manage the NLB nodes. This restriction is because the NLB Manager relies on inter-host communication, which is impaired in this configuration. Management tasks must be performed from a separate machine outside the cluster or using command-line tools directly on the cluster nodes.

These limitations highlight the trade-offs of using a single NIC in unicast mode. While simpler to set up initially, it introduces complexities and limitations, especially for management and inter-node communication. For more robust and manageable NLB deployments, especially in scenarios requiring frequent management or inter-node communication, using multiple NICs or multicast mode is generally recommended.

Automatic Failover and Load Redistribution¶

One of the key benefits of NLB is its automatic detection and recovery from node failures. NLB continuously monitors the health of cluster nodes and automatically detects when a node goes offline or becomes unresponsive. Upon detecting a failure, NLB initiates the convergence process. This process not only removes the failed node from the active cluster membership but also automatically rebalances the network load among the remaining healthy hosts. This load redistribution happens relatively quickly, typically within 10 seconds, ensuring minimal disruption to service availability.

Similarly, when new hosts are added to the NLB cluster, the same automatic load rebalancing mechanism comes into play. NLB detects the addition of the new node and redistributes the workload to include the newly joined server. This dynamic load adjustment ensures that the cluster remains balanced and responsive as the cluster membership changes, whether due to failures or planned expansions.

Handling Active Connections During Failover¶

When a host in an NLB cluster goes offline, whether due to failure or planned removal, all active client connections to that specific host are lost. NLB’s failover mechanism redirects new connections to the remaining healthy nodes, but it does not migrate or preserve existing connections. This is an inherent characteristic of NLB’s connectionless load balancing approach.

However, for planned node removal, NLB provides the DRAINSTOP command as a mitigation strategy. As previously discussed, DRAINSTOP allows you to gracefully take a node offline by allowing it to service all existing active connections before preventing new connections. By using DRAINSTOP before physically taking a node offline for maintenance, you can minimize the impact on users by ensuring that their ongoing sessions are not abruptly terminated.

Mixed Application Environments in NLB Clusters¶

NLB offers flexibility in terms of the types of applications that can run within a cluster. You can have a mix of different applications running on the nodes of an NLB cluster. For example, you can configure all nodes to run an IIS web server while simultaneously designating a single node to host a SQL Server database. By carefully configuring NLB port rules, you can direct specific types of traffic to designated nodes. In this scenario, web traffic (typically on ports 80 and 443) would be load-balanced across all IIS server nodes, while database traffic (e.g., on port 1433 for SQL Server) could be specifically directed to the dedicated SQL Server node. This capability allows for efficient resource utilization and the creation of specialized node roles within the NLB cluster.

NLB and Server Clustering Coexistence¶

While NLB and traditional server clustering (failover clustering) cannot be active on the same computer simultaneously, they are not mutually exclusive technologies. You can form separate clusters using both technologies within the same infrastructure. For instance, you could have a four-node NLB cluster to load balance web traffic and a separate two-node server cluster to provide high availability for a critical database application. Whether it is necessary to have separate subnets for each technology depends on your specific network design and isolation requirements. Logically separating NLB and server cluster networks can improve security and reduce potential network conflicts, but it is not always a strict requirement.

Scalability Limits and RRDNS¶

NLB has a practical limitation on the number of computers in a single cluster, supporting up to 32 nodes. While 32 nodes can provide significant scalability for many applications, larger deployments might require alternative solutions. To overcome this limitation and potentially scale beyond 32 nodes, you can employ Round Robin DNS (RRDNS) in conjunction with NLB. RRDNS allows you to distribute traffic across multiple NLB clusters by associating multiple IP addresses (VIPs of different NLB clusters) with the same DNS hostname. When a client resolves the hostname, DNS returns these IP addresses in a round-robin fashion, effectively distributing traffic across multiple NLB clusters and increasing the overall scalability beyond the 32-node limit of a single NLB cluster.

Client Request Distribution¶

NLB’s load balancing algorithm distributes client requests to cluster nodes in a random fashion. It does not guarantee session persistence or affinity to a specific node unless client affinity is explicitly configured in the port rules. This means that multiple requests from the same client might be directed to the same node or to different nodes within the cluster, based on NLB’s internal distribution logic. For applications that require session affinity (e.g., maintaining user session state on a specific server), NLB’s affinity settings need to be configured appropriately. If affinity is not configured or is not suitable for the application, it is crucial to ensure that the application itself is designed to be stateless or can handle session management independently across multiple nodes.

Automated Node Failure Detection and Application Monitoring¶

While NLB automatically detects and removes failed NLB nodes, it cannot determine if an application running on a node has stopped working. As mentioned earlier, NLB’s monitoring is at the network level, checking node reachability but not application health. Therefore, relying solely on NLB for failure detection is insufficient for ensuring application availability. To address this, manual intervention or automated scripting is necessary to monitor application health. This could involve running scripts that periodically check application responsiveness (e.g., by sending HTTP requests to a web server) and trigger node removal from the NLB cluster if an application failure is detected. Integrating application-level monitoring with NLB is crucial for a truly robust and highly available service.

Rapid Load Balancing Upon Cluster Changes¶

NLB’s load balancing mechanism is designed to be responsive to changes in cluster membership. When new hosts are added or removed from the cluster, NLB automatically redistributes the load within a short timeframe, typically around 10 seconds. This rapid adjustment ensures that the cluster quickly adapts to changes and maintains balanced traffic distribution even during scaling operations or failure events. The convergence process, responsible for recalculating load distribution, is optimized for speed to minimize any transient imbalances during cluster transitions.

Virtual Cluster IPs for Application Isolation¶

NLB’s ability to create different Virtual Cluster IPs (VIPs) is a powerful feature for organizing and isolating traffic for different applications within the same NLB cluster infrastructure. By assigning unique VIPs to different applications, you can effectively create “virtual clusters” within a single NLB cluster deployment. This allows you to manage and configure load balancing rules separately for each application, even if they are running on the same set of physical servers. For example, you could have one VIP for a public-facing website and another VIP for an internal application, both load-balanced by the same NLB cluster but with distinct port rules and configurations.

Port Rule Consistency and VIP-Specific Rules¶

Port rules within an NLB cluster must be consistent across all nodes. This means that the port ranges and filtering modes defined in the NLB configuration must be identical on every server participating in the cluster. However, port rules can be different for multiple Virtual IPs within the same cluster. This combination of consistent node-level rules and VIP-specific rule sets provides flexibility in managing traffic for different applications or services sharing the same NLB infrastructure. While the fundamental port rule definitions must be synchronized across nodes for cluster-wide consistency, the application of these rules can be tailored to each VIP, enabling granular traffic management.

Non-Overlapping Computer Names and IPs¶

NLB is designed to operate without interfering with the original computer names and IP addresses of the individual servers in the cluster. NLB does not overlap or replace the original computer name and IP address of each node. Each server retains its unique identity and network configuration, in addition to participating in the NLB cluster with the assigned VIP and cluster MAC address. This separation ensures that existing server management and network infrastructure can coexist with NLB without requiring significant re-architecting. The original server IPs remain accessible for direct server management and monitoring, while the VIP is used for client access to the load-balanced service.

NLB on Multiple Network Adapters¶

NLB’s flexibility extends to its ability to be enabled on multiple network adapters within the same server. This capability allows you to configure different NLB clusters on the same physical machine, each operating on a separate network adapter. This can be useful in scenarios requiring network segmentation or isolation, or when you need to load balance different types of traffic over distinct network interfaces. For instance, you could have one NLB cluster on a public-facing network adapter and another, separate NLB cluster on a private network adapter, all running on the same set of servers. This multi-adapter support enhances deployment flexibility and network design options.

Unicast and Multicast Modes: Mutual Exclusivity¶

As previously mentioned, NLB can operate in either unicast or multicast mode, but these modes are mutually exclusive. You cannot enable both unicast and multicast modes simultaneously within the same NLB cluster. The choice between unicast and multicast depends on factors like network infrastructure, scalability requirements, and complexity tolerance. Unicast is the default mode due to its simpler configuration and broader compatibility with standard network equipment. Multicast mode, while offering potential efficiency gains, requires multicast-enabled network switches and a more complex network setup. The selection of the appropriate mode should be based on a careful evaluation of network environment and performance goals.

NLB Traffic Handling and Filtering Mechanism¶

NLB’s traffic handling mechanism is based on a distributed filtering approach. NLB enables each host in the cluster to detect and receive all incoming TCP/IP traffic destined for the cluster’s VIP. This traffic is initially received by all hosts in the cluster. The NLB driver on each node then filters the incoming traffic based on the port rules defined in the NLB configuration. Each node independently determines whether it should process a particular incoming request based on these rules.

Crucially, NLB nodes do not communicate with each other to decide which node should handle an incoming client request. The decision-making process is decentralized and occurs independently on each node. This decentralized approach is a key aspect of NLB’s scalability and fault tolerance. To ensure consistent traffic distribution, a statistically mapping rule is created on each host. This mapping rule, generated by the convergence process, dictates how traffic should be distributed across the nodes. The mapping remains stable unless there is a change in the cluster membership (node addition or removal), at which point convergence recalculates and updates the mapping rules on all nodes.

Convergence Process: Rebuilding Cluster State¶

The convergence process is a fundamental operation in NLB, triggered whenever there is a change in the cluster membership. This change could be a node failure, a node leaving the cluster voluntarily, or a node rejoining after being offline. Convergence is essential for maintaining a consistent and up-to-date cluster state. During convergence, the following key actions are performed by the NLB cluster:

1. Rebuilding the Cluster State: The cluster state information, which includes the current membership and load distribution mappings, is recalculated and updated across all remaining active nodes.
2. Default Host Designation: The convergence process designates the host with the highest host priority as the Default Host. The Default Host plays a special role in handling certain types of traffic and cluster management functions.
3. Load Redistribution: The load-balanced traffic is repartitioned or redistributed among the remaining active hosts. This ensures that the workload is evenly distributed after a node change, maintaining optimal performance and resource utilization.

The convergence process is designed to be as efficient as possible to minimize any disruption to service availability during cluster transitions.

Convergence Process and Client Traffic Handling¶

Importantly, during the convergence process, the remaining hosts in the NLB cluster continue to handle incoming client traffic. NLB is designed to maintain service availability even while convergence is in progress. If a host is added to the cluster, convergence allows this new host to seamlessly receive its share of the load-balanced traffic. This expansion of the cluster is transparent to both internet clients and server applications.

However, it’s worth noting that convergence might affect client sessions that span multiple TCP connections when client affinity is selected. This is because clients might be remapped to different cluster hosts between connections during the convergence process. If session affinity is critical for your application, you should consider the potential impact of convergence on multi-connection sessions and design your application or NLB affinity settings accordingly.

Heartbeat Messages and Convergence Initiation¶

NLB relies on heartbeat messages for node health monitoring and convergence triggering. All nodes in the cluster periodically emit heartbeat messages to signal their availability and operational status to other cluster members. The default period for sending heartbeat messages is one second. If a node misses five consecutive heartbeat messages from another node, NLB interprets this as a node failure and initiates the convergence process. The heartbeat mechanism provides a timely and reliable way for NLB to detect node failures and trigger the necessary recovery actions. The heartbeat interval and tolerance are configurable through the registry settings discussed earlier, allowing for fine-tuning based on network characteristics and desired responsiveness.

Virtual Clusters on the Same Network Adapter¶

NLB allows for the configuration of multiple NLB clusters on the same network adapter. This is achieved by utilizing different Virtual IP addresses (VIPs) and applying specific port rules to each VIP. These configurations are often referred to as “Virtual Clusters”. This capability enables you to host and manage multiple distinct NLB clusters on the same physical network interface, maximizing resource utilization and simplifying network infrastructure in certain scenarios. Each virtual cluster operates independently with its own VIP, port rules, and cluster membership, even though they share the underlying network adapter.

NLB Management Tools: GUI and Command Line¶

Windows Server provides a suite of tools for managing NLB clusters, offering both graphical and command-line interfaces. Windows Server 2003 introduced the Network Load Balancing Manager, a GUI tool, and NLB.exe, a command-line tool. In Windows 2000, the command-line tool was WLBS.exe, and no GUI tool was available natively. Interestingly, the Windows Server 2003 NLB Manager can be installed on Windows XP to manage Windows Server 2003 NLB clusters remotely. The NLB Manager utilizes DCOM and WMI (Windows Management Instrumentation) for communication and management tasks. The availability of both GUI and command-line tools provides administrators with flexibility in managing NLB, catering to different preferences and automation needs.

User Account Requirements for NLB Management¶

When configuring NLB, especially using the NLB Manager, specific user account permissions are required. You must be a member of the Administrators group on the node for which you are configuring NLB. This administrative privilege is necessary to make configuration changes to the NLB service and network settings on the target server. However, you do not need to be an administrator to run the NLB Manager itself. You can launch the NLB Manager with a standard user account, but administrative credentials will be required when you attempt to connect to and configure remote NLB nodes.

Single NIC Unicast and NLB Manager Limitations¶

As previously mentioned, if NLB is enabled in unicast mode on a server with a single NIC, you cannot use the NLB Manager on that same computer to configure and manage other hosts in the cluster. This limitation arises because a single network adapter in unicast mode does not support intra-host communication effectively. The NLB Manager relies on inter-node communication to discover and manage cluster members. In this single-NIC unicast scenario, the management functions of the NLB Manager are restricted to the local host. To manage the entire cluster, you would need to use the NLB Manager from a separate machine outside the cluster or resort to command-line management tools directly on each node.

Intra-Host Communication in Multicast Mode¶

Intra-host communication within an NLB cluster is possible in multicast mode. To enable communication between servers in the same NLB cluster when using multicast, a specific registry entry is required on each server. You need to create a DWORD key named “UnicastInterHostCommSupport” and set its value to 1 for each network interface card’s GUID. The registry path is: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\WLBS\Parameters\Interface\{GUID}. This registry setting explicitly enables unicast-based communication between cluster nodes even when the overall NLB cluster is operating in multicast mode. This can be necessary for certain management functions or application behaviors that rely on direct server-to-server communication within the cluster.

Network Adapter Flexibility¶

NLB is quite flexible regarding network adapter configurations within the cluster. There is no restriction on the number of network adapters that a server can have within an NLB cluster. Furthermore, different hosts within the same NLB cluster can have different numbers and types of network adapters. This heterogeneity allows for diverse server hardware configurations within the cluster, accommodating various performance requirements and network connectivity needs. For example, some nodes might have multiple high-bandwidth NICs for handling heavy traffic, while other nodes might have fewer adapters if they are serving less demanding workloads.

Single Network Adapter in Unicast Mode: MAC Address Behavior¶

When NLB is configured in unicast mode with a single network adapter, a specific behavior regarding MAC addresses occurs.

• Adapter’s Own MAC Address Disabled: The network adapter’s original, hardware-assigned MAC address is disabled. Instead, the cluster MAC address, which is automatically generated by NLB, replaces the adapter’s original MAC address. This MAC address takeover is a fundamental aspect of how unicast NLB functions, allowing all nodes to respond to traffic directed to the cluster IP using the same MAC address.
• Dedicated and Cluster IPs Resolve to Cluster MAC: Both the dedicated IP address (the server’s original IP) and the Cluster IP Address (VIP) will resolve to the Cluster MAC address. This means that ARP requests for either IP address will return the cluster’s MAC address.
• Impaired Inter-Host Communication: As noted before, ordinary network communication between cluster hosts is not possible in this single-NIC unicast configuration due to the MAC address sharing and traffic interception.

These MAC address behaviors are crucial to understand when troubleshooting network connectivity issues in single-NIC unicast NLB environments.

NLB Manager and Network Property Conflicts¶

When using the NLB Manager, it’s important to be aware of potential conflicts with open network property windows. You cannot have any network property windows open for a host if the NLB Manager is currently using that host’s network configuration. Leaving network property windows open can lock network settings and prevent the NLB Manager from applying configuration changes correctly. Ensure that all network property dialogs are closed on all cluster nodes before using the NLB Manager to make configuration modifications.

Remote NLB Configuration¶

NLB Manager provides the capability to manage NLB clusters remotely. NLB can be configured on any machine remotely as long as you have administrative rights on the remote computer. This remote management feature allows administrators to manage NLB clusters from a central management workstation, simplifying administration and monitoring, especially in larger NLB deployments. Using the NLB Manager from a remote location eliminates the need to physically access each server in the cluster for configuration tasks.

Best Practices for Windows Server 2003 NLB Configuration¶

For successful NLB configuration on Windows Server 2003, it is recommended to primarily use the NLB Manager. A key preparatory step is to ensure that NLB is unchecked (disabled) on all hosts before starting the configuration process using the NLB Manager. Starting with a clean slate, where NLB is initially disabled on all nodes, helps to avoid configuration conflicts and ensures a smoother setup process. Using the NLB Manager as the primary configuration tool in Windows Server 2003 is generally the most reliable and recommended approach.

Port Rule Inheritance During Host Addition¶

When adding a new host to an existing NLB cluster using the NLB Manager, the port rules and associated options are automatically inherited from the initial host that was used to create the cluster. This inheritance mechanism simplifies the process of adding new nodes and ensures consistency in port rule configurations across the cluster. The new host automatically adopts the port rules that were already defined in the cluster, reducing manual configuration effort and minimizing the risk of configuration discrepancies.

NLB Manager and Single Adapter Unicast Limitations Revisited¶

The limitations of using NLB Manager in a single adapter unicast environment are worth reiterating. You cannot open other hosts from the NLB Manager if NLB is operating in Single Adapter with Unicast Mode. As discussed previously, this is due to the lack of intra-host communication in this configuration. However, this restriction can be circumvented by using the registry setting UnicastHostInterCommSupport and setting it to 1. Enabling this registry setting explicitly allows inter-host communication even in single-NIC unicast mode, enabling the NLB Manager to manage remote hosts in such configurations.

Credentials Option in NLB Manager¶

The NLB Manager offers a Credentials Option that is particularly useful for managing remote hosts in environments where different administrative credentials might be required. Using this option, you can specify the credentials that the NLB Manager should use to connect to remote hosts. The NLB Manager will then attempt to authenticate to the remote hosts using the provided credentials. This feature is beneficial in scenarios where domain administrator accounts are not used universally or when managing NLB clusters across different domains or security zones.

Exclusive Configuration Methods: TCP/IP Properties or NLB Manager¶

It is crucial to choose a single method for configuring NLB and stick to it. You should use either TCP/IP Property settings or the NLB Manager, but you should not use both methods concurrently to configure NLB. Mixing configuration methods can lead to inconsistencies, conflicts, and unpredictable behavior. Select your preferred method – either directly configuring NLB through the network adapter’s TCP/IP properties or using the NLB Manager – and consistently use that method for all configuration tasks. Avoid making changes using one method if you have already configured NLB using the other.

NLB Manager and Misconfigured Hosts¶

The NLB Manager is designed to be informative and helpful in identifying configuration issues. NLB Manager will not connect to or display misconfigured hosts in a cluster. If a host has configuration problems that prevent it from properly participating in the NLB cluster, the NLB Manager will typically not show that host in its management interface. This behavior can be used as a diagnostic indicator. If you expect a host to be part of the cluster but it is not visible in the NLB Manager, it likely indicates a configuration problem on that host that needs to be investigated and resolved.

Administrative Membership and Host Visibility in NLB Manager¶

Similar to misconfigured hosts, hosts without proper administrative access will also not be displayed in the NLB Manager. Hosts for which you do not have administrative membership will not be displayed in the NLB Manager’s host list. This is a security feature. The NLB Manager only shows hosts for which the currently logged-in user has administrative privileges. If you are unable to see a particular host in the NLB Manager, verify that your user account has administrator rights on that target host.

Port Range Sorting in NLB Manager¶

For ease of management, the NLB Manager sorts the list of all port ranges by Port Range. Within the NLB Manager’s interface for configuring port rules, the display of port ranges is automatically ordered numerically by the starting port number. This sorting feature helps administrators to quickly locate and manage specific port rules within a potentially long list, improving the usability of the NLB Manager when dealing with complex port configurations.

Mixed Server Roles in NLB Clusters¶

NLB is quite flexible in terms of the server roles that can participate in a cluster. NLB clusters can include a mix of Domain Controllers, Member Servers, Workgroup servers, and other server roles. This is not a limitation of NLB itself. However, for proper NLB functionality, it’s essential that NLB should be able to access each computer in the cluster using the built-in administrator account. Regardless of the server role, the underlying requirement for NLB to function correctly is administrative access to each node. While you can mix server roles, ensure that the built-in administrator account is functional and accessible on all nodes for NLB to operate reliably.

Default Registry Entries for NLB¶

When NLB is enabled on a server, a set of default registry entries are automatically created under the following path: HKLM\System\CurrentControlSet\Services\WLBS. These registry entries store the NLB configuration settings and parameters. Understanding this registry path can be helpful for advanced troubleshooting or for scripting and automation tasks related to NLB configuration. While direct registry editing is generally discouraged for routine NLB management, knowing the location of these entries can be valuable for in-depth analysis or recovery scenarios.

DIP and VIP Configuration Importance¶

Correct configuration of the Dedicated IP (DIP) and Virtual IP (VIP) addresses is absolutely crucial for NLB to function properly. The DIP and VIP must be entered correctly in the NLB configuration. If these IP addresses are not configured accurately, the cluster nodes might still converge with each other, meaning they can communicate and form a cluster. However, even with successful convergence, they will not be able to accept and process network traffic. Inaccurate IP configuration is a common cause of NLB clusters that appear to be functioning but are not actually load balancing traffic. Double-checking the DIP and VIP settings is a fundamental step in troubleshooting non-functional NLB deployments.

IP Address Conflict Messages and VIP Removal¶

NLB’s error reporting includes specific messages for IP address conflicts. IP Address conflict messages are primarily displayed for the VIP only, not for the DIP. This focus on VIP conflict detection is because VIP address conflicts are more likely to disrupt the NLB cluster’s ability to receive traffic. Furthermore, it’s important to ensure that the VIP is removed from all adapters if you uncheck (disable) NLB on a host. Failing to remove the VIP when disabling NLB can lead to IP address conflicts and network routing issues. Properly cleaning up the VIP configuration when disabling NLB is a necessary step in maintaining network hygiene.

Monitoring Tools for NLB¶

Effective monitoring is essential for maintaining the health and performance of NLB clusters. Several tools can be used in conjunction with NLB for monitoring purposes:

• ClusterSenitel: A tool specifically designed for monitoring Windows clusters, including NLB clusters.
• Data Warehouse Center: Microsoft’s System Center Data Warehouse Center can be used to collect and analyze performance and event data from NLB clusters.
• HTTPMon: A tool specifically for monitoring IIS Services. HTTPMon can be used to check the responsiveness and availability of web applications running on NLB cluster nodes.
• MOM (Microsoft Operations Manager): An older version of System Center Operations Manager, MOM could also be used for basic monitoring of NLB clusters.

These tools provide various levels of monitoring capabilities, from basic node availability checks to in-depth performance analysis and application-specific monitoring. Selecting the appropriate monitoring tools depends on the specific monitoring requirements and the scale of your NLB deployment.

WLBS and NLB Command-Line Interface History¶

The command-line interface for NLB has evolved over time. The original implementation of NLB was called WLBS (Windows Load Balancing Service). Consequently, all events related to NLB are still recorded under the source name of WLBS in the Windows event logs, even in newer versions of Windows Server. The command-line interface for NLB in older versions was also WLBS.exe. However, in Windows Server 2003 and later, the command-line tool was renamed to NLB.exe. Understanding this historical context is helpful when searching for documentation or troubleshooting information related to NLB, as older resources might refer to WLBS.exe and the WLBS event source name.

NLB Manager WMI Provider Bug¶

A known issue exists in the NLB Manager related to computer names. The NLB Manager WMI provider cannot connect to a cluster host if the computer name starts with a numeric character. This is a documented bug in the NLB Manager. If you encounter connectivity issues with the NLB Manager and your cluster host names begin with numbers, this bug might be the cause. Renaming the computer names to start with an alphabetic character might be a workaround in such cases, or management can be performed using the command-line tools.

Application Data Replication: NLB’s Scope¶

It is important to understand that NLB itself does not handle application data replication. NLB focuses solely on load balancing network traffic and ensuring high availability at the network layer. You might need to use Microsoft Content Replication System (CRS) or third-party software to replicate application data across the nodes of an NLB cluster if data consistency and redundancy are required at the application level. NLB and data replication are complementary technologies. NLB ensures traffic distribution and node failover, while data replication technologies ensure data consistency and availability across multiple nodes.

Service Monitoring Beyond NLB’s Capabilities¶

As previously emphasized, NLB does not inherently monitor the status of services running on cluster nodes. NLB detects node failures at the network level but not application or service failures. You can use HTTPMon, which comes with the Windows Server Resource Kit, to monitor IIS services specifically. For more general service monitoring and application health checks, you can utilize various tools, including:

• Exception Monitor: A tool for monitoring application exceptions and errors.
• HTTPMon: As mentioned, specifically for monitoring IIS web services.
• Third-party monitoring tools: A wide range of third-party monitoring solutions exist, offering comprehensive application and infrastructure monitoring capabilities. Examples include:
  • SiteScope by Mercury Interactive Corporation (now part of Micro Focus)
  • AppManager by NetIQ (now part of Micro Focus)
  • WhatsUp Gold by Ipswitch (now part of Progress)

These monitoring tools provide more granular visibility into application and service health, complementing NLB’s network-level load balancing and failover capabilities to create a more robust and resilient application environment.

---

This document provides a comprehensive overview of Windows Server Network Load Balancing, covering its concepts, configuration, and key considerations. By understanding these aspects, administrators can effectively deploy and manage NLB to enhance the availability and scalability of their network services and applications.
