Mastering References in Managed C++ Projects: A Visual C++ Guide

Table of Contents

Adding references is a fundamental aspect of software development, especially when working with managed projects in Visual C++. References allow your project to utilize code and functionalities from external assemblies, be it from the .NET Framework, COM components, or other projects within your solution. While languages like C# offer a user-friendly “Add Reference” dialog, Managed C++ projects require a slightly different approach, primarily leveraging the #using directive. This guide will illuminate the various methods for effectively managing references in your Managed C++ projects.

Understanding References in Visual C++¶

In Visual C++, references are essential for linking your project with external code libraries and components. These external entities can be broadly categorized into:

• Microsoft .NET References: These references point to assemblies within the .NET Framework. These assemblies provide access to a vast array of pre-built functionalities, from basic data structures to complex UI elements. Examples include System.Windows.Forms.dll for creating Windows Forms applications or System.Data.dll for database interactions.

• COM References: Component Object Model (COM) references enable your managed C++ application to interact with legacy COM components. COM was a prevalent technology before .NET, and many systems still rely on COM components. Bridging the gap between managed code and COM is crucial for interoperability.

• Project References: When your solution comprises multiple projects, project references allow projects to depend on each other. This promotes modularity and code reuse within your solution.

Microsoft .NET References: Utilizing the #using Directive¶

For .NET assemblies, the most straightforward method to add a reference in Managed C++ is using the #using preprocessor directive. This directive instructs the compiler to make the types and namespaces defined within the specified assembly available to your current project.

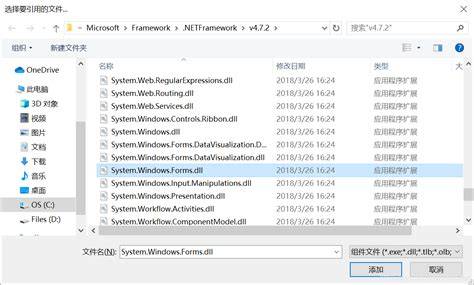

For instance, to utilize the Windows Forms library, which is essential for building graphical user interfaces, you would include the following line in your C++ code:

#using <System.Windows.Forms.dll>

This single line is sufficient to grant your project access to all the classes, structures, and interfaces within the System.Windows.Forms namespace. You can then declare variables of types like System::Windows::Forms::Form or use classes like System::Windows::Forms::Button in your code.

It’s important to note that the .dll extension is typically included in the #using directive for clarity and to explicitly specify the assembly file. The compiler will search for this assembly in standard locations, including the .NET Framework directories.

COM References: Bridging Managed and Unmanaged Worlds¶

Integrating COM components into a Managed C++ application presents a design choice: whether to utilize unmanaged COM code directly or to employ Interop Assemblies.

Option 1: Direct COM Interop with #import¶

One approach is to directly use COM code within your managed C++ classes by leveraging the #import directive. #import is a traditional C++ preprocessor directive used to incorporate type library information from COM components.

#import "shdocvw.dll"

This method can be advantageous in scenarios where COM Interop encounters issues or when you need fine-grained control over COM object interaction. #import generates wrapper classes that allow you to interact with COM objects in a C++ style. However, it’s crucial to manage memory and object lifetimes carefully when using #import directly, as you are dealing with unmanaged COM objects within a managed environment.

Option 2: Utilizing Interop Assemblies¶

The recommended and often more seamless approach for COM integration is through Interop Assemblies. Interop Assemblies are .NET wrappers around COM components. They act as intermediaries, translating calls between managed code and COM objects. This is the standard method employed by languages like C# and Visual Basic .NET.

To create an Interop Assembly for a COM component, the TLBIMP.exe (Type Library Importer) tool is used. This tool processes the type library of a COM component and generates a corresponding .NET assembly.

Let’s illustrate this with an example of automating Internet Explorer using COM:

1. Open a Command Prompt: Launch the command prompt from your Windows Start Menu.

2. Navigate to System Folder: Change the directory in the command prompt to the Windows System folder (usually C:\Windows\System32 or C:\Windows\SysWOW64 depending on your system architecture).

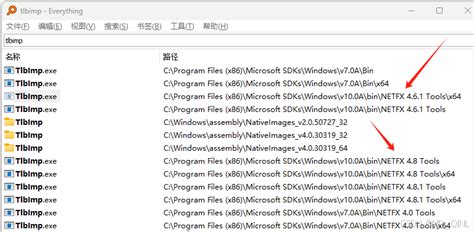

3. Execute tlbimp.exe: Run the following command to generate an Interop Assembly for shdocvw.dll (the COM library for Internet Explorer):

   tlbimp shdocvw.dll /out:Interop.shdocvw.dll




   • tlbimp is the Type Library Importer tool.
   • shdocvw.dll is the COM DLL for Internet Explorer automation.
   • /out:Interop.shdocvw.dll specifies the output file name for the generated Interop Assembly.

4. Move Interop Assembly to Project Folder: After successful execution, Interop.shdocvw.dll will be created in the current directory (Windows System folder). Move this file to your Managed C++ project’s folder. This ensures the assembly is readily available for your project.

Once you have Interop.shdocvw.dll in your project folder, you can reference it in your Managed C++ code using the #using directive:

#using "Interop.shdocvw.dll"

Now, you can interact with Internet Explorer’s COM objects as if they were managed .NET components. For example, you could create an instance of the InternetExplorer class from the Interop.SHDocVw namespace and control Internet Explorer programmatically.

Comparison of COM Reference Methods:

Feature	#import (Direct COM)	Interop Assemblies (tlbimp.exe)
Interop Style	Direct, Unmanaged COM interaction	Managed .NET wrapper around COM
Memory Management	Requires manual COM memory management	Automatic .NET garbage collection
Error Handling	More complex, COM error codes	.NET Exceptions
Language Support	C++ Specific	Standard for .NET languages
Complexity	Generally more complex	Generally simpler and more robust
Best Use Cases	Fine-grained COM control, specific interop issues	Standard COM integration, broader .NET compatibility

In most scenarios, especially for general COM integration, utilizing Interop Assemblies generated by tlbimp.exe is the recommended approach due to its simplicity, better integration with the .NET environment, and automatic memory management.

Project References: Linking Projects Within a Solution¶

When working on larger solutions with multiple projects, project references become essential for establishing dependencies between projects. For instance, if you have a library project (e.g., MyLibrary) and an application project (e.g., MyApp) that uses the library, you need to create a project reference from MyApp to MyLibrary.

Similar to .NET and COM references, the #using directive is also employed for project references in Managed C++. However, since project assemblies are typically not in standard system paths, you need to ensure the compiler can locate them. There are two primary ways to achieve this:

Method 1: Copy Assembly to Project Folder¶

The simplest approach is to copy the output assembly of the referenced project (e.g., MyLibrary.dll) to the project folder of the referencing project (MyApp). This makes the assembly directly available in the same directory as the executable, allowing the compiler to find it during the build process.

While straightforward, this method can become less manageable in larger projects as you might need to manually copy assemblies whenever the referenced project is rebuilt.

Method 2: Modify Project Settings - Resolve #using References¶

A more robust and automated method is to adjust the project settings to instruct the compiler where to search for referenced assemblies. This involves modifying the “Resolve #using References” property in your project’s property pages.

Here are the steps to configure this setting:

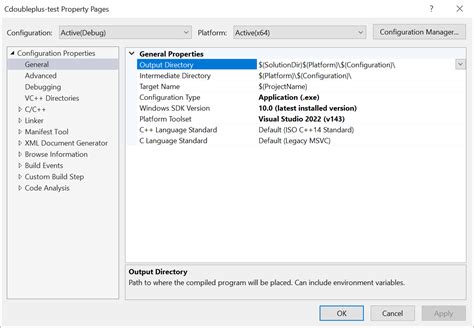

1. Open Project Property Pages: In Visual Studio’s Solution Explorer, right-click on your Managed C++ project (e.g., MyApp) and select “Properties”. This will open the project’s Property Pages dialog.

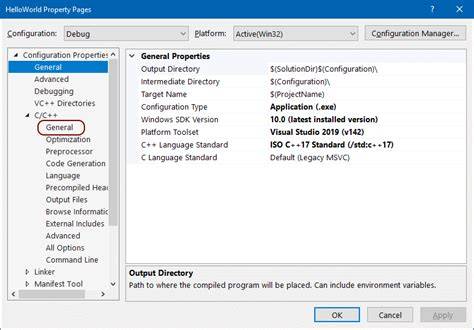

2. Navigate to C/C++ General Properties: In the Property Pages dialog, expand the “Configuration Properties” node (if it’s not already expanded), then expand the “C/C++” node, and finally select the “General” property page.



3. Modify “Resolve #using References”: Locate the “Resolve #using References” property in the right-hand pane. Click on the dropdown arrow next to the property value. Select “” to open the “Resolve #using References” dialog.



4. Add Project Output Directory: In the “Resolve #using References” dialog, you can add directories where the compiler should search for assemblies. To reference the output directory of another project within the same solution, you can use project macros. Click on the “New Line” icon (or double-click in the empty list). Then, click on the dropdown arrow in the new line and select ““.

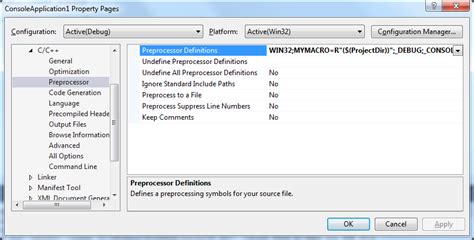

5. Select ProjectDir Macro: In the Macros dialog, search for and select the macro that represents the output directory of the referenced project. Typically, for project references within the same solution, you would use a macro like $(SolutionDir)$(Configuration)\$(ProjectName)\. This macro dynamically resolves to the output directory of the specified project based on the solution directory, configuration (Debug/Release), and project name. The exact macro might vary slightly depending on your project setup, but the principle remains the same: point to the output directory of the project containing the assembly you want to reference.



6. Confirm and Apply: Click “OK” to close the Macros dialog, then click “OK” to close the “Resolve #using References” dialog, and finally click “OK” or “Apply” in the Project Property Pages dialog to save the changes.

By configuring the “Resolve #using References” property, you ensure that the compiler automatically searches in the output directory of your referenced project, eliminating the need for manual copying of assemblies. This approach is more maintainable and integrates seamlessly with the Visual Studio build process.

Automating Assembly Copying with Post-Build Events¶

For private assemblies, which are not meant to be shared system-wide, it’s common practice to keep them in the same output directory as the executable that uses them. In languages like C# and Visual Basic .NET, when you add a project reference, Visual Studio automatically copies the referenced assembly to the output folder of the referencing project. In Managed C++, this automatic copying can be achieved using post-build events.

Post-build events are commands that are executed after the project build process is completed successfully. You can use these events to automate tasks like copying files, running scripts, or performing other post-compilation steps.

Let’s consider a scenario where you have a Managed C++ application named TestApp and it depends on a private assembly MYLIB.dll located in the MYLIB project’s output directory within the same solution. Here’s how to set up a post-build event in TestApp to automatically copy MYLIB.dll to its output folder:

1. Open Project Property Pages: Right-click on the TestApp project in Solution Explorer and select “Properties”.

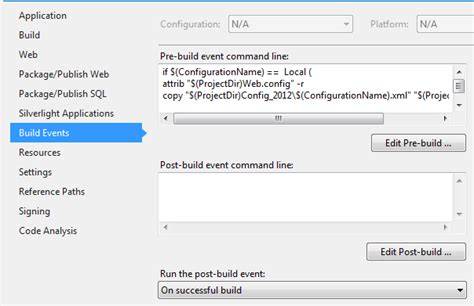

2. Navigate to Build Events - Post-Build Event: In the Property Pages dialog, expand “Configuration Properties”, then expand “Build Events”, and select “Post-Build Event”.



3. Modify “Command Line”: Locate the “Command Line” property in the right-hand pane. Enter the following command to copy MYLIB.dll to the output directory of TestApp:

   copy "$(SolutionDir)MYLIB\$(Configuration)\MYLIB.dll" "$(TargetDir)"




   • copy is the standard Windows command for copying files.
   • "$(SolutionDir)MYLIB\$(Configuration)\MYLIB.dll" is the source path to MYLIB.dll.
     • $(SolutionDir) resolves to the directory containing your solution file (.sln).
     • MYLIB is assumed to be the project folder name of the MYLIB project.
     • $(Configuration) resolves to the current build configuration (e.g., Debug or Release).
     • MYLIB.dll is the name of the assembly file.
   • "$(TargetDir)" is the destination path, which resolves to the output directory of the TestApp project (where TestApp.exe will be located).

4. Confirm and Apply: Click “OK” or “Apply” in the Project Property Pages dialog to save the post-build event settings.

Now, every time you build the TestApp project, after successful compilation, the post-build event will execute and automatically copy MYLIB.dll from its source location to the output directory of TestApp. This ensures that the necessary private assembly is always available when you run TestApp.

Modern Visual Studio and the “Add Reference” Dialog¶

While historically, the “Add Reference” dialog was not directly available for Managed C++ projects in the same way as for C# or VB.NET, modern versions of Visual Studio have enhanced support for Managed C++. In contemporary Visual Studio environments, you can use the “Add Reference” dialog for Managed C++ projects, particularly for adding .NET and project references.

To access the “Add Reference” dialog in modern Visual Studio for a Managed C++ project:

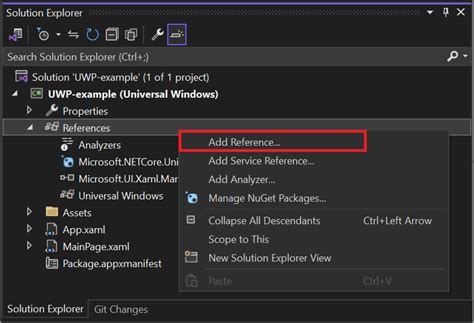

1. Right-click on “References” Node: In Solution Explorer, expand your Managed C++ project node. You should see a “References” node. Right-click on this “References” node.



2. Select “Add Reference…”: In the context menu, select “Add Reference…”. This will open the familiar “Add Reference” dialog.



3. Choose Reference Type: In the “Add Reference” dialog, you can select different types of references:

   • .NET: Browse and select .NET assemblies from the .NET Framework or other locations.
   • Projects: Select other projects within your current solution to create project references.
   • Browse: Manually browse for assembly files (.dll, .exe, etc.) on your file system.
   • COM: (For COM Interop) You can sometimes add COM references directly through this dialog, although using tlbimp.exe for Interop Assemblies remains a robust and recommended practice.

4. Select and Add: Choose the desired references from the appropriate tab and click “OK” to add them to your project.

While the “Add Reference” dialog simplifies the process of adding references, especially for .NET and project references, understanding the underlying mechanisms, particularly the #using directive and post-build events, remains crucial for Managed C++ development. These methods provide a deeper understanding of how references are managed and offer more control and flexibility when needed.

By mastering these techniques, you can effectively manage references in your Managed C++ projects, enabling you to build robust and feature-rich applications that leverage the power of the .NET Framework, COM components, and modular project structures.

---
