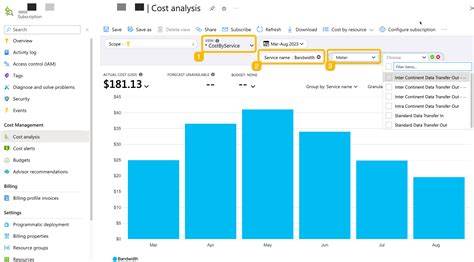

Optimize Azure Network Bandwidth: Protecting On-Premises Data Efficiently

Table of Contents

When safeguarding on-premises workloads by replicating them to Microsoft Azure using Azure Site Recovery (ASR), managing network bandwidth is a critical consideration. Efficiently utilizing available bandwidth ensures that replication remains consistent and failover operations can complete successfully within desired recovery point objectives (RPOs) and recovery time objectives (RTOs). Unmanaged bandwidth consumption can saturate your network connection, impacting other business-critical applications and operations. Therefore, implementing strategic configurations to control and optimize bandwidth usage is essential for a reliable disaster recovery solution.

Several factors influence the bandwidth required for ASR replication. These include the rate of data change on the protected virtual machines, the number of machines being replicated concurrently, and the network latency between your on-premises site and the Azure region. While ASR is designed to be bandwidth-efficient, utilizing techniques like compression and transferring only delta changes after the initial replication, explicit configuration is often necessary to fine-tune performance according to your specific network capacity and business requirements. The methods outlined here focus on adjusting agent settings and applying network throttling policies.

Understanding the Role of the Agent in Hyper-V to Azure Replication¶

For specific scenarios like replicating on-premises Hyper-V virtual machines to Azure, components installed on the Hyper-V hosts or within the VMM environment manage the replication process. The documentation indicates that the Microsoft Azure Recovery Services Agent, often associated with Azure Backup, plays a role in certain Hyper-V to Azure configurations for handling data transfer. This agent, when installed on the Hyper-V host, is initially configured with default settings for internet bandwidth usage. These defaults might not align with the available bandwidth or the specific needs of your replication workload.

Administrators possess the capability to customize network bandwidth settings on individual Hyper-V hosts involved in the replication. By adjusting these settings, you can influence how much bandwidth is consumed during both the initial replication phase and ongoing delta replication. It is paramount to monitor network performance and ASR replication health after implementing any configuration changes. Monitoring over a period of several days will help validate that the new settings are effectively optimizing bandwidth usage without negatively impacting other network operations or the replication RPO.

Step 1: Increase the Bandwidth Usage for Replicating into Azure¶

The rate at which data is uploaded from your on-premises environment to Azure significantly impacts the replication performance. By default, the replication agent may limit the number of threads used for uploading data streams for each virtual machine. Increasing the number of upload threads can potentially enhance the throughput, allowing more data chunks to be transferred in parallel, assuming sufficient network capacity and storage I/O performance on the source side.

To modify the upload thread count, you need to access the Windows Registry on the Hyper-V host where the replication agent is installed. Using the Registry Editor (regedit.exe), navigate to the specific registry key associated with the Azure Backup/Replication configuration. Within this key, you will add or modify a DWORD value that dictates the number of upload threads per virtual machine. This setting directly controls the parallelism of data transfer for outbound replication traffic.

Open Registry Editor and locate the following key:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Azure Backup\Replication

Inside this key, create a new DWORD (32-bit) Value if it doesn’t exist, or modify it if it does. Name the value UploadThreadsPerVM. The default value for this setting is typically 4, meaning four threads are used per VM for uploads. You can set this value higher to increase parallelism, up to a maximum supported value of 32. Setting a value of 8, for instance, would double the default number of threads per VM.

Value Name: UploadThreadsPerVM
Value Type: REG_DWORD
Value Data: 8

Note: The default value configured with the agent is 4, and the maximum supported value is 32. Increasing this value beyond the maximum supported limit is not recommended and may lead to unpredictable behavior or errors. While increasing threads can boost throughput, it can also increase resource consumption (CPU, memory) on the Hyper-V host and potentially stress the network or storage I/O if they become bottlenecks. Therefore, changes should be made incrementally and monitored closely.

Step 2: Increase Bandwidth Usage During Azure to On-premises Failover¶

While the primary bandwidth concern is often replication into Azure, bandwidth is also required for operations involving data transfer from Azure to on-premises. This is particularly relevant during failback operations, where virtual machines that were failed over to Azure are brought back to the on-premises environment. Similar to uploads, the agent uses a default number of threads for downloading data streams for each virtual machine during these operations.

To potentially accelerate failover testing (if it involves data transfer back, though typical ASR failover testing doesn’t transfer the full VM back) or, more importantly, failback, you can increase the number of download threads. This adjustment also involves modifying a registry value on the Hyper-V host. The process is analogous to increasing upload threads, but targets a different registry entry that governs inbound data transfers from Azure.

Using Registry Editor (regedit.exe), navigate again to the replication configuration key:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Azure Backup\Replication

Create or modify a DWORD (32-bit) Value named DownloadThreadsPerVM. The default value for this setting is also typically 4. You can increase this value to allow more parallel download operations per VM, up to the maximum supported value of 32. Setting a value of 8, for instance, would increase the download parallelism.

Value Name: DownloadThreadsPerVM
Value Type: REG_DWORD
Value Data: 8

Note: The default value configured with the agent is 4, and the maximum supported value is 32. Adjusting this setting is most impactful during failback scenarios, where the VM disk data is copied back from Azure storage to the on-premises infrastructure. As with upload threads, monitor performance after making changes to ensure the desired outcome without adverse effects on the host or network.

Step 3: Throttling Bandwidth Usage for Replication¶

While the previous steps focus on increasing parallelism to maximize usage of available bandwidth, it’s equally important to prevent replication activities from overwhelming your network connection. Bandwidth throttling allows you to set specific limits on how much network capacity the replication agent can consume during different times of the day or week. This is crucial for ensuring that critical business operations, which might rely heavily on network connectivity, are not impacted by ongoing replication or data transfer processes.

You can configure bandwidth throttling using two primary methods: the graphical interface provided by the Windows Server Backup MMC snap-in or by leveraging Windows PowerShell cmdlets. Both methods achieve the same goal but offer different levels of control and automation potential. Choosing the appropriate method depends on your preference for graphical tools versus scripting, and whether you need to apply these settings to multiple servers programmatically.

Method 1: Use the MMC Snap-in Management Console¶

The Windows Server Backup MMC snap-in provides a user-friendly interface for configuring various backup-related settings, including network bandwidth throttling. Although the snap-in is primarily for Windows Server Backup, the ASR agent installed on the Hyper-V host utilizes some of these underlying configurations for controlling its network behavior, particularly for bandwidth limits.

Here’s how to access and configure throttling using the MMC snap-in:

1. Open the Microsoft Management Console (MMC). You can do this by typing mmc in the Run dialog box (Windows Key + R) and pressing Enter.
2. On the File menu within MMC, select Add/Remove Snap-in….
3. In the “Add or Remove Snap-ins” window, select Windows Server Backup from the list of available snap-ins. Click Add >.
4. When prompted, select Local computer (the computer this console is running on), and then click Finish.
5. Click OK to close the “Add or Remove Snap-ins” window. The Windows Server Backup snap-in is now loaded in your MMC console.
6. In the console tree on the left, expand the Windows Server Backup node and then select Backup (or “Local Backup” depending on the view).
7. In the Actions pane on the right side of the console window, under “Actions,” select Change Properties. This action opens the settings dialog for Windows Server Backup.
8. Within the properties dialog, navigate to the Throttling tab. This tab is specifically designed to control network bandwidth usage for backup and related operations, including ASR replication in this context.

On the Throttling tab, you will find options to manage network bandwidth usage. The main setting is the “Enable internet bandwidth usage throttling for backup operations” checkbox. By selecting this box, you enable the throttling feature, allowing you to define limits on how the agent utilizes network bandwidth during data transfers to and from Azure. If this box is unchecked, the agent will attempt to use as much bandwidth as available, limited only by the upload/download thread settings and overall network capacity.

Once enabled, you can configure different bandwidth limits for “Work hours” and “Non-work hours.” This distinction allows you to prioritize network availability for users and critical applications during the business day while allowing replication to potentially consume more bandwidth during off-peak hours. You define the range of work days and work hours (e.g., Monday to Friday, 9:00 AM to 6:00 PM) during which the “Work hour bandwidth limit” will be enforced. The “Non-work hour bandwidth limit” is automatically applied during all other times outside the defined work hours.

For both limits, you can specify a bandwidth cap. The valid range for these bandwidth limits is from 512 kilobytes per second (Kbps) up to 1023 megabytes per second (Mbps). You must input the desired value within this range for both work and non-work hours. Setting appropriate values requires an understanding of your available internet connection speed and how much of that capacity you are willing to allocate to ASR replication during different periods. For example, if you have a 100 Mbps internet connection, you might set the work hour limit to 10 Mbps (around 10240 Kbps) and the non-work hour limit higher, perhaps 50 Mbps (around 51200 Kbps), assuming that capacity is less critical at night.

Method 2: Use Windows PowerShell Cmdlets¶

For administrators who prefer command-line interfaces, automation, or configuring settings across multiple servers, Windows PowerShell offers cmdlets to manage the Azure Backup agent settings, including network throttling. The Set-OBMachineSetting cmdlet is the primary tool used for this purpose. This cmdlet allows you to programmatically configure various settings for the registered server, including proxy settings and, importantly, network bandwidth throttling parameters.

The Set-OBMachineSetting cmdlet offers granular control over the throttling schedule and bandwidth limits. You can specify the days of the week that constitute your “work days,” define the start and end times for “work hours” within those days, and set distinct bandwidth limits in bytes per second for both work hours and non-work hours.

Here are some examples demonstrating how to use Set-OBMachineSetting for configuring throttling:

The following sample cmdlet configures bandwidth throttling to apply on Mondays and Tuesdays from 9:00 AM to 6:00 PM. During these “work hours,” the bandwidth is limited to 512 KBps (512 * 1024 bytes/sec). Outside of these work hours (i.e., non-work hours), the bandwidth is limited to 2048 KBps (2 MBps or 2048 * 1024 bytes/sec).

# Define the work days as Monday and Tuesday
$mon = [System.DayOfWeek]::Monday
$tue = [System.DayOfWeek]::Tuesday

# Set the machine settings with throttling
Set-OBMachineSetting -WorkDay $mon, $tue -StartWorkHour "9:00:00" -EndWorkHour "18:00:00" -WorkHourBandwidth (512*1024) -NonWorkHourBandwidth (2048*1024)

In this example:
- -WorkDay $mon, $tue: Specifies that Monday and Tuesday are considered work days for applying the work hour limit. You can list multiple days separated by commas.
- -StartWorkHour "9:00:00": Sets the beginning of the work hour period to 9:00 AM. The format is HH:mm:ss.
- -EndWorkHour "18:00:00": Sets the end of the work hour period to 6:00 PM (18:00). The format is HH:mm:ss.
- -WorkHourBandwidth (512*1024): Sets the bandwidth limit during work hours to 512 * 1024 bytes/sec, which equals 524288 bytes/sec or 512 KBps. Bandwidth values must be specified in bytes per second.
- -NonWorkHourBandwidth (2048*1024): Sets the bandwidth limit during non-work hours to 2048 * 1024 bytes/sec, which equals 2097152 bytes/sec or 2 MBps.

To remove any existing network bandwidth throttling configuration from the server, you can use the -NoThrottle parameter with the Set-OBMachineSetting cmdlet:

# Disable network bandwidth throttling
Set-OBMachineSetting -NoThrottle

This cmdlet effectively unchecks the “Enable internet bandwidth usage throttling” option that you would see in the MMC snap-in. Using PowerShell provides the ability to integrate these configurations into scripts for deploying or managing ASR agents across multiple Hyper-V hosts, ensuring consistent application of policies and reducing manual effort.

Monitoring and Validation¶

Implementing these registry changes and throttling configurations is just the first step. Effective bandwidth optimization requires continuous monitoring. After applying any changes, observe the following:

• Network Bandwidth Usage: Use tools like Task Manager’s Performance tab, Resource Monitor, or dedicated network monitoring tools (e.g., Performance Monitor counters for network interfaces, SNMP monitoring software) to track the actual bandwidth consumed by the Hyper-V host and specifically by the replication agent processes. Verify that the consumption aligns with your configured throttling limits during different periods.
• ASR Replication Health: Monitor the replication status and RPO within the Azure portal or the on-premises VMM console (if applicable). Ensure that the changes have not adversely affected the ability of ASR to keep the replica up-to-date within your desired RPO. Look for any alerts or warnings related to replication lag or connectivity issues.
• On-Premises Resource Utilization: Check CPU, memory, and disk I/O usage on the Hyper-V host. Increasing upload/download threads can increase resource consumption. Ensure that the host resources are not becoming a bottleneck that negatively impacts VM performance or the replication process itself.
• Application Performance: Crucially, confirm that other business-critical applications running on your network, especially those using the internet connection, are not negatively impacted during replication periods. The throttling settings should protect these applications from bandwidth saturation.

Monitoring for several days or even weeks after making adjustments is crucial. Network traffic patterns and data change rates can vary significantly over time. Adjust the settings incrementally based on your observations to find the optimal balance between efficient replication and minimal impact on other network activities.

Additional Factors Affecting Bandwidth¶

While adjusting thread counts and implementing throttling are key configuration steps, several other factors influence the effective bandwidth utilization for ASR:

• Data Change Rate (Churn): The volume of data changing on the protected VMs directly impacts the amount of delta data that needs to be replicated. Higher churn rates require more bandwidth to maintain a consistent RPO.
• Initial Replication: The initial replication phase copies the full dataset of the VM to Azure. This phase typically consumes the most bandwidth and can take a significant amount of time depending on the VM size and available bandwidth. Planning and potentially scheduling initial replications during off-peak hours is advisable.
• Network Latency: High latency between your on-premises site and the Azure region can slow down replication, even if ample bandwidth is available. Latency affects the round trip time for communication and acknowledgments required during data transfer.
• On-Premises Storage Performance: The speed at which the replication agent can read data from the source VM’s disks impacts the rate at which data can be uploaded. If the storage is slow, it can become a bottleneck regardless of network bandwidth.
• ASR Data Compression: ASR includes built-in data compression to reduce the amount of data transferred over the network. While effective, the actual compression ratio can vary depending on the type of data being replicated.
• Network Infrastructure: The capacity and quality of your internet connection and internal network infrastructure play a fundamental role. Ensure your firewalls, routers, and switches are not creating bottlenecks or introducing significant latency.

Consider these factors holistically when optimizing bandwidth. Adjusting agent settings and throttling is part of a broader strategy that might also involve optimizing the source VMs, upgrading network links, or implementing Quality of Service (QoS) policies on your network devices to prioritize replication traffic.

Conceptual Data Flow and Bandwidth Management¶

Imagine the data flow for ASR replication from on-premises Hyper-V to Azure:

```mermaid
graph LR
A[On-Premises Hyper-V Host] – Reads VM Data → B(Replication Agent);
B – Compresses & Chunks Data → C{Network Interface};
C – Uploads (Multiple Threads) → D[Internet/VPN];
D – Travels across WAN → E{Azure Front Door/Endpoint};
E – Ingests Data → F[Azure Storage];
F – Processed by ASR → G[Azure Site Recovery Service];
G – Coordinates Replication → F;

H[Azure Storage] -- Download (Multiple Threads) --> D;
D -- Travels across WAN --> C;
C -- Transfers to --> B;
B -- Writes VM Data --> A;

B -- Throttling Applied --> C;
B -- UploadThreadsPerVM Config --> C;
B -- DownloadThreadsPerVM Config --> C;

```

In this simplified flow:
- The Replication Agent on the Hyper-V host reads data changes, compresses them, and prepares them for transfer.
- The data is sent through the network interface (C). This is where the UploadThreadsPerVM setting and the network throttling (applied by the agent on outbound traffic) come into play, controlling how much data leaves the host concurrently and at what maximum rate.
- For failback, data is downloaded from Azure Storage (H), passes through the network interface (C), controlled by DownloadThreadsPerVM and potentially the same throttling policy (depending on agent implementation details for inbound vs. outbound).

Optimizing bandwidth involves tuning the agent’s behavior (UploadThreadsPerVM, DownloadThreadsPerVM) and applying traffic shaping/limiting at the agent level or network level (throttling) to manage the load on the network interface and the internet connection (D).

Conclusion¶

Effectively managing network bandwidth is indispensable for a successful Azure Site Recovery deployment protecting on-premises workloads. By understanding the role of the replication agent, adjusting the number of concurrent threads for uploads and downloads via registry settings, and implementing bandwidth throttling policies using either the MMC snap-in or PowerShell, administrators can fine-tune the replication process. This ensures that replication meets desired RPOs without negatively impacting other essential business operations. Remember that configuration is just one part of the process; continuous monitoring and iterative adjustment based on observed performance are key to achieving optimal results. Implementing these practices contributes significantly to building a robust and efficient disaster recovery solution with Azure Site Recovery.

Have you implemented these or other bandwidth optimization strategies for your Azure Site Recovery deployments? Share your experiences and tips in the comments below!
