Secure Your Windows Server: A Deep Dive into NTLM User Authentication
This article delves into the intricacies of NTLM user authentication, a fundamental aspect of securing your Windows Server environment. Understanding how NTLM works is crucial for IT professionals responsible for maintaining the security and integrity of Windows-based networks. This document will provide you with a comprehensive overview of password storage, authentication processes, and pass-through authentication within the NTLM framework.
Summary¶
This article will explore key components of NTLM user authentication in Windows environments. We will dissect the methods employed for password storage within account databases, ensuring you understand how credentials are secured. Furthermore, we will examine user authentication procedures utilizing the MSV1_0 authentication package, a core component of Windows security. Finally, we will investigate the concept of pass-through authentication and its role in enabling seamless access across domains.
More Information¶
Let’s delve deeper into the specifics of NTLM user authentication and examine its critical components in detail. Understanding these elements is essential for effectively managing and securing your Windows Server infrastructure.
Password Storage in the Account Database¶
User account information in Windows is meticulously stored within security databases. These databases are primarily the Security Accounts Manager (SAM) for standalone systems or the Active Directory database in domain environments. Crucially, each user account is associated with not just one, but two distinct passwords: the LAN Manager-compatible password and the Windows password. Both of these passwords are encrypted using different algorithms and securely stored within either the SAM or Active Directory database. This dual-password system is designed for backward compatibility and enhanced security across diverse network environments.
The LAN Manager-compatible password is engineered for interoperability with older LAN Manager systems. This password adheres to the Original Equipment Manufacturer (OEM) character set limitations. Notably, it is case-insensitive and restricted to a maximum length of 14 characters. The One-Way Function (OWF) version of this password, also known as the LAN Manager OWF or ESTD version, is generated using DES encryption. This process involves encrypting a constant value with the clear text password. The resulting LAN Manager OWF password is a fixed 16 bytes in length. The first 7 bytes of the clear text password are used to compute the initial 8 bytes of the LAN Manager OWF password, and similarly, the subsequent 7 bytes are used for the remaining 8 bytes.
In contrast, the Windows password leverages the Unicode character set, allowing for a broader range of characters. This password is case-sensitive, enhancing security, and can be significantly longer, up to 128 characters. The OWF version of the Windows password, often referred to as the Windows OWF password, is computed using the RSA MD4 hash function. This function generates a 16-byte digest from a variable-length string of clear text password bytes. The use of MD4 and Unicode character support represents a significant advancement in password security and complexity compared to the LAN Manager password.
It’s important to note that a user account may not always possess both LAN Manager and Windows passwords. While the system endeavors to maintain both versions for compatibility, certain scenarios can lead to the absence of one or the other. For instance, when user accounts are migrated from a LAN Manager UAS database using tools like PortUas, or if a password is changed from a LAN Manager client or a Windows for Workgroups client, only the LAN Manager version of the password might be present. Conversely, if a password is set or modified on a modern Windows client, and it lacks a LAN Manager equivalent (perhaps due to exceeding 14 characters or using non-OEM characters), only the Windows version will exist. This potential disparity highlights the evolution of password handling within Windows operating systems.
Historically, Windows user interface limitations restricted Windows passwords to a maximum of 14 characters. While these limitations have been lifted in modern versions, their historical impact is relevant in understanding legacy systems and configurations. It’s also worth noting that contemporary versions of Windows, specifically Windows 2000 SP2 and later, offer a setting to prevent the storage of LAN Manager hashes of passwords. This option enhances security by eliminating the less secure LAN Manager hash. For detailed instructions on disabling LAN Manager hash storage, Microsoft Knowledge Base article 299656 provides comprehensive guidance.
User Authentication by Using the MSV1_0 Authentication Package¶
Windows employs the LsaLogonUser API as the central mechanism for all types of user authentication. This API operates by invoking an authentication package to verify user credentials. By default, LsaLogonUser calls upon the MSV1_0 (MSV) authentication package. This package is a core component of Windows NT and subsequent operating systems. The MSV authentication package manages user records stored within the SAM database. Furthermore, it supports pass-through authentication, enabling users to authenticate to resources in other domains by leveraging the Netlogon service. The MSV package is fundamental to the NTLM authentication process within Windows.
Internally, the MSV authentication package is architecturally divided into two distinct parts. One part operates on the computer initiating the connection attempt, while the second part resides on the computer hosting the user account being authenticated. When both parts are executing on the same machine, the first part directly invokes the second part, bypassing the Netlogon service for local authentication. However, when pass-through authentication is required, the initial part of the MSV package recognizes that the provided domain name is not its local domain. In such scenarios, it redirects the authentication request to the Netlogon service. The Netlogon service then intelligently routes the request to the Netlogon service on the destination computer that holds the user account. Finally, the destination Netlogon service forwards the request to the second part of the MSV authentication package residing on that computer. This intricate routing mechanism ensures seamless authentication across domain boundaries.
The LsaLogonUser API supports diverse logon scenarios, including interactive logons, service logons, and network logons. Within the MSV authentication package, all forms of logon consistently transmit three key pieces of information: the user account name, the domain name associated with the user account, and a representation of the user’s password. However, the manner in which the password is represented when passed to LsaLogonUser varies depending on the logon type. This variation is crucial for security and efficiency in different logon contexts.
For interactive logons, batch logons, and service logons, the logon client is located on the same computer that is running the first part of the MSV authentication package. In these scenarios, the clear-text password is passed to LsaLogonUser and subsequently to the first part of the MSV authentication package. For service logons and batch logons specifically, Windows provides enhanced security mechanisms. The Service Control Manager and the Task Scheduler offer secure methods for storing account credentials, minimizing the need to transmit clear-text passwords.
The initial part of the MSV authentication package performs a critical step: it converts the clear-text password into both a LAN Manager OWF password and a Windows NT OWF password. Subsequently, this first part of the package either transmits the clear-text password to the NetLogon service for domain authentication or directly to the second part of the package for local authentication. The second part of the MSV package then queries the SAM database to retrieve the stored OWF passwords. It then performs a comparison to ensure that the computed and stored OWF passwords match, thereby validating the user’s credentials. This process of OWF password generation and comparison is central to the NTLM authentication process.

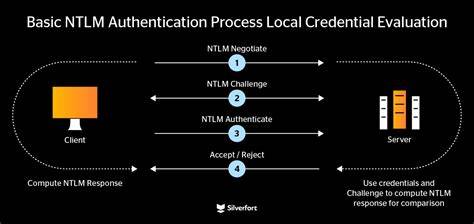

In the context of network logons, the client computer attempting to connect is initially provided with a 16-byte challenge, often referred to as a “nonce.” If the client is a LAN Manager client, it computes a 24-byte challenge response. This is achieved by encrypting the 16-byte challenge using the 16-byte LAN Manager OWF password. This “LAN Manager Challenge Response” is then transmitted to the server. If the client is a more modern Windows client, a “Windows NT Challenge Response” is computed using the same algorithm. However, crucially, the Windows client utilizes the 16-byte Windows OWF data instead of the LAN Manager OWF data. The Windows client then transmits both the LAN Manager Challenge Response and the Windows NT Challenge Response to the server. Regardless of the client type, the server authenticates the user by passing the following information to the LsaLogonUser API: the domain name, the user name, the original challenge (nonce), the LAN Manager Challenge Response, and optionally, the Windows NT Challenge Response. This comprehensive set of data enables robust authentication.
The first part of the MSV authentication package relays this received information, without modification, to the second part. The second part then initiates a database query to retrieve the OWF passwords from either the SAM database or the Active Directory database, depending on the environment. Following retrieval, the second part computes the challenge response. This computation uses the OWF password obtained from the database and the challenge that was originally transmitted. Finally, the second part compares the computed challenge response against the challenge response received from the client. This comparison is the definitive step in verifying the user’s identity in network logon scenarios.
As previously mentioned, it’s possible for either the LAN Manager or Windows password versions to be absent from the SAM or Active Directory database. Similarly, either version might be missing from the call to LsaLogonUser. The authentication logic handles these scenarios gracefully. If both the Windows version of the password from the SAM database and the Windows version from LsaLogonUser are available, both are used in the authentication process. Otherwise, if one or both Windows versions are missing, the LAN Manager version of the password is used for comparison. This rule is vital for enforcing case sensitivity during network logons between Windows systems, while also maintaining backward compatibility with older systems that may only support LAN Manager authentication. This dual-path approach ensures broad compatibility and security.

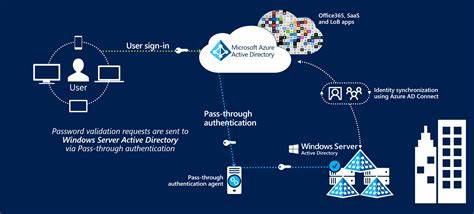

Pass-through Authentication¶
The NetLogon service is the core component responsible for implementing pass-through authentication in Windows environments. Its role is multifaceted, encompassing several key functions to facilitate seamless authentication across domains. These functions include: selecting the appropriate domain to which the authentication request should be forwarded, choosing a suitable server within that domain to handle the request, and finally, transmitting the authentication request to the selected server for processing. This orchestration ensures that authentication requests are efficiently and securely routed within and across domain boundaries.
The process of domain selection is relatively straightforward. The domain name is explicitly provided as part of the authentication request passed to LsaLogonUser. The domain name is then processed according to a defined set of rules:
- Local Domain Authentication: If the provided domain name matches the name of the local SAM database, the authentication process is handled locally on that computer. On a Windows workstation that is part of a domain, the SAM database name is effectively the computer name itself. On an Active Directory domain controller, the SAM database name corresponds to the domain name. For computers that are not members of a domain (standalone machines), all logon requests are processed locally.
- Trusted Domain Authentication: If the specified domain name is recognized as a trusted domain by the current domain, the authentication request is passed through to that trusted domain. Active Directory domain controllers maintain a readily accessible list of trusted domains, simplifying this determination. On a member workstation within a Windows domain, the request is invariably forwarded to the primary domain of the workstation. This primary domain then determines whether the specified domain is trusted. This delegation of trust evaluation streamlines the authentication process within domain environments.
- Untrusted Domain Handling: If the domain name specified in the authentication request is not trusted by the current domain, the authentication request is processed locally on the computer that is being connected to. Critically, the system treats this scenario as if the specified domain name were actually the local domain name. NetLogon does not differentiate between a domain that is genuinely nonexistent, a domain that is untrusted, or a domain name that has been incorrectly typed. This uniform handling simplifies error management and security policy enforcement.
NetLogon employs a process known as discovery to select a server within the target domain. A Windows workstation, when it needs to authenticate to its primary domain, will discover the name of a suitable Windows Active Directory domain controller within that domain. Similarly, an Active Directory domain controller, when handling pass-through authentication to a trusted domain, will discover the name of an appropriate Active Directory domain controller within each of its trusted domains. The component responsible for this discovery process is the DC Locator, which runs as an integral part of the Netlogon service. DC Locator utilizes either NETBIOS or DNS name resolution to locate the necessary servers. The specific name resolution method employed depends on the type of domain and the trust relationships that are configured. This dynamic server discovery ensures efficient and resilient authentication routing within complex network topologies.
This article provided an in-depth look into NTLM user authentication within Windows Server. We covered password storage mechanisms, the MSV1_0 authentication package, and pass-through authentication processes. Understanding these core concepts is vital for securing your Windows environment.
