Solving AD FS Problems: A Practical Troubleshooting Guide for Windows Server

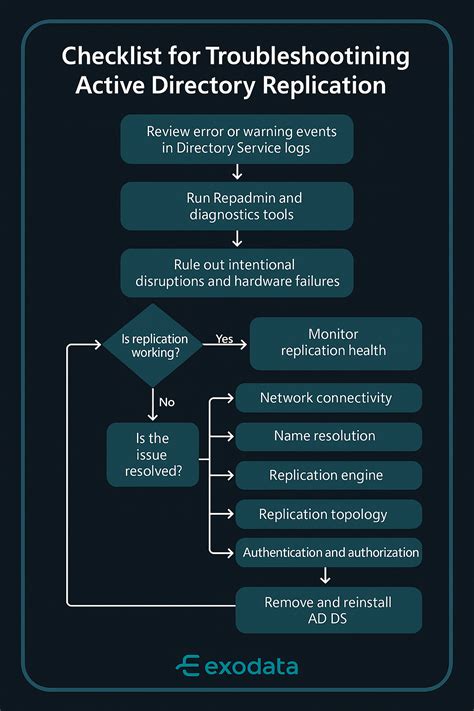

1. Active Directory Replication Issue¶
Active Directory (AD) replication is a critical process that ensures consistency of data across all domain controllers within a domain. When AD replication malfunctions, changes made to user accounts, groups, or other objects may not propagate correctly throughout the environment. This inconsistency can lead to various authentication and authorization problems, especially in systems relying on AD for identity management, such as Active Directory Federation Services (AD FS). In the context of AD FS, replication issues can manifest as discrepancies in user passwords, User Principal Names (UPNs), group memberships, or proxy addresses across domain controllers. These mismatches can directly impact AD FS’s ability to correctly authenticate users and issue claims, resulting in authentication failures or incorrect authorization decisions.
When troubleshooting AD FS issues, it’s crucial to begin by examining the domain controllers that are in the same site as the AD FS servers. These domain controllers are the primary point of contact for AD FS for directory lookups and authentication requests. Utilizing command-line tools like repadmin /showreps or DCdiag /v on these domain controllers can provide valuable insights into the replication health. repadmin /showreps displays the replication status for each domain controller, highlighting any errors or delays in replication. DCdiag /v, on the other hand, performs a comprehensive set of diagnostic tests on domain controllers, including replication checks, and provides a detailed report of any issues found. Analyzing the output of these commands can help identify whether underlying domain controller problems are contributing to the AD FS issues.
Furthermore, collecting an AD replication summary is essential for a holistic view of replication health across the entire domain. The command repadmin /showrepl * /csv > showrepl.csv generates a CSV file that summarizes the replication status of all domain controllers in the forest. This report is invaluable for quickly assessing the overall replication health and identifying any domain controllers that are consistently experiencing replication failures or delays. By examining this summary, administrators can pinpoint problematic domain controllers and focus their troubleshooting efforts on resolving the underlying replication issues, thereby ensuring the integrity and consistency of Active Directory data that AD FS relies upon for its operations. Addressing AD replication problems is often a prerequisite for resolving many AD FS related authentication and authorization challenges.

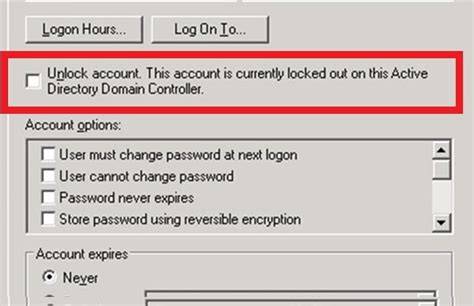

2. Account Locked Out or Disabled in Active Directory¶
When a user attempts to authenticate through AD FS and their account is either locked out or disabled in Active Directory, the user will not receive a specific error message indicating the account status. AD FS, by default, is designed to provide a generic authentication failure message for security reasons, preventing potential attackers from gaining information about the user account status. This behavior, while enhancing security, can complicate troubleshooting as administrators need to investigate logs to pinpoint the root cause of authentication failures. To effectively diagnose account lockout or disabled account scenarios, enabling AD FS and Logon auditing is crucial.
By enabling auditing on the AD FS servers, administrators can capture detailed logs of authentication attempts, including the reasons for failures. These logs provide valuable information such as whether an authentication failure was due to an incorrect password, an account being disabled, or an account being locked out. To enable the necessary auditing, both AD FS specific auditing and Windows Logon auditing need to be configured. Windows Logon auditing captures events related to user logon attempts at the operating system level, while AD FS auditing specifically logs events related to AD FS operations, including authentication requests and responses. Combining these audit logs provides a comprehensive picture of the authentication process and any failures that may occur.
2.1. Enabling AD FS and Logon Auditing¶
To enable AD FS and Logon auditing on AD FS servers, a series of steps involving both local or domain policy configuration and AD FS management console are required. First, using either Local Group Policy Editor (gpedit.msc) on individual AD FS servers or Group Policy Management Console (gpmc.msc) for domain-wide policy application, administrators need to enable success and failure auditing for specific policies under the Security Settings. The relevant policies are “Audit logon events” and “Audit object access,” both located under Computer Configuration\Windows Settings\Security Settings\Local Policies\Audit Policy. Enabling both success and failure auditing ensures that all logon attempts, regardless of outcome, are logged for analysis.
Furthermore, to ensure proper functioning of the auditing subcategories, it is essential to disable the policy “Audit: Force audit policy subcategory settings (Windows Vista or later) to override audit policy category settings,” located under Computer Configuration\Windows Settings\Security Settings\Local Policies\Security Options. This policy, when enabled, can interfere with the proper application of audit subcategory settings, potentially leading to incomplete or inaccurate auditing. Disabling this policy ensures that the more granular audit subcategory settings, which are configured in the previous step, are properly applied. For environments utilizing advanced auditing configurations, detailed guidance is available in Microsoft documentation, which provides in-depth instructions on configuring computers for troubleshooting AD FS 2.0 using advanced auditing features.
2.2. Configuring AD FS for Auditing¶
In addition to configuring Windows Logon auditing, AD FS itself needs to be configured to generate audit logs. This is achieved through the AD FS Management snap-in. Open the AD FS 2.0 Management console, and in the Actions pane, select Edit Federation Service Properties. In the Federation Service Properties dialog box, navigate to the Events tab. On the Events tab, check both the Success audits and Failure audits checkboxes. Selecting these options instructs AD FS to log both successful and failed authentication attempts and other relevant events. After configuring these settings, it’s crucial to run the command GPupdate /force on the AD FS server to immediately apply the Group Policy changes, ensuring that the auditing settings are active and logs are being generated for subsequent authentication attempts. These audit logs are invaluable for diagnosing authentication failures and identifying issues such as account lockouts or disabled accounts.
3. Service Principal Name (SPN) is Registered Incorrectly¶
Service Principal Names (SPNs) are crucial for Kerberos authentication, a core authentication protocol used within Active Directory environments and often relied upon by AD FS. An SPN uniquely identifies a service instance within an Active Directory domain. Incorrectly registered SPNs, such as duplicate SPNs or SPNs registered under the wrong account, can lead to authentication failures, including intermittent issues that are difficult to diagnose. For AD FS, proper SPN configuration is essential for clients to correctly authenticate to the AD FS service using Kerberos.
In an AD FS farm setup, where multiple AD FS servers operate behind a load balancer, the SPN for the AD FS service should be registered under the service account that is running the AD FS service. The specific SPN format for AD FS farms is typically HOST/AD FSservicename, where AD FSservicename is the fully qualified domain name (FQDN) of the AD FS farm. This SPN should be registered against the domain account that is configured as the service account for the AD FS farm. In contrast, for a standalone AD FS setup, where a single AD FS server is deployed and the service runs under the Network Service account, the SPN should be registered under the server’s computer account. The computer account is automatically managed by the domain and is used for services running as Network Service or Local System.
Ensuring that there are no duplicate SPNs for the AD FS service is paramount. Duplicate SPNs can cause intermittent authentication failures because Kerberos authentication relies on SPNs to uniquely identify service instances. When duplicate SPNs exist, the Kerberos client may attempt to authenticate against the wrong service instance, leading to authentication failures. To check for duplicate SPNs, the SETSPN -X -F command can be used. This command searches the entire forest for duplicate SPNs and lists any that are found. To list the SPNs registered for a specific service account, the command SETSPN -L <ServiceAccount> can be used. This command displays all SPNs registered for the specified service account, allowing administrators to verify the SPN configuration for the AD FS service account. To add the correct SPN for the AD FS service, the command SETSPN -A HOST/AD FSservicename ServiceAccount is utilized. This command registers the SPN HOST/AD FSservicename under the specified ServiceAccount, ensuring that Kerberos authentication to AD FS functions correctly. Correct SPN registration is a fundamental step in troubleshooting Kerberos-related authentication issues with AD FS.

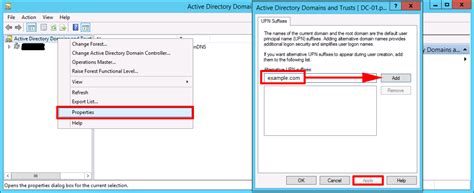

4. Duplicate UPNs in Active Directory¶
User Principal Names (UPNs) provide a user-friendly naming convention for user accounts in Active Directory, often resembling email addresses (e.g., user@domain.com). While users may successfully authenticate to AD FS using their SAMAccountName (pre-Windows 2000 logon name), authentication failures can occur when they attempt to authenticate using their UPN, particularly if duplicate UPNs exist within Active Directory. This scenario arises when two or more user accounts in the Active Directory forest are configured with the same UPN. Duplicate UPNs can occur due to various reasons, including manual user creation errors, scripting mistakes during user provisioning or modification (e.g., using ADSIedit), or inconsistencies during directory synchronization processes.
When UPN-based authentication is used in an environment with duplicate UPNs, the authentication process may inadvertently target the incorrect user account associated with the duplicate UPN. In such cases, even if the user provides valid credentials for their intended account, the authentication request may be validated against the attributes of the duplicate user account. This mismatch leads to authentication failures as the provided credentials do not match the credentials associated with the account against which authentication is being attempted. This issue is particularly challenging to diagnose because the user’s credentials may be correct, but the authentication process is directed to the wrong Active Directory object.
To detect duplicate UPNs, administrators can utilize directory query tools like dsquery to search Active Directory for objects with identical UPN values. For instance, the PowerShell command Dsquery * forestroot -filter UserPrincipalName=problemuser_UPN queries the entire Active Directory forest (forestroot) for objects where the UserPrincipalName attribute matches the specified problemuser_UPN. If this query returns multiple user objects, it indicates the presence of duplicate UPNs. Once duplicate UPNs are identified, the resolution involves renaming the UPN of the duplicate user account to ensure UPN uniqueness across the Active Directory forest. This ensures that authentication requests using UPNs are consistently and accurately validated against the correct user objects, resolving authentication failures caused by UPN duplication.

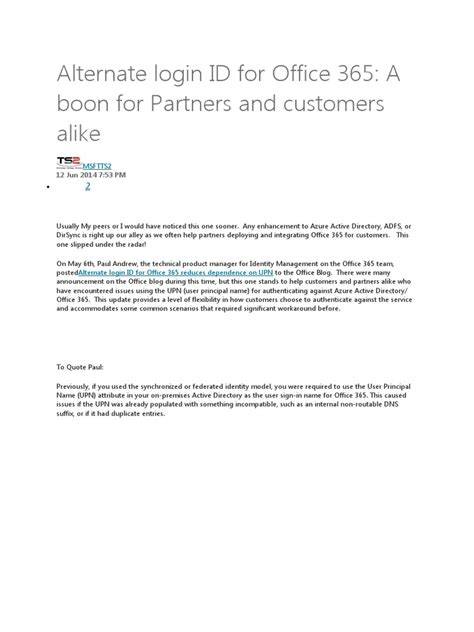

5. Alternate Login ID Configuration for Email Address Login¶
In modern cloud-centric environments, users often utilize their email addresses as their primary login identifiers, especially for services like Office 365. When users are redirected to AD FS for authentication and enter their email address as their login ID, authentication may fail with a “NO_SUCH_USER” error in the AD FS audit logs if AD FS is not configured to recognize email addresses as a valid login identifier. By default, AD FS primarily authenticates users based on their UPN or SAMAccountName. To enable AD FS to authenticate users using attributes other than UPN or SAMAccountName, such as email addresses, administrators need to configure AD FS to support Alternate Login ID.
Configuring Alternate Login ID allows AD FS to search Active Directory based on an alternate attribute, like the user’s email address, to locate the corresponding user account for authentication. This feature is particularly relevant when the user’s email address is different from their UPN or when organizations want to provide users with a more familiar and user-friendly login experience using their email addresses. To enable Alternate Login ID, specific configuration steps are required, depending on the AD FS version in use. For AD FS 2012 R2 and later, the configuration process involves installing necessary updates and utilizing PowerShell cmdlets to configure the Alternate Login ID feature.
5.1. Configuring Alternate Login ID on AD FS 2012 R2¶
For AD FS 2012 R2, enabling Alternate Login ID requires installing Update 2919355, a prerequisite update that introduces the Alternate Login ID functionality. This update can be obtained from the Microsoft Update Catalog. After installing the update, the AD FS configuration needs to be updated using the Set-AdfsClaimsProviderTrust PowerShell cmdlet. This cmdlet, when executed on any federation server in the AD FS farm (or the primary AD FS server in a WID farm), configures the Alternate Login ID settings for the “AD AUTHORITY” claims provider trust, which represents Active Directory.
The specific command syntax is Set-AdfsClaimsProviderTrust -TargetIdentifier "AD AUTHORITY" -AlternateLoginID <attribute> -LookupForests <forest domain>. Here, <attribute> represents the LDAP name of the Active Directory attribute that should be used as the Alternate Login ID. For email address login, this attribute is typically “mail”. <forest domain> is the DNS domain name of the Active Directory forest to which the users belong. If users belong to multiple forests, a comma-separated list of forest DNS entries can be provided. Both the -AlternateLoginID and -LookupForests parameters must be configured with non-null, valid values to enable the Alternate Login ID feature. Once configured, AD FS will be able to locate user accounts based on the specified alternate login ID attribute, enabling users to authenticate using their email addresses.
6. AD FS Service Account Missing Read Access to Token-Signing Certificate Private Key¶

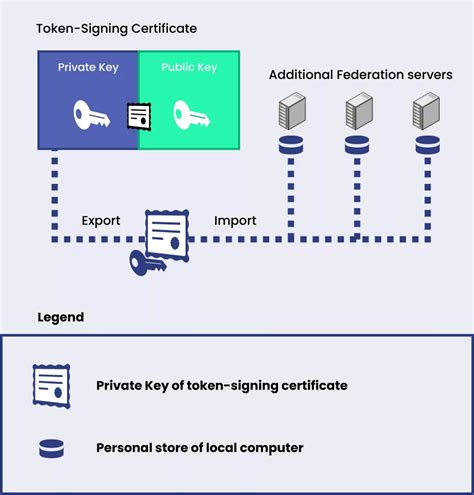

Token-signing certificates are critical security components in AD FS, used to digitally sign security tokens issued by the AD FS service. These certificates ensure the integrity and authenticity of the tokens, allowing relying parties to trust the identity assertions made by AD FS. The AD FS service account, under which the AD FS service runs, requires specific permissions to access the private key of the token-signing certificate. If the AD FS service account lacks read access to the private key, AD FS will be unable to sign tokens, leading to authentication and authorization failures.
When a new token-signing certificate is added or renewed in AD FS, a warning message is typically displayed, reminding administrators to ensure that the private key for the chosen certificate is accessible to the service account for the Federation Service on each server in the farm. This warning is crucial and should not be ignored. Failure to grant the necessary permissions can result in AD FS operational issues. The AD FS service account needs “Read” permissions on the private key of the token-signing certificate to perform its token signing functions.
6.1. Granting Read Access to the Private Key¶
To grant the AD FS service account read access to the private key of the token-signing certificate, a series of steps using the Microsoft Management Console (MMC) Certificates snap-in are required. First, open the MMC by selecting Start, then Run, typing mmc.exe, and pressing Enter. In the MMC console, add the Certificates snap-in by selecting File, then Add/Remove Snap-in. In the Add or Remove Snap-ins dialog box, double-click Certificates. Select Computer account in the Certificates snap-in dialog and click Next. Choose Local computer and click Finish, then OK to add the snap-in.
In the MMC console, expand Certificates (Local Computer), then expand Personal, and select Certificates. Locate the new token-signing certificate in the list of certificates. Right-click the token-signing certificate, select All Tasks, and then select Manage Private Keys. This opens the permissions dialog for the private key of the certificate. In the permissions dialog, click Add to add a new user or group. Enter the name of the AD FS 2.0 service account and click Check Names to resolve the account name. Select the AD FS service account and ensure that the Read permission is checked in the permissions list. Click OK to save the permissions changes. Finally, close the Certificates MMC. These steps ensure that the AD FS service account has the necessary read access to the private key of the token-signing certificate, enabling AD FS to correctly sign tokens and function properly.

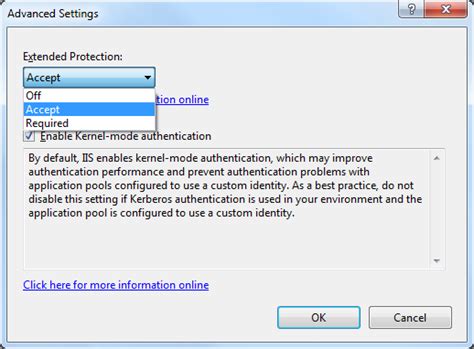

7. Extended Protection Option Enabled for Windows Authentication¶
The Extended Protection for Authentication feature in IIS enhances the security of Windows Authentication by mitigating man-in-the-middle attacks. When enabled, Extended Protection binds authentication requests to both the Service Principal Names (SPNs) of the server and the outer Transport Layer Security (TLS) channel. While this improves security, it can introduce compatibility issues with certain browsers, leading to scenarios where users are repeatedly prompted for credentials by AD FS and ultimately denied access. This issue often manifests when Extended Protection is enabled for the AD FS or LS virtual directories in IIS.
The problem arises because some browsers, particularly older versions or those with specific configurations, may not fully support Extended Protection. These browsers may not correctly handle the security tokens or channel bindings required by Extended Protection, resulting in authentication failures. In such cases, disabling Extended Protection for Windows Authentication on the AD FS or LS virtual directories can resolve the credential prompting and access denial issues. Disabling Extended Protection reverts to the standard Windows Authentication behavior, which, while slightly less secure, is generally more compatible with a broader range of browsers.
7.1. Disabling Extended Protection for AD FS 2012 R2¶
For AD FS 2012 R2, disabling Extended Protection can be easily accomplished using a PowerShell cmdlet. Open PowerShell as an administrator and execute the command Set-ADFSProperties -ExtendedProtectionTokenCheck None. This cmdlet modifies the AD FS properties and sets the ExtendedProtectionTokenCheck parameter to “None”, effectively disabling Extended Protection for Windows Authentication on the AD FS virtual directories. After running this command, restart the AD FS service or the IIS service for the changes to take effect. After disabling Extended Protection, users experiencing repeated credential prompts should be able to authenticate to AD FS without issues, especially when using browsers that were previously incompatible with Extended Protection. It’s important to note that disabling Extended Protection may slightly reduce security, so administrators should carefully consider the security implications and browser compatibility requirements before making this change.
8. Issuance Authorization Rules in Relying Party Trust Denying Access¶
Relying Party (RP) trusts in AD FS define the relationship between AD FS and applications or services that rely on AD FS for authentication and authorization. Issuance Authorization rules within RP trusts control whether authenticated users should be issued a security token for accessing the relying party application. These rules act as access control policies, allowing administrators to define conditions based on user attributes or claims to permit or deny access to specific relying parties. Incorrectly configured Issuance Authorization rules can lead to scenarios where valid users are denied access to applications, even after successful authentication.
If certain federated users are unable to authenticate through AD FS to a specific application, it’s crucial to examine the Issuance Authorization rules configured for the corresponding Relying Party trust. A common starting point is to check whether the “Permit Access to All Users” rule is configured. This rule, when present, grants access to all authenticated users, effectively bypassing any further authorization checks. If this rule is not configured, more complex custom authorization rules may be in place, which need to be carefully reviewed to understand the access control logic.
Custom authorization rules can be based on various conditions, such as user group memberships, user attributes, or claims issued to the user. These rules use a claim rule language to define conditions and actions. Administrators use claims that are issued to users during authentication to determine whether to grant or deny access. For example, a rule might deny access to users who are members of a specific group or who do not possess a particular claim. To troubleshoot access denial issues, administrators need to peruse these custom authorization rules and evaluate whether the conditions within the rules are evaluating to “true” for the affected users. Understanding the claim rule language and the logic of the authorization rules is essential for diagnosing and resolving access control problems in AD FS relying party trusts. Microsoft provides resources and documentation on understanding claim rule language and configuring client access policies for further guidance.
9. Intranet vs. Extranet Authentication Issues with AD FS Proxy¶

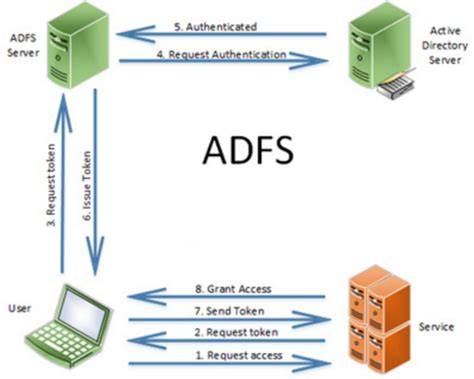

In many AD FS deployments, an AD FS proxy server is deployed in the perimeter network (DMZ) to handle authentication requests from external clients accessing applications over the internet. Users accessing applications from within the intranet may authenticate directly against the AD FS server, while external users are directed to the AD FS proxy. Scenarios can arise where users can successfully authenticate when accessing the AD FS server directly from the intranet but fail to authenticate when accessing AD FS through the AD FS proxy from the extranet. This indicates a problem specific to the proxy configuration or the communication between the proxy and the AD FS server.
When intranet authentication works but extranet authentication through the proxy fails, several potential issues need to be investigated. Two common culprits are time synchronization problems between the AD FS server and the AD FS proxy, and issues with the trust relationship between the AD FS proxy and the AD FS service.
9.1. Time Synchronization Issue¶
Time synchronization is critical for Kerberos authentication and secure communication in Active Directory environments. If the time on the AD FS server and the AD FS proxy are not synchronized, authentication failures can occur. Specifically, if the time difference between the AD FS server and domain controllers exceeds five minutes, Kerberos authentication will fail. Similarly, if the time on the AD FS proxy is not synchronized with the AD FS server, the proxy trust relationship can be affected or broken. A broken proxy trust prevents the proxy from securely forwarding authentication requests to the AD FS server, leading to authentication failures for external users accessing through the proxy. Therefore, ensuring accurate time synchronization between the AD FS server, AD FS proxy, and domain controllers is essential for proper AD FS proxy functionality. Network Time Protocol (NTP) should be properly configured to maintain time synchronization across all relevant servers.
9.2. AD FS Proxy Trust Issue¶
The AD FS proxy trust is a secure channel established between the AD FS proxy server and the AD FS service. This trust allows the proxy to securely forward authentication requests from external clients to the AD FS server for processing. If the AD FS proxy trust is broken or not functioning correctly, authentication requests coming through the proxy will fail. Proxy trust issues can arise due to various reasons, including network connectivity problems, certificate issues, or configuration errors. If a proxy trust issue is suspected, the AD FS proxy configuration should be rerun. This process typically involves removing and re-adding the proxy configuration, which re-establishes the trust relationship with the AD FS service. Rerunning the proxy configuration can resolve many common proxy trust related authentication failures and restore extranet access through the AD FS proxy.
If you have any further questions or issues related to AD FS troubleshooting, feel free to leave a comment below!
