Streamline Parallel Port Device Setup on Windows Server with Plug and Play

Updated: 03 Apr, 2025 • 0 • min read

Table of Contents

This step-by-step article elucidates the procedure to activate the Plug and Play feature for devices utilizing a parallel port interface within a Windows Server environment. Ensuring seamless integration and functionality of legacy hardware is paramount in maintaining operational continuity.

Summary¶

Certain Plug and Play compliant devices that interface through a parallel port, notably early iterations of Iomega Zip drives, might encounter detection issues within the Windows operating system. This can lead to frustration and hinder the deployment of essential peripherals. Understanding the underlying mechanisms and implementing the correct configuration is crucial for resolving these detection challenges.

Enabling Plug and Play Detection¶

To ensure proper detection of your parallel port devices, it is necessary to manually enable the legacy Plug and Play detection feature within Windows Server. This process involves navigating through the system settings and adjusting the configuration of the parallel port. The following steps provide a detailed guide to accomplish this:

Initiate the process by right-clicking the My Computer icon, typically located on your desktop, and then select Properties from the context menu. This action will open the System Properties window, providing access to hardware and system configurations.

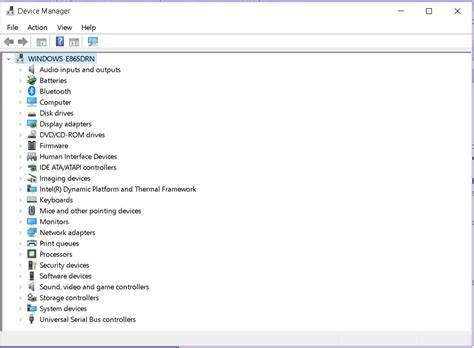

Within the System Properties window, navigate to the Hardware tab. This tab is dedicated to managing hardware-related settings and configurations. Once selected, locate and click the Device Manager button. Device Manager serves as a central console for viewing and managing all hardware components installed on the system.
In the Device Manager window, you will see a hierarchical list of hardware categories. Locate and expand the Ports category by clicking on the arrow or plus sign next to it. This will display a list of installed communication ports. Right-click on Printer Port (LPT1), which represents the primary parallel port, and select Properties from the context menu.

Note: If your system has multiple parallel ports installed, such as LPT2 or LPT3, select the appropriate port that your device is connected to. Identifying the correct LPT port is essential for applying the configuration to the intended interface.
The Printer Port Properties window will appear. Navigate to the Port Settings tab. Within this tab, you will find various settings related to the parallel port configuration. Locate and check the box labeled Enable legacy Plug and Play detection. After selecting the checkbox, click OK to apply the changes.
After applying the changes, you will be prompted to restart your computer. It is imperative to restart your computer to ensure that the changes are properly implemented and take effect. This restart allows the operating system to re-initialize the hardware configuration with the newly enabled Plug and Play detection for the parallel port.

Upon restarting your computer, Windows will attempt to detect any Plug and Play hardware connected to the parallel port. If a new Plug and Play device is detected, the New Hardware Installation Wizard will automatically launch, guiding you through the driver installation process. This automated detection and installation process significantly simplifies the integration of parallel port devices.

Note: The Legacy Plug and Play detection checkbox is intentionally left unselected by default in Windows Server. This default setting is often sufficient for modern peripherals, but enabling it becomes necessary for older parallel port devices that rely on this legacy detection mechanism.

It is important to acknowledge that certain third-party products mentioned in this article are manufactured by companies independent of Microsoft. Microsoft provides no warranty, either implied or otherwise, regarding the performance or reliability of these third-party products. Users should consult the respective manufacturers for support and warranty information concerning their devices.

Note: With the release of Service Pack 2 for Windows Server 2003, an increased number of parallel port devices necessitate the activation of Plug and Play detection for successful installation. Specifically, enabling Plug and Play detection is a prerequisite for installing any Iomega Zip drives on systems running Windows Server 2003 SP2 and later. This highlights the continued relevance of this feature for specific legacy hardware even in later server operating systems.

Delving Deeper into Parallel Port Technology¶

The parallel port, also known as the printer port or LPT port (Line Print Terminal), was once a ubiquitous interface for connecting peripherals to personal computers. Introduced with the original IBM PC in 1981, it quickly became the standard for connecting printers, scanners, and various other devices. Understanding its history and technical characteristics provides valuable context for appreciating the importance of Plug and Play detection even today.

Historical Significance¶

In the early days of computing, parallel ports offered a significant advantage over serial ports in terms of data transfer speed, especially for printer applications where large amounts of data needed to be transmitted quickly. The parallel port’s ability to transmit multiple bits of data simultaneously, typically 8 bits (a byte), made it considerably faster for printing graphics and complex documents compared to the bit-by-bit serial transmission.

This speed advantage cemented the parallel port’s dominance for printer connections throughout the 1980s and 1990s. It became an essential component of virtually every PC, facilitating the widespread adoption of desktop printing. Beyond printers, parallel ports were also utilized for connecting external storage devices like tape drives and early removable media drives like Iomega Zip drives, as well as for specialized hardware like data acquisition systems and scientific instruments.

Technical Characteristics¶

The standard parallel port, conforming to the IEEE 1284 standard, employs a 25-pin D-sub connector. It utilizes a parallel communication protocol, sending data bits simultaneously over multiple wires. This parallel transmission is what gives it the “parallel” port designation and contributes to its higher data transfer rates compared to serial ports, at least for shorter distances.

Beyond data lines, the parallel port also includes control and status lines. Control lines are used by the computer to manage the peripheral device, such as initiating data transfer or signaling commands. Status lines are used by the peripheral device to communicate its status back to the computer, indicating conditions like being ready to receive data, being busy, or encountering errors.

However, parallel ports also have limitations. Their parallel transmission scheme is susceptible to signal degradation over longer cable lengths, restricting practical cable distances to a few meters. Furthermore, the 25-pin connector is relatively bulky compared to modern connectors like USB. These limitations, coupled with the rise of faster and more versatile interfaces like USB, have led to the gradual decline in the prevalence of parallel ports in modern computers.

The Rise of USB and the Legacy of Parallel Ports¶

The Universal Serial Bus (USB) standard emerged in the late 1990s as a more versatile and user-friendly alternative to parallel and serial ports. USB offered several advantages, including:

Higher Speeds: USB standards have evolved to offer significantly faster data transfer rates than parallel ports, surpassing even the Enhanced Parallel Port (EPP) and Extended Capabilities Port (ECP) modes.
Plug and Play: USB was designed with Plug and Play functionality from the outset, simplifying device installation and configuration.
Hot-Plugging: USB devices can be connected and disconnected while the computer is powered on (hot-plugging), a feature not reliably supported by parallel ports.
Power Delivery: USB ports can provide power to connected devices, eliminating the need for separate power supplies for many peripherals.
Smaller Connectors: USB connectors are significantly smaller and more compact than parallel port connectors, facilitating miniaturization of devices and computers.

These advantages led to the rapid adoption of USB, gradually replacing parallel ports as the primary interface for connecting peripherals. Modern computers rarely include parallel ports, and USB has become the ubiquitous standard for connecting printers, scanners, external drives, and a vast array of other devices.

Despite their decline in modern systems, parallel ports still hold a place in legacy systems and specialized industrial or scientific equipment. Understanding how to enable Plug and Play detection for these older devices remains relevant for maintaining compatibility and functionality in environments where legacy hardware is still in use.

Plug and Play: Simplifying Hardware Integration¶

Plug and Play (PnP) is a technology designed to simplify the process of adding new hardware to a computer system. Before Plug and Play, installing new hardware often involved manually configuring hardware settings, such as IRQ (Interrupt Request) lines and I/O (Input/Output) addresses, which could be a complex and error-prone process for average users.

Plug and Play automates much of this configuration process, allowing the operating system to automatically detect and configure new hardware devices. When a Plug and Play device is connected to a computer, the system automatically:

Detects the Device: The operating system identifies the presence of the new hardware device.
Identifies Device Resources: The system determines the hardware resources (IRQ, I/O address, DMA channels, memory addresses) required by the device.
Allocates Resources: The system automatically allocates available and compatible resources to the device, avoiding conflicts with existing hardware.
Installs Drivers: The system searches for and installs the necessary device drivers, which are software programs that enable the operating system to communicate with the hardware.

This automated process significantly simplifies hardware installation, making it more user-friendly and reducing the likelihood of configuration errors. Plug and Play has become a standard feature in modern operating systems, greatly enhancing the user experience of adding and using new hardware.

Legacy Plug and Play Detection¶

While Plug and Play is designed to be automatic, older devices, particularly those designed for parallel ports before the widespread adoption of full Plug and Play standards, may not be automatically detected. This is where the “Enable legacy Plug and Play detection” setting comes into play.

This setting instructs the operating system to actively probe or scan the parallel port for devices that might not strictly adhere to the modern Plug and Play protocols. By enabling this legacy detection, the system becomes more proactive in identifying and attempting to configure older parallel port devices that might otherwise be missed.

This is particularly relevant for devices like older Iomega Zip drives, which were popular in the late 1990s and early 2000s. These devices, while designed to be somewhat Plug and Play compatible, might rely on older detection mechanisms that are not automatically enabled in modern operating systems by default. Enabling legacy Plug and Play detection ensures that these devices are properly recognized and can function correctly.

Troubleshooting Parallel Port Device Detection¶

Even with Plug and Play enabled, you might occasionally encounter issues with detecting parallel port devices. Here are some troubleshooting steps to consider:

Check Device Connections: Ensure that the parallel port device is securely connected to the computer’s parallel port. Loose or faulty connections can prevent proper detection.
Verify Device Power: Make sure the parallel port device is powered on, if it requires external power. Some devices draw power from the parallel port, while others need a separate power source.
Restart the Computer: Sometimes a simple restart can resolve temporary glitches that might prevent device detection.
Check Device Manager for Errors: Open Device Manager and look for any error icons (yellow exclamation marks or red crosses) next to the parallel port entry or under “Other devices.” Error icons indicate potential driver issues or hardware conflicts.
Update Device Drivers: If there are error icons in Device Manager, try updating the drivers for the parallel port or the detected device. You can often find updated drivers on the device manufacturer’s website.
Try a Different Parallel Port Cable: A faulty parallel port cable can also cause detection problems. Try using a different, known-good parallel port cable.
Test on Another Computer (if possible): If you have access to another computer with a parallel port, try connecting the device to that computer to see if it is detected. This can help determine if the issue is with the device itself or the original computer.
Consult Device Documentation: Refer to the documentation that came with your parallel port device for specific troubleshooting steps or compatibility information.

By systematically following these troubleshooting steps, you can often resolve issues related to parallel port device detection and ensure proper functionality.

Data Collection¶

[Diagram of steps to enable Plug and Play detection using Mermaid]

mermaid graph LR A[Right-click My Computer -> Properties] --> B(Hardware Tab -> Device Manager); B --> C{Expand Ports}; C --> D[Right-click Printer Port (LPT1) -> Properties]; D --> E{Port Settings Tab}; E --> F[Enable legacy Plug and Play detection]; F --> G[Click OK]; G --> H(Restart Computer); H --> I{Windows detects Plug and Play hardware};

This diagram visually represents the steps outlined earlier for enabling Plug and Play detection, providing a quick and easy reference.

Enabling Plug and Play detection for parallel port devices in Windows Server is a straightforward process that can significantly improve the compatibility and ease of use of legacy hardware. By following these steps, users can ensure that their parallel port peripherals are properly detected and configured, maintaining functionality and extending the lifespan of valuable equipment. Understanding the historical context of parallel ports and the benefits of Plug and Play technology provides a deeper appreciation for the importance of these configurations in specific scenarios.
