Troubleshooting Microsoft Usbccid Smartcard Reader Code 31 Error on Windows

Table of Contents

When using a Microsoft Usbccid Smartcard Reader on a Windows 10 system, you might encounter a situation where the device stops functioning correctly after a system restart. This issue is often indicated in the Device Manager by a yellow exclamation mark, also known as a yellow bang, next to the Smartcard Reader device. Upon inspecting the device properties, you will find an error message under the “Device status” section, specifically “Code 31”. This error signifies that Windows is unable to load the necessary drivers for the device, preventing it from operating as expected. This can be a frustrating problem, especially if you rely on smartcard authentication for security or other critical tasks.

Symptoms¶

The primary symptom of this issue is the presence of a yellow exclamation mark in Device Manager next to the “Microsoft Usbccid Smartcard Reader” entry, usually found under the “Smart card readers” category. This visual cue immediately alerts you to a problem with the device. When you delve into the device’s properties, typically by right-clicking on the device and selecting “Properties”, you will find the following error message displayed in the “Device status” area:

This device is not working properly because Windows cannot load the drivers required for this device. (Code 31)
{Operation Failed}
The requested operation was unsuccessful.

This error message clearly points to a driver loading failure. The “(Code 31)” part is the specific error code that Windows uses to categorize this type of device issue. The additional details “{Operation Failed} The requested operation was unsuccessful.” further reinforce that the attempt to initialize and load the driver for the Smartcard Reader was unsuccessful. Users might experience this issue after a routine system restart, or potentially after a Windows update or hardware change. The smartcard reader will effectively be unusable in this state, preventing any applications or services that rely on it from functioning.

Cause¶

The root cause of the Code 31 error for the Microsoft Usbccid Smartcard Reader often lies within the driver initialization process. During system startup, the smartcard driver attempts to initialize itself and create an instance of what is known as a “smart card class extension”. This class extension is a crucial component that provides the necessary framework and functionalities for the smartcard reader to interact with the operating system and applications. If this attempt to create the smart card class extension instance fails, the driver cannot be loaded correctly, leading to the Code 31 error.

Several factors can contribute to the failure of creating the smart card class extension instance. It could be related to timing issues during system boot, where dependencies required by the driver are not yet fully initialized or available. Software conflicts with other drivers or services running on the system could also interfere with the driver initialization process. In some cases, corrupted system files or registry entries related to smart card services or USB device management might also play a role. While the error message is generic in stating a driver loading problem, the specific underlying cause is often linked to this failure in the smart card class extension instantiation during the driver’s initial startup phase. Understanding this specific mechanism helps in targeting the resolution steps more effectively.

Resolution¶

The recommended resolution for the Microsoft Usbccid Smartcard Reader Code 31 error involves adding a specific registry key called RetryDeviceInitialize. This registry key is designed to instruct the system to retry the device initialization process, potentially overcoming the initial failure that led to the Code 31 error. This solution is particularly applicable to Windows 10, version 1903 (19H1) and later versions.

Here are the steps to implement this resolution:

1. Open Registry Editor: Press the Windows key, type regedit, and press Enter. This will open the Registry Editor application. You might be prompted by User Account Control (UAC) to allow Registry Editor to make changes to your device. Click Yes to proceed. Caution: Incorrect modifications to the registry can cause serious problems that may require you to reinstall your operating system. Follow these steps carefully.

2. Navigate to the Correct Registry Path: In the Registry Editor window, navigate to the following path using the folder structure on the left-hand side:

   Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\usbccid


   You will need to expand the folders HKEY_LOCAL_MACHINE, then SYSTEM, then CurrentControlSet, then Control, and finally select the usbccid folder.

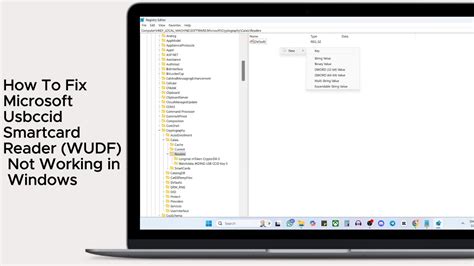

3. Create the RetryDeviceInitialize Registry Key: Once you have navigated to the usbccid key, right-click in the empty space on the right-hand side pane. Select New from the context menu, and then choose DWORD (32-bit) Value.

4. Name the New Value: A new DWORD value will be created with a default name. Rename this new value to RetryDeviceInitialize (exactly as written, case-sensitive).

5. Set the Value Data: Double-click on the newly created RetryDeviceInitialize value. In the “Edit DWORD (32-bit) Value” dialog box, ensure that the “Value data” is set to 1. The “Base” should be set to Hexadecimal or Decimal, both will work when the value data is 1. Click OK to save the changes. Setting the value data to 1 enables the retry mechanism.

6. Restart Your Computer: After adding the RetryDeviceInitialize registry key and setting its value to 1, you must restart your computer for the changes to take effect. A simple restart is usually sufficient. Ensure you save any unsaved work before restarting.

7. Verify the Resolution: After the computer restarts, check Device Manager again. Navigate to the “Microsoft Usbccid Smartcard Reader” under “Smart card readers” and see if the yellow exclamation mark is gone. Check the device properties to ensure that the “Device status” now indicates “This device is working properly.” If the Code 31 error is resolved, the smartcard reader should now be functioning correctly.

By adding this RetryDeviceInitialize registry key, you are essentially instructing the system to retry the initialization process for the Usbccid Smartcard Reader driver. This retry mechanism can often resolve transient issues or timing-related problems that might have initially caused the driver to fail loading. It is a specific solution tailored to address this particular error scenario for the Microsoft Usbccid Smartcard Reader on Windows 10 and later versions.

Important Note about Registry Key Availability¶

It is important to note that the RetryDeviceInitialize registry key solution is specifically available for Windows 10, version 1903 (19H1) and later versions. If you are running an older version of Windows 10 or a different operating system altogether, this registry key might not exist or might not have the intended effect. To check your Windows 10 version, you can:

1. Press the Windows key, type winver, and press Enter.
2. A window titled “About Windows” will pop up, displaying your Windows version and build number.

Ensure that your version is 1903 or later before attempting to use this registry key solution. If you are on an older version, consider updating your Windows 10 to the latest version to gain access to this fix and benefit from other updates and security patches. If updating is not immediately feasible, or if you are using a different operating system, you might need to explore other troubleshooting steps or consult Microsoft support resources specific to your OS version.

Further Troubleshooting Steps¶

While the RetryDeviceInitialize registry key is often effective in resolving the Code 31 error for the Microsoft Usbccid Smartcard Reader, in some scenarios, the issue might persist. If the problem continues after implementing the registry key solution and restarting your computer, consider the following additional troubleshooting steps:

1. Check for Driver Updates: Although the error suggests a driver loading issue, sometimes an outdated or corrupted driver can be the underlying problem. Even if the driver is technically loaded, it might be malfunctioning.

   • Update Driver through Device Manager: Open Device Manager, locate the “Microsoft Usbccid Smartcard Reader”, right-click on it, and select “Update driver”. Choose “Search automatically for updated driver software”. Windows will attempt to find and install the latest driver.
   • Uninstall and Reinstall Driver: If updating doesn’t work, try uninstalling the driver. Right-click on the “Microsoft Usbccid Smartcard Reader” in Device Manager and select “Uninstall device”. Restart your computer. Windows should automatically attempt to reinstall the driver upon restart. If not, you can manually scan for hardware changes in Device Manager (Action > Scan for hardware changes) or try to install the driver again via “Update driver” and choose “Browse my computer for drivers” and then “Let me pick from a list of available drivers on my computer”, selecting the Microsoft Usbccid Smartcard Reader driver.
   • Check for Manufacturer Driver: In rare cases, there might be a specific driver provided by the manufacturer of your smartcard reader hardware (if it’s not directly a Microsoft-branded device, but compatible). Check the manufacturer’s website for any specific drivers for your model and operating system.

2. Check USB Port and Hardware Connection: Rule out basic hardware issues.

   • Try a Different USB Port: Sometimes, a particular USB port might be faulty or have power delivery issues. Try connecting the smartcard reader to a different USB port on your computer, preferably directly on the motherboard if using a desktop, rather than through a USB hub.
   • Test on Another Computer: If possible, test the smartcard reader on a different computer to see if the issue persists. This can help determine if the problem is with the smartcard reader hardware itself or specific to your original computer.
   • Inspect Cables and Connectors: Ensure that the USB cable connecting the smartcard reader is securely plugged in at both ends and is not damaged.

3. Check for Software Conflicts: Although less common, software conflicts can sometimes interfere with device driver loading.

   • Perform a Clean Boot: A clean boot starts Windows with a minimal set of drivers and startup programs. This can help identify if a background program or service is conflicting with the smartcard reader driver. Search for “msconfig” in the Windows search bar, open System Configuration, go to the “Services” tab, check “Hide all Microsoft services”, click “Disable all”, then go to the “Startup” tab and click “Open Task Manager” and disable all startup items. Restart your computer and check if the issue is resolved. If it is, you can re-enable services and startup items one by one to pinpoint the conflicting software.
   • Check for Recently Installed Software: If the problem started after installing new software, especially security software, USB management tools, or other device drivers, try uninstalling the recently installed software to see if it resolves the conflict.

4. System File Checker (SFC): Corrupted system files can sometimes cause driver loading issues.

   • Run SFC Scan: Open Command Prompt as an administrator (search for “cmd”, right-click, and select “Run as administrator”). Type sfc /scannow and press Enter. System File Checker will scan for and attempt to repair corrupted system files.

5. Check Smart Card Services: Windows has built-in services related to smart card functionality.

   • Ensure Smart Card Services are Running: Press Windows key + R, type services.msc, and press Enter. Locate services like “Smart Card” and “Smart Card Device Enumeration Service”. Ensure their “Startup type” is set to “Automatic” and that their “Status” is “Running”. If they are not running, right-click on each service, select “Properties”, set “Startup type” to “Automatic”, click “Start”, and then click “OK”.

If, after trying these additional steps, the Code 31 error still persists, it might indicate a more complex issue, potentially related to deeper system corruption or hardware malfunction. In such cases, contacting Microsoft support or seeking professional IT assistance might be necessary for further diagnosis and resolution.

Importance of Smartcard Readers¶

Smartcard readers, like the Microsoft Usbccid Smartcard Reader, are essential components for secure authentication and various security-related applications. They provide a secure way to interact with smart cards, which are often used for:

• Secure Login and Authentication: Smart cards are widely used for multi-factor authentication in corporate environments, government agencies, and other security-conscious organizations. They provide a physical token for verifying identity, often in combination with a PIN or biometric authentication.
• Digital Signatures: Smart cards can store digital certificates used for digitally signing documents and emails, ensuring authenticity and non-repudiation.
• Data Encryption: Smart cards can be used to manage encryption keys and perform cryptographic operations, protecting sensitive data.
• Secure Access Control: Smart cards are used for physical access control (e.g., building access badges) and logical access control (e.g., computer login, network access).
• Payment Systems: Smart cards are the foundation of chip-based credit and debit cards, enabling secure payment transactions.
• Government and Citizen IDs: Many countries use smart cards for national identification cards, driver’s licenses, and other government-issued credentials.

The reliability of smartcard readers is therefore crucial for maintaining security and operational efficiency in systems that rely on smart card technology. Troubleshooting issues like the Code 31 error is important to ensure the continued functionality of these essential security devices.

Conclusion¶

Encountering a Code 31 error with your Microsoft Usbccid Smartcard Reader on Windows 10 can disrupt workflows that depend on smart card authentication and security. Fortunately, by implementing the RetryDeviceInitialize registry key solution, many users can resolve this issue and restore the functionality of their smartcard reader. Remember to verify that you are running Windows 10 version 1903 or later before applying this registry fix. If the problem persists, systematic troubleshooting steps, including driver updates, hardware checks, and software conflict analysis, can help pinpoint and resolve the underlying cause. Ensuring the proper operation of your smartcard reader is vital for maintaining secure access and utilizing the full potential of smart card technology in your environment.

If you have encountered this Code 31 error and successfully resolved it using these steps, or if you have any other troubleshooting tips or experiences to share, please feel free to leave a comment below! Your insights can be valuable to other users facing similar issues.
