Troubleshooting Network Adapter IP Address Acquisition Failure: A Developer's Guide

Table of Contents

Network adapters are fundamental components enabling communication for any computing device. In embedded systems, reliable network connectivity from the moment of startup is often critical. However, users of Windows Embedded POSReady 2009 and Windows Embedded Standard 2009 environments may encounter a specific issue where network cards intermittently fail to obtain an IP address using DHCP during the initial startup phase. While connectivity and DHCP functionality typically resume normal operation shortly after the system is fully booted, this delay can disrupt applications or services that require immediate network access upon startup.

This intermittent failure presents itself as a lack of network connectivity immediately after the operating system loads but before the system reaches a stable operational state. Devices configured to receive an IP address automatically via a DHCP server will not successfully complete this process during this critical window. This means the adapter might show no IP address, a self-assigned APIPA address (169.254.x.x), or a previously cached address that may no longer be valid. This behavior can be particularly problematic in devices designed for specific functions that need to report status, receive commands, or connect to network resources right away.

Understanding the root cause of this issue is key to implementing an effective solution. The problem stems from the default configuration of a specific system service critical for networking operations: the Ancillary Function Driver (AFD). The AFD.SYS driver acts as a helper component for Windows Sockets (Winsock) applications, providing crucial buffering and performance enhancements for network communication. Many network-related services, including the DHCP Client service, rely on AFD.SYS being available and initialized early in the system startup process.

The default startup type for the AFD service is often set to 0x2 (Automatic) in the Windows registry key HKLM\SYSTEM\CurrentControlSet\Services\AFD. While ‘Automatic’ typically ensures a service starts relatively early, in some configurations or under specific load conditions within the Windows Embedded 2009 environment, this setting may cause AFD.SYS to load later than necessary. This delay in AFD.SYS initialization subsequently delays the startup and proper functioning of dependent services like the DHCP Client. Because the DHCP process happens relatively early in the network stack initialization, a delay in AFD can directly interfere with the client’s ability to request and receive an IP address from the DHCP server during the critical startup phase.

The recommended resolution involves modifying the startup type of the AFD service in the Windows registry to ensure it loads earlier in the boot sequence. By changing the Start value for the AFD service to a value that forces it to load as part of the core system or boot sequence, you can eliminate the timing conflict that prevents DHCP from acquiring an address immediately at startup. This modification tells the operating system to initialize the AFD driver earlier, making it available for network services like DHCP when they attempt to start during the boot process.

To implement this resolution, you will need to access and edit the Windows Registry. Caution: Modifying the Windows Registry incorrectly can cause serious system problems, potentially requiring a reinstall of the operating system. It is strongly recommended to back up the registry or create a system restore point before proceeding. Only users comfortable with registry editing should attempt this.

Follow these steps carefully:

1. Open the Registry Editor. You can do this by pressing Windows Key + R, typing regedit in the Run dialog box, and pressing Enter. You may be prompted for administrator credentials.
2. Navigate to the following registry key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\AFD
3. In the right-hand pane, locate the REG_DWORD value named Start.
4. Double-click on the Start value to open the Edit DWORD Value dialog box.
5. The default value data is likely 2 (representing Automatic startup). Change the Value data to 1.
   • Here’s a quick reference for common service Start values:
     • 0 (Boot): Driver is loaded by the OS loader. Essential for system boot.
     • 1 (System): Driver/service is loaded by the I/O subsystem during kernel initialization. Critical system components.
     • 2 (Automatic): Service is started automatically by the Service Control Manager during system startup. Most common setting for non-critical services.
     • 3 (Manual): Service must be started manually by a user or another service/program.
     • 4 (Disabled): Service cannot be started.
   • Changing the value to 1 ensures AFD is loaded during the system initialization phase, earlier than an ‘Automatic’ service might be.
6. Click OK to save the change.
7. Close the Registry Editor.
8. Restart your Windows Embedded 2009 system for the change to take effect.

After the system restarts, the AFD service should load earlier, resolving the dependency issue for the DHCP Client service. This should allow the network adapter to successfully acquire an IP address via DHCP immediately upon network initialization during the startup sequence, eliminating the intermittent failure observed previously. It is important to verify that the network adapter successfully obtains a valid IP address shortly after logging in or after the system reaches its ready state. You can check this by opening a Command Prompt (cmd.exe) and running the command ipconfig /all. Look for your network adapter’s configuration and verify that it has a valid IP address assigned by your DHCP server.

If, after applying this registry modification, the network adapter still fails to acquire an IP address at startup or even after the system has fully loaded, other factors might be contributing to the issue. Troubleshooting network connectivity requires a systematic approach. Here are additional steps and considerations:

Verify Physical Connection:
Ensure the Ethernet cable is securely plugged into both the network adapter and the network switch/router port. Check for any damage to the cable or connectors. If using Wi-Fi, ensure the wireless adapter is enabled and connected to the correct network.

Check Network Adapter Status in Device Manager:
Open Device Manager (devmgmt.msc) and expand “Network adapters”. Check if the network adapter is listed and enabled. Look for any warning signs (yellow exclamation marks) or error symbols on the adapter icon, which could indicate driver issues or hardware problems. Right-click the adapter and select “Properties” to check its status.

Ensure Network Adapter Drivers are Installed and Up-to-Date:
Missing or corrupted network adapter drivers are a common cause of connectivity issues. Even in an embedded environment, ensuring the correct driver is installed for the specific hardware is crucial. You can check the driver version and status in the adapter’s properties in Device Manager. If necessary, uninstall the driver and reinstall it using the correct package provided by the hardware manufacturer or the system builder.

Check DHCP Client Service Status:
While the AFD fix addresses a common startup timing issue, the DHCP Client service itself might be encountering problems. Open the Services console (services.msc). Locate the “DHCP Client” service. Ensure its Startup Type is set to “Automatic” and that its Status is “Started”. If it’s not running, try starting it manually. Check the System event log for any errors related to the DHCP Client service or network initialization.

Inspect Network Configuration:
Verify that the network adapter is configured to obtain an IP address automatically (using DHCP) in the Network Connections properties. Right-click the network connection icon in the system tray or Control Panel, select “Status”, then “Properties”, and check the settings for “Internet Protocol (TCP/IP)” or “Internet Protocol Version 4 (TCP/IPv4)”. Ensure “Obtain an IP address automatically” is selected.

Evaluate Windows Firewall and Security Software:
Windows Firewall or any third-party security software (antivirus with firewall features) could potentially block DHCP traffic (UDP ports 67 and 68). Temporarily disabling the firewall or security software (with caution, ideally in a controlled test environment) can help determine if it’s interfering with the DHCP process. If disabling it resolves the issue, reconfigure the firewall rules to allow DHCP traffic.

Use Command-Line Diagnostics:
Several command-line tools can help diagnose network issues:
* ipconfig /release: Releases the current IP address.
* ipconfig /renew: Attempts to acquire a new IP address from the DHCP server. Try running this command after the system has fully started to see if it succeeds manually.
* ipconfig /flushdns: Clears the DNS resolver cache.
* ping [DHCP server IP] or ping 127.0.0.1: Test basic network connectivity.
* netsh interface ip show config: Shows detailed IP configuration for all adapters.
* netstat -an: Displays active network connections and listening ports.

Consider Network Infrastructure Issues:
The problem might not be with the embedded system itself but with the network infrastructure.
* Is the DHCP server running and accessible?
* Is the network switch port functioning correctly?
* Are there enough IP addresses available in the DHCP scope?

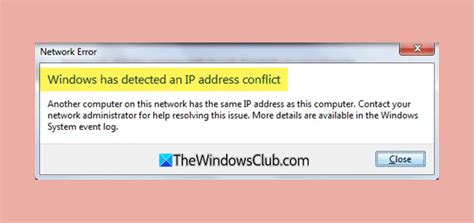

* Are there IP conflicts on the network?

Examine System Startup and Dependencies:
Windows Embedded systems can have highly customized startup processes. Examine any custom shell applications, startup scripts, or services that might be running very early and potentially consuming significant resources or interfering with standard system service initialization. The Event Viewer (System and Application logs) is an invaluable resource for identifying startup errors or service failures.

Temporary Workaround: Static IP Configuration:
If immediate, reliable network access at startup is critical and the DHCP issue persists despite troubleshooting, configuring the network adapter with a static IP address, subnet mask, default gateway, and DNS server addresses can serve as a temporary or permanent workaround. This bypasses the need for DHCP during startup. However, managing static IP addresses across many devices can be cumbersome and may not be suitable depending on the network environment.

The issue described, specifically related to AFD.SYS load order, is a known challenge in older Windows versions like those underpinning Windows Embedded 2009 (which share a kernel base with Windows XP/Server 2003). The timing and sequence of service initialization during startup are complex, and dependencies between core components like AFD and higher-level services like DHCP can sometimes lead to race conditions or timing failures, especially under varying hardware performance or startup load. Modifying the service startup type in the registry is a targeted fix that adjusts this delicate timing to ensure critical dependencies are met earlier in the boot process.

In summary, the primary cause of intermittent DHCP failure at startup in Windows Embedded 2009 is a timing issue related to the AFD service loading too late in the boot process. The resolution involves changing the AFD service’s Start registry value to 1 to ensure it loads earlier. If this specific fix doesn’t resolve the problem, a broader network troubleshooting approach is necessary, covering physical connections, drivers, service status, firewall settings, and potential network infrastructure or system-specific startup issues.

Have you encountered this specific DHCP startup issue in Windows Embedded 2009 or similar older Windows environments? Did the registry modification resolve it, or did you find a different solution? Share your experiences and insights in the comments below!
