Unlock Data Integrity: Enable Snapshot Isolation in SQL Server for Consistent Reads

Table of Contents

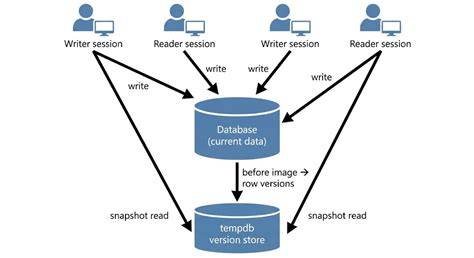

In the realm of database management, ensuring data integrity and consistency is paramount. SQL Server, a robust relational database management system, offers various mechanisms to achieve this, one of which is Snapshot Isolation. Snapshot Isolation is a concurrency control mechanism that guarantees that all reads performed within a transaction see a consistent snapshot of the database at the point in time when the transaction began. This is crucial for applications requiring high levels of data consistency, especially in environments with numerous concurrent read and write operations. By implementing Snapshot Isolation, you can significantly reduce blocking and deadlocking scenarios, leading to improved application performance and responsiveness.

Enabling Snapshot Isolation in SQL Server¶

Enabling Snapshot Isolation in SQL Server involves executing a series of SQL commands within the context of the target database. This configuration is done at the database level and requires administrative privileges. The process is straightforward and can be accomplished using SQL Server Management Studio (SSMS) or through Transact-SQL (T-SQL) scripts. Below are the steps to enable Snapshot Isolation.

Using SQL Server Management Studio (SSMS)¶

SQL Server Management Studio provides a graphical interface for managing SQL Server instances and databases. To enable Snapshot Isolation using SSMS, you will need to execute specific ALTER DATABASE statements against the database you wish to configure.

1. Open a New Query Window: Connect to your SQL Server instance using SSMS and open a new query window targeted at the database where you want to enable Snapshot Isolation. You can do this by right-clicking on the database in Object Explorer and selecting “New Query”.

2. Execute the READ_COMMITTED_SNAPSHOT Command: In the query window, type or paste the following T-SQL command:

   ALTER DATABASE <DatabaseName>
   SET READ_COMMITTED_SNAPSHOT ON
   GO


   Replace <DatabaseName> with the actual name of your database. This command enables the READ_COMMITTED_SNAPSHOT database option. When this option is set to ON, transactions operating under the Read Committed isolation level use row versioning to read data. This means that read operations do not block write operations, and vice versa, enhancing concurrency.

3. Execute the ALLOW_SNAPSHOT_ISOLATION Command: Next, execute the following T-SQL command in the same query window:

   ALTER DATABASE <DatabaseName>
   SET ALLOW_SNAPSHOT_ISOLATION ON
   GO


   Again, replace <DatabaseName> with your database name. This command enables the ALLOW_SNAPSHOT_ISOLATION database option. This option must be set to ON to allow transactions to explicitly use the Snapshot isolation level. While READ_COMMITTED_SNAPSHOT improves concurrency for Read Committed transactions, ALLOW_SNAPSHOT_ISOLATION enables the explicit use of the Snapshot isolation level for transactions that require it.

4. Execute the Commands: Click the “Execute” button in SSMS to run both ALTER DATABASE commands. Ensure that the commands execute successfully. You should see messages indicating successful completion in the “Messages” pane of SSMS.

Important Note: After executing these commands, the changes take effect immediately for new connections to the database. Existing connections will continue to operate under their current isolation levels until they are closed and reopened.

Verifying Snapshot Isolation¶

After enabling Snapshot Isolation, it’s crucial to verify that it is functioning as expected. SQL Server Profiler is a powerful tool that allows you to monitor and analyze events occurring in SQL Server. You can use SQL Server Profiler to observe the transaction isolation level being used by connections to your Analysis Services project and confirm that Snapshot Isolation is indeed active.

Using SQL Server Profiler¶

SQL Server Profiler captures database engine events and saves them in a trace file or table for later analysis. To verify Snapshot Isolation, you will configure a Profiler trace to capture specific events related to transaction management and examine the transaction isolation level.

1. Launch SQL Server Profiler: Open SQL Server Profiler from the Windows Start menu or SQL Server Management Studio Tools menu.

2. Create a New Trace: In SQL Server Profiler, create a new trace by going to “File” -> “New Trace…”. Connect to the SQL Server instance where your database resides.

3. Configure Trace Properties: In the “Trace Properties” dialog box, go to the “Events Selection” tab.

   • Select Events: In the “Events” pane, expand the “Transactions” event category. Select the following events:

     • SQL:BatchCompleted
     • SQL:BatchStarting

   • Select Columns: Ensure that the following columns are selected in the “Columns” pane. You may need to check the “Show all columns” checkbox to see all available columns.

     • TextData
     • SPID (Session ID)
     • TransactionID
     • Transaction_Isolation_Level

4. Run the Trace: Click the “Run” button to start the Profiler trace.

5. Execute Queries from Analysis Services Project: Now, execute queries or operations from your Analysis Services project that interact with the SQL Server database where you enabled Snapshot Isolation. This will generate events that Profiler will capture.

Analyzing Transaction Isolation Level¶

Once you have run your Analysis Services operations and captured events in SQL Server Profiler, you need to analyze the trace results to verify the transaction isolation level.

1. Examine Trace Output: In SQL Server Profiler, look for the captured SQL:BatchCompleted and SQL:BatchStarting events.

2. Identify Events with Matching TransactionID: Find pairs of SQL:BatchStarting and SQL:BatchCompleted events that have the same value in the TransactionID column. These pairs represent the start and completion of a single batch of SQL statements executed by your Analysis Services project.

3. Obtain Session ID (SPID): For these event pairs, note the session ID (SPID) from the SPID column. This identifies the SQL Server session executing the queries from your Analysis Services project.

4. Check Transaction_Isolation_Level: Navigate to the “Results” tab in Profiler. Locate the Transaction_Isolation_Level column for the identified events. The value in this column indicates the transaction isolation level being used by the session.

5. Verify Snapshot Isolation Level: When Snapshot Isolation is successfully enabled and used, the value in the Transaction_Isolation_Level column will be 5. This value corresponds to the Snapshot isolation level, as detailed in the table below.

Understanding Transaction Isolation Levels¶

The Transaction_Isolation_Level column in SQL Server Profiler uses numeric codes to represent different transaction isolation levels. Understanding these values is crucial for interpreting the Profiler output and confirming the isolation level in use.

Value	Transaction Isolation Level	Description
0	Unspecified	The isolation level has not been explicitly set.
1	ReadUncommitted	Allows dirty reads, meaning a transaction can read uncommitted changes made by other transactions. This is the lowest isolation level and offers the least consistency.
2	ReadCommitted	Prevents dirty reads. Transactions only read data committed by other transactions. However, non-repeatable reads and phantom reads are still possible.
3	RepeatableRead	Prevents dirty reads and non-repeatable reads. Transactions hold locks on the rows they read, preventing other transactions from updating those rows until the transaction completes.
4	Serializable	The highest isolation level. Prevents dirty reads, non-repeatable reads, and phantom reads. Transactions hold range locks, preventing other transactions from inserting new rows that would match the transaction’s search criteria.
5	Snapshot	Provides statement-level read consistency. Each statement in a transaction reads a consistent snapshot of data as it existed at the start of the statement.

Diagram of Transaction Isolation Levels:

mermaid graph LR A[Unspecified (0)] --> B(ReadUncommitted (1)); B --> C(ReadCommitted (2)); C --> D(RepeatableRead (3)); D --> E(Serializable (4)); E --> F(Snapshot (5)); style F fill:#ccf,stroke:#333,stroke-width:2px F --> G[Highest Consistency & Concurrency]; A --> H[Lowest Consistency & Concurrency];

This diagram visually represents the progression of transaction isolation levels in SQL Server, from the least restrictive (Unspecified/ReadUncommitted) to the most restrictive and consistent (Serializable/Snapshot). Snapshot isolation offers a balance between consistency and concurrency, sitting at the higher end of the consistency spectrum while still allowing for good concurrency by minimizing blocking.

Benefits of Snapshot Isolation¶

Enabling Snapshot Isolation offers several advantages, particularly in environments requiring high concurrency and data consistency:

• Improved Concurrency: Readers do not block writers, and writers do not block readers. This significantly reduces blocking and deadlocking, leading to improved application throughput and responsiveness.
• Consistent Reads: Transactions read a consistent snapshot of the data, ensuring that the data read within a transaction is consistent as of the transaction’s start time. This eliminates non-repeatable reads and phantom reads.
• Reduced Locking Overhead: Snapshot Isolation relies on row versioning rather than shared locks for read operations, reducing the overhead associated with lock management.
• Enhanced Application Performance: By minimizing blocking and ensuring data consistency, Snapshot Isolation can lead to significant performance improvements for read-intensive and mixed read/write workloads.

Considerations:

While Snapshot Isolation offers numerous benefits, there are also considerations to keep in mind:

• Increased tempdb Usage: Snapshot Isolation uses tempdb to store row versions. Increased transactional activity and data modifications can lead to increased tempdb space usage. It’s crucial to monitor tempdb space and ensure sufficient capacity.
• Potential for Update Conflicts: In rare scenarios, concurrent transactions modifying the same data might encounter update conflicts. SQL Server handles these conflicts, but applications should be designed to handle potential rollback scenarios.
• Compatibility: Ensure that your application and data access patterns are compatible with Snapshot Isolation. While generally beneficial, some applications might require adjustments to fully leverage its advantages.

Conclusion¶

Enabling Snapshot Isolation in SQL Server is a valuable technique for enhancing data integrity and concurrency in database applications. By following the steps outlined in this article, you can successfully enable and verify Snapshot Isolation, leading to more consistent reads, reduced blocking, and improved application performance. Understanding transaction isolation levels and utilizing tools like SQL Server Profiler are essential for effectively managing and optimizing data concurrency in your SQL Server environment.

Do you have any experience implementing Snapshot Isolation? Share your thoughts and questions in the comments below!
