Virtual Machine Migration Errors 23801 & 23753: Troubleshooting Guide for Virtual Machine Manager

Table of Contents

System Center Virtual Machine Manager (VMM) is a powerful tool for managing virtualized environments. It simplifies the deployment, configuration, and management of virtual machines and services across multiple hypervisors. However, complex operations like virtual machine migration can occasionally encounter errors, even when the underlying process completes successfully. This guide focuses on resolving specific networking-related errors, 23801 and 23753, that may appear in VMM job results during migration.

Successfully migrating a virtual machine from one host to another is the primary goal of the operation. While the VM itself might relocate and function correctly post-migration, the presence of errors in the VMM job log indicates a configuration mismatch that VMM detects during its placement process. Understanding these errors and their root cause is essential for maintaining a healthy and correctly configured VMM environment. Ignoring these warnings can potentially lead to issues with advanced VMM features that rely on accurate network configuration, such as dynamic optimization or service deployment.

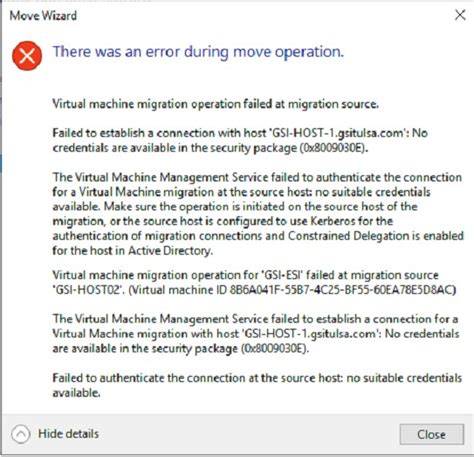

Symptoms: Understanding the Errors¶

When you initiate a virtual machine migration using System Center Virtual Machine Manager, the job might report completion status as “Completed Successfully”. Despite this success message, inspecting the job results can reveal one or both of the following specific errors listed within the details. These errors are diagnostic in nature, pointing towards a potential configuration problem rather than a failure of the core migration task itself. The virtual machine typically starts and operates correctly on the destination host after the migration, but the errors persist in the job history.

Error 23801 states: “No available connection to selected VM Network can be found.” It is followed by a recommended action: “Ensure host NICs have connection to the fabric network on which VM Network is created.” This error suggests that the destination host might not have the necessary network configuration to properly connect to the VM Network assigned to the virtual machine. VMM’s placement logic attempts to validate the host’s capability to provide connectivity via the specified VM Network during the pre-migration checks.

Error 23753 states: “The virtual machine or tier load balancer configuration requires an IP pool and there are no appropriate IP pools accessible from the host.” The recommended action is: “Select a host with access to an appropriate IP pool and try the operation again.” This error specifically points to an issue with the availability of a static IP address pool associated with the VM Network. VMM is looking for a static IP source managed by VMM itself but cannot find one linked correctly to the network the VM is using on the potential destination host.

The co-occurrence of these errors, particularly when the migration succeeds, is a strong indicator of the specific configuration issue described in this guide. While other networking errors can arise during migration, these two together in a successful job result narrow down the potential causes significantly. It is crucial to investigate these errors even if the VM appears to be functioning normally.

Cause: The Interaction Between Guest and Fabric Configuration¶

The root cause of errors 23801 and 23753 in this specific scenario stems from a mismatch between the IP configuration inside the virtual machine’s guest operating system and the network configuration managed by System Center Virtual Machine Manager. VMM tracks the network configuration of a virtual machine’s network adapter, including whether it is expected to receive an IP address dynamically or statically from a VMM-managed IP pool. This setting is stored in VMM’s database and used by its placement engine during operations like migration.

Typically, when a virtual machine’s network adapter is configured to obtain an IP address dynamically within the guest OS (via DHCP), VMM reflects this by setting the IPv4AddressType property for that network adapter to ‘Dynamic’. This configuration tells VMM that the VM’s IP address will be handled by a DHCP server on the network fabric, not by VMM’s static IP pool management.

However, if you initially configure the virtual machine’s network adapter inside the guest operating system to use DHCP, and then later manually change the IP address configuration within the guest OS to use a static IP address, VMM detects this change. When VMM scans or refreshes the virtual machine’s configuration, it updates the IPv4AddressType property for the network adapter from ‘Dynamic’ to ‘Static’ to match the configuration observed within the guest OS.

The problem arises during the migration process, specifically within the placement engine’s evaluation phase. When the VMM placement engine calculates host ratings and determines the best destination for the VM, it checks the requirements of the virtual machine against the capabilities of potential hosts. Seeing the network adapter’s IPv4AddressType set to ‘Static’, the placement engine expects that this static IP address should be sourced from a VMM-managed static IP pool associated with the VM Network the adapter is connected to. When it finds that no static IP pool is defined or associated with that particular VM Network, it flags this discrepancy as an error, generating errors 23801 and 23753.

Crucially, this check is part of the placement logic, which is primarily for recommending hosts or validating configuration. Since the VM is using a static IP configured within the guest OS and not relying on VMM for IP assignment from a pool, the actual network connectivity post-migration works correctly. The VM retains its statically assigned IP address and can communicate on the network, provided the destination host’s physical networking is correctly configured to connect to the VM Network’s fabric. The errors are thus warnings about a potential misconfiguration according to VMM’s expectations rather than an actual failure of the network connection itself.

The placement engine is designed to ensure that when VMM is managing static IP assignments (via IP pools), the target host can fulfill that requirement. In this specific scenario, the guest OS static IP bypasses VMM’s IP management, leading to the placement engine’s incorrect assumption and the resulting errors. Resolving this involves either aligning the VMM configuration with the desired guest OS configuration or ensuring VMM can manage the static IP assignment if that is the long-term goal.

Resolving the Errors: Aligning Configuration¶

Resolving errors 23801 and 23753 primarily involves addressing the configuration mismatch between the virtual machine’s network adapter properties as seen by VMM and the actual or desired method of IP assignment. Since the migration succeeds, the underlying physical connectivity on the destination host is likely correct. The issue is specifically about how VMM perceives and expects the IP address to be assigned. There are a few approaches to resolve this, depending on whether you intend to manage the VM’s static IP via VMM IP pools or continue managing it manually within the guest OS.

Option 1: Configure a Static IP Pool in VMM¶

This is the recommended approach if you intend to use VMM’s static IP management capabilities or if you want VMM’s configuration to accurately reflect the static IP usage. This involves defining a static IP address pool within VMM and associating it with the VM Network that the problematic virtual machine is connected to.

Step 1: Identify the VM Network:
In the VMM console, navigate to the virtual machine properties. Under “Hardware Configuration”, find the network adapter causing the error. Note the VM Network it is connected to. This is the network for which you need to configure an IP pool.

Step 2: Check for Existing IP Pools:
Go to “Fabric” -> “Networking” -> “IP Pools”. Expand “Logical Networks” and find the Logical Network associated with your VM Network. See if there are any static IP pools defined under this Logical Network. If a pool exists, check if it is associated with the specific VM Network identified in Step 1.

Step 3: Create a Static IP Pool (if needed):
If no appropriate static IP pool exists, right-click the relevant Logical Network and select “Create IP Pool”.
* Name and Description: Provide a descriptive name (e.g., “IP Pool for [VM Network Name]”).
* Logical Network: Select the Logical Network identified in Step 2.
* VM Network: Crucially, select the specific VM Network that the VM’s network adapter is using. This step links the IP pool to the VM Network.
* Subnet: Define the subnet range for the static IP pool. This should correspond to the network segment used by the VM Network. Ensure the range is appropriate and does not overlap with existing DHCP scopes or manually assigned static IPs outside this pool.
* Gateway, DNS, WINS: Configure gateway, DNS servers, and WINS servers as required for this subnet.
* IP Addresses: Add the range of IP addresses within the subnet that VMM can assign. You can exclude addresses that are already in use.
* Summary: Review the configuration and finish the wizard.

Step 4: Verify IP Pool Association:
After creation, go back to the IP Pool properties. Ensure the “VM networks” tab correctly lists the target VM Network.

Step 5: Validate VMM Configuration:
Even though the VM has a static IP configured inside the guest, VMM now sees a static IP pool available for the associated VM Network. During the next migration or placement calculation, VMM’s placement engine should now find the expected static IP pool, and the errors 23801 and 23753 related to the missing IP pool should no longer appear for this specific reason. VMM will not assign an IP from the pool in this case (as the guest already has one), but the availability of the pool satisfies the placement engine’s requirement triggered by the adapter’s ‘Static’ IPv4AddressType.

Option 2: Reconfigure the VM Network Adapter in VMM¶

If you prefer to manage the IP address manually within the guest OS and do not want VMM to expect a static IP pool for this specific VM Network adapter, you can try changing the adapter’s configuration within VMM.

Step 1: Access VM Properties:
In the VMM console, navigate to the virtual machine properties.

Step 2: Modify Network Adapter Settings:
Under “Hardware Configuration”, select the network adapter reporting the error. Find the Connectivity section.
* Look for the IPv4 Address Type setting. If it is set to ‘Static’, this is the source of the issue according to VMM’s placement engine.
* Change the IPv4 Address Type from ‘Static’ back to ‘Dynamic’.

Step 3: Understand the Implications:
Changing the setting in VMM to ‘Dynamic’ tells VMM’s placement engine that this VM network adapter is expected to receive its IP via DHCP, not from a VMM static IP pool. This should prevent the placement engine from looking for a static IP pool, thus resolving errors 23801 and 23753 related to the missing pool.

Important Consideration: This change in VMM’s configuration does not affect the IP address configuration inside the guest operating system. The VM will continue to use the static IP address you configured manually within the guest OS. This approach resolves the VMM errors by making VMM expect dynamic IP assignment, which aligns better with a scenario where you are manually managing the IP within the guest and not using VMM IP pools for this network.

This option is suitable if you are using a static IP within the guest for specific reasons and do not want VMM to manage that IP assignment. It essentially tells VMM to ignore the static IP configuration from its placement calculations regarding static pools.

Option 3: Correcting Host Network Configuration (for Error 23801 emphasis)¶

While the primary cause in this scenario is often the IP pool mismatch triggered by the guest OS static IP, error 23801 also mentions ensuring “host NICs have connection to the fabric network on which VM Network is created.” If error 23801 persists even after addressing the IP pool issue (Option 1) or changing the adapter type in VMM (Option 2), it suggests a deeper issue with the destination host’s connection to the underlying network fabric represented by the VM Network.

Step 1: Identify the Logical Network:
Determine the Logical Network associated with the VM Network the VM is connected to. (VM Properties -> Hardware Configuration -> Network Adapter -> VM Network -> View Logical Network).

Step 2: Verify Host’s Logical Network Configuration:
On the potential destination host(s), navigate to “Fabric” -> “Servers” -> [Host Name] -> “Properties”.
* Go to the “Hardware” tab, then select “Network Adapters”.
* Identify the physical network adapter(s) connected to a Virtual Switch that is part of the Logical Network identified in Step 1.
* Ensure the adapter(s) are correctly configured within the Logical Network and that they have the correct Network Sites associated.

Step 3: Check Physical Connectivity:
Verify that the physical network cable is connected and that the physical switch port is correctly configured (VLANs, etc.) to carry traffic for the subnet(s) defined within the Logical Network and VM Network. VMM relies on the underlying physical configuration being correct. The placement engine checks if the host’s network adapters are associated with the Logical Network and Network Sites required by the VM Network.

Step 4: Update Host Configuration in VMM:
Sometimes, refreshing the host configuration in VMM can help. Right-click the host in the VMM console and select “Refresh”.

In the context of the specific errors caused by the guest OS static IP, the core issue is the IP pool expectation. However, error 23801’s message about host connectivity is a valid general check and should be verified if the primary solutions don’t fully resolve the issue or if error 23801 appears independently of 23753.

Understanding VMM Network Concepts¶

To effectively troubleshoot VMM networking errors, it’s helpful to have a grasp of the key networking components within System Center Virtual Machine Manager.

• Logical Networks: Represent the underlying physical network infrastructure. They are containers for Network Sites and provide a way to abstract the physical network from virtual machine configurations. A Logical Network can span multiple host clusters and physical locations. They define the network segments (subnets and VLANs) available for use by virtual machines.
• Network Sites: Define specific network subnets and VLANs within a Logical Network that are available on particular hosts or host groups. This allows VMM to understand which IP ranges and VLANs are reachable from which part of your infrastructure.
• VM Networks: Are built on top of Logical Networks. They provide a simplified view of network connectivity for virtual machines. VMs connect to a VM Network, which is then mapped to a specific Logical Network and Network Site on the host. VM Networks can be isolated (e.g., private VLANs) or connected directly to the underlying Logical Network.
• IP Pools: Are ranges of IP addresses within a Logical Network’s subnet that VMM can manage and assign to virtual machines. Static IP pools are used for assigning fixed IP addresses, while DHCP is the alternative for dynamic assignment, where VMM does not manage the IP addresses directly.
• Port Profiles: Define standard configurations for virtual network adapters (like bandwidth, security settings) or logical switches (like uplink configurations). While not directly tied to the IP pool error, they are fundamental to consistent network configuration.

The errors 23801 and 23753 arise when VMM’s placement engine examines a VM’s network adapter, sees it connected to a specific VM Network, notes that its IPv4AddressType is ‘Static’, and then checks if the underlying Logical Network configuration for that VM Network includes a VMM-managed static IP pool that the potential destination host has access to (via Network Sites). When this check fails, the errors are generated.

Visualizing VMM Network Configuration (Mermaid Diagram Example)¶

Understanding how these components connect can clarify the issue. Here’s a simplified diagram using Mermaid syntax showing the relevant parts:

```mermaid
graph TD
subgraph VMM Configuration
A[Logical Network: Production] → B(Network Site: SiteA)
B → C(Subnet/VLAN: 192.168.1.0/24, VLAN 10)
C → D{Static IP Pool: 192.168.1.100-200}
end
subgraph VM Configuration
E[Virtual Machine: WebServer01] → F(Network Adapter: Ethernet0)
F → G{VM Network: Production-VLAN10}
end
subgraph Host Configuration
H[Hyper-V Host: Host01] → I(Logical Switch: Production-Switch)
I → J(Physical Adapter: eth0)
J → K(Associated with Logical Network: Production)
K → L(Associated with Network Site: SiteA)
end
subgraph Placement Engine
M(Placement Engine)
end

G -- based on --> B
G -- requires access to --> D
H -- provides access to --> K
K -- provides access to --> L
L -- includes --> C
C -- contains --> D

M -- evaluates E's F requirements --> G
M -- sees F IPv4Type=Static --> M1[Expects Static IP Pool]
M1 --> M2(Checks if D is available via H)
D -- Linked to --> G
H -- Connected via --> I
I -- Linked to --> K, L
L -- Contains --> C
C -- Contains --> D

%% Problem Path
G -- is connected to --> E
E -- has IPv4Type=Static in VMM DB --> M1
M1 -- expects D linked to G --> Check if D is linked to G
%% If D is NOT linked to G, or if D is missing:
M2 -- Fails Check --> N(Generate Errors 23801/23753)

```
Diagram Explanation: The VM (E) connects to a VM Network (G). VMM tracks that the VM’s adapter (F) has a Static IPv4 Type. The Placement Engine (M) uses this information during migration. It checks if a Static IP Pool (D) is available for the VM Network (G) on the destination Host (H). The Host provides access to Logical Networks (K) and Network Sites (L) via its Logical Switch (I) and physical adapter (J). Logical Networks contain Subnets (C), which contain IP Pools (D). If the IP Pool (D) is either missing or not correctly linked to the VM Network (G) in the VMM configuration, the Placement Engine’s check fails, leading to the errors (N), even if the Host (H) has physical connectivity to the underlying subnet.

Additional Troubleshooting Tips¶

• Refresh VM: After making configuration changes in VMM (like changing the IPv4AddressType), refresh the virtual machine object in the VMM console to ensure VMM picks up the changes before attempting migration again.
• Refresh Host: Similarly, refresh the host object after making changes related to Logical Networks or physical adapter configurations on the host.
• VMM Service Restart: In rare cases, restarting the System Center Virtual Machine Manager service on the VMM server might be necessary for configuration changes to take full effect, especially after significant network reconfigurations.
• Audit Trails: Check the VMM job history details thoroughly. Sometimes, other informational messages or warnings accompany the main errors, providing additional context.
• VMM Tracing: For complex issues, enabling VMM tracing can provide detailed logs of the placement process and network checks, which can help pinpoint exactly where the validation fails. This is an advanced troubleshooting step.

While these errors are often benign warnings in the specific scenario of guest OS static IP, they highlight a discrepancy that should ideally be resolved for accurate VMM configuration and optimal use of its features.

Relevant Video Resource¶

Understanding the broader context of VMM networking configuration is key. While a video specifically on these error codes in this scenario might be rare, a video explaining VMM’s Logical Networks, VM Networks, and IP Pools can provide valuable foundational knowledge.

[Consider embedding a relevant YouTube video here if available, e.g., search for “System Center VMM Networking Configuration” or “VMM Logical Networks”. If embedding, ensure it aligns with the topic. For this response, I will use a placeholder description as finding a specific relevant video without external search is difficult.]

Example Placeholder for a relevant video:

Video Title Suggestion: Configuring Networking in System Center Virtual Machine Manager (VMM)

[Embed Code Placeholder or Description: A video tutorial covering the basics of setting up Logical Networks, VM Networks, and IP Pools in VMM, which are fundamental to understanding the context of these errors.]

It is important to note that the specific steps or interface elements shown in a video might vary slightly depending on the version of System Center Virtual Machine Manager being used (e.g., VMM 2012 R2, VMM 2016, VMM 2019). However, the core concepts of Logical Networks, VM Networks, and IP Pools remain consistent.

Conclusion¶

Errors 23801 and 23753 during a seemingly successful virtual machine migration in System Center Virtual Machine Manager are typically indicative of a configuration mismatch within VMM regarding how the VM’s network adapter is expected to receive an IP address. Specifically, if VMM sees the adapter as ‘Static’ (often due to a manual static IP configuration within the guest OS) but there is no corresponding VMM-managed static IP pool linked to the VM Network, the placement engine reports these errors.

Resolving this involves either creating and associating a static IP pool in VMM with the relevant VM Network (Option 1) or, if you prefer manual guest OS IP management, changing the VM adapter’s IPv4 Address Type in VMM back to ‘Dynamic’ (Option 2). While the errors might be harmless to the VM’s connectivity in this specific case, addressing them ensures VMM’s configuration accurately reflects your environment and prevents potential issues with VMM’s more advanced network-aware features. Always verify your VMM network configuration components – Logical Networks, Network Sites, VM Networks, and IP Pools – are correctly defined and linked.
