Centralized Printer Management in Windows Server: Streamlining Network Printing

Updated: • 0 • min read
Table of Contents

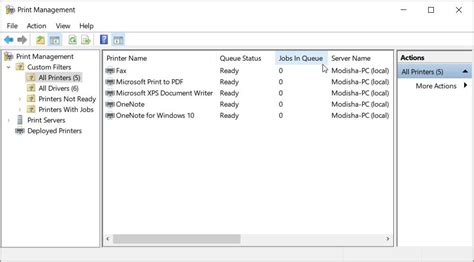

Windows Server Printer Management

Managing printers in a network environment, particularly within a Windows Server ecosystem, presents unique challenges and opportunities. Centralized printer management offers significant benefits, including simplified deployment, standardized driver usage, enhanced security, and easier monitoring. However, users and administrators can occasionally encounter unexpected behaviors, such as how printers are displayed on individual machines. This article explores a specific scenario where locally installed printers might be grouped together in the “Devices and Printers” view and provides a workaround, linking it to the broader context of effective printer management.

The Challenge of Printer Management in Networks

In organizations of all sizes, managing a diverse fleet of printers across numerous user workstations and servers can be complex. Traditional methods often involve installing printers individually on each machine, leading to inconsistencies in drivers, configurations, and potential support headaches. Updating drivers, deploying new printers, or troubleshooting issues becomes a time-consuming, decentralized process.

Centralized printer management, often facilitated by the Print and Document Services role in Windows Server, aims to alleviate these issues. By setting up print servers, administrators can deploy printers automatically via Group Policy, manage drivers centrally, control access permissions, and gain a single point of oversight for all network printing activities. This approach significantly reduces administrative overhead and improves the overall reliability and efficiency of printing operations.

However, even in centrally managed environments, users interact with printers through client-side interfaces. The “Devices and Printers” control panel applet is the primary interface users see to view their installed printers, scanners, and other peripherals. While convenient for typical use, this view can sometimes present information in a way that might seem counterintuitive to administrators or users expecting a simple one-to-one mapping of installed printer objects to displayed icons.

Understanding the Printer Grouping Phenomenon

A specific issue that administrators or users might observe is the grouping of multiple installed printer objects under a single icon within the “Devices and Printers” window. This occurs when two or more distinct printer objects, created on the local machine or connected from a server, share certain fundamental characteristics.

Consider a scenario where an administrator installs two different logical printers that both use the exact same printer driver software and are configured to send print jobs to the same physical or virtual port (e.g., LPT1, COM1, a specific TCP/IP address, or a WSD port). When viewing these installed printers in the “Devices and Printers” interface, instead of seeing two separate icons, the system might group them together under one icon, often labeled with the name of one of the printers or the driver. Expanding this grouped icon usually reveals the individual printer objects, but the initial consolidated view can be confusing.

This behavior is not necessarily an error but rather an intended design choice within the “Devices and Printers” interface to simplify the display, particularly for devices that the system identifies as fundamentally the same hardware or type.

Root Causes of Printer Grouping

Based on system behavior analysis, the primary factors contributing to printers being grouped together in the “Devices and Printers” view are threefold:

  1. Same Driver: The logical printer objects are configured to use the identical printer driver software package installed on the system. Driver consistency is crucial for device communication, and sharing the same driver is a strong indicator to the system that the printers are related.
  2. Same Port: Both printer objects are directed to send print data to the exact same port. This could be a traditional parallel (LPT), serial (COM), USB, a specific TCP/IP address for network printers, or a WSD (Web Services for Devices) port. Using the same destination port implies they are targeting the same physical or logical output endpoint.
  3. Same Hardware ID: The system identifies that the underlying hardware, or the device emulated by the driver and port combination, shares the same Hardware ID. While not always immediately obvious or configurable by the user/administrator during installation, the Hardware ID is a crucial identifier used by Windows to match devices with drivers. When two printer installations point to the same driver and same port, and the system’s device enumeration process assigns or detects the same Hardware ID profile, it reinforces the system’s decision to group them.

It’s important to note that while the driver and port are configured during installation, the Hardware ID is typically reported by the device or derived by the system based on the device’s characteristics. For instance, installing two logical printers, both using the “Microsoft XPS Document Writer” driver and pointing to the “PORTPROMPT:” port, might result in grouping because they share the same driver, port, and the system identifies them under a common Hardware ID associated with the XPS writer functionality. Similarly, installing two instances of a network printer driver pointing to the same IP address might lead to grouping if the driver and port combination results in the same perceived device identity (Hardware ID).

Workaround: Creating a Dedicated Printers Desktop Icon

While the Print Management Console (available in Windows Server and as an RSAT tool) typically displays all installed print queues separately, the “Devices and Printers” view remains the default and often preferred interface for end-users. For scenarios where seeing each printer listed individually in an accessible location is necessary, a workaround involves creating a special desktop icon that provides an alternative view of installed printers.

This workaround leverages a specific Windows feature that allows accessing certain system folders or views directly via their associated Class Identifier (CLSID) GUIDs. The “Printers” system folder view has its own unique CLSID. By creating a shortcut or a shell object on the desktop linked to this CLSID, users can access a view similar to the older “Printers and Faxes” folder from Windows XP and earlier, which historically did not group printers in the same way that the newer “Devices and Printers” interface does.

Here are the steps to implement this workaround:

  1. Access the Registry Editor: The workaround requires modifying the Windows Registry. Open the Run dialog box by pressing Windows Key + R, type regedit.exe, and press Enter.
  2. Confirm User Account Control (UAC): If prompted by User Account Control, click Yes to allow the Registry Editor to make changes.
  3. Navigate to the Target Registry Key: In the Registry Editor window, navigate through the key structure in the left pane to the following location:
    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Desktop\NameSpace
    This NameSpace key is where Windows stores CLSID entries that define objects or folders that can appear on the desktop or within Explorer views.
  4. Create a New Key: Right-click on the NameSpace key in the left pane. From the context menu, select New > Key.
  5. Name the New Key: The new key will be created under NameSpace. You need to rename this new key using the specific CLSID GUID for the Printers folder. Enter the following string exactly as shown, including the curly braces:
    {2227a280-3aea-1069-a2de-08002b30309d}
    Press Enter to confirm the new key name.
  6. Modify the Default Value: Select the newly created key ({2227a280-3aea-1069-a2de-08002b30309d}) in the left pane. In the right pane, you will see a value named (Default). This value is of type REG_SZ. Right-click on (Default) and select Modify….
  7. Set the Value Data: In the “Edit String” dialog box, under “Value data:”, enter Printers (without the quotes). This text will serve as the display name for the desktop icon or folder view this CLSID represents. Click OK.
  8. Close Registry Editor: Close the Registry Editor window.
  9. Refresh the Desktop: Return to your desktop screen. Right-click anywhere on the desktop background and select Refresh from the context menu.

After performing these steps and refreshing the desktop, a new icon labeled “Printers” should appear. Double-clicking this icon will open a dedicated window displaying all installed printers individually, regardless of whether they share drivers or ports. This provides a clear, ungrouped list, making it easier to identify and manage each printer object separately.

Within this “Printers” window, you can perform various management tasks, including:

  • Viewing the list of all installed printers.
  • Opening the print queue for any specific printer.
  • Setting a default printer.
  • Adding or removing printers.
  • Accessing printer properties and preferences.

This dedicated view effectively bypasses the grouping behavior observed in the main “Devices and Printers” control panel applet.

mermaid graph LR A[Start] --> B{Open Registry Editor}; B --> C[Navigate to NameSpace Key]; C --> D{Create New Key under NameSpace}; D --> E[Name New Key {2227a280...}]; E --> F[Select New Key]; F --> G{Modify Default Value}; G --> H[Set Value Data to "Printers"]; H --> I[Close Registry Editor]; I --> J[Refresh Desktop]; J --> K[New Printers Icon Appears]; K --> L[Double-click Icon for Ungrouped View]; L --> M[Manage Printers Individually]; M --> N[End];
Diagram: Steps to create the Printers Desktop Icon via Registry

Connecting Back to Centralized Management

While the registry workaround provides a solution for the client-side viewing anomaly, it’s important to understand its place in the broader context of centralized printer management. The Print Management Console (printmanagement.msc), the primary tool for managing print servers and network printers, does not exhibit this grouping behavior based on driver and port. It lists each installed printer queue hosted on the server or added directly to the console separately.

This highlights a key advantage of centralized management: the administrative tools provide a more granular and accurate representation of the deployed print queues. The grouping issue is primarily a function of the “Devices and Printers” user interface design on client machines, intended perhaps for user simplicity rather than administrative clarity.

Therefore, for administrators managing large numbers of printers, relying on the Print Management Console is the recommended approach for deployment, monitoring, and troubleshooting. The registry workaround is valuable primarily for end-users or administrators who prefer having an ungrouped list readily accessible on the desktop or need to troubleshoot issues from the client-side perspective where the “Devices and Printers” grouping might be confusing.

Centralized management streamlines driver deployment, ensuring consistency and often mitigating potential driver conflicts that could theoretically contribute to or interact with the grouping logic. By deploying standardized drivers from a print server, administrators reduce variables on client machines, leading to a more predictable printing environment.

Troubleshooting and Best Practices

If you encounter printer grouping or other unexpected behaviors:

  • Verify Drivers: Ensure that if printers are intended to be distinct, they are using appropriately different drivers if possible, although this may not always be feasible or desirable. Using vendor-specific drivers rather than generic ones can sometimes influence system behavior.
  • Check Port Configuration: Double-check that different logical printers are not accidentally configured to use the exact same port, unless they are intended to be alternative configurations for the same physical device (e.g., one queue with default settings, another with specific settings, both pointing to the same printer IP).
  • Utilize Print Management Console: For server administrators, use printmanagement.msc to get the definitive view of installed queues on a print server. This tool does not group based on the criteria causing issues in “Devices and Printers”.
  • Consider WSD Ports: While convenient, WSD ports can sometimes be associated with grouping or discovery issues. Using standard TCP/IP ports with a static IP address is often more reliable for network printers.
  • Driver Isolation: Modern Windows versions support driver isolation, which runs printer drivers in separate processes. This improves stability and can prevent one faulty driver from affecting others, though it might not directly impact the grouping behavior in “Devices and Printers”.

The specific issue of grouping in “Devices and Printers” is a long-standing behavior in Windows, present in various versions. While it might seem like a minor cosmetic issue, it can impede usability for users trying to select a specific printer from a list or for administrators troubleshooting client-side views. The registry workaround provides a simple yet effective way to restore a more traditional, ungrouped view of printers on the desktop, complementing the capabilities offered by centralized management tools like the Print Management Console.

Conclusion

Effective printer management is vital for smooth business operations. While centralized solutions simplify deployment and administration on the network side, understanding and addressing client-side display anomalies, such as the grouping of printers in “Devices and Printers,” is also important for a positive user experience. The described grouping behavior, driven by shared drivers, ports, and Hardware IDs, is an expected function of that specific interface. The provided registry workaround offers a practical method to create an alternative view that lists printers individually, providing a clearer overview for users and facilitating easier selection and management. By combining robust centralized management practices with client-side workarounds where necessary, organizations can build a more resilient and user-friendly printing infrastructure.
