Dynamics 365 Guides Content Migration: Troubleshooting Import Failures

Table of Contents

Microsoft Dynamics 365 Guides is a mixed-reality application that empowers organizations to create step-by-step holographic instructions for their employees. These guides help frontline workers complete complex tasks more efficiently and accurately, providing hands-on learning directly in their work environment. The data associated with these guides, including the detailed steps, 3D models, images, and videos, is stored within Microsoft Dataverse, the underlying data platform for Dynamics 365 applications.

Migrating content from one Dynamics 365 Guides environment to another can be a crucial task for various reasons. Organizations might need to move guides from a development or staging environment to production, consolidate content from multiple instances, or create backups. To facilitate this process, Microsoft provides the Content Migration Tool, offered as a Public Preview script. This tool is designed to extract guide content from one Dataverse environment and import it into another, streamlining what would otherwise be a manual and time-consuming process. However, like any tool, particularly one in public preview, users may encounter issues during its operation.

Successfully utilizing the Content Migration Tool requires meeting certain prerequisites. Users must have access to the Dataverse environments involved (source and target) with appropriate security roles to read and write guide data. The tool itself is a PowerShell script, meaning a compatible version of PowerShell must be installed on the machine executing the script. Furthermore, the script relies on specific PowerShell modules, such as Microsoft.Xrm.Data.Powershell, to interact with the Dataverse environments. Ensuring all prerequisites are met before running the tool is a critical first step in avoiding potential errors.

Symptoms¶

When attempting to run the PowerShell script provided as part of the Dynamics 365 Guides Content Migration Tool (Public Preview), users may encounter a specific error message that halts the script’s execution. This error typically occurs early in the script’s lifecycle, specifically when it attempts to load or import necessary modules or components. The observed error message directly points to a failure related to one of the required PowerShell modules.

The specific error message reported is:

Failed to import Microsoft.Xrm.Data.Powershell.

This message indicates that the PowerShell environment was unable to successfully load the Microsoft.Xrm.Data.Powershell module. This module is essential for the script to establish connections to your Dataverse environments and perform the data migration operations. A failure at this stage means the script cannot proceed with reading data from the source environment or writing data to the target environment, effectively rendering the tool unusable until the import issue is resolved.

Understanding why this module import might fail is key to troubleshooting. PowerShell has security mechanisms in place, especially when dealing with scripts and modules downloaded from the internet. These mechanisms are designed to protect users from potentially malicious code. When a file is downloaded, Windows often adds a special marker called the “Mark of the Web” to it. By default, PowerShell’s execution policies might prevent or restrict the execution of scripts or the import of modules marked in this way, leading to errors like the one observed.

The Microsoft.Xrm.Data.Powershell module, being a custom module required by the migration tool script, must be successfully loaded into the PowerShell session. If the module files or the script file itself carry the Mark of the Web, PowerShell’s security features can block their execution or import. This protection mechanism is the most common reason for the “Failed to import Microsoft.Xrm.Data.Powershell” error when using tools downloaded from external sources, even trusted ones like Microsoft Learn.

Resolution¶

The primary cause of the “Failed to import Microsoft.Xrm.Data.Powershell” error when using the Dynamics 365 Guides Content Migration Tool (Public Preview) is often related to Windows security blocking the execution or import of the script or its required components. Specifically, files downloaded from the internet may be marked with the “Mark of the Web,” triggering security restrictions in PowerShell. The resolution involves explicitly “unblocking” the downloaded files to remove this security restriction.

Before running the PowerShell script for the Content Migration Tool, ensure that the downloaded .zip folder containing the tool’s files is unblocked. When you download a .zip archive from the internet, Windows typically marks the entire archive with the Mark of the Web. Extracting files from a blocked archive might carry the mark over to the extracted files, or it might not, depending on the Windows version and extraction method. The most reliable approach is to unblock the .zip file before extracting its contents. Unblocking the .zip file tells the operating system that you trust the source of the file and that its contents should not be treated as potentially unsafe internet files.

Once the .zip file is unblocked, extract its contents to a local folder. The extracted files, including the main PowerShell script and any required module files (like those for Microsoft.Xrm.Data.Powershell), should now also be unblocked. With the Mark of the Web removed, PowerShell should be able to import the necessary modules without triggering the security restrictions that caused the error. This simple step often resolves module import failures for downloaded scripts and tools.

There are two primary methods for unblocking downloaded files on Windows: using the File Explorer properties dialog or using the PowerShell Unblock-File cmdlet. Both methods achieve the same result – removing the Mark of the Web – but one might be more convenient depending on your preference or specific situation. It is crucial to perform this step before attempting to run the migration script to ensure the script and its dependencies are trusted by your system.

Detailed Steps: Unblocking via File Explorer Properties¶

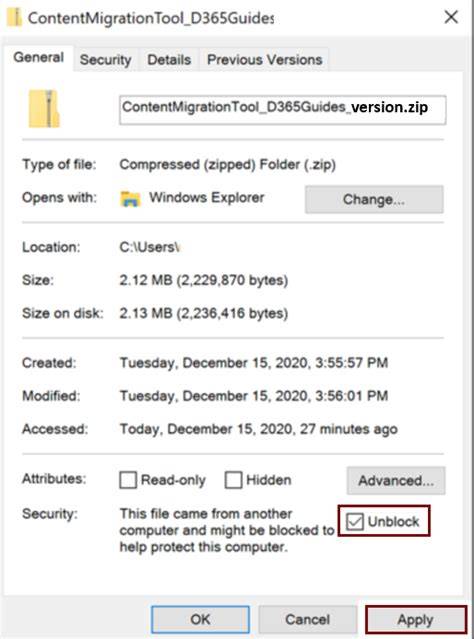

This is typically the easiest method for a single file or a downloaded zip archive. Follow these steps to unblock the Content Migration Tool zip file using File Explorer:

1. Navigate to the folder where you saved the downloaded .zip file containing the Dynamics 365 Guides Content Migration Tool (Public Preview). Ensure you know the exact location of the file.
2. Right-click on the .zip file (e.g., ContentMigrationTool.zip). This action will open the context menu for the file.
3. Select “Properties” from the context menu. This will open a dialog window displaying various properties and settings for the file.
4. In the Properties dialog window, look for a section towards the bottom of the “General” tab. If the file was downloaded from the internet and potentially blocked, you will typically see a security notice.
5. The notice will state something similar to: “This file came from another computer and might be blocked to help protect this computer.”
6. Below this notice, there will be a checkbox labeled “Unblock”. Click on this checkbox to select it.
7. After checking the “Unblock” box, click the “Apply” button, and then click “OK” to close the Properties dialog.
8. Now that the .zip file is unblocked, extract its contents to a desired folder. The files extracted from this unblocked archive should inherit the unblocked status.
9. Attempt to run the Content Migration Tool PowerShell script again from the extracted folder. The Microsoft.Xrm.Data.Powershell module should now import successfully.

Detailed Steps: Unblocking via PowerShell Unblock-File Cmdlet¶

If you prefer using the command line, or if the File Explorer option is not available for some reason, you can use the Unblock-File cmdlet in PowerShell. This method is particularly useful if you have multiple files to unblock or are scripting the process.

1. Open PowerShell. You might need to run it as an administrator, depending on your system’s configuration and the location of the file.
2. Use the Unblock-File cmdlet followed by the path to the downloaded .zip file.
3. For example, if the zip file is located at C:\Downloads\ContentMigrationTool.zip, you would type the following command and press Enter:


   Unblock-File -Path "C:\Downloads\ContentMigrationTool.zip"



   Make sure to replace "C:\Downloads\ContentMigrationTool.zip" with the actual path to your downloaded file.
4. The Unblock-File cmdlet does not typically produce output upon success. If there are no error messages, the command likely completed successfully.
5. After running the command, the .zip file should be unblocked.
6. Extract the contents of the now unblocked .zip file to your desired location. The extracted files should also be unblocked.
7. Navigate to the extracted folder in PowerShell or File Explorer and run the Content Migration Tool script. The Microsoft.Xrm.Data.Powershell module import should now succeed.

Why Unblocking Works: The Mark of the Web Explained¶

The Mark of the Web (MotW) is a security feature in Windows that helps protect users from potentially harmful files downloaded from untrusted sources. When you download a file using a web browser or certain other applications, the NTFS file system can store metadata that identifies the file’s zone of origin (e.g., Internet, Intranet, Local machine). Files originating from the “Internet” zone are often marked with the MotW.

PowerShell, by default, has execution policies that can restrict or prevent the running of scripts and loading of modules that have the Mark of the Web. This is a security measure to prevent malicious scripts downloaded unknowingly from automatically executing and potentially causing harm. The “Failed to import Microsoft.Xrm.Data.Powershell” error is PowerShell enforcing this policy because the downloaded module files (or the script trying to import them) are flagged as originating from the internet.

Unblocking a file manually (either via File Explorer properties or the Unblock-File cmdlet) removes this specific metadata flag. This tells Windows and applications like PowerShell that you, the user, have reviewed or trust this file and are giving explicit permission for it to be treated as a local, trustworthy file. Once the Mark of the Web is removed, PowerShell’s security policies that block internet-sourced files are no longer applied to it, allowing the script and its modules to run without the import error.

Additional Troubleshooting Tips¶

While unblocking the downloaded zip file is the most common solution for the specific Microsoft.Xrm.Data.Powershell import error, other issues can arise when using the Content Migration Tool (Public Preview). If the unblocking step does not resolve the issue, consider the following:

• Verify Prerequisites: Double-check that your system meets all the requirements for running the tool, including the correct PowerShell version and necessary .NET components. Ensure you have active user accounts with sufficient privileges in both the source and target Dataverse environments to perform read and write operations on Guides data.
• PowerShell Execution Policy: While less likely to cause a module import error specifically related to MotW after unblocking, ensure your PowerShell execution policy allows running scripts. The recommended policy for running downloaded scripts safely after reviewing them is RemoteSigned. You can check your policy using Get-ExecutionPolicy and set it using Set-ExecutionPolicy RemoteSigned.
• Module Location: Ensure the Microsoft.Xrm.Data.Powershell module is correctly placed or accessible by the script. The migration tool’s documentation should specify how the module is included or where it needs to be installed. Typically, it’s included within the tool’s folder structure, and the script handles importing it locally. Verify that all files were extracted correctly from the zip.
• Dataverse Connection: Once the script runs past the import stage, connection errors to your Dataverse environments might occur. Verify the connection string, organization URL, and user credentials being used by the script are correct and that there are no network or firewall issues preventing communication with Dataverse.
• Tool Documentation: As the tool is in Public Preview, always refer to the latest documentation provided by Microsoft. Preview tools may have specific requirements, limitations, or known issues that are detailed in their accompanying documentation. The documentation might also provide updated troubleshooting steps or newer versions of the script.
• Public Preview Status: Remember that “Public Preview” means the tool is still under development and testing. It may not be fully feature-complete, might contain bugs, or could undergo significant changes before general availability. Use it with caution, preferably in non-production environments first, and be prepared for potential issues that require support from Microsoft.

By addressing the Mark of the Web issue through unblocking and considering these additional troubleshooting steps, you can significantly increase your chances of successfully using the Dynamics 365 Guides Content Migration Tool to manage your guide content across environments.

We hope this detailed guide helps you resolve import failures with the Dynamics 365 Guides Content Migration Tool. Have you encountered this issue? Do you have other tips that helped you resolve it? Share your experiences and questions in the comments below!
