Enhance Windows Security: Temporarily Suspend BitLocker During Non-Microsoft Updates

Table of Contents

Applies to: Windows 10

Maintaining a secure computing environment is paramount, especially when dealing with sensitive data. BitLocker Drive Encryption is a powerful security feature built into Windows that helps protect data by providing encryption for entire volumes. This encryption is seamlessly integrated into the operating system’s startup process to ensure your data remains protected even if your device is lost or stolen. However, certain types of system modifications, particularly those originating from sources other than standard Windows updates, can sometimes conflict with BitLocker’s integrity checks. Understanding when and how to temporarily suspend BitLocker protection is crucial for successful system maintenance and avoiding unexpected issues.

Certain non-Microsoft software updates interact with the foundational layers of your system, including components critical to the boot process. These updates can range from essential security patches for your computer’s hardware to fundamental changes in how your system interacts with its components. For example, updating the firmware on your motherboard (BIOS/UEFI), updating the Trusted Platform Module (TPM) firmware, or installing specific non-Microsoft applications that integrate deeply with the boot sequence can alter the state of the system before Windows fully loads. BitLocker is designed to detect unauthorized changes to these pre-boot components as a security measure. When BitLocker detects a change it doesn’t recognize (because the update modified a protected area), it assumes a potential tampering attempt and locks the drive, requiring the recovery key to proceed.

To prevent this security mechanism from triggering unnecessarily during legitimate updates, you must temporarily disable BitLocker protection using the Suspend protection feature. This action doesn’t decrypt your drive entirely but rather makes the encryption key accessible during the boot process without requiring the standard validation checks. It’s like putting the key in a readily accessible spot instead of locking it away, but only for a specific, limited time or number of reboots. This allows the system to boot and the update to complete without the conflict that would otherwise arise.

Failure to suspend BitLocker protection before applying these types of updates can lead to significant inconvenience and potential data loss. If BitLocker protection is active and the update modifies the boot components, the system will not recognize the standard BitLocker key during startup. Instead, it will immediately prompt you to enter the BitLocker recovery key. While having the recovery key allows you to unlock the drive and boot into Windows, this prompt will reappear every time you restart the system until the BitLocker protection is properly resumed or the system configuration change is registered by BitLocker. Forgetting or losing your BitLocker recovery key in this scenario means you will be unable to access your data, potentially requiring a complete reinstallation of the operating system and leading to irreversible data loss.

The Suspend protection feature is specifically designed to handle situations like these. It allows firmware and hardware updates to be applied successfully without triggering BitLocker’s recovery mode. Once the updates are complete and the system has restarted as needed, you can manually resume BitLocker protection. Resuming protection reinstates the necessary pre-boot integrity checks, ensuring that your data remains secured against unauthorized access and tampering attempts from that point onward.

It is important to note that suspending BitLocker protection, depending on the method used, might leave the drive in a state where it is accessible without the standard pre-boot authentication until you manually resume protection. While this is necessary for certain updates, it means your drive is temporarily more vulnerable during this period. Therefore, it is crucial to perform the required updates promptly after suspending BitLocker and to resume protection as soon as the process is complete and the system is stable. This minimizes the window of potential vulnerability.

Updates Requiring BitLocker Suspension¶

Identifying exactly which non-Microsoft updates require BitLocker suspension is key. The most common culprits are those that interact with the very first stages of the boot process, before the Windows operating system fully loads. These include:

• Computer Manufacturer Firmware Updates (BIOS/UEFI Updates): These updates change the fundamental software that controls your computer’s hardware at the lowest level. Since BIOS/UEFI is loaded before the operating system and is part of the boot sequence that BitLocker monitors, any modification requires BitLocker to be temporarily disabled.
• TPM Firmware Updates: The Trusted Platform Module (TPM) is a security chip often used by BitLocker to store the encryption key and provide hardware-based protection. Updates to the TPM’s own firmware modify this critical security component, which BitLocker will detect as a change.
• Non-Microsoft Application Updates that Modify Boot Components: Certain specialized applications, often security software, low-level system utilities, or virtualization software, might install drivers or components that load very early in the boot process. If an update to such an application alters these components, it can also trigger BitLocker recovery mode.

Always check the documentation provided with the non-Microsoft update you are installing. The manufacturer or software vendor should specify if BitLocker needs to be suspended beforehand. When in doubt, especially with firmware or low-level system updates, suspending BitLocker is a safer approach than risking a recovery key prompt or potential data loss.

BitLocker Recovery Key: Your Lifeline¶

Before you even consider suspending BitLocker, ensure you have your BitLocker recovery key readily available. This 48-digit numerical password is your failsafe. If anything goes wrong during the update process, or if you forget to resume BitLocker and it triggers the recovery prompt on a subsequent boot, the recovery key is the only way to access your encrypted data without wiping the drive.

You can typically find your BitLocker recovery key in several places:
* Your Microsoft account (if you signed in with one when encrypting).
* A printout you saved.
* A USB flash drive.
* An Azure Active Directory account (for work/school devices).
* Saved to a network share (common in enterprise environments).

Take a moment before starting any update or suspending BitLocker to confirm you know where your recovery key is and that it is the correct key for the drive you are updating.

Suspending and Resuming BitLocker: Two Methods¶

Windows provides two primary methods for suspending and resuming BitLocker protection on a system drive: using the graphical interface through the Control Panel or using the command-line interface through PowerShell. Both methods achieve the same result, offering flexibility based on user preference or administrative requirements.

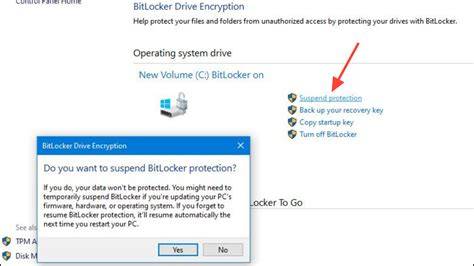

Suspend and Resume BitLocker Protection Using the Control Panel¶

The Control Panel provides a user-friendly graphical interface for managing BitLocker settings. This method is straightforward and recommended for most individual users.

Here’s how to suspend BitLocker protection via Control Panel:

1. Open the Control Panel. You can usually find this by searching for “Control Panel” in the Windows search bar.
2. Navigate to System and Security.
3. Under System and Security, click on BitLocker Drive Encryption.
4. Locate the drive for which you want to suspend protection (usually your operating system drive, labeled “C:”).
5. Click on the Suspend protection option next to the desired drive.
6. A confirmation dialog will appear explaining what suspending protection means. Select Yes to confirm and suspend BitLocker.

Your drive’s BitLocker status will change to “Protection is Suspended.” Remember that the drive will remain in this state until you manually resume protection.

Here’s how to resume BitLocker protection via Control Panel:

1. Open the Control Panel.
2. Navigate to System and Security.
3. Under System and Security, click on BitLocker Drive Encryption.
4. Locate the drive that currently has protection suspended.
5. Click on the Resume protection option next to the suspended drive.
6. A confirmation dialog will appear. Select Yes to confirm and resume BitLocker.

BitLocker will immediately resume monitoring the boot components and will require the standard authentication on subsequent startups. It’s a good practice to restart your computer once after resuming protection to ensure everything is functioning correctly.

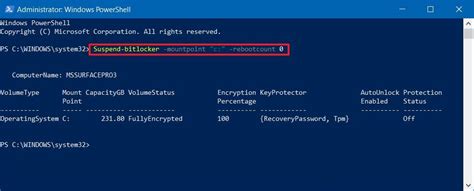

Suspend and Resume BitLocker Protection Using PowerShell¶

PowerShell offers a command-line interface that is often preferred by advanced users, IT administrators, or for scripting automated tasks. It provides more granular control, including the ability to specify how long BitLocker should remain suspended.

Here’s how to suspend BitLocker protection using PowerShell:

1. Go to the Start menu.
2. In the Search bar, type PowerShell.
3. Locate Windows PowerShell in the search results.
4. Press and hold (or right-click) on Windows PowerShell and select Run as administrator. This is crucial as BitLocker operations require elevated privileges.

5. In the Administrator: Windows PowerShell window, enter the following command and press Enter:

   Suspend-BitLocker -MountPoint "C:" -RebootCount 0


   • Suspend-BitLocker is the command cmdlet to suspend BitLocker.
   • -MountPoint "C:" specifies the drive letter of the volume you want to suspend (replace “C:” if necessary).
   • -RebootCount 0 is a powerful parameter. It specifies the number of times the computer can restart before BitLocker protection is automatically re-enabled. You can use values from 0 to 15. A value of 0 means BitLocker protection will remain suspended indefinitely until you manually resume it using either the Control Panel or a specific PowerShell command. A value greater than 0 would automatically resume BitLocker after that number of restarts, which can be useful for updates that require a fixed number of reboots.

Here’s how to resume BitLocker protection using PowerShell:

1. Open Windows PowerShell as administrator, following steps 1-4 from the suspension process.

2. In the Administrator: Windows PowerShell window, enter the following command and press Enter:

   Resume-BitLocker -MountPoint "C:"


   • Resume-BitLocker is the command cmdlet to resume BitLocker.
   • -MountPoint "C:" specifies the drive letter of the volume you want to resume protection on.

Using PowerShell provides flexibility. If you know an update requires exactly two reboots, you could use -RebootCount 2. BitLocker would automatically re-enable after the third boot. However, for many manual updates, using -RebootCount 0 and manually resuming protection via Control Panel or the Resume-BitLocker command is a safer bet to ensure the update process is fully completed before reenabling protection.

Considerations for -RebootCount¶

The -RebootCount parameter in the Suspend-BitLocker cmdlet is a key feature for automating the re-enablement of BitLocker after a specified number of reboots. Understanding how it works is important:

• RebootCount 0: BitLocker remains suspended until manually resumed. This is the safest option when you are unsure how many reboots an update might require or if the process is complex and you want full control over when protection is restored.
• RebootCount 1: BitLocker will automatically resume after the next successful boot. Useful for updates that require a single restart.
• RebootCount X (where X is between 1 and 15): BitLocker will remain suspended for X number of successful boots and automatically resume on the (X+1)th boot. Use this if the update documentation explicitly states a fixed number of required reboots.

Choosing the correct RebootCount is important. If you set a count that is too low and the update requires more reboots than specified, BitLocker might resume prematurely and trigger recovery mode on a later boot. If you set it too high or use 0 and forget to manually resume, your drive remains less protected for a longer period. When in doubt, using RebootCount 0 and manually resuming is generally the most cautious approach, provided you remember to perform the manual resumption.

Best Practices and Troubleshooting¶

Performing system updates that require BitLocker suspension should be done with care. Here are some best practices:

1. Backup Data: Always back up important data before performing any significant system update, especially firmware updates. While suspending BitLocker minimizes risks related to encryption, other issues during the update process itself could still occur.
2. Verify Recovery Key: As stressed earlier, confirm you have access to your BitLocker recovery key before suspending protection or starting the update.
3. Download from Trusted Sources: Obtain firmware or software updates only from the official manufacturer’s website or trusted sources to avoid malware.
4. Minimize Suspension Time: Suspend BitLocker just before performing the update and resume it as soon as the update is successfully completed and the system is stable.
5. Restart and Verify: After resuming BitLocker protection, restart your computer at least once to ensure that BitLocker prompts for the standard authentication (if configured) and boots correctly without asking for the recovery key.

What if something goes wrong?
* Prompted for Recovery Key Immediately After Update: If you forgot to suspend BitLocker, or if it resumed prematurely, you will likely see the recovery key prompt. Enter your 48-digit key to unlock the drive and boot into Windows. Once in Windows, open BitLocker Drive Encryption in Control Panel. The drive might show as “Suspended” (if RebootCount wasn’t 0 or wasn’t reached) or “Protection is On”. If it shows “Protection is On,” try suspending and then immediately resuming protection via the Control Panel. This often re-registers the system configuration with BitLocker. If it continues to ask for the key on every boot, there might be a more persistent issue, and you might need to decrypt the drive and re-encrypt it (a time-consuming process).
* Lost Recovery Key: If you do not have your recovery key and are prompted for it, accessing your data might be impossible. In such cases, the only option is often to format the drive and reinstall Windows, resulting in complete data loss on that volume. This underscores the critical importance of keeping your recovery key secure and accessible.

Suspension of BitLocker is a temporary state designed to facilitate necessary system maintenance. It is not a method for permanently disabling encryption. For ongoing data protection, ensure BitLocker protection is always resumed after updates are complete.

Consider the impact of these procedures in different environments. In a corporate setting, IT administrators might use scripting with PowerShell to automate the suspension and resumption of BitLocker across multiple machines before deploying updates. This ensures consistency and reduces the risk of users encountering recovery prompts. Individual users benefit from the straightforward Control Panel method.

Conclusion¶

BitLocker Drive Encryption is a vital tool for protecting your data on Windows 10. While it provides robust security, its design necessitates temporary suspension during certain non-Microsoft updates that modify critical boot components. By understanding why suspension is required, knowing how to perform it using either the Control Panel or PowerShell, and diligently resuming protection afterward, you can ensure smooth system maintenance while maintaining a high level of data security. Always prioritize having your BitLocker recovery key accessible and back up your data before undertaking such procedures. Responsible management of BitLocker ensures you can leverage its powerful security features without hindering necessary system updates.

Have you encountered situations where you needed to suspend BitLocker for an update? Do you prefer using the Control Panel or PowerShell for this task? Share your experiences and tips in the comments below!
