Mastering Checkbox Selection in TreeView Controls with Visual C++

Table of Contents

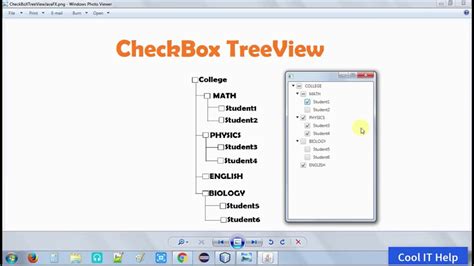

This article delves into the intricacies of detecting when a user interacts with the checkbox associated with an item within a TreeView control when using Visual C++. While TreeView controls offer the TVS_CHECKBOXES style to display checkboxes, they do not provide a straightforward notification message specifically for the state change of these checkboxes. Understanding the underlying message handling mechanism is key to successfully implementing responsive behavior when a checkbox is clicked by the user. This guide will walk you through the process of identifying such user interactions.

Understanding the Challenge: Lack of Direct Notification¶

Implementing TreeView controls with checkboxes using the TVS_CHECKBOXES style is a common UI requirement in Windows applications developed with Visual C++, often utilizing frameworks like MFC or raw WinAPI. Developers typically expect a simple notification message, similar to button clicks or list control item selections, that explicitly signals a change in the checkbox’s checked state. Unfortunately, the standard Windows TreeView control does not emit such a direct notification when the user clicks the state icon (the checkbox).

This lack of a dedicated message means that simply handling standard notifications like TVN_SELCHANGED or TVN_ITEMCHANGED will not reliably inform your application when only the checkbox state changes without the item selection necessarily changing. The challenge then becomes identifying a click specifically on the checkbox icon itself and determining the state after the control has processed the click. Without a specific notification, developers must intercept other messages and perform additional checks to pinpoint the precise user action on the checkbox.

How TreeView Processes Checkbox Clicks¶

When a user clicks on an item within a TreeView control that has the TVS_CHECKBOXES style enabled, the control sends various notifications to its parent window. One of the key notifications sent in response to a mouse click over an item is NM_CLICK. This notification is a general indicator that the user has clicked somewhere on the item’s area, but it doesn’t immediately tell you where within the item the click occurred (e.g., on the text, the icon, or the checkbox).

To determine the specific location of the click, you can use the TVM_HITTEST message. This message takes the mouse coordinates as input and returns information about which part of the TreeView item, if any, was hit. When the user clicks directly on the checkbox (or the state icon, as it’s formally called), the TVM_HITTEST message, when queried with the click coordinates, will return the TVHT_ONITEMSTATEICON flag. This flag specifically indicates that the click landed on the area occupied by the checkbox icon.

Crucially, the TreeView control itself uses this exact hit-test condition (TVHT_ONITEMSTATEICON) in conjunction with the NM_CLICK notification to detect a click on the checkbox. Upon confirming a click on the state icon, the control internally toggles the state of the checkbox (from checked to unchecked or vice-versa). However, the critical timing issue is that the TreeView performs this state toggle after it has already sent the NM_CLICK notification to the parent window. This means that if you check the item’s state immediately upon receiving NM_CLICK, you will see the state before the toggle.

Intercepting and Responding to Checkbox Clicks¶

Given the timing issue where the checkbox state is toggled after the NM_CLICK notification is processed by the parent window, a common and effective technique is to leverage the NM_CLICK notification to anticipate the state change and perform subsequent actions after the TreeView has completed its internal processing. The approach involves handling the NM_CLICK notification, performing a hit test to confirm the click was on the state icon, and then posting a custom, user-defined message back to the same window.

Posting a message using PostMessage is asynchronous; the message is placed in the window’s message queue and processed later, after the current message (the NM_CLICK) and other messages already in the queue have been handled. This delay provides the necessary time for the TreeView control to complete its internal processing and update the checkbox state before your custom message handler is invoked. When your custom message handler receives the notification, you can then query the TreeView item’s state using TVM_GETITEMSTATE and retrieve the new, updated state of the checkbox.

Implementing the Solution Structure¶

To implement this solution, you would typically follow these steps in your Visual C++ application (e.g., within an MFC dialog or view class handling the TreeView):

1. Define a Custom Message: Declare a unique identifier for your user-defined message. This is typically done using a value greater than WM_USER. For example:


   #define WM_USER_CHECKSTATE_CHANGED (WM_USER + 100)



   Choose a value that is unlikely to conflict with other messages used in your application.

2. Map the NM_CLICK Notification: In your parent window’s message map (for MFC, this is done in the .h and .cpp files), add an entry to handle the NM_CLICK notification specifically from your TreeView control. This requires knowing the control ID of your TreeView.


   // In Header (.h)
   afx_msg void OnNMClickTree(NMHDR *pNMHDR, LRESULT *pResult);

   // In Source (.cpp)
   BEGIN_MESSAGE_MAP(CMyParentWnd, CWnd)
       ON_NOTIFY(NM_CLICK, IDC_MY_TREEVIEW, OnNMClickTree)
       ON_MESSAGE(WM_USER_CHECKSTATE_CHANGED, OnCheckStateChanged) // Map custom message
   END_MESSAGE_MAP()


3. Implement the NM_CLICK Handler (OnNMClickTree): Inside this handler, retrieve the mouse coordinates associated with the click and perform a hit test on the TreeView control.


   void CMyParentWnd::OnNMClickTree(NMHDR *pNMHDR, LRESULT *pResult)
   {
       LPNMCLICK pNMClick = reinterpret_cast<LPNMCLICK>(pNMHDR);
       // Get the tree control pointer (assuming m_treeCtrl is your CTreeCtrl member)
       CTreeCtrl* pTreeCtrl = &m_treeCtrl; // Or GetDlgItem(IDC_MY_TREEVIEW)

       // Get cursor position in screen coordinates
       CPoint pt;
       GetCursorPos(&pt);

       // Convert screen coordinates to TreeView client coordinates
       pTreeCtrl->ScreenToClient(&pt);

       // Perform the hit test
       TVHITTESTINFO htInfo = {0};
       htInfo.pt = pt;
       HTREEITEM hItem = pTreeCtrl->HitTest(&htInfo);

       // Check if the click was on an item's state icon (checkbox)
       if (hItem != NULL && (htInfo.flags & TVHT_ONITEMSTATEICON))
       {
           // The click was on a checkbox.
           // Post a custom message to ourselves to handle this *after*
           // the TreeView has updated the state.
           // Pass the item handle with the message.
           PostMessage(WM_USER_CHECKSTATE_CHANGED, (WPARAM)hItem, 0);
       }

       *pResult = 0; // Indicate message processed
   }



   In this handler, we first get the mouse cursor position when the click occurred. We then convert these screen coordinates into client coordinates relative to the TreeView control. The TVHITTESTINFO structure is filled with these coordinates, and the HitTest method of the CTreeCtrl class (or the TVM_HITTEST message if using raw WinAPI) is called. If HitTest returns a valid item handle (hItem != NULL) and the TVHT_ONITEMSTATEICON flag is set in htInfo.flags, we know the checkbox was clicked. We then use PostMessage to send our custom message WM_USER_CHECKSTATE_CHANGED, passing the handle of the clicked item as the WPARAM.

4. Map the Custom Message: Add an entry to your message map to handle the custom message WM_USER_CHECKSTATE_CHANGED.


   // In Header (.h)
   afx_msg LRESULT OnCheckStateChanged(WPARAM wParam, LPARAM lParam);

   // In Source (.cpp)
   BEGIN_MESSAGE_MAP(CMyParentWnd, CWnd)
       // ... other entries ...
       ON_MESSAGE(WM_USER_CHECKSTATE_CHANGED, OnCheckStateChanged)
   END_MESSAGE_MAP()


5. Implement the Custom Message Handler (OnCheckStateChanged): This function will be called asynchronously after the NM_CLICK handling is complete and the TreeView has potentially updated the checkbox state. Retrieve the item handle from the WPARAM and query the item’s current state.


   LRESULT CMyParentWnd::OnCheckStateChanged(WPARAM wParam, LPARAM lParam)
   {
       HTREEITEM hItem = (HTREEITEM)wParam; // Retrieve the item handle

       // Get the tree control pointer
       CTreeCtrl* pTreeCtrl = &m_treeCtrl; // Or GetDlgItem(IDC_MY_TREEVIEW)

       // Get the item's state, specifically the state image index
       // The state image index determines the checkbox state (checked/unchecked)
       UINT state = pTreeCtrl->GetItemState(hItem, TVIS_STATEIMAGEMASK);

       // Convert the state image index to a 0 or 1 based checkbox state
       // TreeView checkboxes use state image list 1-based indexes:
       // Index 1 = unchecked, Index 2 = checked.
       // The state value is (Image Index << 12)
       int nImage = (state >> 12);

       bool bIsChecked = (nImage == 2); // 2 corresponds to checked state image

       // Now you know which item's checkbox was clicked AND its NEW state.
       // Perform your application logic here (e.g., update data, refresh UI)
       CString itemText = pTreeCtrl->GetItemText(hItem);
       TRACE(_T("Checkbox clicked for item '%s'. New state: %s\n"),
             itemText, bIsChecked ? _T("Checked") : _T("Unchecked"));

       // Example: Toggle children or parent state based on bIsChecked
       // This requires further logic to traverse the tree.

       return 0; // Indicate message processed
   }



   Inside OnCheckStateChanged, we cast the WPARAM back to an HTREEITEM. We then use GetItemState with the TVIS_STATEIMAGEMASK flag to retrieve the state image index associated with the item. For standard TreeView checkboxes, a state image index of 1 typically represents the unchecked state, and 2 represents the checked state. The state value returned by GetItemState contains the image index shifted left by 12 bits. By shifting right by 12 (>> 12), we get the raw image index. We can then check if this index is 2 to determine if the checkbox is now checked. At this point, you have the HTREEITEM of the affected item and its final checked state, allowing you to implement your desired application logic, such as updating a data model, enabling/disabling other controls, or managing the state of parent or child items.

This two-step process (handling NM_CLICK to detect the potential click and post a message, then handling the custom message to process the actual state change) effectively works around the TreeView’s message timing issue, providing a robust way to react to user clicks on checkboxes.

Diagram of Message Flow¶

Let’s visualize the message flow:

```mermaid
sequenceDiagram
participant User
participant TreeView
participant ParentWindow

User->>TreeView: Click on checkbox
activate TreeView
TreeView->>ParentWindow: Send NM_CLICK notification
activate ParentWindow
ParentWindow->>ParentWindow: OnNMClickTree handler
ParentWindow->>TreeView: Send TVM_HITTEST message (with click coords)
activate TreeView
TreeView-->>ParentWindow: Return HTREEITEM and TVHT_ONITEMSTATEICON flag
deactivate TreeView
alt Click is on State Icon
    ParentWindow->>ParentWindow: PostMessage(WM_USER_CHECKSTATE_CHANGED, hItem, 0)
    Note right of ParentWindow: Message queued
end
ParentWindow-->>TreeView: NM_CLICK processing ends
deactivate ParentWindow
TreeView->>TreeView: Toggle checkbox state internally
Note right of TreeView: State is now updated

loop Other messages in queue
    ParentWindow->>ParentWindow: Process other messages
end

ParentWindow->>ParentWindow: Process WM_USER_CHECKSTATE_CHANGED message
ParentWindow->>ParentWindow: OnCheckStateChanged handler
ParentWindow->>TreeView: Send TVM_GETITEMSTATE message (for hItem)
activate TreeView
TreeView-->>ParentWindow: Return updated state (with new image index)
deactivate TreeView
ParentWindow->>ParentWindow: Determine if checked based on state
ParentWindow->>ParentWindow: Execute application logic
ParentWindow-->>ParentWindow: OnCheckStateChanged finishes

```

This diagram illustrates how the custom message is processed after the TreeView has finished its internal work for the NM_CLICK notification, including the state toggle.

Additional Considerations and Best Practices¶

• Error Handling: Always check if HitTest returns a valid item handle before proceeding.
• Performance: For TreeViews with a very large number of items or frequent clicks, ensure your logic within OnCheckStateChanged is performant. Avoid complex or time-consuming operations directly in the message handler if possible; consider offloading them to a worker thread if necessary, although for typical UI updates, this is usually not required.
• State Management: This technique tells you when and which checkbox was clicked and its new state. You are responsible for updating any underlying data structures that represent the tree’s state.
• Programmatic Changes: If you need to change a checkbox state programmatically (not in response to a user click), you should use TVM_SETITEMSTATE with the TVIS_STATEIMAGEMASK and the appropriate state image index (1 for unchecked, 2 for checked). Changing the state this way does not generate the NM_CLICK notification or trigger the sequence described above. You might want to trigger your state-changed logic manually after a programmatic change.
• Parent/Child State Logic: Implementing logic where checking a parent item checks/unchecks its children, or where the parent’s state reflects the state of its children (e.g., tri-state checkboxes), requires additional code within your OnCheckStateChanged handler to traverse the tree structure starting from the clicked item and modify the state of related items using TVM_SETITEMSTATE. This adds significant complexity but is a common requirement for hierarchical checkbox lists.
• Alternative Approaches: While posting a message is a widely accepted workaround, other advanced techniques like subclassing the TreeView control to intercept messages earlier in the processing chain are possible but generally more complex to implement and maintain than the NM_CLICK and PostMessage method.

By correctly handling the NM_CLICK notification, performing a hit test to confirm the click location, and using PostMessage to asynchronously process the state change after the TreeView’s internal update, you can reliably detect and respond to user interactions with checkboxes in your Visual C++ TreeView controls. This approach ensures you are reacting to the final state of the checkbox after the user’s click has been fully processed by the control.

This method provides the necessary hook into the TreeView’s message loop to capture the moment a checkbox is clicked, offering a robust foundation for building responsive and interactive tree interfaces in your applications. Implementing this logic allows you to synchronize the UI state with your application’s data model and trigger subsequent actions based on user selections.
