Mastering Debug Mode in ASP.NET: Efficiently Troubleshoot Your Applications

Table of Contents

ASP.NET applications can be compiled and executed in a special mode known as Debug mode. This mode is specifically designed to assist developers in the crucial task of troubleshooting and identifying issues within their applications during the development phase. Enabling Debug mode instructs the ASP.NET compilation system to include additional information within the compiled assemblies. This extra data, primarily in the form of symbol files (PDB files), allows a debugger to connect to the running application process, providing granular control over execution flow and enabling detailed inspection of the application’s state. While incredibly useful for development, understanding the implications of Debug mode is vital for application performance and deployment.

The primary purpose of Debug mode is to facilitate an effective debugging experience. When an application is compiled with debug symbols, tools like the Visual Studio debugger can map the running machine code back to the original source code lines. This mapping is essential for setting breakpoints, stepping through the code line by line, and understanding the exact path of execution taken by the application in response to user input or events. Without debug symbols, debugging becomes significantly more challenging, often limited to analyzing logs or relying on exception details without the ability to pause execution and inspect variables in real-time. Therefore, Debug mode is an indispensable tool during the development and testing phases, providing the necessary hooks for deep introspection into application behavior.

However, the benefits of enhanced debugging capabilities come with notable trade-offs, primarily impacting performance and resource consumption. Debug mode introduces overhead that can significantly slow down application execution compared to Release mode. This is because the compiler generates less optimized code, and the runtime includes extra checks and paths specifically for debugging tools. Furthermore, the generation and loading of symbol files increase memory usage and initial load times. Consequently, while Debug mode is a cornerstone of the development workflow, it is critically important to understand its effects and manage its use appropriately throughout the application lifecycle.

Several distinct impacts are observed when an ASP.NET application is configured to run in Debug mode. These impacts collectively contribute to a less performant, albeit more debuggable, application state. Recognizing and anticipating these effects is key to leveraging Debug mode effectively without negatively impacting end-users or production environments. Developers should be acutely aware that an application performing acceptably in Debug mode might behave differently, and often much faster, when compiled and deployed in Release mode. This difference underscores the necessity of performance testing in Release builds.

One of the most immediate and noticeable effects is a reduction in execution speed. Code compiled in Debug mode includes additional instructions and pathways that are specifically designed to support debugging features. These extra instructions allow debuggers to attach and interact with the process, but they introduce overhead that slows down the overall execution flow. Furthermore, compilers in Debug mode perform less optimization compared to Release mode, opting for a more straightforward mapping between source code and compiled output to make debugging easier. This lack of optimization means that even simple operations might take slightly longer than they would in an optimized Release build, contributing to the cumulative performance impact.

Compilation also takes longer when Debug mode is enabled. The compiler has extra work to do, primarily generating the program database (.pdb) files alongside the compiled assemblies. These PDB files contain crucial debugging information, such as the mapping between compiled code addresses and source file lines, variable names, and type information. While not particularly large individually, generating these files for every assembly in a large project can add noticeable time to the build process. This increased compilation time is generally acceptable during iterative development where fast debugging cycles are prioritized, but it can be a factor in automated build systems if not managed carefully.

Another significant alteration in Debug mode is the extension of the execution timeout. By default, ASP.NET requests have a timeout period to prevent hung requests from consuming resources indefinitely. When Debug mode is active, this timeout is dramatically extended, often to a very large value (e.g., 30,000,000 seconds). This extended timeout is essential for debugging because it allows developers to pause execution at breakpoints for extended periods while inspecting variables, evaluating expressions, or stepping through complex logic. Without this extension, the request would time out while the developer was actively debugging, interrupting the process and making detailed analysis impossible.

Caching behavior is also altered, specifically for resources served by the WebResource.axd and ScriptResource.axd handlers. These handlers are part of ASP.NET’s infrastructure for embedding and serving resources like JavaScript files and images directly from compiled assemblies. In Debug mode, resources downloaded via these handlers are typically not cached by the browser or intermediary caches. This ensures that every time the page is refreshed during development, the latest version of the embedded resources is loaded, preventing stale content issues that could arise from aggressive caching. While beneficial for ensuring developers see their latest changes instantly, this lack of caching adds latency to page loads during development.

Finally, as mentioned earlier, code optimization is disabled entirely in Debug mode. Compilers perform various optimizations in Release mode, such as inlining small functions, removing dead code, rearranging instructions for better cache utilization, and more. These optimizations make the final code faster and sometimes smaller, but they can also make the compiled code difficult to relate back to the original source code. For example, a variable might be optimized away, or the execution path might jump unexpectedly if instructions have been reordered. Disabling optimization in Debug mode ensures a more direct correspondence between the source code and the compiled output, which is crucial for accurate stepping and variable inspection within the debugger.

Given these impacts, it is unequivocally recommended that Debug mode is always disabled in a production environment. Running a production application in Debug mode will lead to significantly degraded performance, increased resource usage, and potentially expose more internal details in error messages, which could be a security risk. Production deployments should always use Release builds, which are compiled with optimizations enabled and without debug symbols, resulting in the fastest and most efficient execution possible. Ensuring this setting is correct is a critical step in the deployment checklist for any ASP.NET application.

Enabling Debug mode in an ASP.NET application is straightforward and is controlled via the application’s web.config file. Within the <system.web> section, there is a <compilation> element that controls compilation settings. By default, or when explicitly set, the debug attribute of this element dictates whether debug mode is active. Setting this attribute to true enables Debug mode, while setting it to false disables it (the default behavior for Release builds).

<configuration>
  <system.web>
    <compilation debug="true" targetFramework="4.8">
      <!-- Other compilation settings like assemblies -->
    </compilation>
    <!-- Other system.web settings -->
  </system.web>
  <!-- Other configuration sections -->
</configuration>

It is crucial to understand that configuration settings in ASP.NET applications can be inherited from parent configurations. This means that the debug setting might not necessarily be defined directly in the application’s local web.config file but could be inherited from a web.config file in a parent directory in the IIS hierarchy or even from the machine-level machine.config file located in the .NET Framework’s configuration directory. This inheritance is a common source of issues where developers mistakenly believe debug mode is off when a higher-level configuration has enabled it. Always check the effective configuration settings, especially on staging or production servers, to ensure Debug mode is truly disabled as intended. Tools like the IIS Configuration Editor or inspecting the configuration programmatically can help verify the effective settings for a given application path.

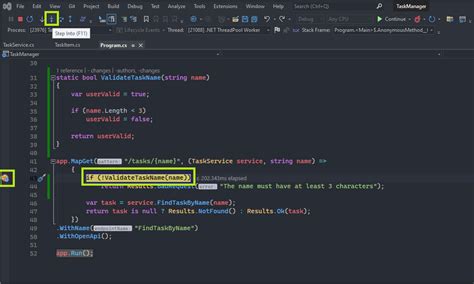

Beyond just enabling debug symbols and altering runtime behavior, Debug mode is the fundamental prerequisite for using interactive debuggers effectively. Visual Studio provides a powerful integrated debugger that hooks into the process of your running ASP.NET application (typically w3wp.exe or iisexpress.exe). With debug mode enabled, you can set breakpoints in your C# or VB.NET code. A breakpoint is a marker that tells the debugger to pause execution just before a specific line of code is about to run. This allows you to freeze the application’s state at that exact moment in time.

Once execution is paused at a breakpoint, the developer gains significant power to inspect the application’s state. You can hover over variables to see their current values, open Watch windows to monitor specific variables or complex expressions, and use the Autos and Locals windows to see the values of variables automatically detected in the current scope. Stepping controls (Step In, Step Over, Step Out) allow you to execute code one line at a time, either diving into function calls (Step In), executing a function call as a single step (Step Over), or exiting the current function and returning to the caller (Step Out). This step-by-step execution and state inspection process is the core of interactive debugging and is entirely reliant on the application being compiled in Debug mode with its associated symbols.

Debugging is not limited to local development. Debug mode also facilitates remote debugging scenarios, where a developer needs to debug an application running on a different server, perhaps a test or staging environment. Setting up remote debugging involves installing the Visual Studio Remote Debugging Tools on the target server and ensuring the application is deployed with debug symbols. The developer can then attach their local Visual Studio debugger to the remote process, allowing them to debug the application as if it were running locally, including hitting breakpoints and inspecting the remote state. While more complex to set up than local debugging, remote debugging is invaluable for diagnosing issues that only manifest in specific server environments.

To summarize the core differences and use cases, consider the following comparison between Debug and Release modes in ASP.NET:

Feature	Debug Mode	Release Mode
Compilation	Slower, generates PDB files	Faster, no PDB files (by default)
Execution Speed	Slower (less optimization, debug checks)	Faster (optimized code)
Code Optimization	Disabled	Enabled (aggressive)
Timeout	Extended (e.g., 30,000,000 seconds)	Standard (e.g., 110 seconds)
Caching (WebResource/ScriptResource)	Disabled	Enabled
Symbol Files (.pdb)	Generated and used	Not generated or used (by default)
Memory Usage	Higher (due to symbols, larger assemblies)	Lower
Error Details	Potentially more verbose stack traces	Less detailed stack traces (default configuration)
Primary Use Case	Development, Troubleshooting, Interactive Debugging	Production Deployment, Performance, Efficiency

This table clearly illustrates why Debug mode is suitable only for development and why Release mode is mandatory for production deployments. The performance and resource overhead in Debug mode are simply unacceptable for user-facing production systems, which demand speed, efficiency, and reliability.

Developers can also leverage preprocessor directives like #if DEBUG within their code. Code blocks wrapped in #if DEBUG will only be included and compiled into the application when the DEBUG compilation constant is defined, which is automatically done when Debug mode is enabled. This allows developers to include debugging-specific code, such as extensive logging, diagnostic output, or test hooks, that should be completely excluded from Release builds. This pattern helps keep production code clean and free from development-time clutter, further reinforcing the separation between debug and release configurations.

Ensuring that your deployment process correctly handles the build configuration is paramount. When deploying to staging, UAT, or production environments, always publish or build the application using the Release configuration in Visual Studio or your build server. This configuration automatically sets the debug attribute in the compiled web.config to false and compiles the code with optimizations enabled and without debug symbols. Implementing automated build and deployment pipelines can help enforce this, reducing the risk of accidentally deploying a debug build to production. Regular audits of production application configurations are also a good practice.

In conclusion, Debug mode in ASP.NET is a powerful and essential feature for developers, providing the necessary foundation for effective interactive debugging. It enables setting breakpoints, stepping through code, and inspecting the application’s state, which are critical for identifying and resolving issues during development. However, its significant impact on performance, resource usage, and potentially security necessitates that it is strictly disabled in all production environments. Understanding how to enable and disable it via web.config, its inheritance behavior, and its specific effects on application execution is fundamental for any ASP.NET developer. Always develop in Debug mode for troubleshooting, but deploy only Release builds for production.

What are your experiences with ASP.NET Debug mode? Have you ever accidentally deployed a debug build to production, and what were the consequences? Share your thoughts and tips in the comments below!
