SQL Server Connectivity: Troubleshooting ODBC Driver Installation Issues

Table of Contents

Establishing reliable database connectivity is fundamental for myriad applications, reporting tools, and scripts interacting with SQL Server. The Open Database Connectivity (ODBC) standard serves as a crucial bridge, allowing diverse client software to access data from various database management systems. Ensuring the correct installation and configuration of the appropriate SQL Server ODBC driver is therefore paramount for seamless and efficient data operations. This article provides guidance on verifying your ODBC driver installation and troubleshooting common connectivity challenges.

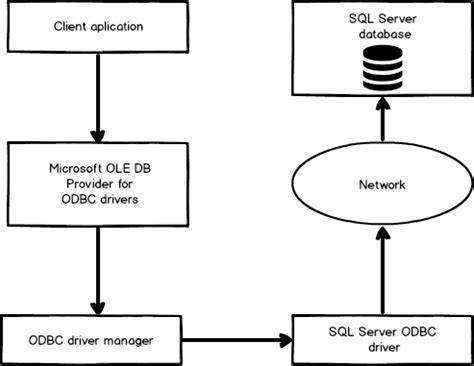

The ODBC architecture involves several components, including the application, the ODBC Driver Manager, the specific ODBC driver for the database (like SQL Server), and the database itself. The Driver Manager acts as an intermediary, loading the correct driver requested by the application. The driver then translates standard ODBC calls into the native API calls understood by the database server. Proper interaction between these components relies heavily on the driver being correctly installed and registered on the client system.

Accessing the ODBC Data Source Administrator¶

On Windows operating systems, the central tool for managing ODBC drivers and Data Source Names (DSNs) is the ODBC Data Source Administrator. It’s important to note that 64-bit versions of Windows maintain two separate administrators: one for 64-bit applications and one for 32-bit applications. This separation is vital because a 64-bit application cannot load a 32-bit driver, and vice versa.

To access the 64-bit ODBC Administrator, press Windows Key + R, type odbcad32.exe, and press Enter. Alternatively, you can navigate directly to C:\WINDOWS\SYSTEM32\odbcad32.exe and run the executable. For managing drivers and DSNs used by 32-bit applications, you must run the 32-bit version of the administrator, located at C:\WINDOWS\SYSWOW64\odbcad32.exe. Using the correct administrator is the first step in verifying your driver installation for a specific application architecture.

Within the ODBC Data Source Administrator, you’ll find tabs for managing User DSNs, System DSNs, File DSNs, and installed Drivers. The ‘Drivers’ tab is particularly useful for confirming whether an ODBC driver for SQL Server is present on the system. You should look for entries like “SQL Server”, “ODBC Driver 17 for SQL Server”, “ODBC Driver 18 for SQL Server”, or other specific versions. The presence of the driver entry here indicates that the driver’s core files and registry information are likely installed.

Understanding Connection Methods: DSN vs. DSN-less¶

Applications connecting to a database via ODBC can utilize either a Data Source Name (DSN) or a DSN-less connection string. Both methods have their advantages and use cases, and understanding the difference is key to troubleshooting connectivity issues. A DSN encapsulates connection information such as the driver name, server name, and database name under a simple name (e.g., “MyTestDataSource”). This DSN is stored in the system registry or in a file.

A DSN-less connection string, on the other hand, provides all the necessary connection details directly within the application’s code or configuration. This string explicitly lists parameters like Driver={Driver Name}, Server=ServerName, Database=DatabaseName, and authentication details. While potentially less flexible if connection details change, DSN-less connections avoid the need to configure a DSN on every client machine. Here are common examples:

Driver={ODBC Driver 18 for SQL Server};Server=your_server_name;Database=your_database_name;Uid=your_user;Pwd=your_password;
Driver={SQL Server};Server=(local);Database=master;Trusted_Connection=yes;
DSN=MyUserDataSource;Uid=another_user;Pwd=another_password;
DSN=MySystemDataSource;Trusted_Connection=yes;

The first two examples are DSN-less connections, specifying all parameters directly. The third and fourth examples use a DSN (MyUserDataSource and MySystemDataSource). Note that security credentials (username/password) are typically not stored within the DSN itself (especially System/User DSNs for security reasons) and must be provided by the application, usually in the connection string portion passed to the ODBC API calls, as seen in the third example.

Using a DSN provides a layer of indirection. If the database server name changes, you only need to update the DSN configuration in the ODBC Administrator on the client machine, not modify the application code itself. This simplifies management in environments where connection details might be subject to change. However, misconfigured DSNs are a common source of connection errors.

Exploring ODBC Drivers and DSNs in the Registry¶

ODBC driver and DSN configurations are primarily stored within the Windows Registry. Understanding where this information resides is crucial for advanced troubleshooting when the ODBC Administrator GUI might not be accessible or clear. The locations differ between system-wide (System DSNs and driver registrations) and user-specific (User DSNs) configurations, and also between 64-bit and 32-bit entries on 64-bit systems.

System DSNs and 64-bit driver information are found under HKEY_LOCAL_MACHINE\SOFTWARE\ODBC. User DSNs for the currently logged-in user are under HKEY_CURRENT_USER\Software\ODBC. On 64-bit Windows, 32-bit DSNs and driver information used by 32-bit applications are redirected to the Wow6432Node key. Thus, 32-bit System DSNs and drivers are under HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\ODBC, and 32-bit User DSNs are under HKEY_CURRENT_USER\Software\Wow6432Node\ODBC.

Within these registry paths, the ODBC.INI subkey lists all configured DSNs. Under ODBC.INI, there is a subkey for each DSN name (e.g., HKEY_CURRENT_USER\Software\ODBC\ODBC.INI\MyUserDataSource). Inside each DSN subkey, you’ll find values defining the connection, such as Driver (the name of the ODBC driver), Server (the server address), and Database (the default database).

The ODBCINST.INI subkey lists all installed ODBC drivers. This includes entries for each driver name (e.g., HKEY_LOCAL_MACHINE\SOFTWARE\ODBC\ODBCINST.INI\ODBC Driver 18 for SQL Server). Within each driver subkey, you will find values specifying the path to the driver’s DLL file (Driver) and the setup DLL (Setup). The Driver Manager uses the driver name specified in the DSN (from ODBC.INI) to look up the driver’s DLL path in ODBCINST.INI.

mermaid graph LR A[Application] --> B{ODBC Driver Manager}; B --> C[ODBC Driver (e.g., SQL Server)]; C --> D[Database Server (SQL Server)]; B -- Looks up Driver DLL via DSN/Connection String --> Reg[Registry: ODBCINST.INI]; B -- Looks up Connection Details via DSN --> RegI[Registry: ODBC.INI];

Checking these registry paths manually can reveal misconfigurations, such as incorrect server names in DSN entries or incorrect/missing file paths for the driver DLLs under ODBCINST.INI. However, caution must be exercised when editing the registry directly, as incorrect modifications can impact system stability. It’s generally safer to use the ODBC Data Source Administrator GUI when possible.

Common Installation and Configuration Issues¶

Several issues can prevent a successful connection via ODBC. These often stem from incorrect installation, configuration errors in DSNs or connection strings, or environmental factors like network problems. A very common error message encountered is:

ERROR [IM002] [Microsoft][ODBC Driver Manager] Data source name not found and no default driver specified.

This error message is quite informative. It signifies that either:
1. The specified DSN name (if using a DSN) does not exist in the relevant ODBC Administrator (User/System, 32-bit/64-bit).
2. If using a DSN-less connection string, the Driver={Driver Name} parameter specifies a driver name that is not registered in the ODBC Data Source Administrator (and thus not found in the ODBCINST.INI registry key).

It’s a common misconception that this error only relates to DSNs. It clearly states “no default driver specified,” indicating it also applies when the explicitly named driver in a DSN-less string cannot be located by the Driver Manager. Even if a DSN entry has an incorrect path to a driver DLL, the Driver Manager typically finds the correct path by using the driver name specified in the DSN to look up the correct DLL path in the ODBCINST.INI section of the registry. Thus, the primary check for IM002 is verifying the existence of the DSN name or the driver name.

Troubleshooting Steps: A Comprehensive Guide¶

When faced with ODBC connection problems, a systematic approach is best. Follow these steps to diagnose and resolve common issues:

Verifying Driver Presence¶

First, confirm that the correct ODBC driver for SQL Server is installed on the client machine. Open the appropriate ODBC Data Source Administrator (32-bit or 64-bit depending on your application). Go to the ‘Drivers’ tab. Look for the specific SQL Server driver you expect to use (e.g., “ODBC Driver 18 for SQL Server”). If it’s not listed, the driver needs to be downloaded and installed.

You can double-check this in the registry under the ODBCINST.INI key (remembering Wow6432Node for 32-bit). Look for the driver name as a subkey. Inside, verify that the Driver value points to an actual .dll file that exists on the file system. A missing driver file or incorrect path will prevent the Driver Manager from loading it.

Validating DSN Configuration¶

If your application uses a DSN, open the correct ODBC Data Source Administrator and go to the ‘User DSN’ or ‘System DSN’ tab, as appropriate. Find the DSN name your application is using. Select it and click ‘Configure’. Review all settings, paying close attention to the Server name, Database name, and which Driver the DSN is configured to use. Ensure these details are correct and match your SQL Server instance.

You can also check this in the registry under ODBC.INI. Locate the subkey matching your DSN name. Verify the values for Driver, Server, and Database. Ensure the Driver value here matches the name of an installed driver found under ODBCINST.INI.

Inspecting DSN-less Connection Strings¶

If you are using a DSN-less connection, examine the connection string being used by your application. Check for any typos in the Driver, Server, or Database parameters. Ensure the Driver={...} part uses the exact name of an installed driver as listed in the ODBC Administrator’s ‘Drivers’ tab or the ODBCINST.INI registry key. Mismatched names or incorrect syntax will lead to connection failures, often the IM002 error.

Ensure all necessary parameters are included. Depending on your server configuration and desired connection, you might need to specify the port, instance name, or other advanced options. Refer to documentation for the specific ODBC driver and SQL Server version for required parameters.

Checking File System Paths¶

The registry entries for drivers under ODBCINST.INI contain paths to the driver DLLs. While less common, it’s possible for the registry entry to exist but the actual file to be missing or corrupted on the file system. Navigate to the directory specified in the Driver value in the registry and confirm that the DLL file exists and has the expected size and date. If the file is missing, a driver reinstallation is necessary.

Testing Network Connectivity and Firewalls¶

ODBC is a network protocol. Ensure the client machine can communicate with the SQL Server. Use ping to check basic network reachability by server name or IP address. Check if the SQL Server Browser service is running on the server (if connecting to a named instance). Verify that no firewall on the client, server, or network path is blocking the port SQL Server is listening on (default 1433 for default instance, dynamic ports for named instances unless configured otherwise). The telnet command (e.g., telnet your_server_name 1433) can verify if the port is open from the client.

Reviewing Authentication Settings¶

ODBC connections require authentication. Common methods are Windows Authentication (Trusted_Connection=yes in the connection string or configured in the DSN) or SQL Server Authentication (Uid=...;Pwd=...). Ensure the credentials provided are correct and that the specified login has permissions to connect to the server and access the database. If using Windows Authentication, ensure the user account running the application has the necessary permissions on the SQL Server.

Utilizing the ODBC Administrator Test Feature¶

When configuring or reviewing a DSN in the ODBC Data Source Administrator, there is usually a “Test Data Source” button. This feature attempts to connect to the SQL Server using the details provided in the DSN. This is an excellent way to isolate whether the issue is with the DSN configuration itself or potentially with the application using the DSN. A successful test here confirms the DSN is correctly set up and can reach the server.

Interpreting Error Messages¶

Pay close attention to the exact error message received. The IM002 error, as discussed, points to the DSN/driver name not being found. Other common errors might indicate network issues (e.g., “Server not found or not accessible”), login failures (e.g., “Login failed for user…”), or permissions problems. Each error provides clues about the layer where the connection is failing.

When to Reinstall¶

If troubleshooting steps indicate missing driver files, corrupted registry entries related to the driver, or persistent issues that cannot be resolved through configuration, a full reinstallation of the SQL Server ODBC driver is often the most effective solution. Download the latest version of the driver from Microsoft’s website to ensure compatibility and benefit from bug fixes.

Advanced Troubleshooting with Process Monitor¶

For complex issues, tools like Process Monitor (Procmon) from Sysinternals can provide detailed insights. By capturing file system, registry, and process activity during the connection attempt, you can see exactly which files are being accessed, which registry keys are being queried, and what errors occur at a low level. This can help pinpoint issues like permissions problems accessing driver DLLs or incorrect registry lookups by the Driver Manager. Analyzing Procmon output requires some technical expertise but is invaluable for deep dives.

Addressing Third-Party ODBC Driver Issues¶

While this article focuses on Microsoft’s SQL Server ODBC drivers, you might encounter issues with third-party ODBC drivers designed to connect to SQL Server or other databases. Microsoft’s support for third-party drivers is limited. They can help verify the basic installation framework but cannot troubleshoot internal driver behavior.

For third-party drivers, Microsoft support typically involves:
1. Checking if the driver’s registry keys exist under ODBCINST.INI. If not, the driver wasn’t installed correctly, and you should contact the vendor or attempt reinstallation.
2. Verifying that the file paths specified in the registry point to actual, existing driver DLL files. Missing files require vendor support or reinstallation.
3. Assisting with creating a simple test DSN using the third-party driver and performing a connection test via the ODBC Administrator to isolate the issue from the application.
4. Helping to capture a Process Monitor trace during a connection attempt, which the third-party vendor can then analyze to diagnose problems within their driver code.

Ultimately, issues specific to the internal workings or bugs within a third-party ODBC driver must be resolved by contacting the vendor who developed the driver.

Establishing and maintaining reliable SQL Server connectivity via ODBC requires understanding the components involved and following a systematic troubleshooting process. By verifying driver installation, checking DSNs and connection strings, inspecting registry entries, confirming network access, and using the ODBC Administrator’s test features, you can resolve most common connectivity problems. For persistent or complex issues, leveraging advanced tools or contacting the relevant support channel (Microsoft or third-party vendor) becomes necessary.
