Troubleshooting "Failed to Start Switch Root" Error on Azure Linux VMs

Updated: • 0 • min read
Table of Contents

Troubleshooting Failed to Start Switch Root Error on Azure Linux VMs

When a Linux virtual machine fails to boot, one of the critical errors you might encounter is “Failed to Start Switch Root.” This error indicates that the system’s initial boot process, handled by the initramfs (initial RAM filesystem), was unable to locate and mount the actual root filesystem. The switch_root operation is the point where the system transitions from the temporary filesystem in RAM to the permanent root filesystem on disk. When this fails, the VM cannot complete the boot sequence and becomes inaccessible via standard methods like SSH.

Understanding the Linux boot process is key to troubleshooting this error. The sequence typically involves the BIOS/UEFI loading the bootloader (like GRUB), which in turn loads the kernel and the initramfs image into memory. The kernel starts execution and then passes control to a process within the initramfs. This temporary environment contains minimal tools and drivers needed to access hardware, find the real root device (usually identified by its UUID or label), mount it, and finally perform the switch_root operation to transition execution to the init process (like systemd) on the actual disk. If any step in this late stage fails, the switch_root error can occur, leaving the VM in a non-bootable state, often dropping into a limited emergency shell within the initramfs.

Common Causes of “Failed to Start Switch Root”

Several issues can prevent the initramfs from successfully locating and mounting the root filesystem on an Azure Linux VM. Identifying the specific cause is the first step towards recovery. These causes often relate to incorrect configuration, disk corruption, or issues with the boot-critical files.

Incorrect /etc/fstab Configuration

The /etc/fstab file lists filesystems that should be mounted automatically at boot time. If this file contains errors, the system may fail to mount essential filesystems, including the root (/) or others required by the initramfs process (though issues mounting non-root filesystems typically occur after switch root, severe fstab errors or errors affecting the root device itself can trigger the failure). Common fstab problems include incorrect UUIDs or labels for devices, wrong filesystem types, or invalid mount options. For instance, if the UUID for the root partition is changed or misidentified in fstab, the initramfs will look for a device that doesn’t exist or is incorrect.

Another common fstab issue on cloud VMs involves entries for temporary disks (/dev/sdb1 on Azure) or data disks that are later detached. If an fstab entry tries to mount a device that is no longer present without the nofail option, the boot process will halt. While this typically happens after switch_root, a severe misconfiguration involving the root device itself or critical early mount points can directly cause the “Failed to Start Switch Root” error. Using UUIDs or filesystem labels is generally more reliable than /dev/sdX names, as the latter can change.

Corrupt Root Filesystem

Corruption of the root filesystem (/) itself can prevent the kernel from mounting it read-write or even read-only during the boot sequence. This corruption can be caused by unclean shutdowns, hardware issues on the underlying Azure infrastructure (though less common), or software bugs. When the kernel attempts to mount a corrupted filesystem, the operation fails, leading to the “Failed to Start Switch Root” error because the required init process cannot be accessed on the damaged filesystem. Error messages in the boot logs might indicate VFS (Virtual Filesystem) errors or superblock issues related to the root device.

Kernel or initramfs Issues

The initramfs image is crucial for the early boot stages. It contains drivers for storage controllers (like the Azure-specific VMBus storage drivers), utilities to detect the root device, and the logic to perform the switch_root. If the initramfs image becomes corrupt, is incomplete (missing necessary drivers), or the kernel command line passed by GRUB points to an incorrect initrd path, the initramfs phase will fail. Similarly, a corrupted kernel image or incorrect kernel parameters passed at boot (root= parameter specifically) can also lead to this error.

Issues can arise after kernel updates that fail to regenerate the initramfs correctly or if the new kernel/initramfs combination is incompatible with the underlying disk configuration or required drivers on the Azure platform. Verifying that the correct kernel modules for accessing Azure’s virtualized hardware are included in the initramfs is sometimes necessary.

Bootloader (GRUB) Configuration Errors

GRUB is responsible for loading the correct kernel and initramfs image and passing necessary parameters to the kernel via the kernel command line. A misconfiguration in GRUB, particularly regarding the specification of the root device (root= parameter), can directly cause the “Failed to Start Switch Root” error. If the root= parameter specifies an incorrect device path, UUID, or label, the kernel and initramfs will be unable to find the intended root filesystem.

Errors in the GRUB configuration file (/boot/grub2/grub.cfg or /boot/grub/grub.cfg) or its source files (/etc/default/grub, /etc/grub.d/*) can prevent the system from correctly identifying and loading the required boot components. Regenerating the GRUB configuration after changes is a common step, and failure to do so, or errors during regeneration, can lead to boot problems.

Disk Issues

Underlying problems with the virtual disk itself, such as partition table corruption, bad blocks, or issues with the storage account on Azure, can manifest as an inability to mount the root filesystem. While Azure manages the physical storage layer, logical disk issues within the VM’s OS disk image can still occur. These issues might prevent the initramfs from even reading the partition table or accessing the data needed to mount the filesystem, directly contributing to the switch_root failure.

Troubleshooting Steps

Troubleshooting a “Failed to Start Switch Root” error requires accessing the VM’s filesystem and boot logs outside of the normal boot process. Since SSH access is unavailable, you must use Azure-specific recovery tools.

Using Azure Boot Diagnostics and Serial Console

The first step is always to use Azure Boot Diagnostics. This feature captures screenshots and serial console output from the VM’s boot process. Reviewing the serial console output is crucial as it will display the exact error messages generated by the kernel and initramfs, helping you pinpoint the cause (e.g., errors related to fstab, VFS, or specific device UUIDs).

Access the serial console via the Azure portal or Azure CLI. While the VM may drop into an emergency shell, interacting with it might be limited if the root filesystem isn’t mounted. However, the output logs themselves provide invaluable diagnostic information. Look for keywords like “fstab”, “UUID”, “filesystem”, “mount”, “VFS”, “initramfs”, or device names/UUIDs mentioned near the “Failed to Start Switch Root” message.

Attaching the OS Disk to a Repair VM

For most critical boot failures like this, the most reliable method is to detach the OS disk from the problematic VM and attach it as a data disk to a working rescue VM. This allows you to access and modify the filesystem offline using the working VM’s operating system.

Here are the general steps:

  1. Identify the affected VM and its OS disk.
  2. Stop the affected VM. Ensure it is fully stopped, not just deallocated.
  3. Detach the OS disk. In the Azure portal, go to the VM’s Disks settings, click on the OS disk, and detach it. Note the disk name.
  4. Create or identify a working rescue VM. This VM should ideally be in the same region and subscription and use a compatible Linux distribution (e.g., same version or a live rescue image).
  5. Attach the detached OS disk as a data disk to the rescue VM. In the rescue VM’s Disks settings, add a data disk and select the OS disk you just detached. Save the changes.
  6. Connect to the rescue VM via SSH.

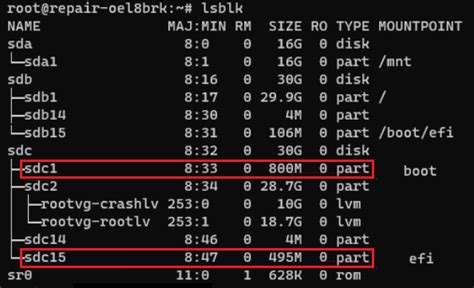

  7. Identify the attached disk. The attached disk will appear as a new block device (e.g., /dev/sdc, /dev/sdd). Use tools like lsblk or fdisk -l to list disks and partitions and identify which one corresponds to the old OS disk, paying attention to partition sizes. The root partition is typically the largest primary partition. For MBR disks, it’s usually /dev/sdX1. For GPT disks, it might be /dev/sdX1 or /dev/sdX2 depending on the boot partition setup.
  8. Mount the root partition of the attached disk to a temporary location on the rescue VM, for example, /mnt/rescue.
    sudo mkdir /mnt/rescue
# Replace /dev/sdXn with the correct device and partition number, e.g., /dev/sdc1
sudo mount /dev/sdXn /mnt/rescue

    If the mount command fails, this might indicate severe filesystem corruption (requiring fsck first) or selecting the wrong partition.

Repairing /etc/fstab

If the serial console logs pointed to an fstab issue:

  1. With the problematic disk mounted on the rescue VM at /mnt/rescue, examine the original /etc/fstab file:
    cat /mnt/rescue/etc/fstab
  2. Compare the UUIDs or labels listed in this file with the actual devices present on the attached disk. Use blkid on the rescue VM:
    sudo blkid /dev/sdXn # Replace /dev/sdXn with the partition you mounted (e.g., /dev/sdc1)
sudo blkid /dev/sdXm # Check other partitions if necessary (e.g., boot, swap)

    Pay close attention to the UUID of the root partition (/).
  3. Edit the /mnt/rescue/etc/fstab file using a text editor (nano, vim):
    sudo nano /mnt/rescue/etc/fstab
  4. Correct any incorrect UUIDs, labels, or device paths. If an entry for a data disk or temporary disk is causing issues because the disk is missing, you can comment it out (add # at the beginning of the line) or add the nofail option. The nofail option allows the system to boot even if the mount fails. Ensure the root entry is correct and points to the correct UUID/label identified by blkid.
  5. Save the changes to /mnt/rescue/etc/fstab.

Checking and Repairing Filesystem Corruption

If the serial console logs suggested filesystem corruption or if the mount operation failed, you need to run fsck (filesystem check and repair).

  1. First, unmount the partition if it was successfully mounted on the rescue VM:
    sudo umount /mnt/rescue

    It is crucial to run fsck on an unmounted filesystem.
  2. Run fsck on the partition. The -y flag automatically answers ‘yes’ to repair prompts. Replace /dev/sdXn with the correct root partition device.
    sudo fsck -y /dev/sdXn

    The command will report on any errors found and repaired. Repeat this process if needed until no errors are reported.
  3. Attempt to remount the partition to verify repairs:
    sudo mount /dev/sdXn /mnt/rescue

Regenerating initramfs

If the issue seems related to the initramfs image (e.g., missing drivers, corruption), you might need to regenerate it. This is often done within a chroot environment to simulate being inside the broken OS.

  1. Ensure the root partition is mounted at /mnt/rescue.
  2. If necessary for accessing /proc, /sys, /dev, or networking within the chroot, bind mount these directories:
    sudo mount --bind /dev /mnt/rescue/dev
sudo mount --bind /proc /mnt/rescue/proc
sudo mount --bind /sys /mnt/rescue/sys
# Optional: If using systemd-resolved or need network within chroot
# sudo cp /etc/resolv.conf /mnt/rescue/etc/resolv.conf
  3. Enter the chroot environment:
    sudo chroot /mnt/rescue
  4. Inside the chroot, run the command to regenerate initramfs. The command varies by distribution:
    • Debian/Ubuntu:
      update-initramfs -u -k all # Updates initramfs for all installed kernels
# Or for a specific kernel:
# update-initramfs -u -k <kernel_version>

      You can find installed kernel versions using ls /boot/vmlinuz-*.
    • RHEL/CentOS/AlmaLinux/Rocky Linux:
      dracut -f /boot/initramfs-$(uname -r).img $(uname -r) # Regenerates for current kernel
# Or for a specific kernel version:
# dracut -f /boot/initramfs-<kernel_version>.img <kernel_version>

      You can find installed kernel versions using ls /boot/vmlinuz-*.
  5. Exit the chroot environment:
    exit
  6. Unmount the bind-mounted directories and the root partition:
    sudo umount /mnt/rescue/dev
sudo umount /mnt/rescue/proc
sudo umount /mnt/rescue/sys
# Optional:
# sudo rm /mnt/rescue/etc/resolv.conf
sudo umount /mnt/rescue

Repairing GRUB Configuration

If the root= parameter in the GRUB configuration is incorrect:

  1. Mount the root partition at /mnt/rescue.
  2. If the boot partition (/boot) is separate, also mount it (e.g., sudo mount /dev/sdXn /mnt/rescue/boot).
  3. Enter the chroot environment as described above, including bind mounts.
  4. Examine the GRUB configuration file. Its location can vary:
    • RHEL/CentOS/etc.: /boot/grub2/grub.cfg
    • Debian/Ubuntu/etc.: /boot/grub/grub.cfg
      # Inside chroot
cat /boot/grub2/grub.cfg # Or /boot/grub/grub.cfg
  5. Look for the linux line corresponding to your kernel and verify the root= parameter. It should match the UUID or device name of your root partition.
  6. The grub.cfg file is usually generated from /etc/default/grub and scripts in /etc/grub.d/. Edit /etc/default/grub to correct settings like GRUB_CMDLINE_LINUX.
  7. Regenerate the GRUB configuration file. This varies by distribution:
    • RHEL/CentOS/etc.: grub2-mkconfig -o /boot/grub2/grub.cfg
    • Debian/Ubuntu/etc.: update-grub or grub-mkconfig -o /boot/grub/grub.cfg
  8. Exit chroot and unmount partitions as described previously.

Azure-Specific Repair Tools

Azure provides the az vm repair command-line tool, which automates the process of attaching the OS disk to a repair VM. This simplifies steps 1-5 of the “Attaching the OS Disk” section.

  1. Use az vm repair create -g MyResourceGroup -n MyVm --repair-username <user> --repair-password <password> --distro <distro>. This command creates a repair VM and attaches the OS disk of MyVm to it.
  2. SSH into the repair VM created by the command. The disk will be automatically attached and potentially mounted. Identify the attached disk and its partitions.
  3. Perform the necessary troubleshooting steps (fstab, fsck, initramfs, grub) on the mounted disk as described above.
  4. Once repairs are complete, use az vm repair restore -g MyResourceGroup -n MyVm --repair-vm-name MyRepairVm. This command detaches the disk from the repair VM and reattaches it as the OS disk to the original VM.
  5. Start the original VM.

This automated tool significantly reduces the manual steps involved in disk management and is the recommended approach for most users comfortable with the Azure CLI.

Reattaching and Testing

After performing the necessary repairs on the attached OS disk using the rescue VM:

  1. Ensure all partitions from the problematic disk are cleanly unmounted from the rescue VM using sudo umount /mnt/rescue and for any other mounted partitions (like /boot).
  2. Detach the disk from the rescue VM via the Azure portal or Azure CLI.
  3. Reattach the disk as the OS disk to the original VM using the Azure portal or CLI.
  4. Start the original VM.
  5. Monitor the boot process using Boot Diagnostics and the Serial Console to verify if the error is resolved and the VM boots successfully.

If the VM still fails to boot, revisit the serial console logs for new or changed error messages and repeat the troubleshooting steps, focusing on the details revealed by the updated logs. Sometimes multiple issues might be present.

Preventive Measures

While errors can happen, some practices can help prevent “Failed to Start Switch Root”:

  • Always use filesystem UUIDs or labels in /etc/fstab instead of /dev/sdX device names, especially for critical filesystems like root.
  • Use the nofail option in /etc/fstab for non-critical data disks or temporary disks to prevent boot failures if the disk is not present.
  • Take snapshots of your VM’s OS disk before performing major system upgrades, kernel updates, or making significant changes to /etc/fstab or bootloader configuration. Azure snapshots allow quick restoration to a previous working state.
  • Ensure clean shutdowns of your VMs to minimize the risk of filesystem corruption.
  • Test configuration changes thoroughly in a staging environment before applying them to production VMs.

Encountering the “Failed to Start Switch Root” error can be daunting, but by systematically diagnosing the cause using Azure’s diagnostic tools and leveraging the repair VM approach to access and fix the filesystem offline, you can effectively recover your Azure Linux VMs.
