Troubleshooting: Fixing Analytic and Debug Event Log Errors on Windows Server

Table of Contents

When managing Windows Server, system administrators often rely on event logs to diagnose issues, monitor system health, and track activity. Windows Event Logs are categorized into several types, each serving a distinct purpose and exhibiting different behaviors. While administrative and operational logs like System, Security, and Application are commonly accessed, analytic and debug logs provide much more detailed, high-volume information, often used for deep-dive troubleshooting of specific components or applications. However, interacting with these verbose log types can sometimes lead to unexpected errors, particularly when attempting to view or configure them under certain conditions.

One specific issue users might encounter arises when enabling or attempting to change the properties of analytic or debug event logs through Event Viewer or command-line tools like wevtutil. This problem prevents administrators from immediately viewing the live log stream or modifying its configuration while it’s active and configured for circular logging. Understanding the root cause of this behavior is key to implementing the correct resolution steps, ensuring you can access the diagnostic information you need without disruption.

Symptoms of Event Log Configuration Errors¶

Users attempting to manage analytic or debug event logs on Windows Server may be presented with error messages indicating a conflict or inability to perform the requested operation. These symptoms typically appear when trying to enable a log, change its retention settings, or simply view its contents in Event Viewer while it’s already enabled and configured in a specific way.

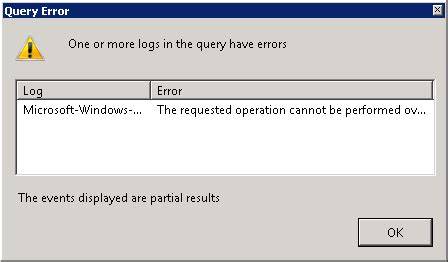

In the Event Viewer graphical interface, the error might manifest as a “Query Error” dialog box. This error message often includes descriptive text explaining the nature of the problem. A common message is:

Query Error
One or more logs in the query have errors.
The requested operation cannot be performed over an enabled direct channel. The channel must first be disabled before performing the requested operation.

This message clearly points to a conflict involving an “enabled direct channel,” a characteristic often associated with analytic and debug logs due to their high-volume nature and method of data transmission.

When utilizing the wevtutil command-line utility to manage event logs, similar errors are reported directly in the console output. For example, attempting to enable or configure a log might result in messages like:

The channel fails to activate.
Failed to save configuration or activate log .
The requested operation cannot be performed over an enabled direct channel. The channel must first be disabled before performing the requested operation.

The <log name> placeholder will be replaced by the specific log you are trying to configure, such as “Microsoft-Windows-WMI-Activity/Trace”. These errors confirm that the operation cannot proceed because the log channel is currently active and configured in a state incompatible with the requested action, specifically when attempting to interact with it while it’s enabled and set for circular logging.

Accessing Analytic and Debug Logs¶

It is important to note that analytic and debug logs are not visible by default in the standard Event Viewer tree pane. To even see these logs and attempt to interact with them, you must first enable their display. This is done within Event Viewer by navigating to the View menu and selecting Show Analytic and Debug Logs. Once enabled, these logs will appear within the Applications and Services Logs folder structure. An example frequently encountered is the WMI-Activity log, which has the full path Applications and Services Logs\Microsoft\Windows\WMI-Activity\Trace.

Understanding Different Event Log Types¶

Windows Event Logs are categorized primarily into four types:

1. Administration Logs: These logs record events relevant to administrators that indicate a problem requiring action. They are typically low volume and easy to understand, such as errors related to service failures or hardware issues.
2. Operational Logs: These logs record events that signify the successful or failed completion of an operation or action. They are also relatively low volume and are useful for tracking specific tasks or features.
3. Analytic Logs: These logs publish high-volume events that describe the journey of a component or application. They are designed for detailed performance tracing and diagnostics.
4. Debug Logs: These logs publish events primarily for use by developers during the debugging of an application or component. They are extremely verbose and typically used only during active troubleshooting sessions.

The distinction between these types is crucial because the viewing limitation discussed in this article specifically applies to Analytic and Debug logs when configured in a particular way, but not to Administration or Operational logs.

Log Type	Typical Volume	Default Retention	Can View While Enabled + Overwriting?	Primary Use Case
Administration	Low	Overwrite as Needed	Yes	Actionable errors & warnings
Operational	Low	Overwrite as Needed	Yes	Tracking operations/features
Analytic	High	Do not Overwrite	No (if Overwrite Enabled)	Performance tracing, detailed analysis
Debug	Very High	Do not Overwrite	No (if Overwrite Enabled)	Developer debugging

As shown in the table, analytic and debug logs differ significantly in volume and their default retention policy compared to administration and operational logs. This difference is directly related to the issue encountered.

The Root Cause: Direct Channels and Retention Policy Conflict¶

The core reason for the “enabled direct channel” error when trying to view or configure analytic and debug logs lies in the interplay between their logging mechanism (direct channel) and a specific retention policy (“Overwrite events as needed”).

Analytic and debug logs are designed for high-performance logging, often utilizing a more direct method of writing events to the log session or file buffer. This “direct channel” allows for very high throughput, capturing a large volume of events with minimal overhead.

The error occurs specifically when an analytic or debug log is enabled (actively collecting events) AND configured with the Overwrite events as needed (oldest events first) retention policy. This policy, also known as circular logging (corresponding to /retention:false in wevtutil), instructs the system to discard the oldest events once the maximum log size is reached, ensuring continuous logging.

For administration and operational logs, Event Viewer does allow you to view events while the log is enabled, even if “Overwrite events as needed” is configured. However, for analytic and debug logs, this combination of being enabled and having overwriting enabled creates a conflict that prevents querying or viewing the log contents via standard methods like Event Viewer or wevtutil’s query functions. The system cannot simultaneously allow high-speed, direct writing with continuous overwriting and permit interactive querying of the same log file.

By default, analytic and debug logs are configured with the Do not overwrite events (Clear logs manually) retention policy (/retention:true). Under this configuration, you can view the log contents while it is enabled because the system is not actively managing overwriting of historical data within the live stream. The issue only arises when the retention policy is changed to Overwrite events as needed to facilitate circular logging for large volumes of data. Logging is still occurring in the background even when the error message is displayed; you just cannot access or view the events through Event Viewer or standard query commands until the conflict is resolved.

Resolving the Event Log Viewing Conflict¶

The resolution to this issue is straightforward: If an analytic or debug log is enabled and configured for “Overwrite events as needed,” you must disable the log before you can view its contents or successfully change certain properties. This breaks the conflict between the enabled direct channel and the overwriting retention policy, allowing read access to the log data.

Here are the strategies and steps to manage this:

Strategy 1: Viewing Analytic/Debug Logs Without Overwriting¶

If you do not require circular logging and the log volume is manageable, you can keep the default retention policy: Do not overwrite events (Clear logs manually) (/retention:true). When configured this way, you can view the contents of an analytic or debug log in Event Viewer while it is enabled. This is the simplest method if your diagnostic needs allow for logs to stop collecting data when the maximum size is reached, requiring manual clearing.

Strategy 2: Viewing Analytic/Debug Logs When Overwriting is Necessary¶

This is the scenario where the error occurs. If you need Overwrite events as needed (/retention:false) for continuous circular logging due to high event volume, you cannot view the log contents directly while it is enabled.

To view the log data when using this configuration, the necessary steps are:

1. Disable the log. This stops the logging process and releases the “direct channel” conflict.
2. View or export the log contents. Once disabled, the log file can be safely accessed for reading.
3. Re-enable the log (if you need to continue collecting new events).

This workflow is particularly relevant for troubleshooting: you let the system run with the log enabled and overwriting active until the issue you are diagnosing occurs, then you quickly disable the log to capture the state, view the captured data, and then re-enable logging if needed.

Resolving Using Wevtutil (Command Line)¶

The wevtutil command-line tool is often the most efficient way to manage event log configurations, especially for scripting or automation. To implement Strategy 2 using wevtutil, you would follow these steps:

First, ensure the log is disabled to resolve any potential conflict or to allow changes if it was already enabled with overwriting.

wevtutil set-log "Microsoft-Windows-WMI-Activity/Trace" /enabled:false

This command specifically targets the “Microsoft-Windows-WMI-Activity/Trace” log and sets its /enabled status to false.

Next, you can configure and re-enable the log with your desired settings, including /retention:false for circular logging and potentially a larger /maxsize to accommodate the event volume before overwriting begins.

wevtutil set-log "Microsoft-Windows-WMI-Activity/Trace" /enabled:true /quiet:true /retention:false /maxsize:153600

Let’s break down this command:

• wevtutil set-log "Microsoft-Windows-WMI-Activity/Trace": Specifies the command to modify log settings and targets the WMI Activity trace log.
• /enabled:true: Enables the log to start collecting events.
• /quiet:true: Suppresses command output, useful for scripting.
• /retention:false: Sets the retention policy to “Overwrite events as needed (oldest events first),” enabling circular logging.
• /maxsize:153600: Sets the maximum log size in bytes. 153600 bytes is 150 KB (153600 / 1024 = 150), which is a relatively small size compared to the 1 MB (1024 KB = 1048576 bytes) default. You would typically use a much larger size for high-volume logs, for example, 150 MB would be 150 * 1024 * 1024 = 157286400.

After running this command, the log will be enabled and configured for circular logging. You will not be able to view it live in Event Viewer without encountering the error.

To view the log contents using wevtutil after it has been collecting data with overwriting enabled, you must first disable it again:

wevtutil set-log "Microsoft-Windows-WMI-Activity/Trace" /enabled:false

Once disabled, you can view its contents using wevtutil query-events or export it using wevtutil export-log:

wevtutil export-log "Microsoft-Windows-WMI-Activity/Trace" "C:\Temp\WMI_Activity_Trace.evtx"

This command exports the contents of the disabled log to a file named WMI_Activity_Trace.evtx in the C:\Temp directory. You can then open this .evtx file in Event Viewer for analysis.

Finally, if you need to continue logging, remember to re-enable the log:

wevtutil set-log "Microsoft-Windows-WMI-Activity/Trace" /enabled:true /retention:false /maxsize:157286400

(Using a more realistic max size example here).

Resolving Using Event Viewer GUI¶

While wevtutil is recommended for managing logs that cause this issue, you can also address it through the Event Viewer GUI, although the workflow is less direct when the error is already present.

1. Open Event Viewer and navigate to the analytic or debug log (remembering to enable Show Analytic and Debug Logs from the View menu if necessary).
2. Right-click the log (e.g., WMI-Activity/Trace) and select Properties.
3. In the Properties window, you will see the configuration options, including the retention policy under “When maximum event log size is reached:”. If Overwrite events as needed (oldest events first) is selected and the log is enabled, you likely cannot view the log contents or change this setting directly from this window without encountering the error.
4. To resolve this, you must first disable the log. You can do this directly from the log’s Properties window by unchecking the Enable logging box at the top, or by right-clicking the log in the Event Viewer tree pane and selecting Disable Log.
5. Once the log is disabled, the conflict is removed. You can now safely view the log contents by clicking on the log name in the tree pane. You can also change its properties, including the retention policy or maximum size, if needed.
6. After viewing the log or changing properties, you can re-enable it by checking the Enable logging box in the Properties window or by right-clicking the log in the tree pane and selecting Enable Log. If you set the retention back to “Overwrite events as needed,” remember you won’t be able to view it live again.

This GUI method highlights the same principle as the wevtutil method: disabling the log is the crucial step to resolve the conflict and gain read access when circular logging is enabled on an analytic or debug channel.

Understanding the “Direct Channel” Concept Further¶

The concept of a “direct channel” in the context of event logging refers to how events are written. Unlike some buffered logging methods where events might be temporarily stored in memory before being written to disk in batches, analytic and debug logs often write events more directly and synchronously to the target session or file. This design prioritizes capturing every single event quickly, which is essential for detailed tracing and debugging where the order and presence of every event are critical for reconstructing a sequence of operations.

When this direct writing mechanism is combined with an instruction to continuously overwrite the oldest data as the log grows (circular logging), the log file becomes a constantly changing, live stream where data is being written to the end and simultaneously potentially removed from the beginning. Attempting to query or view this type of log while it is actively writing and overwriting presents a challenge. A querying process needs a relatively stable snapshot of the data to read from. The direct, high-speed, overwriting nature of the enabled analytic/debug channel conflicts with the ability of a separate process (like Event Viewer’s query engine) to reliably read from it in real-time without potential data inconsistencies or read errors.

Disabling the log effectively pauses this high-speed, direct writing and overwriting process. The log file becomes static, allowing other processes to read from it reliably without contention or the risk of the underlying data changing unexpectedly during the read operation. This is why disabling the log is the necessary workaround to view its contents when configured for circular logging.

Potential Performance Considerations¶

While resolving the viewing issue by disabling the log is effective, it’s worth considering the implications for performance. Analytic and debug logs can generate massive amounts of data very quickly. Setting a large maximum size (/maxsize) and enabling circular logging (/retention:false) are necessary steps to prevent the log from filling up and stopping logging altogether. However, managing extremely large log files (multiple gigabytes) can have performance impacts on disk I/O and requires sufficient storage space.

When troubleshooting, it’s often best practice to:
1. Set the log size and retention policy appropriately before starting the diagnostic collection period.
2. Enable the log and let it run until the specific issue you are investigating occurs.
3. Disable the log immediately after the issue is observed to capture the relevant events.
4. Export the log to a separate file for detailed analysis, freeing up the original log location if necessary.
5. Clear the original log and re-enable it with desired settings if ongoing monitoring is required.

This structured approach minimizes the amount of data you need to sift through and ensures you capture the critical events surrounding the issue.

mermaid graph TD A[Start Troubleshooting] --> B{Encounter Event Log Error?}; B -- Yes --> C{Is it Analytic or Debug Log?}; C -- Yes --> D{Is Overwrite Events Enabled?}; C -- No --> E[Different Log/Issue]; D -- No --> F[Viewing Should Work<br>Check for other issues]; D -- Yes --> G[Conflict Identified: <br>Enabled + Overwriting]; G --> H[Action: Disable Log]; H --> I[View Log Contents <br>or Export Log]; I --> J{Finished Analysis?}; J -- Yes --> K[Optional: Change Log Settings]; J -- No --> H; %% Return to viewing/exporting if needed K --> L{Need to continue Logging?}; L -- Yes --> M[Re-enable Log]; L -- No --> N[Stop/Leave Log Disabled]; M --> O[End Troubleshooting Session]; N --> O; E --> O; F --> O;
Mermaid Diagram: Troubleshooting Workflow for Analytic/Debug Log Errors

This diagram illustrates the decision flow when encountering the specific event log error discussed in this article. The key resolution path involves disabling the log when the conflict between ‘Enabled’ and ‘Overwrite Events Enabled’ on Analytic/Debug logs is identified.

Conclusion¶

Encountering errors when attempting to view or configure analytic and debug event logs on Windows Server is a specific behavior tied to the interaction between their ‘direct channel’ logging method and the ‘Overwrite events as needed’ retention policy. While these logs provide invaluable detailed diagnostic information, their high-volume nature necessitates specific handling, particularly when circular logging is required.

The core solution involves understanding that when an analytic or debug log is actively enabled and configured for circular logging, it cannot simultaneously be queried or viewed through standard interfaces like Event Viewer without first being temporarily disabled. Utilizing wevtutil or the Event Viewer GUI to disable the log, perform viewing or configuration changes, and then re-enable it is the established method to work around this limitation. By applying these steps, administrators can effectively collect and analyze the detailed event data provided by analytic and debug channels, ensuring they have the necessary information for troubleshooting and system maintenance.

We hope this detailed explanation helps you understand and resolve the errors you might encounter with analytic and debug event logs. Have you experienced this issue? Do you have any tips or scripts you use to manage high-volume logs? Share your experiences in the comments below!
