Troubleshooting HoloLens: Fixing 'Step Content Failed to Load' in Dynamics 365 Guides

Table of Contents

When authoring and deploying guides using Microsoft Dynamics 365 Guides on HoloLens, ensuring a smooth and reliable operator experience is paramount. Occasionally, authors or operators may encounter unexpected issues that disrupt the workflow. One such issue is the inability to load content for a specific step, presenting a distinct error message that halts progress.

This particular error directly impacts the usability of the guide at a critical juncture. It prevents the operator from proceeding with the task outlined in the problematic step, necessitating intervention to resolve the underlying cause. Understanding the symptoms and the technical reasons behind this failure is the first step toward implementing effective solutions.

Symptoms¶

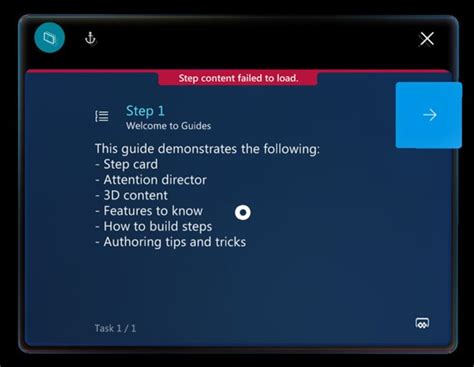

The most prominent symptom of this issue is the explicit error message displayed within the Dynamics 365 Guides application on the HoloLens device. This message directly communicates the problem to the user. The text of the error is concise but clear, indicating a failure in rendering or loading the required assets and instructions for the current stage of the guide.

Specifically, the error message that appears is:

Step content failed to load.

This message signifies that the HoloLens device, running the Dynamics 365 Guides app, could not successfully process or retrieve all the necessary components associated with the current step. This includes not only visual assets like 3D models and media but potentially also instructional text and interactive elements. When this error occurs, the operator is typically stuck on the previous step (if any) or presented with a blank or incomplete view for the current step. Any 3D models that were previously placed or anchored in the environment might also disappear or be incorrectly rendered, adding to the confusion. For authors and operators alike, this error can manifest visually in the form of an exclamation point icon replacing an expected 3D model, signaling that the asset could not be loaded or displayed correctly. This icon is a strong visual indicator that a specific element intended for the step is missing or inaccessible due to the loading failure.

Cause¶

The root cause of the ‘Step content failed to load’ error in Dynamics 365 Guides on HoloLens is fundamentally tied to the resource constraints of the HoloLens hardware. Augmented reality experiences, especially those involving complex 3D models and multimedia, are computationally intensive and require significant memory (RAM) and processing power. HoloLens, as a self-contained, wearable device, has finite resources that can be easily taxed by overly complex or resource-heavy content within a single step or across sequential steps.

When the amount and complexity of the content associated with a specific step exceed the HoloLens’s available memory capacity or processing limits, the device is unable to load and render everything required. This threshold is not only determined by the sheer number of assets but also by their individual complexity, such as the polygon count of 3D models, the resolution and format of textures, the size of video or image files, and the quantity of annotations and instructions. Attempting to load content that pushes beyond these limits triggers the described failure. At this point, the device cannot allocate the necessary memory or perform the required processing to make the step’s content visible and interactive for the operator, leading to the loading failure. Furthermore, if a 3D model intended for placement within a step was previously positioned by an author, its inability to load due to these constraints results in it being represented by an exclamation point icon. This icon serves as a clear visual queue to both authors and operators that a specific 3D asset failed to load properly, directly pointing to a potential resource issue with that element or the step as a whole.

The Nature of the Problem¶

Augmented Reality (AR) experiences demand real-time processing of complex visual information, including tracking the environment, rendering virtual objects, and blending them seamlessly with the physical world. On a mobile, untethered device like HoloLens, these operations must be performed efficiently within strict power and thermal envelopes. This imposes inherent limitations on the amount of data that can be actively held in memory and processed concurrently. Every asset, every instruction, every anchor point within a step contributes to the overall memory footprint and processing load.

Exceeding these limits doesn’t just cause the content to fail loading; it can also lead to significant performance degradation, including frame rate drops, increased latency in tracking, and potentially even application instability or crashes. The ‘Step content failed to load’ error is often the first explicit symptom that the guide’s demands are surpassing the device’s capabilities for that particular step. It’s a safety mechanism to prevent the device from becoming completely unresponsive or crashing when faced with an unmanageable load.

Identifying Resource Consumers¶

Understanding which types of content consume the most resources is key to diagnosing and resolving the issue. While 3D models are often the primary culprits due to their geometric complexity and associated textures, other elements also contribute significantly. High-polygon count models, especially those with large, detailed textures, are particularly taxing on the system’s memory and graphics processing unit (GPU). Unoptimized models, perhaps originally designed for high-end desktop rendering rather than real-time AR, are frequent sources of performance bottlenecks.

Beyond 3D models, embedding high-resolution images or video clips within a step can also consume considerable memory. The number and complexity of annotations, including text boxes, pointers, and supplementary media attached to them, add to the load. While instructional text itself is relatively lightweight, a very large amount of text within a single step could theoretically contribute, though this is less common than issues with visual assets. Essentially, any digital asset that needs to be loaded into the HoloLens’s memory and rendered contributes to the risk of hitting resource limits.

Recognizing the Warning Signs¶

Before the ‘Step content failed to load’ error explicitly appears, there might be warning signs during the authoring process or initial testing. These signs often include sluggish performance when authoring the step on HoloLens, long loading times when transitioning into the step, or visual glitches and flickering. If you observe performance issues while adding content to a step using the HoloLens authoring tool, it’s a strong indication that you are approaching or exceeding resource limits. The appearance of the exclamation point icon in place of a 3D model during authoring is a direct warning that that specific asset is contributing to the problem or cannot be loaded properly in the current context. Addressing these signs early can prevent the final deployed guide from failing for operators.

Resolution¶

Resolving the ‘Step content failed to load’ error requires reducing the complexity and resource demands of the problematic step. The core strategy is to optimize the content and/or restructure the guide to distribute the load more evenly across multiple steps or sections. This involves a combination of technical optimization of assets and careful consideration of guide design principles. The goal is to ensure that the amount of data the HoloLens needs to load and process for any single step remains within its operational limits, guaranteeing a stable and performant experience for the operator.

This resolution process often involves an iterative cycle of identifying resource-heavy elements, making changes, and testing the step on the HoloLens device. Relying solely on previewing on a PC might not accurately reflect the performance and memory constraints of the standalone HoloLens. Therefore, regular testing on the target hardware is crucial throughout the optimization process. By systematically addressing the complexity, authors can bring the step’s resource requirements back within the HoloLens’s capabilities, allowing the content to load successfully.

Prioritizing Content Optimization¶

The most direct way to reduce step complexity is to optimize the individual assets used within that step. Since 3D models are often the largest contributors to memory usage and processing load, they should be the primary focus of optimization efforts. However, other media types and the sheer number of elements also warrant attention. The aim is to reduce the file size, polygon count, and texture resolution of assets without compromising their visual clarity or instructional effectiveness more than necessary.

Effective content optimization can drastically reduce the memory footprint required to display a step. This not only prevents the ‘Step content failed to load’ error but also improves overall guide performance, leading to smoother frame rates and more responsive interactions for the operator. It requires understanding the technical specifications of the assets and utilizing appropriate tools to modify them for the HoloLens environment. Focusing optimization on the most complex or largest assets will yield the greatest improvements in performance and loading reliability.

Techniques for Model Optimization¶

Optimizing 3D models for real-time AR on HoloLens involves several key techniques. Polygon reduction is critical; reducing the number of triangles or quads that make up the model’s geometry directly lowers the processing needed to render it. Tools like Blender, Autodesk Maya, or specialized optimization software like Simplygon can be used to decimate or simplify models while attempting to preserve their visual fidelity. Pay close attention to the level of detail required; distant objects can often be simplified much more aggressively than objects the operator interacts with up close.

Texture optimization is equally important. Using smaller texture sizes (e.g., 1024x1024 or 512x512 pixels instead of 4096x4096) and efficient file formats (like .jpg or .png, considering alpha channel needs) can significantly reduce memory consumption. Texture atlasing, combining multiple smaller textures into one larger texture map, can also improve rendering efficiency by reducing draw calls. Ensure textures are power-of-two dimensions (e.g., 512, 1024, 2048) for optimal GPU performance. Removing unnecessary materials or combining materials where possible can also streamline the rendering process.

Streamlining Step Information¶

Beyond 3D models, evaluate other content within the step. If the step includes embedded images or videos, consider if lower resolution versions would suffice without impacting clarity. For videos, shorter clips are generally better. Review the number and complexity of annotations. While annotations are essential for guiding the operator, having an excessive number of annotations, each with large amounts of text or attached media, can add up.

Consider whether all annotations are truly necessary for that specific step or if some information could be conveyed in introductory steps or broken down. Ensure that any attached media files (images, videos) are also optimized in terms of size and resolution. Simplifying the overall visual and informational density of the step contributes to reducing the total resource load the HoloLens needs to manage simultaneously. A focused and clean step design often leads to better performance and reduced likelihood of hitting memory limits.

Structuring Your Guides Effectively¶

Sometimes, even after optimizing individual assets, the sheer complexity of the task being described in a single step is too much for the HoloLens to handle at once. In such cases, the resolution lies in rethinking the structure of the guide itself. Breaking down a highly complex step into multiple, simpler steps is a very effective strategy. This distributes the resource load across the guide, requiring the HoloLens to load and process fewer assets and instructions at any given time.

Each step should focus on a specific action or a small set of related actions. If a step requires the operator to interact with many different objects or involves numerous concurrent visual aids, it’s a prime candidate for being split. This approach not only alleviates technical limitations but also improves the cognitive load on the operator, making the guide easier to follow. A well-structured guide with logically separated steps is beneficial from both a performance and usability perspective.

Principles of Step Design¶

When designing steps, aim for modularity and focus. Each step should guide the operator through a distinct phase of the task. If a single complex manipulation or identification process is causing the issue, consider breaking it down into sub-steps. For example, instead of having one step that shows how to disassemble an entire component with all its parts highlighted simultaneously, create separate steps for removing each major fastener or sub-assembly. This sequential approach naturally limits the amount of information that needs to be presented and processed in any single view.

Think about the operator’s perspective: what do they need to see and do at this exact moment? Only include the necessary visual aids and instructions for that specific action. Unloading assets that are no longer relevant as the operator progresses through the guide is handled by the Guides app, but overloading a single step prevents the process from even starting successfully. Designing steps with a clear, limited scope is key to avoiding resource bottlenecks.

Utilizing Multiple Guides¶

For extremely complex procedures involving many components or spanning large physical areas, consider breaking the entire process into multiple distinct guides. For instance, a multi-day assembly process could be authored as several separate guides, each focusing on a major phase of the assembly. This provides a clear logical separation and ensures that the HoloLens only needs to load the assets and instructions for the currently active guide, significantly reducing the potential for exceeding memory limits.

Structuring procedures this way also allows for easier management and updates of individual sections without affecting the entire workflow. While navigating between guides adds a small overhead, it’s a robust solution for managing content complexity in large-scale industrial or training applications. This advanced structuring technique is particularly useful when optimizing individual steps and assets is not sufficient to bring the overall procedure’s requirements within HoloLens limitations.

Testing and Validation¶

Rigorous testing on the target HoloLens device is non-negotiable when troubleshooting this error and when authoring guides in general. The performance characteristics of the HoloLens simulator or PC authoring tool may differ significantly from the actual device. Therefore, validating changes directly on the HoloLens where the guide will be used is essential.

Establish a workflow where you make optimization or structuring changes and then immediately test the problematic step (and the steps leading into it) on the HoloLens. Pay attention not only to whether the content loads successfully but also to the overall performance – is the frame rate smooth, is tracking stable, are interactions responsive? Successful loading with poor performance still indicates that the device is struggling and might lead to other issues.

Implementing a Testing Loop¶

Integrate testing into your authoring cycle. Avoid the pitfall of adding all content, then testing only at the very end. Instead, as you add significant amounts of content or complex assets to a step, deploy the guide to a HoloLens and test that specific step. If you encounter performance issues or the loading error, address them immediately before adding more content. This iterative approach allows you to identify and fix problems early when they are easier to isolate and resolve. It ensures that the guide remains performant as it is built.

A typical loop might involve: Author content -> Add asset -> Test on HoloLens -> Optimize/Restructure if needed -> Re-test -> Continue authoring. This prevents accumulating performance debt that becomes overwhelming to fix later.

Understanding Performance Metrics¶

While Dynamics 365 Guides doesn’t expose detailed performance counters within the operator view, authors can observe the feel of the application. A low frame rate manifests as jerky movement and unresponsive holograms. Unstable tracking might cause holograms to jump or drift. Long loading times when transitioning between steps are another indicator of high resource load. Successfully loading a step is the minimum requirement, but achieving smooth performance indicates that the content is well within the device’s comfortable operating limits. Authors should aim for smooth performance (ideally 60 frames per second, though perceived smoothness is key) as the target for a good operator experience. If the ‘Step content failed to load’ error was the issue, successful and smooth loading after optimization confirms the resolution.

Best Practices for Prevention¶

To minimize the likelihood of encountering the ‘Step content failed to load’ error in the future, adopt best practices for guide authoring from the outset. Always start with optimized assets intended for real-time 3D applications. Source or create 3D models with reasonable polygon counts and use appropriately sized textures. When importing existing CAD data, utilize tools to simplify and optimize it specifically for AR/VR use cases.

Plan your guide structure carefully, breaking down complex procedures into logical, manageable steps before you even start authoring. Avoid cramming too much information or too many visual aids into a single step. Regularly test your guide on the target HoloLens device throughout the authoring process, not just at the end. By proactively managing complexity and testing frequently, you can create robust and reliable guides that provide a consistent and positive experience for operators. This preventative approach is far more efficient than troubleshooting errors after a guide is fully authored.

By following these comprehensive steps, from understanding the symptoms and causes to implementing detailed optimization and structuring strategies, authors can effectively troubleshoot and fix the ‘Step content failed to load’ error, ensuring their Dynamics 365 Guides are performant and reliable on HoloLens.

Here is a conceptual diagram illustrating the factors contributing to the error:

```mermaid
graph TD
A[Guide Step Content] → B(Content Complexity)
B → C{Resource Load on HoloLens}
C → |Exceeds Limits| D[HoloLens Memory/CPU Limit]
D → E[“Step content failed to load” Error]
B → F(Asset Count)
B → G(Model Polygon Count)
B → H(Texture Size/Count)
B → I(Media Size/Count)
B → J(Annotation Count/Detail)

E --> K[Operator Cannot Proceed]
K --> L[Need for Resolution]

L --> M{Reduce Content Complexity}
M --> N(Optimize Assets)
N --> O(Reduce Polygons)
N --> P(Optimize Textures)
N --> Q(Reduce Media Size)
M --> R(Restructure Guide)
R --> S(Break Steps)
R --> T(Use Multiple Guides)

N --> U[Successful Step Loading]
R --> U

```

For further information on optimizing assets for Mixed Reality applications, which is directly applicable to Dynamics 365 Guides, consider exploring resources such as documentation from Microsoft Learn or videos on channels dedicated to HoloLens and Mixed Reality development. Searching for “optimize 3D models for HoloLens 2” or “Mixed Reality asset performance” on platforms like YouTube can yield valuable technical insights into preparing 3D content effectively. For example, a video focusing on preparing CAD data for HoloLens might demonstrate techniques for simplification and decimation crucial for avoiding the ‘Step content failed to load’ error. Note: Specific video content may vary and should be evaluated for relevance.

Have you encountered this error in your Dynamics 365 Guides? What strategies have you found most effective in resolving it or preventing it during the authoring process? Share your experiences and tips in the comments below!
