Troubleshooting Perpetual Boot Loops: A Hardware Developer's Guide

Table of Contents

Understanding Perpetual Boot Loops in Embedded Systems¶

Perpetual boot loops represent a critical failure mode for any computing device, but they pose a particularly significant challenge in embedded systems. Unlike desktop PCs where a user is typically present to intervene, embedded devices such as Point-of-Sale (POS) terminals, kiosks, and industrial controllers are often deployed in unattended environments. A system stuck in a boot loop renders the device inoperable, causing disruption and potentially significant financial or operational impact. These systems are designed for reliability and autonomous operation, making stability during the boot sequence paramount. This article focuses on a specific scenario encountered in Windows Embedded POSReady 7, Windows Embedded Standard 7, and Windows Embedded Standard 7 Service Pack 1, where an improper shutdown can lead to a recurring prompt asking to boot Windows normally, effectively halting the boot process without user intervention.

The core problem addressed here is a persistent prompt during system startup indicating that Windows did not boot correctly. This prompt requires user interaction to proceed, which is unacceptable for unattended embedded systems. Resolving this issue programmatically ensures that the device can recover and resume operation without manual intervention, maintaining the high availability expected of embedded deployments. Addressing the root cause and implementing a robust solution is essential for hardware developers and system integrators building solutions on these platforms.

Symptoms: The Persistent Boot Prompt¶

The primary symptom of the issue is a specific prompt displayed during the boot sequence. Instead of proceeding directly to the operating system’s login screen or designated application, the system halts and presents a message. This message typically states that “Windows did not boot properly” and offers options, often including the choice to “boot Windows normally.” While this prompt is a standard Windows recovery mechanism designed for general-purpose PCs, its appearance on an embedded system fundamentally breaks the intended user experience and operational model.

For a hardware developer designing a product based on Windows Embedded, this prompt is a critical failure. An embedded system should start automatically and enter its operational state without user interaction. A boot prompt, even one seemingly innocuous, means the system cannot fulfill its function autonomously. The requirement for manual selection prevents the system from recovering from certain failure states or even routine, non-clean shutdowns, which are unfortunately common in some embedded scenarios. Identifying this prompt as the specific symptom is the first step in applying the correct troubleshooting steps.

Root Causes in Embedded Environments¶

Embedded systems often operate under conditions that differ significantly from typical desktop or server environments. Power sources may be less stable, and devices may be shut down abruptly rather than through a graceful operating system shutdown process. These factors are key contributors to the boot prompt issue discussed here.

The Role of Enhanced Write Filter (EWF)¶

One of the core features of Windows Embedded platforms is the Enhanced Write Filter (EWF). EWF is a component that protects the contents of a volume from writes. It achieves this by redirecting all write operations to an overlay layer, which can be stored in RAM, on a disk, or in a separate volume. The primary purpose of EWF is to create a consistent, immutable base system image. This makes the system more resistant to corruption and allows for quick restoration to a known good state simply by discarding the overlay on reboot.

EWF is crucial for the reliability and maintenance of embedded devices. It allows administrators to easily update the system image or install applications while maintaining the integrity of the base installation. Changes written to the overlay are volatile if stored in RAM (meaning they are lost on power cycle) or can be made persistent by “committing” the overlay to the protected volume. This mechanism is powerful but introduces complexities regarding system state, particularly during shutdown.

Improper Shutdowns and System State¶

Unlike a standard PC user who initiates a shutdown sequence via the Start menu, embedded systems may experience power loss unexpectedly. This could be due to a power outage, a user simply switching off the device, or other external factors. A proper Windows shutdown involves a series of steps where the operating system flushes buffers, closes files, stops services, and writes critical state information to the disk. An improper shutdown bypasses these steps entirely.

When a system is shut down improperly, the operating system does not have the opportunity to save its final state correctly. File systems may be left in an inconsistent state, open files may not be closed, and critical system files might be left in an incomplete or corrupt state. On a standard PC, this often triggers Windows’ built-in recovery mechanisms, such as Startup Repair or presenting the boot options menu, to attempt to rectify the situation before loading the OS.

Interaction Between EWF and Unclean Shutdowns¶

The specific issue arises from the interaction between an unclean shutdown and an active Enhanced Write Filter. When EWF is enabled, write operations are redirected to the overlay. If the system is shut down improperly before the overlay changes are committed to the protected volume, the state recorded on the base volume is potentially inconsistent with the last state perceived by the running operating system. The boot manager, on the next startup, detects this inconsistency or the abrupt cessation of system activity during the previous session.

Because the EWF prevents writes to the base volume, the state recorded on the volume protected by EWF doesn’t reflect the improper shutdown event in the way a non-EWF protected volume would. However, the boot process itself can still detect that the previous shutdown was not clean. This triggers the standard Windows boot status check, which is designed to prompt the user for recovery options when an unclean shutdown is detected. Since an embedded system is expected to handle such events autonomously, this prompt becomes a blocking issue.

Other Potential Boot Loop Contributors¶

While the focus here is on the EWF/improper shutdown interaction, it is important to acknowledge that other factors can cause boot loops in embedded systems. These include:
* Corrupt System Files: Damage to critical Windows files can prevent the OS from loading.
* Driver Issues: Faulty, incompatible, or corrupt device drivers, especially for crucial hardware, can cause crashes during boot.
* Registry Corruption: Errors in the Windows Registry can lead to system instability or boot failures.
* Hardware Failures: Malfunctioning components (RAM, storage, motherboard) can cause unpredictable system behavior, including boot loops.
* Software Conflicts: Applications or services configured to start at boot might crash the system.

Understanding these potential alternative causes is important for comprehensive troubleshooting, though the specific resolution discussed below targets the prompt triggered by unclean shutdowns with EWF enabled.

The bcdedit Solution¶

Fortunately, for the specific issue of the recurring boot prompt triggered by unclean shutdowns in the presence of EWF, Windows provides a mechanism to control the system’s response to detected boot failures. This mechanism is managed via the Boot Configuration Data (BCD) store, which is configured using the bcdedit command-line utility.

What is bcdedit?¶

bcdedit.exe is a command-line tool used to manage Boot Configuration Data (BCD), which replaces the boot.ini file used in previous versions of Windows (like Windows XP and Windows Server 2003). The BCD store contains boot options and is used by the Windows Boot Manager (BOOTMGR) during the startup process. bcdedit allows users and administrators to add, delete, edit, and view entries in the BCD store. This includes specifying the operating system location, boot options (like safe mode), memory options, and, crucially for this problem, how the system should behave when a boot failure is detected.

Modifying the BCD store requires elevated privileges, which is why the command must be run from a command prompt with administrator rights. Incorrect use of bcdedit can render a system unbootable, so caution is advised.

Understanding bootstatuspolicy ignoreallfailures¶

Within the BCD store, there is a setting called bootstatuspolicy. This policy dictates how the Windows Boot Manager reacts when it detects that the previous operating system startup failed or was not shut down cleanly. By default, this policy might be set to trigger recovery options or display the boot failure prompt.

The specific value ignoreallfailures instructs the Windows Boot Manager to completely ignore any detected boot failures or unclean shutdowns. When this policy is set, even if the system detects that the previous shutdown was improper, it will proceed to attempt booting the operating system normally without displaying any prompts or entering recovery modes. This is the desired behavior for many embedded systems, where user interaction is not possible or expected.

Step-by-Step Implementation Guide¶

To apply the bcdedit configuration change that prevents the boot prompt, you need to follow a specific sequence of steps involving the Enhanced Write Filter (EWF). Modifying system boot configuration while EWF is active in its default protect mode is not feasible, as the changes would be written to the overlay and potentially lost or not correctly applied to the base volume where the BCD store resides.

Here is the detailed procedure to set the bootstatuspolicy to ignoreallfailures:

1. Power up the machine and log in as local Administrator. You need administrative privileges to manage EWF and modify the BCD store. Ensure the system is running and you have access to a command prompt with administrator rights.
2. Disable EWF, reboot, and log in again. Before making changes to the base volume, you must disable EWF. This allows subsequent changes, including the BCD modification, to be written directly to the protected volume. Open a command prompt with administrator privileges and run the appropriate ewfmgr command for your configuration (e.g., ewfmgr c: -disable if c: is the protected drive). After running the command, you must reboot the system. Disabling EWF typically takes effect only after a reboot. Log back in as administrator after the reboot.
3. Run the bcdedit command from a command prompt with administrator privileges. Now that EWF is disabled and changes can be written to the base volume, open a command prompt with administrator privileges again. Execute the following command:


   bcdedit /set {current} bootstatuspolicy ignoreallfailures



   This command modifies the BCD entry for the currently running operating system ({current}) and sets its boot status policy to ignoreallfailures. The command should report successful execution.
4. Reboot the machine, and log in again. After modifying the BCD store, it is good practice to reboot the system to ensure the change is registered by the boot manager for subsequent startups. Log back in as administrator.
5. Enable EWF, reboot, log in again. Now that the bcdedit change is safely written to the base volume, you can re-enable EWF to resume protecting the system volume. Open a command prompt with administrator privileges and run the appropriate ewfmgr command (e.g., ewfmgr c: -enable). Again, you must reboot the system for EWF to become active. Log back in as administrator after this reboot.
6. Shut down the machine normally (do not power off). To test the configuration, first perform a clean shutdown. This ensures the system state is saved correctly and EWF (now enabled) manages the final state transition.
7. Power up the machine and log in. Verify that the system boots cleanly after a proper shutdown.
8. Now, power off the machine improperly (e.g., by pulling the power cord) and reboot. This is the crucial test. After the improper shutdown, power the machine back on. With the bootstatuspolicy set to ignoreallfailures, the system should now boot directly into Windows without displaying the “Windows did not boot properly” prompt.

This procedure ensures that the necessary modification to the BCD store is written to the persistent volume (which requires EWF to be disabled temporarily) and that EWF is then re-enabled to maintain system protection.

Why This Resolution Works¶

Setting the bootstatuspolicy to ignoreallfailures directly addresses the trigger for the boot prompt. The prompt appears because the Windows Boot Manager detects an abnormal previous shutdown. By instructing the boot manager to ignore this detection, we bypass the prompt entirely. The system still attempts to boot normally, which, in the context of this specific issue, is usually successful after an unclean shutdown. The underlying file system state might still be inconsistent immediately after an unclean shutdown, but the boot manager is told not to escalate this into a user-interactive recovery scenario.

This solution is specifically applicable when the boot loop is caused by the prompt itself, following unclean shutdowns on systems with EWF. It does not resolve boot loops caused by fundamental system file corruption, hardware failures, or other issues that prevent the OS from loading even if the boot manager doesn’t prompt for recovery.

Managing Enhanced Write Filter (EWF)¶

Effective management of EWF is critical for maintaining Windows Embedded systems. The step-by-step resolution above required temporarily disabling and then re-enabling EWF. This is done using the ewfmgr command-line utility.

Basic EWF Commands: ewfmgr¶

The ewfmgr command is the primary tool for interacting with the Enhanced Write Filter. It allows you to query the status of EWF, enable or disable it on protected volumes, and manage the EWF overlay.

The basic syntax to enable or disable EWF on a specific volume is:

ewfmgr [volume] -enable

or

ewfmgr [volume] -disable

Where [volume] is the drive letter of the volume protected by EWF (e.g., c:).

To check the current status of EWF on a volume, you can simply run:

ewfmgr [volume]

This will display information about the EWF configuration for that volume, including whether it is currently enabled or disabled and details about the overlay.

EWF States and Operations¶

EWF can be in several states:
* Enabled: EWF is active, and writes are being redirected to the overlay.
* Disabled: EWF is inactive, and writes go directly to the protected volume. Disabling EWF usually requires a reboot to take full effect.
* Commit Pending: Changes in the overlay are marked to be committed to the protected volume on the next reboot.
* Disable Pending: EWF is marked to be disabled on the next reboot.
* Enable Pending: EWF is marked to be enabled on the next reboot.

Understanding these states is crucial when performing maintenance or configuration changes, as many operations (like enabling, disabling, or committing changes) only fully apply after a system reboot.

Committing Changes with EWF¶

While not directly part of the boot loop resolution steps described earlier, the concept of committing changes is fundamental to working with EWF. If you make changes to the system (install software, update configurations) while EWF is enabled and you want these changes to be permanent, you must commit the EWF overlay to the protected volume.

The command to commit changes and disable EWF (so the commit happens on reboot, and EWF stays off) is:

ewfmgr [volume] -commitanddisable

Or, to commit changes and keep EWF enabled after the commit (also happens on reboot):

ewfmgr [volume] -commitandenable

After running a commit command, you must reboot the system for the changes stored in the overlay to be written to the base volume. This process effectively merges the overlay into the protected volume, making the changes persistent across future reboots, even if EWF is enabled.

Proper EWF management is key to maintaining the stability and desired configuration of Windows Embedded systems and is a necessary skill for hardware developers working with these platforms.

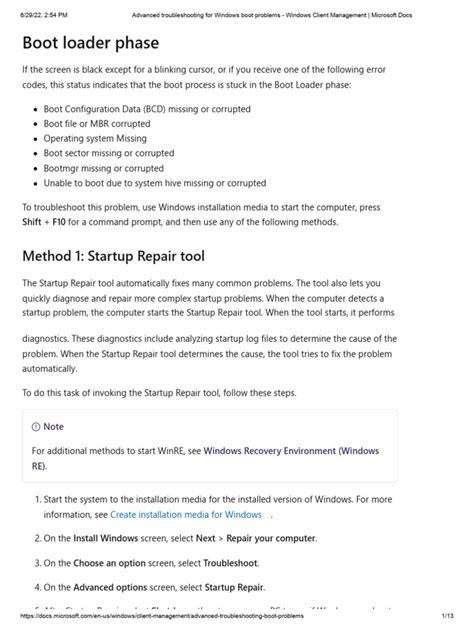

Broader Troubleshooting Strategies for Boot Issues¶

While the bcdedit method is effective for the specific boot prompt issue, hardware developers should be familiar with broader troubleshooting techniques for boot failures, as other causes can lead to similar-looking problems (a system that won’t boot correctly).

Checking System File Integrity¶

Corrupted system files are a common cause of boot failures. The System File Checker (sfc) utility is invaluable here.
Running sfc /scannow from a command prompt (often accessible from recovery environments if the system won’t boot fully) can scan and repair corrupted Windows system files. This should be attempted if the bcdedit fix doesn’t resolve the issue, especially if the boot loop is more severe than just the recovery prompt.

Driver Conflicts and Rollbacks¶

Faulty or incompatible device drivers can cause the system to crash during boot, potentially leading to a loop. If a recent hardware change or driver update preceded the issue, attempting to boot into Safe Mode or using System Restore (if available and configured) to roll back to a previous state can help. Accessing the Windows Recovery Environment (WinRE) can provide options for Startup Settings, including Safe Mode, or access to the Command Prompt for advanced troubleshooting.

Diagnosing Hardware Problems¶

Persistent, unexplainable boot loops might indicate underlying hardware issues. Testing memory modules (e.g., using Windows Memory Diagnostic), checking the integrity of the storage drive (e.g., using chkdsk), and verifying the functionality of critical components can help isolate hardware-related boot problems. Embedded systems often run on specific, sometimes less common hardware; ensuring driver compatibility and hardware reliability is paramount during development and deployment.

Preventing Future Boot Loop Issues¶

Prevention is always better than cure. For embedded systems prone to abrupt shutdowns or utilizing write filters like EWF, adopting certain practices can significantly reduce the likelihood of encountering boot loop problems.

Implementing Proper Shutdown Procedures¶

Whenever possible, design the system to perform a graceful operating system shutdown. This could involve:
* Implementing a battery backup (UPS) to allow the system to shut down cleanly during a power outage.
* Using power buttons configured to initiate a software shutdown rather than immediately cutting power.
* Developing application logic that detects imminent power loss signals (if the hardware provides them) and initiates a shutdown.
* Educating users (if applicable) on the importance of using the designated shutdown procedure.

Even if a proper shutdown isn’t always guaranteed, minimizing improper shutdowns reduces stress on the file system and boot configuration.

EWF Configuration Best Practices¶

Careful configuration and management of EWF are essential.
* Understand the Overlay Type: Choose the overlay type (RAM, Disk, Volume) based on the application’s needs and the hardware’s capabilities. RAM overlays are volatile but offer better performance. Disk or Volume overlays can retain changes across power cycles, but require careful management (committing) to make changes permanent on the base volume.
* Plan for Updates: Establish a clear process for disabling EWF, applying system updates or configuration changes, committing those changes, and re-enabling EWF. This ensures updates are persistent and the base image remains consistent.
* Monitor EWF Status: Regularly check the EWF status, especially after system events or maintenance, to ensure it is in the expected state.
* Utilize bootstatuspolicy ignoreallfailures: For unattended systems where the boot prompt is problematic, setting this policy using the steps outlined above is a key preventive measure against this specific type of boot loop.

The Importance of System Stability in Embedded Devices¶

For hardware developers, the reliability of the system from power-on to operational state is non-negotiable. Embedded devices serve specific functions in diverse environments – from critical infrastructure to customer-facing kiosks. Any failure to boot correctly directly impacts their utility and the reputation of the product. Troubleshooting and preventing boot loops, especially those triggered by common embedded scenarios like unclean shutdowns and write filters, is a fundamental aspect of delivering a robust and professional embedded solution. The bcdedit solution discussed here is a powerful tool for addressing a specific, yet common, issue in Windows Embedded 7 platforms.

Conclusion and Next Steps¶

Encountering a perpetual boot loop, specifically one caused by the persistent “Windows did not boot properly” prompt on Windows Embedded 7 systems using EWF, is a frustrating but resolvable issue. By understanding the interaction between unclean shutdowns and EWF, and by utilizing the bcdedit command with the bootstatuspolicy ignoreallfailures setting, hardware developers can configure systems to bypass this prompt and boot autonomously. Remember to perform the necessary steps involving disabling and re-enabling EWF around the bcdedit command to ensure the configuration change is persistent on the protected volume. Always perform changes with administrator privileges and test thoroughly after implementation.

Have you encountered this specific boot loop issue in your Windows Embedded projects? What other troubleshooting steps have you found effective for boot problems in embedded systems? Share your experiences and insights in the comments below!
