This article details a specific architectural characteristic of Windows Server Hyper-V, focusing on the number of virtual processors available to the operating system running within the management partition, often referred to as the host or root partition. While Hyper-V is designed to scale significantly on modern hardware, the host operating system itself operates with a defined limit on the number of virtual processors it utilizes. This design choice is fundamental to understanding Hyper-V’s resource management model, particularly concerning processor allocation and scheduling.

Understanding Hyper-V Processor Concepts¶

To grasp the host OS processor limit, it’s essential to understand the terminology used in Hyper-V regarding processor resources. At the base level is the physical hardware, consisting of Logical Processors (LPs). An LP represents a hardware context that can execute instructions, which corresponds to a core on a physical CPU or a hardware thread if the CPU supports hyper-threading (SMT). These LPs are managed directly by the Hyper-V hypervisor.

Above the hypervisor sits the operating system partitions. The primary partition is the management partition (the host OS), and other partitions are guest partitions (where virtual machines run). Neither the host OS nor the guest OSs directly see or manage the physical LPs. Instead, the hypervisor presents Virtual Processors (VPs) to each partition. A VP is a software construct that the hypervisor schedules onto available LPs.

For the management partition, these VPs are specifically termed Root Virtual Processors (Root VPs). For guest partitions, they are simply referred to as Virtual Processors or Guest VPs. The hypervisor’s core function involves allocating and scheduling these VPs onto the underlying LPs, ensuring that each partition receives access to processor time. This layer of abstraction allows the hypervisor to efficiently manage and distribute the physical processing power across multiple workloads running in isolation.

The 64 Root VP Limitation¶

A notable characteristic of Windows Server Hyper-V, particularly in versions like Windows Server 2012, is that the operating system running within the management partition is designed to utilize a maximum of 64 Root Virtual Processors. This limit applies regardless of the total number of logical processors available in the system. Even if a server has hundreds of logical processors, the host OS instance will only enumerate and make use of up to 64 of these Root VPs.

This limitation does not mean the hypervisor itself is limited to 64 processors. On the contrary, the Hyper-V hypervisor actively manages and can leverage all available logical processors on the system. For instance, on a system with 128 or even 320 logical processors (the limit for Server 2012), the hypervisor uses the full complement of LPs to schedule all VPs from both the host and guest partitions. The 64 Root VP limit is specific to the operating system instance running in the host partition.

The rationale behind this design centers on the intended role of the host partition. The host OS’s primary function in a Hyper-V environment is to provide management capabilities for the hypervisor and virtual machines, and to offer access to physical hardware resources like networking and storage (often via VMBus for guests). It is not typically intended to run heavy computational application workloads directly. Limiting the number of VPs allocated to the host OS ensures that the vast majority of the system’s processing power remains available for allocation to guest virtual machines, where application workloads are expected to run. This prioritization is key to Hyper-V’s effectiveness as a virtualization platform.

Observing Processor Usage in the Host OS¶

Because the Windows OS instance in the Hyper-V host partition is capped at utilizing 64 Root VPs, standard system utilities viewed from within the host OS might not initially show the total number of physical logical processors available on the machine. These utilities will correctly reflect the number of VPs that the host OS is currently using or configured to use, which will not exceed 64.

This can sometimes lead to confusion, as a server with, say, 128 logical processors might show only 64 processors when viewed from certain locations within the host operating system. However, there are specific tools and counters designed to provide visibility into both the host’s VP usage and the total system’s LP count as seen by the hypervisor.

Task Manager Display¶

The Windows Task Manager provides a clear distinction between the processors available to the host OS and the total logical processors managed by the hypervisor. When viewed on a Hyper-V host with more than 64 logical processors, the Performance tab will show two key metrics related to processors.

The Logical processors value displayed in Task Manager accurately reports the total number of physical logical processors that the Hyper-V hypervisor is managing on the entire system. This number reflects the true hardware capacity in terms of parallel execution threads. For a system with, for example, 128 logical processors, this value will correctly show 128.

Conversely, the Host logical processors value specifically indicates the number of virtual processors that have been allocated to the host operating system partition. Due to the architectural limit, this value will not exceed 64, even if the system has significantly more total logical processors. This distinction clarifies what resources are available to the host OS instance versus the total resources managed by the hypervisor for distribution among all partitions.

Performance Monitor Metrics¶

For a more detailed view and historical tracking, Performance Monitor offers specific counters within the Hyper-V Hypervisor performance object that reveal the processor landscape. These counters allow administrators to see the total physical logical processors available and the subset allocated to the host partition.

The counter Hyper-V Hypervisor\Logical Processors indicates the total count of logical processors on the physical machine that are under the management of the Hyper-V hypervisor. This corresponds to the “Logical processors” value seen in Task Manager. This is the pool of raw processing power that the hypervisor can schedule VPs onto.

The counter Hyper-V Hypervisor Root Partition\Virtual Processors specifically reports the number of virtual processors assigned to the host (root) partition. This corresponds to the “Host logical processors” value in Task Manager and will not exceed the 64-VP limit for the host OS instance.

By observing these two counters, administrators can confirm the total system capacity and understand how many processors the host OS is configured to use, providing a clear picture of the processor resource allocation model in Hyper-V.

Performance Counter	Description	Maximum Value Reflected (on Server 2012+)
Hyper-V Hypervisor\Logical Processors	Total logical processors managed by the hypervisor on the physical system.	System maximum (e.g., 320 on Server 2012)
Hyper-V Hypervisor Root Partition\Virtual Processors	Virtual processors allocated specifically to the host (root) OS partition.	64

These metrics are crucial for diagnosing resource constraints or understanding system configuration, ensuring that administrators correctly interpret the system’s processor capabilities within a virtualized environment.

NUMA Topologies and Hyper-V¶

Non-Uniform Memory Access (NUMA) is an important architectural consideration in modern multi-processor systems. In a NUMA system, processors are organized into nodes, with processors within a node having faster access to local memory than to memory in other nodes. Hyper-V is designed to be NUMA-aware to optimize the performance of virtual machines, particularly on large systems.

While the host OS has a VP limit, the hypervisor is fully aware of the system’s underlying physical NUMA topology. When assigning logical processors to Root VPs and scheduling Root VPs onto LPs, the hypervisor takes NUMA into account. Similarly, when configuring virtual machines with a significant number of VPs and memory, Hyper-V attempts to align the VM’s virtual NUMA topology with the physical NUMA topology to optimize memory access performance for the guest OS.

The 64 Root VP limit simplifies the host OS’s scheduling complexity and memory management, as it doesn’t need to scale to manage processor and memory affinity across a very large number of NUMA nodes that might be present in a 300+ LP system. The hypervisor handles the complexities of the full physical topology, abstracting it for the limited number of Root VPs used by the host OS and presenting an optimized virtual topology to guests.

Why the 64-VP Limit Exists for the Host OS¶

The decision to limit the host OS to 64 virtual processors is rooted in the architectural design of Hyper-V and the intended role of the management partition. The host OS serves primarily as the foundation and management layer for the virtualization environment. Its core responsibilities include:

1. Hypervisor Bootstrapping: Loading and interacting with the Hyper-V hypervisor.
2. Resource Management: Providing interfaces and services for managing virtual machines (creation, configuration, migration, etc.).
3. Hardware Access: Facilitating access to physical hardware devices (network adapters, storage controllers) for guest partitions, often through paravirtualized drivers (VMBus).
4. Monitoring and Administration: Running monitoring tools, backup agents, and administrative interfaces.

These tasks, while critical, are not typically compute-intensive in the same way that application workloads running inside guest VMs can be. A large number of VPs for the host OS would primarily be needed for high-volume, parallel computation within the host itself, which is not its designed purpose.

Limiting the host to 64 Root VPs offers several benefits:

• Resource Reservation for Guests: It ensures that the vast majority of the system’s logical processors are available to the hypervisor for allocation to guest virtual machines. This maximizes the density and performance of the virtualized workloads.
• Simplified Host OS Design: The host OS’s kernel and scheduling components do not need to scale to manage processor allocation and scheduling across potentially hundreds of processors. This simplifies the design and testing of the host OS kernel in the virtualized context.
• Optimized Hypervisor Focus: The hypervisor can focus its most complex scheduling and resource management logic on efficiently distributing the much larger pool of logical processors among potentially numerous guest VPs, which fluctuate dynamically based on VM workloads.

Essentially, the 64-VP limit for the host OS reflects its position as a management and resource-providing partition, not a primary workload execution environment. The hypervisor, running below all partitions, retains full control and visibility over all physical logical processors to ensure optimal scheduling for the performance-sensitive guest workloads.

Impact of the Limitation¶

For most typical Hyper-V deployments, the 64 Root VP limit on the host OS has minimal practical impact on performance. Management tasks, even on large systems, are generally not CPU-bound to the extent that they would require more than 64 processors. The host OS is primarily involved in setup, configuration, monitoring, and I/O forwarding, which are not parallelized across a large number of processors in a way that would hit this ceiling under normal operation.

Performance bottlenecks in a Hyper-V environment almost invariably occur within the guest virtual machines, where the actual application workloads reside. If a system is experiencing high CPU utilization, it is typically due to the demands of the guest VMs consuming the logical processors managed by the hypervisor.

The limit only becomes a conceptual point of understanding when viewing processor counts from within the host OS using tools that report the host’s allocated VPs rather than the total system LPs. As demonstrated with Task Manager and Performance Monitor, mechanisms exist to accurately determine the total system capacity. Therefore, administrators should be aware of this distinction to correctly interpret system resource metrics on high-processor count machines.

Modern Hyper-V and Scalability¶

While this article focuses on the limit as described in the context of Windows Server 2012 (which supported up to 320 LPs), it’s worth noting that modern versions of Windows Server Hyper-V have significantly increased scalability limits for both total logical processors per host and the number of virtual processors per VM. For example, Windows Server 2019 and 2022 support far more logical processors per host (up to 512 or 768 depending on edition) and significantly more VPs per guest VM (up to 240).

However, the fundamental architectural principle persists: the host operating system partition has a practical limit or design target for the number of Root VPs it actively uses, ensuring that the bulk of physical processor resources remain available for guest workloads managed by the hypervisor. While the exact implementation details or soft limits might evolve, the core idea of the host OS being optimized for management rather than large-scale computation on a massive number of cores remains central to the Hyper-V architecture. The hypervisor continues to be the entity that sees and schedules all logical processors.

This architectural choice is a strength of Hyper-V, allowing it to efficiently scale and provide high performance for guest workloads by dedicating the majority of available processor cycles to where they are needed most. Understanding the distinction between logical processors (system total, seen by hypervisor) and virtual processors (allocated to partitions, seen by OS instances within partitions) is key to effectively managing and troubleshooting Hyper-V environments, especially on modern, powerful server hardware.

Best Practices on High Processor Count Systems¶

When working with Hyper-V on servers equipped with a large number of logical processors, keeping the host OS’s VP limit in mind is part of a broader strategy for optimal performance and management.

1. Monitor Total LPs: Always confirm the total number of logical processors using tools like Task Manager’s “Logical processors” count or the Hyper-V Hypervisor\Logical Processors Performance Monitor counter. This gives you the true hardware capacity.
2. Focus on Guest Performance: Understand that the performance of your virtualized applications is dependent on the resources allocated to the guest VMs, not the number of VPs available to the host OS (beyond what’s needed for basic management). Tune VM VPs and memory allocation based on workload requirements.
3. NUMA Awareness: On systems with multiple physical CPUs and significant RAM, the NUMA topology is critical. Design your VM configurations (especially for large VMs) to align with the underlying NUMA nodes where possible. Hyper-V’s scheduler is NUMA-aware, but proper VM configuration helps optimize memory locality.
4. Host OS Purpose: Reiterate that the host OS should primarily be used for management and hosting roles. Avoid running demanding application workloads directly on the host OS.
5. Regular Monitoring: Use Performance Monitor and other tools to track resource utilization (CPU, memory, storage, network) within both the host partition and critical guest partitions. Pay attention to the CPU utilization of guest VPs and the overall Hyper-V Hypervisor\Total Runtime to understand processor activity.

Understanding the specific limit on host OS VPs clarifies how Hyper-V prioritizes resources and reinforces the host’s role as a management layer rather than a primary application server.

Further Exploration: Hyper-V Architecture¶

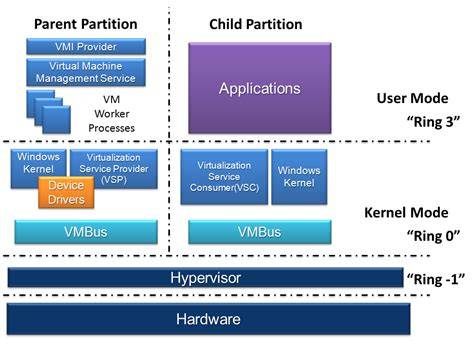

To fully appreciate the implications of the host VP limit, exploring the broader Hyper-V architecture is highly recommended. The hypervisor sits directly on the hardware, managing resources and scheduling VPs. The host partition is a special, privileged partition that boots first and is responsible for managing guest partitions.

Consider watching a video that delves into the core components and interaction model of Hyper-V. This can provide a visual and conceptual understanding of how the hypervisor, root partition, and guest partitions interact with the underlying physical hardware.

Note: Replace “your_relevant_video_id_here” with the actual ID of a relevant YouTube video discussing Hyper-V architecture or processor management. A search for “Hyper-V architecture explained” or “Hyper-V logical virtual processors” should yield suitable options.

Such resources help solidify the understanding that the host OS limit is not a system capacity limit, but rather an intentional design element optimizing Hyper-V for its role as a hypervisor platform focused on running guest workloads efficiently.

---
