Windows Server VSS: Understanding & Optimizing Usability Limits for Data Protection

Table of Contents

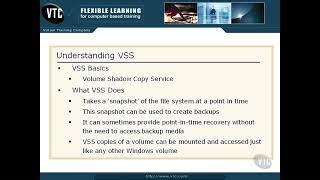

Volume Shadow Copy Service (VSS) is a technology included in Microsoft Windows that allows backup applications and other management tools to create point-in-time copies (snapshots) of volumes. These snapshots can be used for various purposes, such as creating consistent backups, restoring previous versions of files, or performing data mining without impacting the live system. VSS coordinates between backup applications, VSS requestors, VSS providers, and VSS writers to ensure data consistency during the snapshot process. Understanding the capabilities and limitations of VSS is critical for effective data protection strategies on Windows Server environments. While VSS is a powerful tool, it does have certain operational boundaries, particularly concerning the scale of the volumes it operates on.

The Role of VSS in Modern Data Protection¶

VSS plays a pivotal role in ensuring data consistency during backup operations. Before a backup application copies data, it requests VSS to create a shadow copy of the target volume. VSS then notifies applications (VSS writers) to quiesce their data, ensuring all pending transactions are flushed and the data state is consistent. Once applications confirm readiness, VSS coordinates with the VSS provider to create a point-in-time snapshot of the volume data. The backup application then reads data from this static snapshot, ensuring that the backup copy is internally consistent, even for active databases or applications. This process minimizes data corruption risks and allows for reliable restoration.

VSS enables several key data protection scenarios. File history and Previous Versions features on Windows clients rely on VSS snapshots for quick file recovery. System Restore points also leverage VSS to capture the system state. Crucially, enterprise backup software for Windows Server heavily utilizes VSS to back up active databases like SQL Server and Exchange Server, as well as file shares and application data, without requiring downtime. This consistency makes VSS an indispensable component of the Windows ecosystem for data integrity and availability.

Identifying VSS Usability Limits: The 64 TB Threshold¶

While VSS is designed to scale with modern storage requirements, it encounters specific usability limitations when operating on volumes exceeding a certain size. Microsoft has documented that VSS functionality is not fully supported or may exhibit issues on volumes larger than 64 terabytes (TB). This limitation affects several core operations that rely on VSS snapshots. Understanding these specific scenarios where the limit is encountered is crucial for planning and troubleshooting.

Operations commonly affected by this 64 TB threshold include the fundamental process of enabling VSS itself on a large volume. Attempting to turn on shadow copies for a volume exceeding this size may fail or result in unstable behavior. Furthermore, the creation of writable snapshots or snapshots where the data divergence (diff area) grows beyond the 64 TB effective limit for the snapshot itself can also trigger issues. Backing up volumes larger than 64 TB with VSS enabled is another operation explicitly noted as being unsupported, potentially leading to backup failures. Finally, even filesystem maintenance tools like chkdsk.exe, which may interact with or require a consistent volume state often facilitated by VSS, can encounter problems on volumes of this magnitude.

mermaid graph TD A[Volume Size > 64 TB] --> B{Attempt VSS Operation?}; B --> |Enable VSS| C[Failure / Error]; B --> |Create Writable Snapshot| C; B --> |Create Snapshot > 64 TB| C; B --> |Backup with VSS Enabled| C; B --> |Run CHKDSK| C; C --> D[Potential Symptoms]; D --> E[STOP: 0x0000007E]; D --> F[Failed to create shadow copy]; D --> G[Error 0x80042306]; D --> H[Event ID 12289: Error 0x80070057];

The specific error messages encountered can vary but often point towards VSS or shadow copy failures. Common symptoms include STOP errors (Blue Screen of Death), explicit messages indicating the failure to create a shadow copy of the affected volume, or errors with specific codes like 0x80042306 or 0x80070057. These errors, especially when combined with event log entries related to VSS, diagnostics, or backup operations on large volumes, strongly suggest hitting this documented usability limit. Recognizing these error patterns is the first step in diagnosing the issue and implementing appropriate workarounds or alternative strategies.

Delving into the Cause: Why the 64 TB Limit?¶

The fundamental cause of these issues lies in a specific, documented limitation within the Microsoft VSS implementation regarding the maximum supported volume size for certain operations. Microsoft explicitly states that VSS is not supported on volumes larger than 64 TB for the aforementioned operations. While the precise technical reasons behind this specific numerical limit are not always detailed publicly at the deepest level, it’s generally related to internal data structures, pointer sizes, addressable space within the VSS component, or performance considerations when tracking changes across extremely large volumes. Snapshot technologies, by their nature, need to track changes (writes) occurring on the original volume after the snapshot is taken.

This change tracking is typically managed within a ‘diff area’ or ‘copy-on-write’ mechanism. For very large volumes, managing the metadata and performance implications of tracking potential changes across terabytes of data becomes increasingly complex. The resources required, such as memory for tracking tables or disk space for storing copied blocks, can become excessive or hit internal software limits. While modern hardware and operating systems handle large volumes efficiently for standard file operations, the specialized process of creating and maintaining consistent, point-in-time snapshots introduces unique challenges that can expose limitations in the VSS architecture or implementation when faced with volumes of this scale. Therefore, exceeding the 64 TB threshold pushes VSS beyond its designed and tested operational envelope for these specific functions.

Workarounds and Mitigation Strategies¶

Given the direct cause is a documented limitation, the primary and most straightforward workaround is to avoid performing the unsupported operations on volumes larger than 64 TB. This means if you have a single volume exceeding 64 TB, you should not attempt to enable VSS on it, create snapshots, run backups using VSS on it, or rely on VSS-dependent chkdsk operations. While simple, this presents a significant challenge for data protection on very large datasets stored on a single volume. Therefore, more practical mitigation strategies often involve rethinking storage configuration and data protection approaches for large datasets.

One common strategy to work around this limit is to logically divide very large datasets across multiple smaller volumes, each well under the 64 TB limit. For instance, instead of a single 100 TB volume, configure the storage as two 50 TB volumes. This allows VSS to be enabled and utilized independently on each smaller volume, restoring VSS functionality for backups, snapshots, and other supported operations. This approach requires careful planning during storage provisioning and data placement but effectively bypasses the VSS volume size limitation.

Restructuring Storage for VSS Compatibility¶

Restructuring storage involves planning how data is distributed across logical drives. For datasets projected to grow beyond 64 TB, creating multiple smaller volumes from the outset is ideal. If you already have a single large volume, migrating data to a new structure of smaller volumes is necessary. This can be a complex and time-consuming process, requiring sufficient swing space or downtime depending on the data volume and migration tools used. However, it’s often the most direct way to enable VSS-based data protection for the data itself.

Consider the types of data stored. Can different datasets or applications be isolated onto separate volumes? For instance, application data might go on one volume, while user file shares are split across multiple volumes. Planning for future growth within the 64 TB boundary for each individual volume is also critical. This proactive approach prevents hitting the limit unexpectedly later on.

Alternative Data Protection Technologies¶

When volume restructuring is not feasible or desirable, or for datasets inherently larger than 64 TB residing on a single logical volume (perhaps presented by advanced storage arrays or software-defined storage solutions), relying solely on Windows VSS for snapshots and backups on that specific volume is not viable. In such cases, alternative data protection technologies provided by the storage vendor or third-party backup software become necessary.

Modern storage arrays often provide their own hardware-based snapshot capabilities that are independent of Windows VSS. These snapshots are typically highly performant and can operate efficiently on volumes far exceeding the VSS limit. Backup software can often integrate directly with these storage array APIs to orchestrate hardware snapshots for backup purposes. Similarly, some advanced file systems (like ReFS in specific configurations or solutions built on top of distributed file systems) or software-defined storage platforms (like Storage Spaces Direct in certain configurations) may offer their own snapshot or replication mechanisms that operate outside the VSS framework for large volumes.

mermaid graph LR A[Large Volume > 64 TB] --> B{Require Snapshot / Backup?}; B --> |Yes| C{Can Restructure Volumes?}; C --> |Yes| D[Split into Volumes < 64 TB]; D --> E[Use Windows VSS per Volume]; C --> |No| F[Explore Alternative Technologies]; F --> G[Storage Array Hardware Snapshots]; F --> H[Third-Party Backup Software Features]; F --> I[Software-Defined Storage Snapshots]; E --> J[Data Protected]; G --> J; H --> J; I --> J;

Third-party backup software suites often offer agent-based or agentless backup methods that can capture data changes without relying solely on VSS snapshots for the primary data source on extremely large volumes. While VSS might still be used for application consistency if the application data resides on a supported volume size, the volume containing the main dataset might be backed up using different techniques, such as block-level incremental backups managed by the backup agent or direct integration with the storage layer. Evaluating backup software capabilities for handling volumes exceeding VSS limits is essential for large-scale deployments.

Addressing CHKDSK on Large Volumes¶

The mention of chkdsk.exe being affected on volumes larger than 64 TB with shadow copy enabled highlights another challenge. chkdsk can sometimes interact with or be impacted by VSS snapshots, particularly during certain stages of its operation or if it needs a stable view of the file system. For very large volumes, running chkdsk can be extremely time-consuming and resource-intensive regardless of VSS.

Strategies for managing file system integrity on large volumes might involve proactive monitoring, using file system health tools that can run online or have less impact, and potentially utilizing storage system-level checks if available. If an offline chkdsk is absolutely necessary on an extremely large volume where VSS was problematic, ensure VSS is disabled and plan for significant downtime. However, preventing issues through proper storage management and monitoring is preferable to reactive chkdsk runs on such massive volumes. Some modern file systems and storage solutions incorporate self-healing capabilities or faster online integrity checks which may be more suitable for large-scale deployments.

Planning for Scalability Beyond VSS Limits¶

Designing storage and data protection solutions for datasets that will eventually exceed or already exceed 64 TB requires forward-thinking. Assuming Windows VSS will be the sole method for creating consistent snapshots on such large volumes is not a viable strategy. Infrastructure architects and administrators must consider the entire data lifecycle and protection requirements.

Factors to consider include the rate of data growth, the required recovery point objectives (RPO) and recovery time objectives (RTO), and the capabilities of the underlying storage infrastructure and backup software. For high-growth data, provisioning storage in a way that allows for scaling by adding more volumes (each within VSS limits) might be practical. For massive, monolithic datasets, investing in storage platforms that offer advanced snapshot and replication features independent of the operating system’s VSS might be necessary.

Evaluating backup software goes beyond just checking VSS integration. Look for features like parallel backup streams, block-level tracking, synthetic full backups, and integration with storage hardware or hypervisor snapshots, which can be more efficient and bypass OS-level VSS limitations on large scales. The cost implications of different storage architectures and data protection methods must also be factored into the planning process. Choosing the right technology mix based on scale and requirements is key to ensuring data is both accessible and protectable.

The Future of Large Volume Support¶

As data storage requirements continue to grow exponentially, the limitations of technologies like VSS on extremely large single volumes become more apparent. While operating system components evolve, the fundamental challenges of managing metadata and tracking changes across petabytes of data efficiently remain complex. It is likely that for truly massive datasets (petabytes and beyond), the trend will continue towards distributed file systems, object storage, and storage platforms with integrated data protection features that handle scalability at a different architectural level than traditional monolithic volumes and OS-level snapshot services like VSS.

However, VSS remains highly relevant and critical for the vast majority of Windows Server deployments operating on volumes within the supported size limits. Understanding where its boundaries lie allows IT professionals to make informed decisions about storage design, data placement, and the selection of complementary data protection technologies to ensure comprehensive coverage for all data, regardless of scale. The 64 TB limit serves as a specific point of reference requiring alternative strategies for the largest volumes.

Conclusion¶

Windows Server Volume Shadow Copy Service (VSS) is an essential technology for creating point-in-time snapshots for consistent backups and other data protection tasks. However, it is subject to documented usability limits, specifically on volumes exceeding 64 TB for certain operations like enabling VSS, creating snapshots, and running VSS-dependent backups or chkdsk. Understanding these limitations is crucial for preventing errors and ensuring data recoverability. While the direct workaround involves avoiding these operations on overly large volumes, practical strategies for very large datasets often require restructuring storage into smaller volumes or leveraging alternative data protection technologies provided by storage arrays, software-defined storage, or advanced backup software that can operate independently of Windows VSS for large-scale volumes. Proactive planning based on anticipated data growth is key to designing a scalable and robust data protection infrastructure that accommodates the capabilities and limitations of technologies like VSS.
