Azure Troubleshooting: Resolving the ServiceCidrOverlapExistingSubnetsCidr Error

Updated: • 0 • min read
Table of Contents

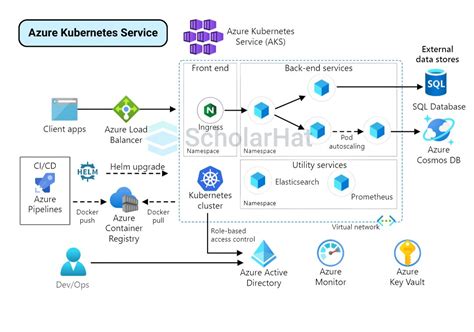

Azure Kubernetes Service Troubleshooting

This article provides guidance on identifying and resolving the ServiceCidrOverlapExistingSubnetsCidr error encountered during a Microsoft Azure Kubernetes Service (AKS) cluster upgrade operation. Understanding the underlying network configuration within Azure and AKS is crucial for preventing and troubleshooting this specific issue. The error signifies a conflict between the address range designated for AKS internal services and an existing subnet within the cluster’s virtual network or a connected network. Proper network planning is key to avoiding such conflicts during the lifecycle of your AKS clusters.

Symptoms

When attempting to perform an upgrade operation on an Azure Kubernetes Service cluster, the process may fail and present an error message indicating an IP address range conflict. The typical error output includes the specific error code and a message detailing the overlap. This message clearly identifies the problematic address ranges involved.

The error message usually appears in a format similar to this:

(ServiceCidrOverlapExistingSubnetsCidr) The specified service CIDR <service-cidr-1> is conflicted with an existing subnet CIDR <subnet-cidr-2>
Code: ServiceCidrOverlapExistingSubnetsCidr
Message: The specified service CIDR <service-cidr-1> is conflicted with an existing subnet CIDR <subnet-cidr-2>
Target: networkProfile.serviceCIDR

Here, <service-cidr-1> represents the CIDR range configured for the AKS cluster’s services, and <subnet-cidr-2> represents the CIDR range of a conflicting subnet found within the cluster’s virtual network or a network it can reach. This conflict prevents the upgrade from proceeding as it violates network design principles required for AKS functionality.

Cause

The root cause of the ServiceCidrOverlapExistingSubnetsCidr error lies in the configuration of the cluster’s network profile, specifically the Service CIDR range. The Service CIDR is a private IP address range from which Kubernetes assigns virtual IP addresses to Services within the cluster. These virtual IPs are internal to the cluster and facilitate communication between pods and services. It is a fundamental requirement that this Service CIDR range does not overlap with the virtual network address space where the AKS nodes reside, nor should it overlap with any other network that the AKS cluster’s virtual network is peered with or connected to via VPNs or ExpressRoute.

Before initiating an upgrade, the Azure platform performs validation checks on the cluster’s network configuration. One critical check is to ensure that the configured Service CIDR does not conflict with any existing subnet CIDR ranges within the associated Azure Virtual Network (VNet) or peered VNets. If this validation detects an overlap between the AKS Service CIDR and any active subnet CIDR, the upgrade operation is halted, and the ServiceCidrOverlapExistingSubnetsCidr error is returned. This check is a safeguard to prevent network routing issues and potential service disruptions within the cluster or connected networks.

Understanding Network Planning in AKS

Effective network planning is paramount when deploying and managing Azure Kubernetes Service clusters. The network configuration impacts not only connectivity within the cluster but also communication with external resources and other networks. Key components of AKS networking that require careful consideration include the Virtual Network (VNet) address space, subnet configurations, the Node Pool subnet, the Service CIDR, the Pod CIDR (depending on the CNI plugin), and DNS settings. Overlooking potential overlaps during the initial design phase or when adding new subnets later can lead to errors like the one discussed here.

Service CIDR Explained

The Service CIDR range is specified when the AKS cluster is initially created and cannot be changed after deployment. This IP range is used exclusively for Kubernetes Services (ClusterIP, NodePort, LoadBalancer internal IPs). It’s a range of virtual IPs, not routable IPs in the traditional sense from outside the cluster, but they are mapped to backend pods by kube-proxy. Choosing a range that is unique and doesn’t overlap with any existing or future planned network ranges is critical for long-term stability and connectivity. A typical recommended size for the Service CIDR is /16, allowing for 65,536 service IPs, though smaller ranges like /20 are also common depending on the expected number of services.

Subnet CIDRs Explained

Subnets are subdivisions of a Virtual Network’s address space. Resources like Azure VMs, network interfaces, and AKS node pools are deployed into specific subnets. Each subnet is defined by a CIDR range that must be unique within the parent VNet. These subnet ranges are actual routable IP spaces. The conflict arises when the virtual, non-routable range used by AKS Services (the Service CIDR) overlaps with a routable range used by a subnet within the VNet where AKS nodes reside or a network connected to it.

Consider a scenario where your VNet has an address space of 10.0.0.0/16. You might create subnets like 10.0.1.0/24 (for VMs) and 10.0.2.0/24 (for AKS nodes). If you initially configured the AKS Service CIDR as 172.16.0.0/20, and later added a new subnet with the range 172.16.10.0/24, this new subnet’s range falls within the existing Service CIDR. The AKS upgrade pre-check identifies this overlap between 172.16.0.0/20 (Service CIDR) and 172.16.10.0/24 (New Subnet CIDR), triggering the error.

Troubleshooting Steps and Solutions

Resolving the ServiceCidrOverlapExistingSubnetsCidr error involves addressing the network range conflict. Since the Service CIDR cannot be changed after cluster creation, the solutions focus on modifying or removing the conflicting subnet, or, in a worst-case scenario, recreating the cluster with a non-conflicting Service CIDR. The appropriate solution depends on the state and importance of the conflicting subnet and the resources within it.

Solution 1: Remove the Overlapping Subnet

This solution is the most straightforward if the overlapping subnet is not critical, is newly created, or does not contain valuable resources. Removing the subnet eliminates the conflicting address range from the VNet.

  • Applicability: Use this solution only if there are no resources attached to the overlapping subnet or if the resources within it can be safely deleted or migrated.

  • Steps:

    1. Verify that no critical resources (like Virtual Machines, network interfaces, databases with VNet integration, etc.) are currently deployed within the overlapping subnet. This check is crucial as deleting a subnet with active resources will result in data loss or resource unavailability.
    2. If resources exist, attempt to migrate them to a different, non-conflicting subnet if possible and necessary. If migration isn’t feasible or the resources are transient/test resources, plan for their removal.
    3. Proceed to delete the subnet. This can typically be done through the Azure portal, Azure CLI, Azure PowerShell, or ARM templates/Bicep. For the Azure CLI, the command would look something like az network vnet subnet delete --resource-group <resource-group-name> --vnet-name <vnet-name> --name <subnet-name>.
    4. Once the subnet is successfully deleted, retry the AKS cluster upgrade operation. The pre-check should now pass as the conflicting subnet range is gone.

  • Considerations: This approach is quick if the subnet is empty or disposable. If it contains resources, the effort involves identifying, backing up (if necessary), migrating, or deleting those resources before the subnet can be removed.

Solution 2: Adjust the Overlapping Subnet Address Range

If the overlapping subnet cannot be deleted because it hosts essential resources, but it is acceptable to change its IP address range, this solution offers an alternative. By reconfiguring the subnet’s CIDR to a range that does not overlap with the AKS Service CIDR, you resolve the conflict.

  • Applicability: Use this solution if the overlapping subnet contains resources that must be preserved, and reconfiguring the subnet’s IP range is permissible within your network design and resource constraints.

  • Steps:

    1. Carefully plan the new CIDR range for the subnet. This new range must be available within the VNet’s address space and, most importantly, must not overlap with the AKS cluster’s existing Service CIDR or any other crucial network ranges.
    2. Understand the implications of changing a subnet’s address range. While Azure allows this for subnets not delegated to specific services (like AKS, App Service, etc.), it can be complex and potentially disruptive, especially if Network Security Groups (NSGs), route tables, or other network configurations are tied to the specific IP range.
    3. Modify the subnet’s address prefix. This operation can typically be performed via the Azure portal or Azure CLI (az network vnet subnet update). Be aware that some operations might require deallocating resources within the subnet temporarily or could cause brief network interruptions.
    4. After successfully updating the subnet’s CIDR to a non-conflicting range, verify that the changes have propagated and that resources within the subnet are functioning correctly with their potentially new internal IP addresses (though typically, the IPs remain the same relative to the new range).
    5. Retry the AKS cluster upgrade operation. With the subnet’s range adjusted, the overlap should no longer exist, allowing the upgrade pre-check to pass.

  • Considerations: This solution preserves the subnet and its resources but requires careful planning to select a new non-conflicting range and manage any potential disruption or reconfiguration needed for resources within the subnet or dependent network rules.

Solution 3: Redeploy the Cluster with a Different Service CIDR

This solution is the most drastic and should be considered as a last resort. It is necessary when neither removing the overlapping subnet (Solution 1) nor adjusting its range (Solution 2) is feasible or acceptable. Since the Service CIDR cannot be modified on an existing AKS cluster, the only way to resolve the overlap by changing the Service CIDR is to delete the current cluster and create a new one.

  • Applicability: Use this solution if the overlapping subnet is critical and cannot be altered (deleted or range adjusted). This implies accepting the significant operational overhead and potential downtime associated with replacing the AKS cluster.

  • Steps:

    1. Develop a comprehensive migration plan for your applications and data running on the existing AKS cluster. Redeploying the cluster means starting with a blank slate; all deployed applications, configurations, persistent volumes, etc., will be lost unless explicitly migrated or recreated.
    2. Design the network configuration for the new AKS cluster. This involves selecting a Service CIDR range that is guaranteed not to overlap with any existing or planned subnet ranges within your VNet or connected networks. Review your entire network topology document (if you have one) to ensure the new range is truly free.
    3. Choose a new Node Pool subnet (or use an existing one) that is separate from the Service CIDR and other key ranges.
    4. Create the new AKS cluster using the carefully selected, non-conflicting Service CIDR and other network parameters.
    5. Deploy your applications and restore any necessary data or configurations onto the new cluster.
    6. Once the new cluster is fully operational and validated, decommission and delete the old AKS cluster.

  • Considerations: This is a high-impact solution requiring significant planning, potential downtime, and the effort to redeploy applications. It underscores the importance of thorough network planning before initial AKS cluster deployment.

Preventing Future Conflicts

Proactive network planning is the best way to avoid the ServiceCidrOverlapExistingSubnetsCidr error. Adopting best practices during the design and expansion of your Azure network and AKS deployments can save considerable troubleshooting effort later.

  • Comprehensive Network Documentation: Maintain up-to-date documentation of all VNet address spaces, subnet CIDR ranges, peering configurations, VPNs, and specific ranges used by services like AKS (Service CIDR, Pod CIDR).
  • Dedicated IP Range Allocation: Reserve specific, non-overlapping IP blocks for different purposes within your organization’s network topology. Allocate a dedicated block for AKS Service CIDRs across all your clusters if you have multiple.
  • Validation Before Deployment: Use tools or scripts to validate proposed new subnet ranges or AKS Service CIDRs against your existing network inventory before deployment.
  • Automated Deployment: Use Infrastructure as Code (IaC) tools like ARM templates, Bicep, Terraform, or Pulumi for deploying network resources and AKS clusters. These tools can help standardize configurations and potentially integrate validation steps.
  • Network Planning Tools: Consider using network planning tools or spreadsheets to visualize and manage your IP address space allocation centrally.

By following these practices, you minimize the risk of inadvertently creating overlapping IP ranges that can cause deployment or upgrade failures.

Visualizing Network Overlap

Understanding IP addressing and CIDR notation can be complex. A visual aid can help illustrate the concept of overlapping ranges. Imagine a number line representing the entire IP address space. A CIDR range represents a segment on this line. An overlap occurs when two different segments cover the same portion of the line.

mermaid %%mermaid graph LR A[Virtual Network Address Space 10.0.0.0/16] --> B(Subnet A: 10.0.1.0/24) A --> C(Subnet B: 10.0.2.0/24) A --> D(Subnet C: 10.0.3.0/24) E[AKS Service CIDR: 10.0.2.0/22] C -- Conflict! --> E
Figure: Conceptual diagram illustrating how an AKS Service CIDR can overlap with an existing Subnet CIDR within the same Virtual Network space, leading to the ServiceCidrOverlapExistingSubnetsCidr error.

In this diagram, the AKS Service CIDR 10.0.2.0/22 includes the range from 10.0.2.0 to 10.0.5.255. Subnet B, with the range 10.0.2.0/24 (10.0.2.0 to 10.0.2.255), falls entirely within the Service CIDR range, causing the conflict.

For further technical depth on AKS networking and avoiding these issues, Microsoft Learn provides extensive documentation. While direct video links cannot be provided here per instructions, searching for official Microsoft Mechanics videos or Azure Friday episodes on “AKS networking” or “Azure CNI” can often provide valuable visual explanations and demonstrations by Microsoft experts. These resources often cover best practices for IP planning and configuration in Azure.

Conclusion

The ServiceCidrOverlapExistingSubnetsCidr error is a network configuration issue arising from a conflict between the AKS Service CIDR and an existing subnet’s address range. Resolving it requires addressing the overlapping range, either by removing or adjusting the subnet, or by recreating the AKS cluster with a non-conflicting Service CIDR. While troubleshooting this error is necessary when it occurs, the most effective strategy is prevention through diligent network planning and documentation from the outset. By carefully allocating IP address ranges and validating configurations before deployment, you can significantly reduce the likelihood of encountering this and other network-related issues during the management and upgrade of your Azure Kubernetes Service clusters.

Have you encountered this error during an AKS upgrade? What solution worked best for your scenario? Share your experiences and insights in the comments below to help others navigating similar network challenges!
