Boost ASP.NET Core Performance: Install & Configure Nginx as a Reverse Proxy

Table of Contents

This article guides you through the process of installing the Nginx web server and configuring it to function as a reverse proxy for an ASP.NET Core application running on a Linux environment. Utilizing Nginx as a reverse proxy can significantly enhance the performance, security, and scalability of your web application. It allows Nginx to handle tasks such as static file serving, request routing, load balancing, and SSL termination, offloading these from the ASP.NET Core Kestrel server.

Prerequisites¶

Before proceeding with the steps outlined in this guide, it is essential to have a functional ASP.NET Core web application already deployed to the /var directory on your Linux machine. This application should be configured to listen for incoming HTTP requests on a specific port, commonly port 5000. For the purpose of this exercise, we assume the application is configured to run without HTTPS redirection, listening directly on HTTP port 5000.

Goal¶

In a standard deployment without a reverse proxy, clients accessing your ASP.NET Core application directly through Kestrel would need to specify the port number, such as http://your-server:5000. This is generally not user-friendly and exposes the backend server directly to the internet. Our primary goal is to configure Nginx to listen on the standard HTTP port 80 and forward incoming requests to the ASP.NET Core application running on port 5000. This allows clients to access the application simply by navigating to http://your-server without the port number. Additionally, we aim to ensure the ASP.NET Core application starts automatically upon system boot or if the process terminates unexpectedly.

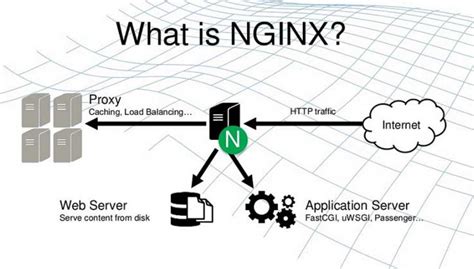

What is Nginx?¶

Nginx (pronounced “engine-x”) is a powerful, high-performance open-source web server, load balancer, and reverse proxy. Developed by Igor Sysoev in 2002, it is renowned for its stability, rich feature set, simple configuration, and low resource consumption. Nginx excels at handling a large number of concurrent connections, making it a popular choice for powering busy websites and applications. Its architecture is event-driven, which makes it more efficient than traditional process-per-connection models, particularly under heavy load.

What is a Daemon?¶

In the context of Unix-like operating systems, a daemon is a type of computer program that runs as a background process. Daemons are often started during the system boot process and continue to run until the system is shut down. They perform various tasks, such as handling network requests, managing hardware, or running scheduled jobs. Similar to “services” in Windows, daemons are designed to operate without direct user interaction and can be configured to start automatically when the system boots. Both Nginx and, eventually, our ASP.NET Core application will be configured to run as daemons.

Installing Nginx using APT¶

Installing Nginx on an Ubuntu-based Linux distribution using the Advanced Package Tool (APT) is a straightforward process. Open your terminal and execute the following command to initiate the installation:

sudo apt update
sudo apt install nginx -y

The sudo apt update command refreshes the list of available packages from the repositories, ensuring you install the latest version. The sudo apt install nginx -y command then downloads and installs the Nginx package, with the -y flag automatically confirming prompts. Once the installation is complete, you can use the whereis nginx command to locate the installed binaries and configuration files. This command typically reveals the primary installation directory and the location of configuration files, which are usually found within the /etc/nginx folder.

Managing Services using systemctl¶

In modern Linux distributions using systemd as the init system, the systemctl command is the primary tool used to manage services, which are often implemented as daemons. This versatile command allows administrators to check the status of services, start, stop, restart, enable, and disable them. The systemctl command interacts with systemd, the system and service manager, to control units, which represent system resources like services (.service), mount points (.mount), and sockets (.socket). Understanding systemctl is crucial for managing background processes like Nginx and your ASP.NET Core application.

Upon installation using apt, Nginx is usually configured to start automatically as a daemon. You can verify its current status by running:

systemctl status nginx

This command provides detailed information about the Nginx service, including whether it is active (running), its process ID, and whether it is enabled to start on boot. The output will likely show active (running) and indicate that the service is enabled. The enabled state signifies that the service is configured to start automatically whenever the system boots up.

Here is a quick reference for common systemctl commands used to manage daemons:

Command	Description	Requires sudo
systemctl status <name>	Show the current status of the service.	No
sudo systemctl start <name>	Start the service.	Yes
sudo systemctl stop <name>	Stop the service.	Yes
sudo systemctl restart <name>	Stop and then start the service. Useful after configuration changes.	Yes
sudo systemctl enable <name>	Enable the service to start automatically at boot. Creates a symlink.	Yes
sudo systemctl disable <name>	Disable the service from starting automatically at boot. Removes the symlink.	Yes
systemctl is-active <name>	Check if the service is currently running (returns 0 if active).	No
systemctl is-enabled <name>	Check if the service is enabled for auto-start (returns 0 if enabled).	No

Restart Daemons¶

To apply configuration changes or simply cycle the service, you might need to restart the daemon. The command to restart a service is sudo systemctl restart <daemon_name>. To restart Nginx, you would run sudo systemctl restart nginx. It’s good practice to check the status (systemctl status nginx) before and after restarting to observe changes, such as the process ID (PID) updating.

Stop Daemons¶

Stopping a daemon temporarily halts its execution. Use the command sudo systemctl stop <daemon_name>. To stop Nginx, run sudo systemctl stop nginx. Checking the status afterward (systemctl status nginx) will show the service as inactive (dead). Importantly, stopping a service does not disable it from starting on boot; it merely stops the current instance.

Disable Daemons¶

Disabling a daemon prevents it from starting automatically when the system boots. This is different from stopping it, as a disabled service could potentially be running if it was started manually. To disable the Nginx daemon from auto-starting, execute sudo systemctl disable nginx. Running systemctl status nginx after this will show the service’s current state (running or stopped) and indicate that it is disabled.

Start Daemons¶

To manually start a daemon that is currently stopped, use the command sudo systemctl start <daemon_name>. To start Nginx, run sudo systemctl start nginx. Checking the status (systemctl status nginx) will now show the service as active (running). If the service was previously disabled, it will start and run, but its status will still indicate disabled, meaning it won’t start automatically on the next boot.

Enable Daemons¶

Enabling a service configures it to start automatically every time the system boots. This is achieved by creating symbolic links in the appropriate systemd directories. To enable Nginx for auto-start, run sudo systemctl enable nginx. Verifying the status (systemctl status nginx) will now confirm that the service is enabled and, if it was previously stopped, it might also be started immediately depending on its configuration and state. A running and enabled service is the desired state for Nginx to serve as a reliable reverse proxy.

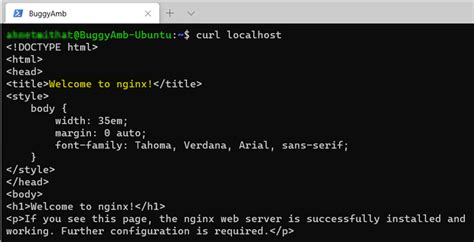

Testing the Nginx Installation¶

By default, a fresh Nginx installation is configured to listen on port 80, the standard HTTP port, and serves a default welcome page. Since we confirmed Nginx is running using systemctl status nginx, we can test its accessibility. The easiest way to do this on the local machine is by using the curl command, which fetches content from a specified URL.

Execute the following command in your terminal:

curl localhost

If Nginx is running and correctly listening on port 80, this command will retrieve the HTML content of the default Nginx landing page. The output will typically include the HTML structure of a page displaying a message like “Welcome to nginx!”. This successful response confirms that Nginx is operational and serving content on port 80, ready to be configured as a reverse proxy.

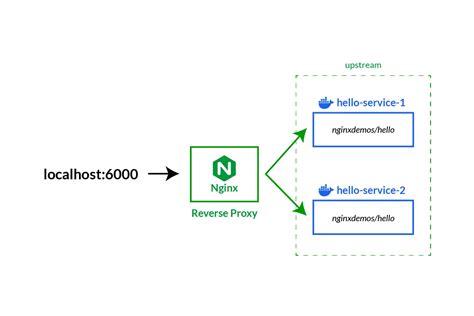

Configure Nginx as Reverse Proxy¶

The core task is now to modify the Nginx configuration so that it accepts incoming requests on port 80 and forwards them to your ASP.NET Core application listening on port 5000. This is achieved by modifying the server block within the Nginx configuration.

Here is the configuration snippet required to set up Nginx as a reverse proxy for an application running on http://localhost:5000:

http {
  # This map is needed for WebSocket connections
  map $http_connection $connection_upgrade {
    "~*Upgrade" $http_connection;
    default keep-alive;
  }

  server {
    listen        80;
    server_name _; # Replace with your domain name or leave as _ for any hostname

    location / {
        proxy_pass         http://localhost:5000;
        proxy_http_version 1.1;
        proxy_set_header   Upgrade $http_upgrade;
        proxy_set_header   Connection $connection_upgrade;
        proxy_set_header   Host $host;
        proxy_cache_bypass $http_upgrade;
        proxy_set_header   X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header   X-Forwarded-Proto $scheme;
    }
  }
}

Let’s break down the key directives within the server block:

• listen 80;: This directive instructs Nginx to listen for incoming connections on port 80.
• server_name _;: This specifies the server names (hostnames) for which this server block is responsible. Using _ is a common wildcard configuration for a default server when you don’t have a specific domain name or want to match any host header. You should replace _ with your actual domain name when deploying to a public server.
• location / { ... }: This block defines how requests are handled based on the request path. The / matches all requests.
• proxy_pass http://localhost:5000;: This is the critical directive that tells Nginx to forward incoming requests to the specified upstream server, which is your ASP.NET Core application running on http://localhost:5000.
• proxy_http_version 1.1;: Sets the HTTP protocol version for proxying. HTTP/1.1 is generally preferred for reverse proxying.
• proxy_set_header ...;: These directives are important for correctly passing client information to the backend application. For example, Host, X-Forwarded-For (original client IP), and X-Forwarded-Proto (scheme, i.e., http/https) headers are crucial for the ASP.NET Core application to correctly process the request and generate appropriate URLs. The Upgrade and Connection headers are necessary for supporting WebSocket connections.

This configuration effectively directs all traffic arriving at Nginx on port 80 towards your backend application on port 5000.

Finding the Correct Nginx Configuration File¶

Nginx’s configuration can be spread across multiple files for better organization. The main configuration file is typically located at /etc/nginx/nginx.conf. However, inspecting this file often reveals that the primary http block and its directives, including server blocks, are often included from other files using the include directive. This modular approach prevents the main file from becoming too large and complex.

Common locations included in nginx.conf are directories like /etc/nginx/conf.d/ and /etc/nginx/sites-enabled/. Configuration files placed in /etc/nginx/conf.d/ usually end with .conf and are automatically included. The /etc/nginx/sites-available/ and /etc/nginx/sites-enabled/ directories are used for managing virtual hosts (separate configurations for different websites/applications). Configurations are created in sites-available and then enabled by creating a symbolic link to them in sites-enabled.

For a default Nginx installation, the default server configuration is often found in /etc/nginx/sites-available/default, which is then linked to /etc/nginx/sites-enabled/default. This default file is usually the one containing the initial server block that we need to modify.

To confirm the structure and location of the default server block, you can inspect the /etc/nginx/sites-enabled/default file using the cat command:

cat /etc/nginx/sites-enabled/default

This command will display the contents of the default configuration file, allowing you to locate the existing server block that needs to be replaced or modified with the reverse proxy configuration provided earlier. This file is the ideal place to put our reverse proxy configuration.

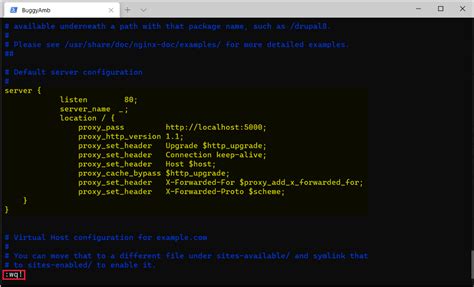

Editing the Configuration File using vi¶

To modify the /etc/nginx/sites-enabled/default file, we will use a text editor available in the terminal. vi is a powerful, standard text editor found on most Linux systems. Although it has a steep learning curve, understanding its basic commands is essential for server administration.

Execute the following command to open the default Nginx configuration file in vi with superuser privileges:

sudo vi /etc/nginx/sites-enabled/default

Once the file is open in vi, you will initially be in “normal mode”. In this mode, keyboard keys execute commands rather than inserting text. To begin editing the file (inserting or deleting text), you must enter “insert mode”. Press the Insert key or the I key on your keyboard. You will see -- INSERT -- appear at the bottom-left corner of the terminal, indicating you are now in insert mode.

In insert mode, you can navigate using arrow keys, type text, and delete characters using the Backspace or Delete key. You can copy the reverse proxy configuration provided earlier and paste it into the terminal (most modern terminals support copy-paste into vi’s insert mode). Carefully replace the existing server block content with the new configuration.

After making your changes in insert mode, press the Esc key to return to normal mode. From normal mode, you can execute commands by typing a colon (:) followed by the command.

Here are some essential vi commands to remember in normal mode (after pressing Esc):

• :wq! : write (save) the changes, quit the editor, and ! forcefully override if needed (useful if the file was read-only).
• :q! : quit the editor without saving changes. Use this if you made a mistake and want to discard everything.
• dd : Delete the current line. Position the cursor on the line you want to delete and type dd.
• 5dd : Delete 5 lines starting from the current line. Be cautious with this!

Use these commands to navigate to the existing server block, delete its lines using dd, and then paste the new configuration while in insert mode. Once the new configuration is in place and you are back in normal mode, save the changes and exit vi by typing :wq! and pressing Enter.

Testing the Nginx Configuration Syntax¶

After modifying any Nginx configuration file, it is crucial to test the syntax before restarting the service. A syntax error in the configuration can prevent Nginx from starting or reloading, leading to unexpected downtime. Nginx provides a command-line test utility for this purpose.

Run the following command to test your configuration file:

sudo nginx -t

This command checks the syntax of all Nginx configuration files and attempts to open files referenced within them. If the configuration is valid, the output will indicate success, usually stating "syntax is ok" and "test is successful".

If there are any errors, the command will report them with file names and line numbers, helping you pinpoint and correct the issues in your configuration file using vi again.

Restarting Nginx¶

Once the configuration syntax is confirmed to be correct, you must restart the Nginx service for the changes to take effect. Use the systemctl command with superuser privileges:

sudo systemctl restart nginx

This command stops the currently running Nginx instance and starts a new one, loading the updated configuration. After restarting, Nginx should now be configured to listen on port 80 and act as a reverse proxy forwarding requests to port 5000.

Troubleshooting the Nginx Proxy Problem¶

After restarting Nginx with the new reverse proxy configuration, the expectation is that accessing http://localhost should now route requests to your ASP.NET Core application. Let’s test this using curl again:

curl localhost

You might encounter an error, potentially an HTTP 502 Bad Gateway. This error indicates that Nginx, while successfully receiving your request on port 80, was unable to connect to the upstream server it was configured to proxy to (your ASP.NET Core application on port 5000).

To diagnose this, we need to check if the backend application is actually running and listening on port 5000. We can use the netstat command combined with grep to filter by the port number.

Run the following command:

netstat -tlp | grep 5000

The netstat -tlp command lists all listening TCP sockets (-t), shows only listening sockets (-l), and displays the PID and program name (-p). Piping this output to grep 5000 filters the results to show only entries related to port 5000.

If the output of this command is empty, it confirms that no process is currently listening on port 5000. This is the root cause of the 502 Bad Gateway error from Nginx – it has nowhere to forward the requests. The solution, in this case, is simple: start your ASP.NET Core application.

Checking Nginx Logs¶

Beyond simply checking if the backend is running, understanding system and application logs is vital for effective troubleshooting. Nginx, like most web servers, keeps detailed logs of requests and errors. These logs provide valuable clues when diagnosing issues.

Nginx logs are typically stored in the /var/log/nginx/ directory. The main log files are access.log and error.log.

• Access logs: Record details about every request processed by Nginx, similar to IIS logs. You can view them using cat /var/log/nginx/access.log. They show the client IP, request path, status code, etc. In the case of a 502 error, the access log will simply show the 502 status for the requests to localhost.

  cat /var/log/nginx/access.log


• Error logs: Record diagnostic information, warnings, and critical errors encountered by Nginx. These are often the first place to look when something goes wrong. View them using cat /var/log/nginx/error.log.

  cat /var/log/nginx/error.log


Inspecting the error.log during a 502 error scenario will likely reveal messages explicitly stating that Nginx failed to connect to the upstream server (e.g., “connect() failed (111: Connection refused) while connecting to upstream”). This confirms that Nginx is working but cannot reach the backend application on the configured port.

Workaround: Manually Starting the ASP.NET Core Application¶

To confirm that your Nginx reverse proxy configuration is correct and the 502 error is solely due to the backend application not running, you can manually start your ASP.NET Core application in a separate terminal session.

Navigate to the directory containing your deployed application files in /var. Then, execute the dotnet command to run your application, ensuring it starts listening on port 5000:

cd /var/YourAspNetCoreAppDirectory
dotnet YourAspNetCoreApp.dll

Once the application starts and indicates it is listening on http://localhost:5000, switch back to your other terminal session. Now, try accessing localhost again using curl:

curl localhost

This time, the request should succeed. Nginx receives the request on port 80, proxies it to the running ASP.NET Core application on port 5000, and returns the application’s response to your terminal. This confirms that the Nginx reverse proxy is configured correctly and functions as intended when the backend service is available.

You have now successfully installed and configured Nginx as a reverse proxy for your ASP.NET Core application running on Linux.

Next Steps¶

While the current setup allows Nginx to proxy requests, your ASP.NET Core application still requires manual intervention to start after a server reboot or process failure. This is not sustainable for a production environment. The next logical step is to configure your ASP.NET Core application to run as a daemon, managed by systemd, ensuring it starts automatically and restarts if it crashes.

Share Your Experience!¶

Have you set up Nginx as a reverse proxy for your ASP.NET Core applications? What challenges did you face, or what tips would you add? Share your thoughts and experiences in the comments below!
