Locate Your FSMO Role Holders: A Windows Server Guide for Efficient Administration

Updated: 07 Jun, 2025 • 0 • min read

Table of Contents

Active Directory relies on Flexible Single Master Operation (FSMO) roles to perform certain tasks that require single-master operations within a multi-master replication environment. Understanding which servers hold these critical roles is essential for efficient Active Directory administration, troubleshooting, and planning. This guide outlines various methods to identify the servers assigned each of the five FSMO roles within your forest and domains.

Active Directory defines five distinct FSMO roles, each serving a specific function to ensure consistency across the directory service. These roles prevent conflicts that could arise if certain operations were allowed to occur simultaneously on multiple domain controllers. The five roles are: Schema Master, Domain Naming Master, RID Master, PDC Emulator, and Infrastructure Master. Identifying the holder of each role is a fundamental task for any Active Directory administrator.

Two of the five FSMO roles exist uniquely at the forest level, meaning there is only one instance of each role throughout the entire Active Directory forest. These are the Schema Master and the Domain Naming Master. The Schema Master governs the definition of all objects and attributes that can be created in the forest’s Active Directory. The Domain Naming Master manages the addition and removal of domains and application partitions in the forest.

The remaining three FSMO roles are specific to each domain within the forest. For every domain configured in your Active Directory forest, there will be one instance of the RID Master, one instance of the PDC Emulator, and one instance of the Infrastructure Master. This means a forest with multiple domains will have multiple servers holding these roles, one set per domain. The RID Master allocates pools of unique Relative Identifiers (RIDs) to domain controllers. The PDC Emulator processes password changes, manages time synchronization, and acts as the primary domain controller for down-level clients. The Infrastructure Master is responsible for updating object SIDs and distinguished names in cross-domain object references.

Determine the RID, PDC Emulator, and Infrastructure FSMO Holders of a Selected Domain Using GUI¶

For domain-specific FSMO roles (RID Master, PDC Emulator, and Infrastructure Master), you can typically use the Active Directory Users and Computers snap-in. This graphical tool provides a straightforward way to quickly identify which server holds these roles for the domain you are currently managing or connected to. This method is often the first step administrators take when needing to locate these roles.

Begin by opening the Run dialog box by pressing Windows Key + R.
Type dsa.msc and press Enter or click OK to launch the Active Directory Users and Computers console. This will open the default view of your connected domain.
In the left pane, locate the Domain Object (usually the root node representing your domain name) at the very top. Right-click on this domain object.
From the context menu that appears after right-clicking the domain object, select Operations Masters. A new dialog box titled “Operations Masters” will open, displaying tabs for the three domain-specific roles.
Within the “Operations Masters” dialog box, click on the PDC tab. This tab clearly displays the name of the server currently holding the PDC Emulator role for the selected domain.
Next, click on the Infrastructure tab. This tab shows the name of the domain controller assigned the Infrastructure Master role for this domain.
Finally, click on the RID Pool tab. This tab will list the name of the server holding the RID Master role, responsible for allocating RID pools within the domain.

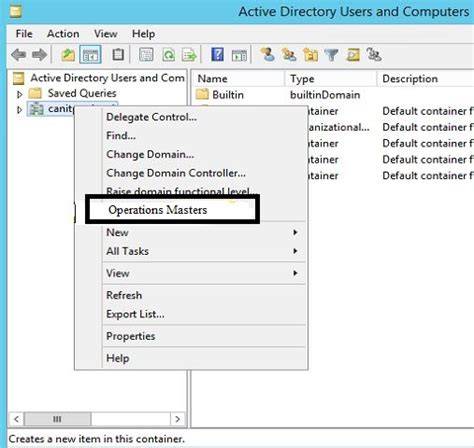

Active Directory Users and Computers Operations Masters

This graphical method provides a quick and accessible way to find the domain-level FSMO role holders without resorting to command-line tools. It’s intuitive for administrators familiar with the standard Windows Server administrative interfaces. Remember that you need appropriate permissions within the domain to view these settings.

Determine the Schema FSMO Holder in a Forest Using GUI¶

The Schema Master role is a forest-wide role, critical for managing the Active Directory schema definition. To find the server holding this unique role, you need to use a specific administrative snap-in that is not registered by default when you install the Active Directory tools. You must explicitly add this snap-in to an MMC console.

Open the Run dialog box by pressing Windows Key + R.
Type mmc and press Enter or click OK to open an empty Microsoft Management Console (MMC) window. This provides a host environment for various administrative snap-ins.
In the MMC window, navigate to the Console menu at the top-left. Click on Add/Remove Snap-in…. This will open a dialog box allowing you to select available snap-ins.
In the “Add or Remove Snap-ins” dialog box, find Active Directory Schema in the list of available snap-ins on the left. Click Add > to move it to the list of selected snap-ins on the right. If you don’t see “Active Directory Schema,” you might need to register the schmmgmt.dll file by running regsvr32 schmmgmt.dll from an elevated command prompt.
Once “Active Directory Schema” is in the “Selected snap-ins” list, click OK. The Active Directory Schema snap-in will now appear in the MMC console.
In the left pane of the MMC console, right-click on Active Directory Schema at the top level.
From the context menu, select Operations Masters…. A small dialog box will appear, displaying the name of the domain controller that currently holds the Schema Master role for the entire forest.

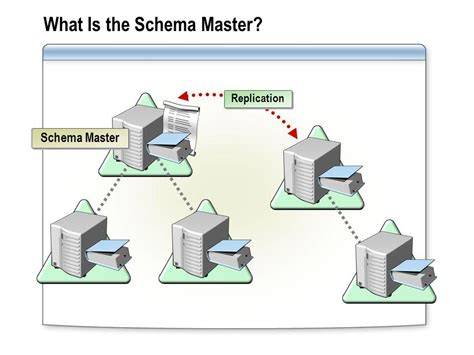

Active Directory Schema Operations Master

This method requires an extra step of adding the specific snap-in, highlighting its specialized nature. The Schema Master is only needed for schema modifications, which are infrequent high-level operations. Knowing its location is vital before attempting any schema extensions or modifications.

Determine the Domain Naming FSMO Holder in a Forest Using GUI¶

The Domain Naming Master is another forest-wide FSMO role. It is responsible for managing the domain tree structure within the forest, specifically adding or removing domains and application partitions. Like the Schema Master, there is only one Domain Naming Master throughout the entire forest.

Open the Run dialog box by pressing Windows Key + R.
Type mmc and press Enter or click OK to open an empty Microsoft Management Console (MMC) window. This is the standard process for hosting administrative tools.
In the MMC window, go to the Console menu. Click on Add/Remove Snap-in… to bring up the list of available snap-ins.
In the “Add or Remove Snap-ins” dialog box, find Active Directory Domains and Trusts in the “Available snap-ins” list on the left. Click Add > to move it to the “Selected snap-ins” list on the right.
Click OK to close the dialog box and add the snap-in to the MMC console. The “Active Directory Domains and Trusts” snap-in will now be visible in the console’s left pane.
In the left pane, click to select the Active Directory Domains and Trusts root node.
Right-click on the Active Directory Domains and Trusts node.
From the context menu, select Operations Master…. A dialog box will appear showing the name of the server that holds the Domain Naming Master role for the forest.

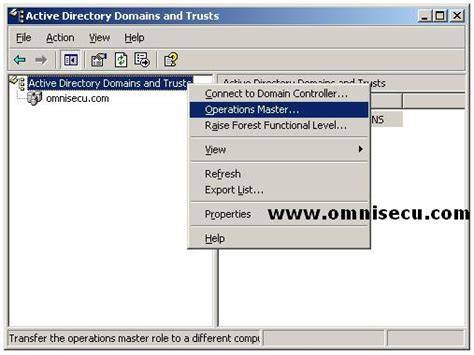

Active Directory Domains and Trusts Operations Master

Using the Active Directory Domains and Trusts snap-in is the standard graphical way to find the Domain Naming Master. This role is crucial when planning changes to the forest structure, such as adding a new child domain or tree. Mismanaging this role holder can lead to significant issues with domain operations.

Using the NTDSUTIL Tool¶

For administrators who prefer command-line interfaces or need a single tool to list all five FSMO roles, the NTDSUTIL utility is invaluable. NTDSUTIL is a powerful command-line tool included with Windows Server domain controllers. It offers extensive capabilities for managing and maintaining the Active Directory database, including the ability to view and transfer FSMO roles.

NTDSUTIL is often considered the most definitive tool for identifying all FSMO role holders. While graphical tools show subsets of roles (domain vs. forest), NTDSUTIL can query any domain controller you connect to and list all the roles it knows about or the roles held by the connected server. This makes it highly flexible for troubleshooting scenarios or auditing role placement across your forest.

Open an elevated Command Prompt window. You can do this by searching for “cmd,” right-clicking on “Command Prompt,” and selecting “Run as administrator.” This is often required for NTDSUTIL operations.
At the command prompt, type ntdsutil and press Enter. You will enter the NTDSUTIL interactive command environment, indicated by the ntdsutil: prompt.
Type roles and press Enter. This selects the FSMO maintenance context, changing the prompt to fsmo maintenance:.
Type connections and press Enter. This selects the server connection context, changing the prompt to server connections:.
Type connect to server ServerName, replacing ServerName with the hostname or IP address of a domain controller you want to query. Press Enter. You should see a message indicating successful connection. It’s recommended to connect to a domain controller that is online and accessible.
Type quit and press Enter to exit the server connections: context and return to the fsmo maintenance: prompt.
Type select operation target and press Enter. This changes the prompt to select operation target:.
Type list roles for connected server and press Enter. NTDSUTIL will query the server you connected to and display a list of all five FSMO roles, showing which server holds each one within the context of the connected server’s knowledge. This output provides a complete picture of FSMO placement from the perspective of that specific DC.
Type quit and press Enter repeatedly to exit the select operation target:, fsmo maintenance:, and finally the ntdsutil: prompts to return to the standard command prompt.

A successful output from list roles for connected server will look similar to this, detailing the DN path of the FSMO role objects and the server holding them:

Server "dc1.corp.com" knows about 5 roles
Schema - CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
Domain - CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
PDC - CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
RID - CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
Infrastructure - CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com

Note: The output shows the DN of the NTDS Settings object on the server holding the role, not just the server name directly. The CN part (e.g., CN=DC1) indicates the server name.

Using NTDSUTIL is crucial when you need to perform operations like transferring or seizing FSMO roles. It provides the most granular control and comprehensive view of the roles compared to the graphical snap-ins. Mastering NTDSUTIL commands is a valuable skill for any Windows Server administrator.

Using DCDIAG¶

DCDIAG is another command-line tool essential for troubleshooting Windows Server domain controllers and Active Directory health. It performs various tests to verify the readiness and proper functioning of a domain controller. One of its tests specifically identifies the FSMO role holders within the enterprise.

The Knowsofroleholders test within DCDIAG is specifically designed to check which domain controllers are currently holding the various FSMO roles. Using the verbose output option (/v) is necessary to display the results of this particular test. DCDIAG is often used as a first step in diagnosing potential Active Directory issues, and checking FSMO role placement is a standard part of that process.

To use DCDIAG to find FSMO role holders:

Open an elevated Command Prompt window on a Windows Server domain controller.
Type the following command and press Enter:
```
dcdiag /test:Knowsofroleholders /v
```
DCDIAG will run numerous tests. The /v switch ensures that the detailed output, including the results of the Knowsofroleholders test, is displayed. Look through the extensive output for the section related to this test. It will list each FSMO role and the server that holds it.

The DCDIAG output for the Knowsofroleholders test will typically look something like this within the larger report:

Starting test: Knowsofroleholders
    Role Schema Owner = CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
    Role Domain Owner = CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
    Role PDC Owner = CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
    Role RID Owner = CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
    Role Infrastructure Owner = CN=NTDS Settings,CN=DC1,CN=Servers,CN=Default-First-Site-Name,CN=Sites,CN=Configuration,DC=corp,DC=com
    ......................... DC1 passed test Knowsofroleholders

DCDIAG provides a convenient way to not only find FSMO roles but also simultaneously check the overall health of your domain controllers and Active Directory replication. It’s a powerful diagnostic utility that should be part of every administrator’s toolkit.

Using PowerShell¶

PowerShell provides a modern and scriptable approach to managing Active Directory, including locating FSMO roles. Active Directory cmdlets make it easy to query for specific information programmatically. This method is highly recommended for automation and scripting tasks.

The Get-ADDomain and Get-ADForest cmdlets are used to retrieve information about the current domain and forest, respectively. These cmdlets include properties that expose the FSMO role owners. This provides a clean and efficient way to get the information directly.

Open PowerShell as an administrator.
To find the domain-specific FSMO roles (PDC Emulator, RID Master, Infrastructure Master) for the current domain, use the Get-ADDomain cmdlet:
```
Get-ADDomain | Select-Object InfrastructureMaster, RIDMaster, PDCEmulator
```
This command retrieves the domain object and then selects only the properties corresponding to the Infrastructure Master, RID Master, and PDC Emulator role owners. The output will list the server names holding these roles.
To find the forest-wide FSMO roles (Schema Master, Domain Naming Master), use the Get-ADForest cmdlet:
```
Get-ADForest | Select-Object SchemaMaster, DomainNamingMaster
```
This command retrieves the forest object and selects the properties for the Schema Master and Domain Naming Master role owners. The output will display the server names for these two roles.

You can combine these commands or format the output as needed using standard PowerShell techniques. For example, to get all five roles in a single output:

$domain = Get-ADDomain
$forest = Get-ADForest
@{
    PDCEmulator = $domain.PDCEmulator;
    RIDMaster = $domain.RIDMaster;
    InfrastructureMaster = $domain.InfrastructureMaster;
    SchemaMaster = $forest.SchemaMaster;
    DomainNamingMaster = $forest.DomainNamingMaster
}

This PowerShell method is highly flexible, allowing you to incorporate FSMO role checking into larger scripts for monitoring, reporting, or automated health checks. It leverages the power and consistency of the Active Directory PowerShell module.

The Importance of Knowing FSMO Role Holders¶

Understanding which servers hold the FSMO roles is not just a matter of curiosity; it is crucial for several administrative tasks and scenarios. Proper FSMO role placement affects Active Directory performance, availability, and the ability to perform specific operations. Knowing their location is fundamental for effective Active Directory management.

Key scenarios where identifying FSMO roles is critical include:

Troubleshooting: Issues with operations like adding new users (RID Master), changing passwords (PDC Emulator), or adding new domains (Domain Naming Master) can often be traced back to problems with the FSMO role holder server or its network connectivity.
Server Maintenance: Before taking a domain controller offline for extended maintenance, patching, or decommissioning, you must know if it holds any FSMO roles. Roles should ideally be transferred off a server before it is permanently removed from the network.
Disaster Recovery: In the event of a failure of a domain controller holding a FSMO role, understanding which server failed and which role it held is the first step in the recovery process, which might involve seizing the role onto another domain controller.
Migration and Upgrades: Planning the migration of FSMO roles to newer or more powerful servers is a standard part of Active Directory infrastructure upgrades. You need to know where they are currently located to plan the transfer.
Performance Tuning: FSMO roles, particularly the PDC Emulator, can experience higher load. Monitoring the performance of FSMO role holders is important to ensure Active Directory responsiveness.

Regularly auditing the location of your FSMO roles and ensuring they are placed on appropriate, reliable, and well-connected domain controllers is a best practice. While FSMO roles are mobile and can be transferred between domain controllers, they cannot be on servers that are not domain controllers. Placing them strategically based on network topology and server reliability is key to a healthy Active Directory environment.

We have explored various methods to locate FSMO role holders, ranging from graphical tools like Active Directory Users and Computers, Schema, and Domains and Trusts snap-ins to command-line utilities like NTDSUTIL, DCDIAG, and PowerShell. Each method has its strengths and is suitable for different situations, whether you need a quick check, a comprehensive list, or a scriptable solution. Familiarity with these tools empowers you to efficiently manage your Active Directory infrastructure.

Finding FSMO roles is a fundamental administrative task. What method do you typically use, and why do you prefer it? Are there any other tools or scripts you find helpful for this purpose? Share your experiences and insights in the comments below!
