Mastering Windows Startup: Advanced Troubleshooting with the LiveRE Tool

Updated: 08 Jun, 2025 • 0 • min read

Table of Contents

The LiveRE tool is a powerful utility designed to assist support professionals and IT agents in diagnosing and resolving complex startup issues on Windows computers. It enables the creation of a bootable image on a USB flash drive, allowing a computer that fails to start from its primary operating system to boot into a minimal, yet functional, environment. This capability is invaluable for troubleshooting “no boot” scenarios, providing access to the system’s files and configuration even when the installed Windows fails to load. Beyond simple file access, LiveRE offers advanced features like remote access, offline registry manipulation (via file access), BitLocker drive unlocking, and access to shadow copies, making it a comprehensive tool for challenging recovery situations.

This tool is specifically engineered for environments where traditional recovery methods, such as the standard Windows Recovery Environment (WinRE), may fall short or lack necessary features like network access and remote command execution. By providing a live operating system environment, LiveRE facilitates a more interactive and robust troubleshooting process compared to basic command-line or limited graphical interfaces offered by standard recovery options. Its primary users are assumed to have a strong understanding of Windows internals, command-line tools, and networking concepts, as its full potential is unlocked through these advanced techniques.

LiveRE to WinRE Comparison¶

Understanding the differences between LiveRE and other available recovery or out-of-band management tools is crucial for selecting the right solution for a given problem. While Windows Recovery Environment (WinRE), typically included with Windows installation media, offers basic troubleshooting options, and hardware-based solutions like Dell’s iDRAC or HPE’s iLO provide remote console access, LiveRE distinguishes itself with its unique combination of features delivered via a portable flash drive.

Here is a detailed comparison highlighting the key capabilities:

Feature	WinRE/WinPE	iDRAC/ILO	LiveRE Live OS
Availability	With DVD/ISO	Special hardware	Flash-drive
Remote Access	No	Yes (Console)	Yes (PowerShell Session)
DISM (Deployment Image Servicing and Management)	Yes	Via WinRE	Yes, with capability to download missing payloads from internet
Disk Management	Yes (DiskPart)	Via WinRE	Yes (PowerShell Storage Cmdlets)
BitLocker Unlock	Yes	Via WinRE	Yes
Copy/Paste for research and log recording	No	No	Yes
Invoke PowerShell scripts	No	No	Yes
Access to Shadow Copies	No	No	Yes
Persistent Network Access	Limited	Yes	Yes
Ability to Install Drivers Post-Boot	Complex/Limited	Via OS Installers	Yes, designed mechanism included
File System Access	Limited (Depends)	Limited (Console)	Full access to attached volumes
Registry Editing	Via Regedit/CMD	Via OS Installers	Indirect (Accessing Hives via share), No GUI Editor

This table clearly illustrates LiveRE’s strengths, particularly in remote access, advanced scripting, and unique features like shadow copy access and enhanced DISM capabilities, which are typically not available in standard WinRE environments or are cumbersome via hardware management consoles. The ability to run arbitrary PowerShell scripts is a significant advantage for automating complex troubleshooting tasks.

System Requirements¶

To effectively use the LiveRE tool, the target computer and the environment from which you prepare the USB drive must meet certain specifications. These requirements ensure that the LiveRE environment can boot and operate correctly, providing the necessary resources for troubleshooting.

Processor: A 1.4 GHz 64-bit processor is the minimum requirement for the LiveRE environment. Most modern computers and servers will easily meet this specification.
RAM: A minimum of 512 MB of RAM is needed. While seemingly low, this is sufficient for the minimal LiveRE operating system and command-line tools. More RAM can improve performance when dealing with large disks or complex operations.
Disk Space: 32 GB of free space is listed, though this is primarily a requirement for a standard Windows installation. For running LiveRE from a USB, the primary concern is the size of the USB drive itself and the space needed for any temporary files or copied data.
Network: A Gigabit (10/100/1000baseT) Ethernet adapter is recommended, particularly if you plan to utilize the remote access features or download files (like missing DISM payloads or drivers) over the network. A 1 Gbps connection provides the best performance for file transfers and remote sessions.
Optical Storage: A DVD drive is only necessary if you were installing a standard OS from DVD media, which is not the case for LiveRE used from a USB drive.
USB 3.0 flash drive: An 8 GB or greater USB 3.0 flash drive is required to hold the LiveRE image and provide adequate speed for booting and operation. Using a faster USB 3.0 or later drive significantly improves performance compared to older USB 2.0 drives.
Video: A Super VGA (1024x768) or higher resolution display is optional, as LiveRE primarily operates via a command-line interface. However, having a display can be useful for initial setup and viewing output directly.
Input Devices: A keyboard and mouse are optional if you intend to use remote access exclusively. However, they are necessary for initial setup and direct interaction with the console if remote access is not configured or working.
Internet: Broadband access is optional but highly recommended. It enables features like downloading missing DISM components and potentially retrieving drivers or troubleshooting guides online directly from the LiveRE environment.

Meeting these requirements ensures a smooth experience when preparing and using the LiveRE tool for troubleshooting purposes.

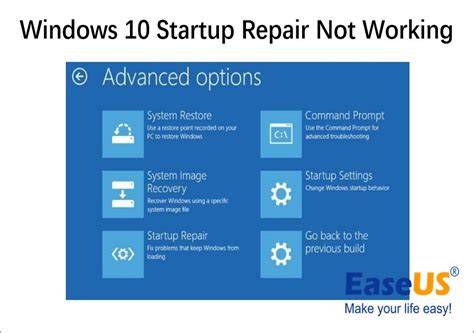

Mastering Windows Startup Troubleshooting

Set Up the USB Flash Drive¶

Preparing the USB flash drive with the LiveRE image involves specific steps to make it bootable and correctly configured for your target system’s firmware type (BIOS or UEFI). It’s critical to follow these steps carefully, as incorrectly formatting or applying the image can result in a non-bootable drive. Ensure you back up any data from the USB drive before starting, as the process will erase all existing content.

Download the LiveRE image. Obtain the LiveRE.wim file from the trusted source. This file contains the core operating system image that will be deployed to the USB drive. Note the complete path to where you save this file.
Connect a USB flash drive. Insert the USB drive (8GB or larger, ideally USB 3.0) into a working computer. Identify the drive letter assigned to it by Windows Disk Management.
Check the target computer’s startup mode (BIOS or UEFI). The way you format the USB drive depends on whether the computer you plan to troubleshoot uses BIOS (often called “Legacy” or “CSM” mode) or UEFI firmware. Most modern computers use UEFI, but older systems or specific server configurations might use BIOS. You can often check this in the target computer’s firmware settings (BIOS/UEFI setup menu). Format the USB drive accordingly:
- For UEFI startup: UEFI systems require a bootable partition formatted with the FAT32 file system. This partition must be created on a GPT (GUID Partition Table) disk. Use Diskpart to prepare the drive:
```
Diskpart
List disk
Sel disk <the number of the flash drive>  // Replace with the actual disk number of your USB drive
Clean                                    // Erases all data and partitioning information
Convert gpt                              // Converts the disk to GPT partition style
Create part pri                          // Creates a primary partition
Exit                                     // Exits Diskpart
```
  After exiting Diskpart, open File Explorer or Disk Management and format the newly created partition on the USB drive using the FAT32 file system. Ensure you assign it a drive letter if one wasn’t automatically assigned.
- For MBR (BIOS) startup: BIOS systems typically boot from a partition formatted with the NTFS file system on an MBR (Master Boot Record) disk. The bootable partition also needs to be marked as ‘active’. Use Diskpart to prepare the drive:
```
Diskpart
List disk
Sel disk <the number of the flash drive>  // Replace with the actual disk number of your USB drive
Clean                                    // Erases all data and partitioning information
Convert mbr                              // Converts the disk to MBR partition style
Create part pri                          // Creates a primary partition
List part                                // Lists partitions on the selected disk
Sel part 1                               // Selects the first partition (the one just created)
active                                   // Marks the partition as active (bootable for BIOS)
Exit                                     // Exits Diskpart
```
  After exiting Diskpart, format the partition on the USB drive using the NTFS file system. Ensure it has a drive letter.
Apply the LiveRE image and configure boot files. With the USB drive correctly formatted and assigned a drive letter (let’s assume it’s F: for this example, replace with your drive letter), open an administrator Command Prompt or PowerShell window. Run the following commands. The first command uses DISM (Deployment Image Servicing and Management) to apply the LiveRE image file (LiveRE.wim) to the USB drive. The second command uses BCDboot to create the necessary boot configuration files on the USB drive, making it bootable.
```
dism /Apply-Image /ImageFile:"<complete path of the LiveOS.wim>" /Index:1 /ApplyDir:<flash drive letter>:\\
<flash drive letter>:\\Windows\\System32\\bcdboot <flash drive letter>:\\Windows /s <flash drive letter>: /f ALL
```
Replace <complete path of the LiveOS.wim> with the actual path to your downloaded LiveRE.wim file (e.g., "C:\Downloads\LiveRE.wim"). Replace <flash drive letter> with the drive letter of your USB drive (e.g., F). The /Index:1 parameter specifies the image index to apply (usually 1 for .wim files containing a single OS image). The bcdboot command’s /f ALL parameter creates boot files compatible with both BIOS and UEFI, making the drive more universally bootable if you are unsure of the target system’s mode, though formatting (GPT+FAT32 or MBR+NTFS) is still mode-specific for optimal compatibility.

After successfully executing these commands, the USB flash drive is ready. You can now insert it into the affected computer and configure its firmware settings to boot from the USB drive. The computer should then start into the LiveRE environment, presenting you with a Help console followed by access to a PowerShell session.

Create User Account for Remote Access¶

One of the most powerful features of LiveRE is the ability to establish remote access to the non-starting computer. This is typically achieved via a PowerShell session over WinRM (Windows Remote Management), allowing support professionals to interact with the system as if they were sitting in front of it, but from a jump server or management workstation. For security and convenience, it’s advisable to create a dedicated user account within the LiveRE environment specifically for remote access.

The following steps outline how to create a local user account with administrative privileges within the LiveRE environment, which you can then use for remote connections:

Start the problem computer using the USB flash drive. Boot the affected machine from the LiveRE USB drive. The LiveRE environment will load. You will likely be presented with an initial screen or a Help console. Accept any EULA prompts to proceed.
Access PowerShell. The LiveRE environment is command-line focused. After the initial prompts, press Enter to access the PowerShell console. This is where you will execute the necessary commands.
Run the following cmdlets to create the user account. You will use PowerShell’s New-LocalUser and Add-LocalGroupMember cmdlets to create a new local user and add them to the local Administrators group.
```
$Password = Read-Host -AsSecureString
New-LocalUser "user_name" -Password $Password
Add-LocalGroupMember -Group "Administrators" -Member "user_name"
```
Replace "user_name" with the desired username for your remote access account (e.g., "LiveREadmin").
When you run the first cmdlet, $Password = Read-Host -AsSecureString, the system will prompt you to enter the password securely. Type the desired password and press Enter. The typed characters will not be displayed for security. This securely stores the password in a variable.
The New-LocalUser cmdlet creates the user account with the specified username and the password stored in the $Password variable.
The Add-LocalGroupMember cmdlet then adds this newly created user account to the local “Administrators” group, granting it the necessary permissions to perform troubleshooting tasks remotely.

Once these commands are successfully executed, the computer running LiveRE is configured with a local user account that has administrative privileges. This account can now be used to authenticate remote connections from a jump server or another computer on the network via WinRM. This setup provides a secure and efficient way for IT support to diagnose and repair systems without needing physical access after the initial boot from USB.

Connect from the Jump Server¶

With the target computer successfully booted into LiveRE and a user account created for remote access, you can establish a connection from a working computer (the jump server) on the same network. This connection will typically be a PowerShell session using WinRM, allowing you to execute commands and scripts remotely within the LiveRE environment on the target machine.

Here’s how to connect from your jump server:

Get the IP address from the LiveRE screen. When LiveRE boots and obtains a network configuration, it will typically display the assigned IP address on the console screen. Note this IP address, as you will need it to connect from the jump server. Ensure the jump server can communicate with this IP address over the network.
Open PowerShell ISE (or standard PowerShell) on the jump server. Navigate to the jump server (a working computer on the same network segment) and open PowerShell ISE or a standard PowerShell console. Ensure you run it as an administrator if necessary for network operations.
Run the following PowerShell script to establish the remote session. This script sets up the connection parameters and initiates the remote PowerShell session (PSSession). Replace the placeholder values with the actual IP address of the LiveRE machine and the username you created.
```
$ip = "172.25.80.68" # Replace with the actual IP address of the LiveRE machine
Set-Item WSMan:\localhost\Client\TrustedHosts $ip # Allows connection to a non-domain host without certificate
$user = "$ip\user_name" # Replace with the IP and username created in LiveRE
Enter-PSSession -ComputerName $ip -Credential $user
```
The first line sets a variable $ip to the target machine’s IP address.
The second line is crucial for connecting to a non-domain joined machine (like LiveRE). By default, WinRM requires the target machine to be part of a trusted domain or have a valid certificate. Adding the target IP to TrustedHosts on the client (jump server) bypasses this requirement for that specific IP address. Be mindful of the security implications when using TrustedHosts and use it only for trusted, temporary connections.
The third line constructs the username string in the format required for authenticating against a local account on a remote machine (IP\username).
The final line, Enter-PSSession, attempts to establish the remote PowerShell session to the specified computer ($ip) using the provided credentials ($user).
Enter the password when prompted. After running the Enter-PSSession cmdlet, a credential prompt will appear. Enter the password for the user account you created in the LiveRE environment (user_name).
You will be connected to the broken computer through WinRM. If the credentials are correct and the connection is successful, your PowerShell prompt on the jump server will change, typically indicating the remote computer name or IP address (e.g., [172.25.80.68]: PS C:\>). You are now executing commands directly on the computer running LiveRE.

WinRM Connection Troubleshooting¶

If you encounter issues connecting via WinRM, here are some common causes and troubleshooting steps:

WinRM not enabled: Although LiveRE is designed to enable WinRM, verify its status. On the LiveRE machine (if you have direct console access or can use alternate remote methods), run winrm qc. This command performs quick configuration for WinRM and addresses common setup issues.
Firewall blocking WinRM: Ensure the firewall on the LiveRE machine (and any firewalls between the jump server and LiveRE machine) is not blocking WinRM traffic. WinRM typically uses HTTP on port 5985 and HTTPS on port 5986.
Network Category set to Public: A common issue is the network connection in LiveRE being classified as “Public”. Windows Public network profiles have stricter firewall rules that typically block WinRM. You can check the network category from the LiveRE PowerShell session:
```
Get-NetConnectionProfile | select InterfaceAlias, NetworkCategory
```
A sample output might show your Ethernet adapter listed with NetworkCategory : Public. To change this to Private (which has more permissive firewall rules for local network services like WinRM), run the following cmdlet. Replace "vEthernet (Internal LAN)" with the actual InterfaceAlias name from the previous command’s output.
```
Set-NetConnectionProfile -interfacealias "vEthernet (Internal LAN)" -NetworkCategory Private
```
After changing the network category, retry the Enter-PSSession command from the jump server.
Name Resolution: While using an IP address for TrustedHosts and Enter-PSSession is robust, ensure there are no DNS or NetBIOS issues if attempting to connect by hostname. Using the IP address is generally more reliable in isolated troubleshooting scenarios.
LiveRE Image Issues: In rare cases, the LiveRE image itself might be corrupted or fail to configure WinRM correctly. Recreating the USB drive might be necessary.

By addressing these points, you should be able to establish a reliable remote PowerShell session to the computer running LiveRE, gaining full command-line control for diagnosis and repair.

Unlock BitLocker Drives from LiveRE¶

One challenge when troubleshooting systems with full disk encryption like BitLocker is accessing the data on the encrypted volumes from a recovery environment. LiveRE provides built-in support for unlocking BitLocker-protected drives using the recovery password or key protectors. This allows you to access and manipulate files on the encrypted volumes for backup or repair purposes.

Here are the steps to unlock a BitLocker drive from the LiveRE PowerShell session:

Identify the BitLocker-protected volume. Within the LiveRE PowerShell session (either directly on the console or via a remote PSSession), use the Get-Volume cmdlet to list all detected volumes and their properties. Look for volumes that are BitLocker-protected. The output will show details like drive letter, file system, health status, and potentially BitLocker status.
```
Get-Volume
```
Examine the output to find the drive letter of the volume you need to unlock (e.g., D:, E:). Note the drive letter.
Unlock the volume using Unlock-BitLocker. Once you have identified the drive letter and have the BitLocker recovery password or numerical recovery key, use the Unlock-BitLocker cmdlet.
```
Unlock-BitLocker -MountPoint <drive letter>: -RecoveryPassword <recovery password>
```
Replace <drive letter> with the drive letter identified in the previous step (e.g., D). Replace <recovery password> with the actual 48-digit numerical recovery password for that volume. Be careful when typing the password.
Alternatively, if you have the BitLocker recovery key file or other key protectors, other parameters for Unlock-BitLocker can be used. Consult the PowerShell documentation for the Storage module for more options.
```
Unlock-BitLocker -MountPoint D: -RecoveryPassword "Your48DigitRecoveryPasswordHere"
```
If successful, the BitLocker-protected volume will be unlocked and become accessible within the LiveRE environment under its assigned drive letter. You can then navigate its file system, copy files, or perform other troubleshooting tasks that require access to the drive’s contents.

This feature significantly enhances LiveRE’s capability in enterprise environments where BitLocker is widely deployed, allowing IT professionals to recover data or diagnose issues on encrypted systems without needing to resort to more complex or time-consuming methods.

Disk Configuration using PowerShell¶

Unlike the standard Windows Recovery Environment which includes the Diskpart command-line utility, LiveRE does not include Diskpart.exe. However, LiveRE leverages the power of PowerShell’s Storage module, which provides a comprehensive set of cmdlets for managing disks, partitions, and volumes. These cmdlets offer similar functionality to Diskpart, and in many cases, provide more flexibility and scripting capabilities.

Here are some common disk configuration tasks and the corresponding PowerShell cmdlets you can use in LiveRE:

Check available Disks: To list the physical disks connected to the system, similar to Diskpart’s list disk, use Get-Disk. This cmdlet provides information about disk number, friendly name (model), size, and partition style (MBR or GPT).
```
Get-Disk
```
Check partitions on a Disk: To view the partitions on a specific disk, use Get-Partition and specify the -DiskNumber parameter. This is equivalent to selecting a disk in Diskpart and running list partition. The output shows partition number, drive letter, file system, size, and type.
```
Get-Partition -DiskNumber <number>
```
Replace <number> with the disk number obtained from Get-Disk.
Set a partition to Active (for MBR boot): If you are troubleshooting a BIOS-based system that boots from an MBR disk, the primary boot partition must be marked as ‘active’. This is equivalent to select partition X followed by active in Diskpart.
```
Set-Partition -DiskNumber <number> -PartitionNumber <number> -IsActive $true
```
Replace the <number> placeholders with the appropriate disk and partition numbers. The -IsActive $true parameter sets the partition’s active flag.
Check properties of a Partition: To get detailed information about a specific partition, similar to detail partition in Diskpart, pipe the Get-Partition cmdlet output to Format-List (fl).
```
Get-Partition -DiskNumber <number> -PartitionNumber <number> | Format-List
```
This provides a list of all properties for the selected partition.
Initialize a Disk: To prepare a new, uninitialized disk for use, you can use Initialize-Disk. This cmdlet allows you to specify the partition style (GPT or MBR).
```
Initialize-Disk -Number <number> -PartitionStyle GPT
```
Create a New Partition: To create a new partition on a disk, use New-Partition. You can specify size, drive letter, and file system upon creation.
```
New-Partition -DiskNumber <number> -UseMaximumSize -AssignDriveLetter | Format-Volume -FileSystem NTFS -Confirm:$false
```
This example creates a single partition using all available space, assigns it a drive letter, and formats it as NTFS.

Assign/Remove Drive Letter: To assign or remove a drive letter from a volume, use Add-PartitionAccessPath or Remove-PartitionAccessPath.

Get-Partition -DiskNumber <number> -PartitionNumber <number> | Add-PartitionAccessPath -AssignDriveLetter
# To remove a drive letter:
# Get-Partition -DriveLetter <drive letter> | Remove-PartitionAccessPath -AccessPath <drive letter>:\

These examples demonstrate that PowerShell provides robust alternatives to Diskpart for managing storage devices within the LiveRE environment. Familiarizing yourself with the cmdlets in the Storage module is highly beneficial for effectively using LiveRE for disk-related troubleshooting. For a comprehensive list of cmdlets and their usage, refer to the official Microsoft documentation for the Windows Storage Management PowerShell module.

Registry Configuration¶

The LiveRE environment is minimal and does not include a graphical registry editor like Regedit.exe. While this might seem like a limitation for troubleshooting registry-related issues, it doesn’t mean you cannot access or modify the registry of the offline operating system. Instead, you need to access the registry hive files directly.

The registry data for a Windows installation is stored in files located within the \Windows\System32\config directory of the installed operating system. These files are known as “hives” (e.g., SYSTEM, SOFTWARE, SAM, SECURITY, DEFAULT). To modify the registry of the offline OS from LiveRE, you need to:

Access the offline OS files: The most convenient way to access the files of the non-starting operating system from LiveRE, especially if you are connected remotely, is by accessing the administrative share. Assuming the offline OS volume is accessible (e.g., assigned drive letter C: in LiveRE), you can access its files via the network path \\<IP Address of LiveRE machine>\c$. If you are working directly on the LiveRE console, you can simply navigate to the drive letter assigned to the offline OS volume (e.g., C:\Windows\System32\config).
Locate the registry hive files: The primary hive files are located in the \Windows\System32\config folder of the offline OS.
Load and modify the hives: From LiveRE (either directly or remotely via PSSession), you can use command-line tools like reg.exe or PowerShell’s Registry provider to load the offline hives. The reg load command is typically used for this purpose. For example, to load the SYSTEM hive:
```
reg load HKLM\<TemporaryHiveName> <Path to SYSTEM hive file>
```
Replace <TemporaryHiveName> with a temporary name for the loaded hive (e.g., Offline_SYSTEM). Replace <Path to SYSTEM hive file> with the full path to the SYSTEM hive file on the offline volume (e.g., C:\Windows\System32\config\SYSTEM).
Once loaded under the HKLM (HKEY_LOCAL_MACHINE) key with a temporary name, you can navigate and modify keys and values within that temporary hive using standard registry tools or cmdlets (e.g., reg query, reg add, reg delete, Get-ItemProperty, Set-ItemProperty).
Unload the hives: After making your changes, it is crucial to unload the hive to save the changes back to the file and release the lock on the hive file.
```
reg unload HKLM\<TemporaryHiveName>
```

This method allows you to perform complex registry edits on the non-booting system, such as disabling services, changing startup programs, or modifying critical configuration settings that might be preventing the OS from starting. It requires comfort with command-line registry manipulation, but provides powerful offline repair capabilities.

Access Shadow Copies¶

LiveRE offers a unique capability to access volume shadow copies (also known as “Previous Versions”) from the disks of the computer being troubleshooting. Shadow copies are snapshots of file system volumes created by the Volume Shadow Copy Service (VSS), often used for backups or system restore points. Accessing these snapshots can be incredibly useful for recovering previous versions of files that might be corrupted, deleted, or causing system issues, allowing you to replace them with known good versions.

Here’s how you can access shadow copies from within the LiveRE PowerShell environment:

List available Shadow Copies: Use the Get-CimInstance cmdlet to query information about existing shadow copies on the system’s volumes. Pipe the output to select to show relevant properties like the volume name, a unique ID, the creation date, and importantly, the DeviceObject path, which is needed to access the snapshot.
```
Get-CimInstance -ClassName Win32_ShadowCopy | select volumename,ID,InstallDate,DeviceObject
```
To correlate the VolumeName (which is a GUID path) with a drive letter in LiveRE, you can also run Get-Volume | select Driveletter,Path. Match the Path output from Get-Volume with the VolumeName from Get-CimInstance.
- Important Note on Time: LiveRE by default uses Coordinated Universal Time (UTC, or Greenwich Mean Time). When viewing InstallDate for shadow copies, be aware that the displayed time will be in UTC. Adjust your interpretation based on the target system’s actual time zone to identify the correct snapshot based on its creation time.
Create a link to access the Shadow Copy: The DeviceObject property from Get-CimInstance represents the internal path to the shadow copy volume. You cannot directly navigate this path. To access the files within the shadow copy, you need to create a symbolic link (a directory junction) to this device object path. You can use the cmd /c mklink /d command for this purpose within PowerShell.
```
$sobj="<DeviceObject>" + "\" # Append a backslash to the DeviceObject path
cmd /c mklink /d C:\shadowcopy "$sobj"
```
Replace <DeviceObject> with the actual DeviceObject path obtained from the Get-CimInstance output (e.g., \\?\GLOBALROOT\Device\HarddiskVolumeShadowCopy1). The first line stores this path in a variable and appends a trailing backslash, which is often needed for mklink. The second line executes the mklink command via cmd.exe to create a directory junction named shadowcopy in the root of the LiveRE’s C: drive (which corresponds to the primary accessible volume in LiveRE, not the target system’s C: drive). This junction points to the shadow copy’s device object path.
If you are accessing the LiveRE machine remotely via a PSSession and want to access the shadow copy from your jump server, you can create the link on the LiveRE machine as shown above, and then access it via the administrative share: \\<IP Address of LiveRE machine>\c$\shadowcopy.

Once the symbolic link is created, you can navigate into the C:\shadowcopy directory (or \\<IP Address>\c$\shadowcopy remotely) to browse the file system as it existed when the shadow copy was created. This allows you to copy specific files or folders from the shadow copy to a different location (e.g., another drive, a network share) to restore them or use them for comparison.

Injecting Drivers¶

In troubleshooting scenarios, especially when dealing with servers or custom hardware configurations like RAID arrays or specialized network adapters, the minimal operating system environment of LiveRE might not include the necessary drivers to access all hardware components, particularly storage volumes. If LiveRE boots but cannot see your disks, you likely need to inject drivers for your storage controller (e.g., RAID controller).

LiveRE provides mechanisms to load necessary drivers so that the troubleshooting environment can fully access the target system’s hardware.

One method designed into LiveRE involves preparing the drivers beforehand:

Obtain the necessary drivers: Get the correct drivers for your hardware components (typically storage controllers like RAID adapters or AHCI/NVMe controllers, but potentially network adapters too) from the Original Equipment Manufacturer (OEM) website or support media. Ensure you download the drivers compatible with the Windows version LiveRE is based on (often Windows Server or a compatible desktop version, check LiveRE documentation if available). The drivers should be extracted into their raw format (usually .inf, .sys, .cat files).
Copy drivers to the USB drive: Create a specific folder on your LiveRE USB flash drive (on the accessible partition) named CopyDriversHere. Copy the extracted driver files and folders into this CopyDriversHere folder before booting the target machine with the USB.
Use the LiveRE Boot Menu option: After starting the affected server from the LiveRE USB flash drive, you might encounter a boot menu or initial options screen. LiveRE is mentioned to have a specific option, often triggered by pressing a number key (like 4 in the original text), to scan the USB drive’s CopyDriversHere folder and automatically install the drivers found there. If such an option exists and works, this is the easiest method.

If the automatic method doesn’t work or is not available, you might need to inject drivers manually from the LiveRE PowerShell session. While the original text is brief on this, manual driver injection in a Windows Preinstallation Environment (WinPE) or similar minimal OS typically involves using tools like Dism.exe or PnPUtil.exe. Assuming these tools are available in LiveRE or can be executed:

Locate the driver files: Ensure the driver files are accessible from the LiveRE environment (e.g., copied to a location on the LiveRE C: drive or accessible via network share).
Use Dism.exe: The Dism /Add-Driver command can be used to add drivers to a running Windows installation or a mounted WIM image. While LiveRE is a running OS, this command is often used to stage drivers for the offline Windows installation you are trying to repair. To add a driver to the running LiveRE environment itself, you might need to experiment if standard PnP methods fail.
```
# Example using Dism to add driver to an *offline* Windows image mounted at C:\OfflineMount
# This is NOT for the running LiveRE, but a common use case in recovery environments
# Dism /Image:C:\OfflineMount /Add-Driver /Driver:"<path_to_driver_inf>"
```
Use PnPUtil.exe: PnPUtil is a command-line tool to perform driver package operations. You can use it to add and install drivers to the running operating system.
```
# Example using PnPUtil to add and install a driver in the running OS (LiveRE)
pnputil /add-driver "<path_to_driver_inf>" /install
```
Replace <path_to_driver_inf> with the full path to the driver’s .inf file.
After running PnPUtil and if the driver is installed successfully, the hardware device should be recognized, and its associated volumes or interfaces should become available in LiveRE.

Injecting the correct drivers is a critical step when LiveRE cannot detect the storage where the problematic OS is installed, as you cannot perform any file system or disk-level troubleshooting without accessing the target volumes.

Common Troubleshooting Scenarios with LiveRE¶

Beyond the specific technical steps, understanding how LiveRE is applied in real-world scenarios helps illustrate its value. Its capabilities make it suitable for a range of advanced troubleshooting tasks:

Fixing Boot Configuration Data (BCD) issues: Corrupted or incorrect BCD stores are a frequent cause of “no boot” errors. From the LiveRE PowerShell session, you can access the BCD store on the offline OS volume and use tools like bcdedit.exe (if available) or PowerShell cmdlets to repair or rebuild it.
Replacing Corrupted System Files: If a critical system file is damaged, missing, or infected by malware, preventing startup, you can use LiveRE to access the offline OS volume, potentially retrieve a good copy from a shadow copy or a backup location, and replace the problematic file.
Running Offline Malware Scans: While LiveRE itself might not include an antivirus scanner, you can copy a portable scanner tool onto the USB drive or a network share. Boot into LiveRE, access the offline OS drive, and run the scanner from the LiveRE environment to detect and clean malware without the installed OS running (which might hide or interfere with the scan).
Diagnosing Disk Errors: Using PowerShell storage cmdlets or disk checking tools (chkdsk.exe if available or accessible from a recovery partition), you can diagnose file system corruption or bad sectors on the target drives from LiveRE.
Data Recovery: Even if the OS is unrecoverable, LiveRE allows you to mount the volumes (including unlocking BitLocker drives), copy important user data and configuration files to external storage or a network share before attempting a full system restore or reinstallation.
Disabling Services or Drivers Causing Startup Failures: If a specific service or recently installed driver is causing the OS to crash during startup, you can use LiveRE to access the offline registry hives, load them, and disable the problematic service or driver entry before attempting to boot the main OS again.
Analyzing System Logs and Crash Dumps: Accessing the offline OS allows you to retrieve event logs (.evt or .evtx files) and crash dump files (.dmp files) from directories like \Windows\System32\winevt\Logs and \Windows\Minidump or \Windows. These files can be copied off the machine using LiveRE’s file access capabilities and analyzed on another computer to pinpoint the root cause of the startup failure.

These scenarios demonstrate how LiveRE provides a powerful, flexible environment to tackle complex problems that are difficult or impossible to resolve with simpler recovery tools.

Conclusion¶

The LiveRE tool is an indispensable asset for IT professionals and support agents facing challenging Windows startup and system access issues. By providing a bootable, network-aware, and scriptable recovery environment on a portable USB drive, it significantly enhances the ability to diagnose, repair, and recover data from non-booting computers. From advanced disk and registry manipulation using PowerShell to unique features like shadow copy access and seamless remote connectivity via WinRM, LiveRE offers capabilities that often surpass those found in standard recovery environments or hardware-based management tools.

Mastering the techniques outlined, including preparing the bootable media, configuring network access, leveraging PowerShell for system interaction, and utilizing features like BitLocker unlock and driver injection, empowers support personnel to resolve complex problems efficiently and effectively. While it requires a solid understanding of Windows command-line tools and networking, the power and flexibility it provides make it a valuable addition to any IT professional’s toolkit for advanced Windows troubleshooting.

Have you used the LiveRE tool in your troubleshooting workflow? What scenarios have you found it most useful for? Share your experiences and tips in the comments below!

Computacionvinchi
