Optimize IPv4 Routing: Understanding and Utilizing the Automatic Metric Feature in Windows Server

Table of Contents

Routing is a fundamental process in networking, determining the optimal path for data packets to travel from a source to a destination. In Windows Server environments, understanding how routes are selected is crucial for network performance and reliability. One key factor influencing route selection is the route metric. This value represents the “cost” associated with using a particular route or network interface.

A metric is a numerical value assigned to a specific IP route on a network interface. This value helps the operating system decide which route to use when multiple paths exist to the same destination network or host. Lower metric values indicate a more preferred route, while higher values suggest a less preferred or more costly path. The metric can be based on various factors, such as link speed, hop count, latency, or other administrative costs.

The Automatic Metric feature in Windows is designed to simplify the configuration of routing metrics. Instead of requiring manual assignment for every route on every interface, this feature automatically calculates and assigns a metric based on the speed of the network link. This automation streamlines the process of setting up multi-homed servers or clients and helps ensure that the fastest available network connections are utilized by default for outbound traffic.

When enabled, Automatic Metric assigns a metric value to the default gateway configured on a network interface, as well as to other routes associated with that interface. The system uses predefined tables that map link speeds to corresponding metric values. This means that a 1 Gbps Ethernet interface will typically receive a lower, and thus more favorable, metric than a 100 Mbps Ethernet interface when Automatic Metric is active.

The Need for Automatic Metric¶

In modern server environments, it is common for a single server or workstation to have multiple network interfaces. This could be for reasons such as connecting to different network segments, providing redundancy, or increasing aggregate bandwidth through techniques like link aggregation. When multiple interfaces are active, the system’s routing table can end up with several potential paths to the same destination.

Without a mechanism like Automatic Metric, the system would need a way to arbitrate which path is best. Manually configuring metrics for every interface and every potential route can be a tedious and error-prone process, especially in dynamic environments. Furthermore, relying solely on the order in which interfaces come online or are configured might lead to suboptimal routing decisions, where slower links are preferred over faster ones.

The Automatic Metric feature addresses this challenge by introducing a predictable and performance-aware method for assigning route costs. By basing the metric on link speed, Windows attempts to prioritize routes that are likely to offer better bandwidth and lower latency. This is particularly useful when a computer has connections of varying speeds, such as a mix of wired Ethernet, Wi-Fi, or even slower connections like dial-up or cellular data (though less common on servers).

Consider a server with two network cards: one connected to a high-speed backbone at 10 Gbps and another connected to a legacy network segment at 100 Mbps. Both interfaces might have routes leading to the internet or internal network resources. With Automatic Metric enabled, the 10 Gbps interface will automatically receive a significantly lower metric value compared to the 100 Mbps interface. This ensures that outbound traffic, especially to external networks like the internet, preferentially uses the faster 10 Gbps link, maximizing performance.

How Automatic Metric Works¶

Automatic Metric operates by evaluating the current operational speed of a network interface. It then consults an internal table that maps speed ranges to specific metric values. This assigned metric is then applied to the routes associated with that interface, including host routes, network routes, and the default gateway route if one is configured on that interface. The routing table, which lists all known routes and their associated metrics, is then used by the IP stack to determine the best path for outgoing packets.

When a destination IP address needs to be reached, the routing table is consulted. If multiple routes match the destination (e.g., multiple default gateways, or routes to the same subnet via different interfaces), the route with the lowest metric is selected as the preferred path. If multiple matching routes have the same lowest metric, the system might use a round-robin approach or other tie-breaking mechanisms, depending on the specific configuration and Windows version.

The mapping tables used by Automatic Metric have evolved across different versions of Windows to better reflect changing network speeds and technologies. Initially, the ranges were simpler, but with the advent of multi-gigabit Ethernet, faster Wi-Fi standards, and diverse network media, the tables have become more granular to provide finer control over route prioritization.

It’s important to note that Automatic Metric is configured per network interface. This allows administrators to enable or disable it independently for each connection. For instance, on a server with a dedicated management interface and a high-speed data interface, Automatic Metric might be ideal for the data interface to prioritize speed, while the management interface might have a manually assigned metric or even Automatic Metric disabled if precise control over its traffic routing is required for security or isolation purposes.

Automatic Metric Tables Across Windows Versions¶

The specific metric values assigned by the Automatic Metric feature are determined by the link speed of the network interface. These mappings have been updated in different Windows versions to accommodate increasing network speeds. Let’s look at how these values have changed over time.

For older versions of Windows, the mapping was relatively straightforward:

Link Speed	Metric
Greater than or equal to 2 Gb	5
Greater than 200 Mb	10
> 20 Mb, <= 200 Mb	20
> 4 Mb, <= 20 Mb	30
> 500 Kb, <= 4 Mb	40
Less than or equal to 500 Kb	50

With the release of Windows XP Service Pack 2 and subsequent Windows operating systems up to Windows 7/Server 2008 R2, the table saw some refinement, introducing more granularity in the mid-ranges:

Link Speed	Metric
Greater than or equal to 2 Gb	5
Greater than 200 Mb	10
> 80 Mb, <= 200 Mb	20
> 20 Mb, <= 80 Mb	25
> 4 Mb, <= 20 Mb	30
> 500 Kb, <= 4 Mb	40
Less than or equal to 500 Kb	50

Windows 10 and newer versions introduced even more detailed tables, especially differentiating between wireless and other interface types, reflecting the diverse performance characteristics of modern networks.

For interfaces with physical medium types like Wireless LAN (NdisPhysicalMediumWirelessLan), Wireless WAN (NdisPhysicalMediumWirelessWan), or Native 802.11 (NdisPhysicalMediumNative802_11):

Link Speed	Metric
Greater than or equal to 2 Gb	25
>= 500 Mb and < 2 Gb	30
>= 200 Mb and < 500 Mb	35
>= 150 Mb and < 200 Mb	40
>= 80 Mb and < 150 Mb	45
>= 50 Mb and < 80 Mb	50
>= 20 Mb and < 50 Mb	55
>= 10 Mb and < 20 Mb	60
>= 4 Mb and < 10 Mb	65
>= 2 Mb and < 4 Mb	70
>= 500 Kb and < 2 Mb	75
>= 200 Kb and < 500 Kb	80
Less than 200 Kb	85

For other interface types (primarily wired, but also virtual interfaces that don’t fit the wireless categories):

Link Speed	Metric
Greater than or equal to 100 Gb	5
>= 40 Gb and < 100 Gb	10
>= 10 Gb and < 40 Gb	15
>= 2 Gb and < 10 Gb	20
>= 200 Mb and < 2 Gb	25
>= 80 Mb and < 200 Mb	35
>= 20 Mb and < 80 Mb	45
>= 4 Mb and < 20 Mb	55
>= 500 Kb and < 4 Mb	65
Less than 500 Kb	75

These tables demonstrate Windows’ attempt to assign lower metrics (higher priority) to faster interfaces. The increasing granularity and differentiation reflect the growing complexity and varying performance characteristics of modern network technologies. Understanding these tables is key to predicting how Windows will route traffic when Automatic Metric is enabled.

Advantages and Disadvantages of Automatic Metric¶

The Automatic Metric feature offers several significant advantages. Primarily, it simplifies network configuration on multi-homed systems. Administrators are freed from the task of manually calculating and assigning metrics to ensure optimal routing based on speed. This reduces the potential for configuration errors that could lead to slower connections being preferred or traffic being routed unexpectedly.

Secondly, it promotes the use of the fastest available network interfaces for general traffic. By automatically assigning lower metrics to higher-speed links, Windows naturally steers outbound data towards the paths with the greatest bandwidth potential. This is beneficial for overall network performance, especially for applications that are sensitive to throughput.

However, Automatic Metric is not without its limitations. Its main disadvantage is that it only considers link speed. While link speed is a crucial factor, it is not the only determinant of path quality. Other factors like latency, packet loss, and congestion are not taken into account by Automatic Metric. A route over a high-speed link might still be suboptimal if it traverses a highly congested network segment with significant packet loss compared to a slightly slower but less congested path.

In scenarios where factors other than raw speed are paramount, or where specific traffic needs to be routed over a particular interface regardless of its speed (e.g., management traffic, backup traffic), relying solely on Automatic Metric may not be sufficient. This is where manual metric configuration becomes necessary, allowing administrators to override the automatic assignment and dictate routing preferences based on criteria beyond just link speed.

Furthermore, Automatic Metric applies a single metric value to all routes learned or configured on a specific interface (except for manually configured static routes or default gateways with explicit metrics). This lack of granularity means you cannot use Automatic Metric to assign different priorities to different types of traffic originating from the same interface. For more complex routing policies, static routes with carefully assigned manual metrics or policy-based routing might be required.

Configuring Automatic Metric¶

The Automatic Metric feature is enabled by default on network interfaces in Windows. However, you can disable it and manually assign a metric if needed. This configuration can be done through the graphical user interface (GUI) or using command-line tools like Netsh or PowerShell.

Using the Graphical User Interface (GUI):

1. Open Network Connections. This can be done by searching for “View network connections” in the Start menu or navigating through Control Panel (Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings).
2. Right-click the specific network interface you want to configure (e.g., Ethernet, Wi-Fi).
3. Select Properties.
4. In the properties window, select Internet Protocol Version 4 (TCP/IPv4) from the list.
5. Click the Properties button.

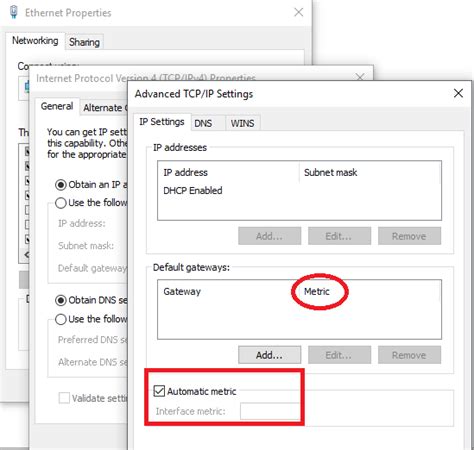

6. In the TCP/IPv4 Properties window, click the Advanced… button on the General tab.
7. In the Advanced TCP/IP Settings window, navigate to the IP Settings tab.
8. At the bottom of this tab, you will see a section titled “Interface metric”. By default, the Automatic metric checkbox is selected.
9. To disable Automatic Metric and assign a manual metric, uncheck the Automatic metric box.
10. Once unchecked, the Interface metric field becomes editable. Enter the desired metric value (a positive integer). Remember that lower values are preferred.
11. Click OK on all open windows to save the changes.

Using Command Line (Netsh):

The netsh command-line utility provides a way to configure network settings, including interface metrics.

To check the current metric of an interface:

netsh interface ipv4 show interface "Interface Name"

Replace "Interface Name" with the actual name of your network adapter (e.g., “Ethernet”, “Wi-Fi”). Look for the “Metric” value in the output.

To enable Automatic Metric on an interface:

netsh interface ipv4 set interface "Interface Name" metric=auto

To disable Automatic Metric and set a manual metric:

netsh interface ipv4 set interface "Interface Name" metric=Value store=persistent

Replace "Interface Name" with the interface name and Value with the desired integer metric. store=persistent ensures the change persists after a reboot.

Using PowerShell:

PowerShell offers more modern cmdlets for network configuration.

To check the current metric of an interface:

Get-NetIPInterface -InterfaceAlias "Interface Name" | Select-Object InterfaceAlias, InterfaceMetric, SettingDataAutoconfigureAddress

Replace "Interface Name" with the interface name. InterfaceMetric shows the applied metric, and SettingDataAutoconfigureAddress indicates if Automatic Metric is enabled (True) or disabled (False) for the IP configuration settings.

To enable Automatic Metric on an interface:

Set-NetIPInterface -InterfaceAlias "Interface Name" -AutomaticMetric Enabled

To disable Automatic Metric and set a manual metric:

Set-NetIPInterface -InterfaceAlias "Interface Name" -AutomaticMetric Disabled -InterfaceMetric Value

Replace "Interface Name" and Value accordingly.

Configuring the metric on the interface itself affects all routes associated with that interface, including any default gateways added to it. However, you can also configure a metric specifically for a default gateway, which overrides the interface metric for that particular route. This is done in the Advanced TCP/IP Settings window when adding or modifying a default gateway.

Verifying and Troubleshooting Metrics¶

After configuring Automatic Metric or manual metrics, it is essential to verify that the changes have been applied correctly and to understand how Windows is using these metrics to route traffic. The route print command is a powerful tool for this purpose.

Open Command Prompt or PowerShell and type:

route print

or for IPv4 specific routes:

route print -4

The output displays the IPv4 Routing Table. This table lists all known network destinations, their associated network mask, the gateway used to reach them, the interface through which the gateway is accessible, and importantly, the Metric for that specific route.

Look at the “Active Routes” section. You will see entries for network destinations (like 0.0.0.0 for the default route), host routes, and network routes. Pay close attention to the ‘Metric’ column. If Automatic Metric is enabled, the metric shown here for routes on that interface will correspond to the value determined by the interface’s speed according to the tables discussed earlier (unless overridden by a specific route metric). If you manually set a metric, that value should appear here for routes associated with that interface, assuming no specific route metric overrides it.

Troubleshooting:

• Unexpected Routing: If traffic is not flowing as expected (e.g., using a slower interface), check the route print output. Compare the metrics assigned to the routes for the destination you are trying to reach. The route with the lowest metric is the one being used.
• Metric Values: Verify that the metric values are what you expect based on the interface speed (if using Automatic Metric) or your manual configuration. If the speed displayed in Network Connections seems incorrect, troubleshoot the network adapter driver or physical link.
• Multiple Default Gateways: If you have multiple default gateways configured, Windows will install a default route (0.0.0.0) for each, using the metric assigned to the interface or manually to the gateway. The gateway associated with the lowest metric 0.0.0.0 route will be the primary path for internet-bound traffic. If multiple 0.0.0.0 routes have the same lowest metric, Windows may load-balance traffic across them.
• Persistent Routes: Ensure that manual metric changes made via netsh or PowerShell are persistent across reboots by using the store=persistent flag or equivalent cmdlet parameters.
• Route Specificity: Remember that Windows always prefers more specific routes (e.g., a route to 192.168.1.0/24) over less specific ones (e.g., a default route 0.0.0.0), regardless of the metric. Metrics are only compared when multiple routes of the same specificity match a destination.

Using route print in conjunction with ping or tracert to test paths can help diagnose routing issues related to metrics. For example, tracert will show the path packets take, allowing you to see which gateway and interfaces are being used.

Advanced Scenarios and Considerations¶

While Automatic Metric is convenient, certain advanced scenarios might require careful consideration or manual intervention.

• Load Balancing vs. Failover: Having multiple default gateways with the same lowest metric can result in basic load balancing, where Windows distributes connections across those paths. However, this is not a sophisticated load-balancing mechanism and doesn’t offer session persistence or advanced traffic distribution rules. If you require true load balancing or active/passive failover with more control, dedicated software (like Windows Network Load Balancing) or hardware solutions are usually necessary.
• Dead Gateway Detection: Windows has a feature called Dead Gateway Detection, which can switch to an alternative default gateway if the primary one becomes unresponsive (based on TCP retransmissions). This feature interacts with routing metrics, as it switches to the next available gateway with the next lowest metric. Automatic Metric helps set up the initial prioritization, and Dead Gateway Detection provides a degree of automatic failover. However, Dead Gateway Detection only works for TCP traffic and is initiated by the client application’s TCP stack, not the OS routing core itself.
• VPN Connections: When a VPN connection is established, Windows often adds new routes or modifies existing ones. The metric assigned to the VPN interface and its associated routes (including potentially a new default gateway for the VPN tunnel) will interact with existing local routes and default gateways. Careful consideration of metrics is needed to ensure traffic is routed correctly – either all traffic through the VPN (common for client VPNs) or only specific traffic destined for the remote network (common for site-to-site VPNs or split-tunnel configurations).
• Virtual Machines: Virtual machines running on Windows Server hypervisors (like Hyper-V) have their own network interfaces and routing tables. The Automatic Metric feature applies within the guest operating system just as it does on the host. When configuring networking for VMs, especially multi-homed VMs or those with multiple virtual adapters connected to different virtual switches, configuring metrics correctly within the guest OS is important for optimal routing from within the VM. The virtual switch configuration on the host also plays a role in how traffic is directed externally.

Understanding the interaction between Automatic Metric, manual metrics, static routes, and other routing features (like policy-based routing, if implemented) is key to managing complex network configurations in Windows Server environments. While Automatic Metric simplifies basic setups, deeper knowledge is required for fine-tuning performance, implementing redundancy, or adhering to specific network policies.

Consider using network monitoring tools alongside routing table inspection to get a complete picture of how traffic is flowing and identify potential bottlenecks or misconfigurations related to routing metrics.

Conclusion¶

The Automatic Metric feature in Windows Server is a valuable tool for simplifying IPv4 route configuration on systems with multiple network interfaces. By automatically assigning route costs based on link speed, it helps ensure that faster connections are preferentially used for network traffic, contributing to better performance out-of-the-box. While convenient and enabled by default, it’s crucial to understand how it works, the specific metric values assigned based on speed and Windows version, and its limitations.

In scenarios requiring precise control over routing, such as implementing specific load balancing or failover strategies, routing critical traffic over a dedicated link, or prioritizing paths based on criteria other than speed, manual metric configuration or the use of more advanced routing features becomes necessary. Knowing when to rely on Automatic Metric and when to override it manually is a key skill for any Windows Server administrator dealing with multi-homed systems. Regularly reviewing the routing table using commands like route print is essential to verify configurations and troubleshoot potential routing issues.
